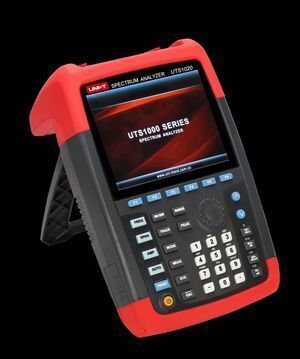

Sale promotion UNI-T UTS1020 6.5''TFT-LCD 9kHz~ 2.6GHz, Handheld Spectrum analyzers

Click here to contact
Product details
Model Number:UTS1020;DC Gain Accuracy:±3%;
Sample Rate:1GS/s;Place of Origin:Guangdong China;
Brand Name:uni-t;Resolution:1hz;
Color:White and grey;Range:9k--7.5g;
Frequency range:9kHz to 2GHz;Single gross weight:60.0 KG;
Selling Units:Single item;Single package size:80X60X50 cm;
Type:Spectrum Analyzer;
Product Description





Specification

UTS1010

UTS1020

UTS1030

Range

9kHz~2GHz

9kHz~2.6GHz

9kHz~3.6GHz

Resolution

1Hz

Accuracy

+/-(Frequency Marker Readout*Frequency Reference Accuracy +1%*Span +10%*RBW+0.5*[Span/(Sweep Points-1)]+1Hz)

Internal Reference(10MHz)

Aging Rate: <1ppm/year;  Stability Over Temperature :<0.5ppm(15°C ~ 35°C)

Range

10Hz~3MHz, Customized down to: 1Hz~10Hz

Electability(60dB/3dB)

RBW≤500kHz :<5:1 Typical (Digital implementation,next to Gaussian shape);  <5%  Typical

Accuracy

RBW≤500kHz : <5% Typical

Video Bandwidth

10Hz~3MHz

Preamplifier Off

100kHz~1MHz:<-100dBm-3×(f/100kHz)dB; 1MHz~10MHz:<-130dBm;
10MHz~1GHz:<-135dBm; 1GHz~3.6GHz:<-130dBm

Preamplifier On

100kHz~1MHz:<-120dBm-3×(f/100kHz)dB; 1MHz~10MHz:<-150dBm;
10MHz~1GHz:<-155dBm; 1GHz~3.6GHz:<-148dBm

Span  (100Hz≤SPAN≤3.6GHz)

10ms to 3000s

Zero Span

1ms to 3000s

Trigger Source

AUTO,Video,EXT

Offset 100kHz

5V TTL Level (Typical )

Resolution

1Hz,10Hz,100Hz,1kHz

Uncertainty

Frequency Readout x Frequency Reference Progress+Counter Resolution

Overall  Amplitude Accuracy(90%)

 +/-1.5dB,Input Signal Range:  -50dBm ~ 0dBm

Max. Safe Input  Level

Average Continuous Power: +27dBm

Input Attenuator  Range

0~39dB, in 3dB step

Frequency Range

100kHz to 1.5GHz

Output Power

-30dBm ~ 0dBm, in 1dB step

Reference Input/Output

10MHz, BNC Female, Input: 0dBm ~  +10dBm;Ouput: 0dBm±2dB

Power

Li-ion Battery: 7.4V 6600mAh;DC Adapter: 100-240VAC 50/60Hz 1.5A

Display

6.5 Inches  TFT  LCD,  640×480

Standard Accessories

DC Adapter,N/SMA Convertor,N/BNC Convertor, RF Cable, Antenna

Standard Carton Measurement (L×W×H)

400mm × 280mm × 220mm

Standard Carton Cross Weight

3.9 Kg



Advantages





Certifications



Packaging & Shipping



Company Information

FAQ

 Q: Are you trading company or manufacturer ?
A: We are UNI-T Original factory.Q: How long is your delivery time?
A: Generally it is 3-5 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:

Q: Are you trading company or manufacturer ?
A: We are factory.Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us
