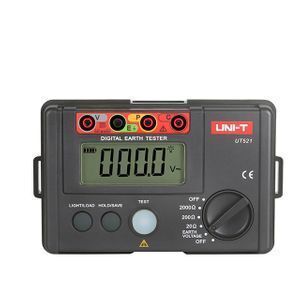

sale promotion Digital Earth Ground Testers UNI-T UT521 Electrical Earth Voltage Device
-
Supplier: Gongying Electron (Huizhou) Co., Ltd. -
Region: Guangdong, China -
Contact: Mr William Wang -
Price: $59.90 /piece -
Min. Order: 1 piece
| COLOR: | red and grey; | Power supply: | 1.5V Alkaline BatteriesL R6 * 6; |
| Measuring Range: | 0-2000ohm; | Testing Voltage: | 0-200V; |
| Brand Name: | UNI-T; | Display Type: | Analogue and Digital; |
| Single package size: | 20X10X6 cm; | Application: | Textile; |
| Selling Units: | Single item; | Model Number: | UT521 Earth Ground Testers; |
| Place of Origin: | China; | Accuracy Class: | ±(2%+3); |
| Dimensions: | 160mm*70.5mm*100mm; | Operating Temperature: | 5℃-40℃; |
| Single gross weight: | 9.0 KG; |
Grounding Resistance Tester UT520 is designed with intelligent micro-controller chip
to maintain high accuracy and reliability.It can measure earth resistance of earth
ground devices for electric power installations, electrical appliances,
lightening protection systems, etc, and also measure earth voltage(It is highly
recommended not to use the Tester under severe outdoor environments such as raining or thunder).
| asic Functions | Range | Best Accuracy | |||
|---|---|---|---|---|---|
| Earth Resistance Testing | 0 ~ 20W 0 ~ 200W 0 ~ 2000W | ±2%rdg±0.1W ±2%rdg±3dgt ±2%rdg±3dgt | |||
| Earth Voltage Testing | 0~200Vac(50/60Hz) | ±1%rdg±4dgt | |||
| Special Functions | |||||
| Data Hold | YES | ||||
| Backlight Display | YES | ||||
| Data Logging | 20 | YES | |||
| Battery Check | YES | ||||
| Sleep Mode | Around 10 Minutes | YES | |||
| Full Icon Display | YES | ||||
| Over-range Display | Display "OL" | YES | |||
| Contact Badness Display | C Port or E Port dont contact Display"- - - -W" | YES | |||
| Simple 2-Wires Testing | YES | ||||
| Precision 3-Wires Testing | YES | ||||
| Double Insulation Protection | YES | ||||
GENERAL CHARACTERISTICS
| Power | 1.5V Alkaline Battery(AA) x 6 |
| LCD Size | 70.6 mm x 34 mm |
| Product Color | Grey |
| Product Net Weight | 560g |
| Product Size | 160 x 100 x 70.5 mm |
| Standard Accessories | Battery, Three Test Lead (Green + Yellow + Red), English Manual, Simple Test Lead, Carrying Bag, Test Probe 2 pcs |
| Standard Individual Packing | Gift Box |
| Standard Quantity Per Carton | 4 pcs |
| Standard Carton Measurement | 615 x 530 x 190 mm (0.062 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 15kg |
