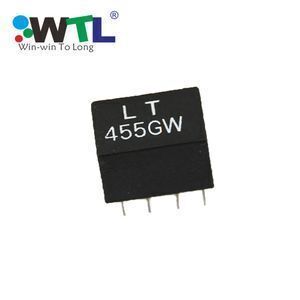

LTM455GW DIP 455KHz Ceramic Filter Active Electronic Components for Sales

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.16 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Payment Terms:	L/C,T/T,Paypal;	About Us:	19 Years Experience;
Supply Ability:	10000000 Piece/Pieces per Month Ceramic Filter;	Type:	Ceramic Filter;
RIPPLE:	2.0 dB MAX;	Brand Name:	WTL;
Transfer Function:	Band Pass;	Stopband Attenuation:	45.0 dB Min;
Samples:	Accept;	Package Type:	Throught Hole;
Nominal Center Frequency:	455KHz;	Port:	Shenzhen;
OEM/ODM:	Welcome;	Packaging Detail:	Boxes and Carton, 500pcs/Box(LTM455GW DIP 455KHz Ceramic Filter Active Electronic Components for Sales);
Input Impedance:	1.5KΩ;	Place of Origin:	Guangdong China (Mainland);
Item:	Ceramic Filter;	Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;
Operating Temperature Range:	-20+80'C;	Certificate:	ISO9001, ISO14000, SGS, RoHS;
Model Number:	WTL2.24210ZX;	Insertion Loss:	5.0dB Max;
Warranty:	Global 180 Days Return;	3dB Bandwidth:	/;
Factory Manufacturer:	Yes;

LTM455GW DIP 455KHz Ceramic Filter Active Electronic Components for Sales

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

Electrical Specifications

ITEM	SPECIFICATION
CENTRE FREQUENCY(f.)	455±1.0 KHz
BAND WIDTH(6 dB)	±10.0 KHz Min
SELECTIVITY(50dB)	±20.0 KHz Max
STOP BAND ATTENUATION	45.0 dB Min
RIPPLE	2.0 dB Max
INSERTION LOSS	5.0 dB Max

LTM455GW DIP 455KHz Ceramic Filter Active Electronic Components for Sales

Packaging & Shipping

Our Services

1.19 Years Experience

2.PCB VS Crystal Matching Test for Free

3.FAE Support

4.Certification: ISO9001, ISO14001, SGS, RoHS

5.Provide A Full Set of Reliability Lab

6.Door to Door Service

7.Global 180 Days Return

8.Over 72 Countries and Regions, 27 Distributors

9.Custom-made Frequencies Due to we have our own Wafer Production Line

Our factory has a history of 19 years and it is located on Tongling City, Anhui Province, China. It covers an area of 6000 square meters. It has over 200 workers, Include Production, QA, QC, Warehouse, R&D, Technical, IQC. Welcome to Our Factory!

FAQ

1.What is the general lead-time of the products?

Product	Lead Time
HC49 Series	1-2 weeks
SMD Crystal	1-4 weeks
DIP Oscillator	1-2 weeks
SMD Oscillator	1-3 weeks
TCXO	2-8 weeks
Watch Crystal	1-2 weeks

2.Since the lead-time is set, what about samples?

Usually the samples are needed the same lead time. By the way, we can offer each customer 10-20PCS samples free of charge.

3.What basic information to provide when ordering a crystal?

Generally we request the customer to provide the center frequency, type of cutting angle(AT/BT), holder or package type, resistance(ESR), frequency tolerance, frequency stability, load capacitance, operating temperature, drive power, aging, etc, Customer can also specify other specific spec or requirement, if any, when placing orders.

4.What is the WTL main material?

Type	Vendor
Crystal Bar	South Urals,Russia- Crystal Factory, TF
Base	SMI/NTK/KYOCERA(JP)
IC	NPC- Japan
Top Cover	Hua Nu Dike/Yoshikawa Corporation (JP)
Conductive Glue	Three Bond – (JP)
