WTL Pad CMOS SMD Crystal Oscillator 150mhz 7050 3.3V 4 150.000mhz Industrial 7.0*5.0mm Datasheet Free Samples WTL2.02620ZX 3.63V

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.32 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Nominal Frequency:	150.000MHz;	Frequency Range:	13.7KHz-166MHz;
Voltage - Supply:	3.3V;	Base Resonator:	Crystal;
Application level:	Industrial;	Package Type:	SMD;
Payment Terms:	L/C,Western Union,T/T,Paypal,Credit Card;	Fan Out Type:	CMOS;
Product Name:	SMD Crystal Oscillator 150MHz;	Current - Supply (Max):	3.63V;
Port:	Shenzhen;	Brand Name:	WTL;
Item:	Crystal Oscillator 150MHz;	Packaging Detail:	1000pcs/Reel (WTL Pad CMOS SMD Crystal Oscillator 150mhz 7050 3.3V 4 150.000mhz Industrial 7.0*5.0mm Datasheet Free Samples WTL2.02620ZX 3.63V);
Certification:	ISO9001, ISO14001,RoHS;	Supplier Type:	Original manufacturer;
Place of Origin:	Guangdong China;	Frequency:	150MHz;
Media Available:	datasheet;	Model Number:	WTL2.02620ZX;
Sample:	Free Samples;	Supply Ability:	1000000 Piece/Pieces per Week;
Dimensions:	7.0*5.0mm;	Package:	Tape and Reel;
Warranty:	Global 180 Days Return;	Frequency Tolerance:	±30ppm;
Payment:	T/T, Western Union, PayPal,Credit Card;	Brand:	Crystal Oscillator 150MHz;
Operating Temperature:	-40+85℃;	Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;
Frequency Stability:	13.7KHz-166MHz;	Load Capacitance:	15pF;
Type:	SMD Crystal Oscillator 150MHz;	About Us:	19 Years Experience;

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

FEATURE

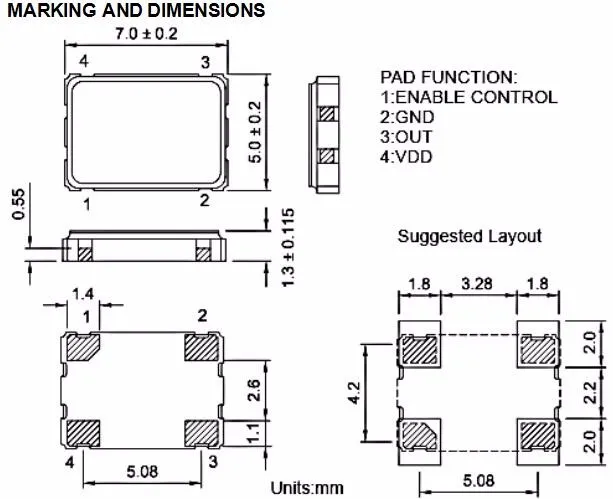

1. Typical 7.0*5.0*1.3mm ceramic SMD package

2. Output frequency up to 200MHz

3. Tri-state enable/disable

4. Typical Application:xDSL,WLAN,Fiber/10Gbit Ethernet, Notebook,PDA ,PC main board,VGA card

ELECTRICAL SPECIFICATIONS

*Crystal Oscillator(7.05.0mm SMD)**
Item	Specifications
P/N	WTL2.02620ZX
Frequency	150.000MHz
Fan Out Type	CMOS
Supply Voltage	3.3V
All Condition	±30ppm
Operating Temperature Range	-40°C--+85°C
Storage Temperature Range	-55 °C to + 125 °C
Aging @25°C 1^st year (Max)	± 3ppm/year
