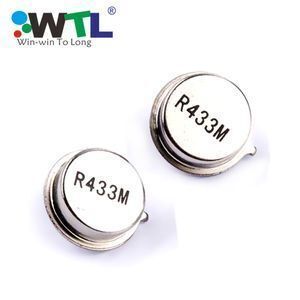

WTL TO39 433.42MHz One Port Saw Resonator

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.08 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Port:	Shenzhen;	Item:	433.42MHz Saw Resonator;
Supply Ability:	1000000 Piece/Pieces per Month 433.42MHz Saw Resonator;	Frequency Stability:	/;
Packaging Detail:	Opp Bag + Carton(TO39 433.42MHz One Port Saw Resonator);	About Us:	19 Years Experience;
Impedance:	/;	Build-in Load Capacitance:	/;
Bandwidth:	±75KHz;	Package Type:	DIP;
Insertion Loss:	1.5dB;	Center Frequency:	433.42MHZ;
Package:	T0-39;	Frequency Range:	433.42MHz;
Warranty:	Global 180 Days Return;	Model Number:	WTL2.01238ZX;
Package Preview:	;	Certificate:	ISO9001, ISO14001, RoHS;
Shipment:	DHL, UPS, TNT, Fedex, EMS,China Post;	Operating Temperature:	-40+85'C;
Cross Reference:	/;	Frequency Tolerance:	/;
Payment Terms:	L/C,T/T,Western Union,Paypal;	Operating Temperature Range:	-40+85'C;
Brand:	Resonator;	Brand Name:	WTL;
Supplier Type:	Original manufacturer;	Frequency:	433.42MHz;
Place of Origin:	Guangdong China;	D/C:	/;

TO39 433.42MHz One Port Saw Resonator

WTL----Win-win To Long

WTL is a professional manufacturer of Quartz Crystal Electronic Components in China, Established in 2001, Which Specializes in researching & developing, producing and marketing, WTL offers kinds of crystals in order to pace with wide applications.whatever you do need ,standard or high-class requirement on special fields, we will support you right quartz crystal resonator and oscillator with 100% repliability insurance.

Website: www.wtlcrystals.com

TO39 433.42MHz One Port Saw Resonator

1. ELECTRICAL SPECIFICATION

DC Voltage VDC	10V
AC Voltage Vpp	10V50Hz/60Hz
Operation temperature	-40℃ to +85℃
Storage temperature	-45℃ to +85℃
RF Power Dissipation	0dBm

Item		Unites	Minimum	Typical	Maximum
Center Frequency		MHz	423.345	433.420	423.495
Insertion Loss		dB		1.5	2.5
Quality Factor Unload Q			5000	12,800
50Ω Loaded Q			1000	2,000
Temperature Stability	Turnover Temperature	℃	10	25	40
	Turnover Frequency	KHz		fo±1.3
	Freq.temp.Coefficient	ppm/℃2		0.032
Frequency Aging		ppm/yr		<±10
DC. Insulation Resistance		MΩ	1.0
RF Equivalent RLC Model	Motional Resistance RM	Ω		19	26
	Motional Inductance LM	μH		74.835
	Motional Capacitance CM	pF		1.8917
Transducer Static Capacitance Cp		pF		2.0

Remark:WTL support OEM design, welcome to contact us for other specifications.
