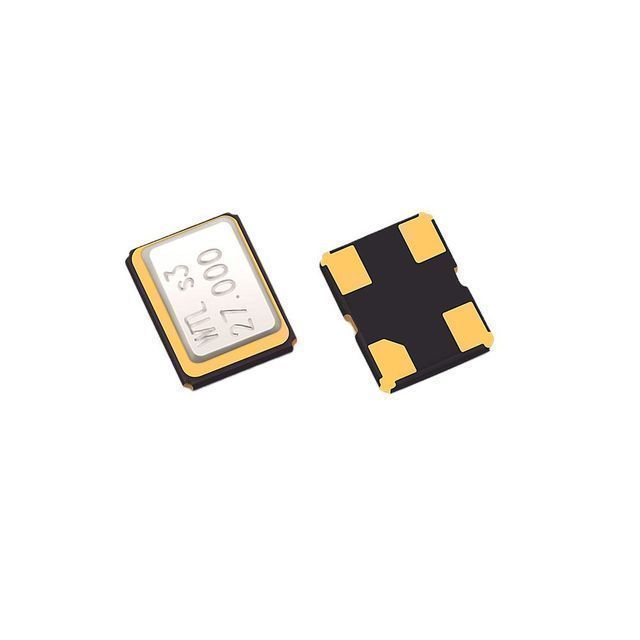

WTL SMD 20Mhz 18pF 10ppm 3225 quartz crystal

Supplier: WTL International Limited
Region: Guangdong, China
Price: $0.10 / 10 - 9999 pieces
$0.09 / 10000 - 99999 pieces
$0.08 / >=100000 pieces
Min. Order: 10 pieces

Click here to contact

Product details

frequency:	20.000000MHz	port:	Shenzhen
Original Equipment Manufacturer:	support	Warranty:	Worldwide 180-day returns
Frequency Stability:	±10ppm, ±10ppm	about us:	20 years experience
Available media:	data sheet	Installation type:	surface mount
sample:	free	range of working temperature:	-20+70℃
Load capacitance:	18pF,18pF	brand:	WTL
type:	SMD crystal	pack:	Reels and cartons
model:	3225 Crystal	place of origin; place of origin:	Guangdong, China
Certificate:	ISO9001, ISO14001, RoHS	Supply capacity:	1,000,000 pieces/month
Frequency tolerance:	±10ppm, 10ppm	payment terms:	L/C,Western Union,T/T,Paypal/Credit Card
Supplier Type:	Original Manufacturer, ODM	type of packaging:	Patch 3225
Packaging Details:	Tape and reel, 3000 pieces/reel

WTL----Win-Win to Dragon

WTL is a professional manufacturer of quartz crystal electronic components in China, established in2001, specialized inResearch and Development,Production and Marketing, WTL offers a variety of crystals to suit a wide range of applications. Whatever your needs, standard or advanced requirements in a special field, we have the right quartz crystal resonators and oscillators for you, backed by a 100% reliability guarantee.

website:www.wtlcrystals.com

Seam Sealed Ceramic 3.2 X 2.5mm SMD

Electrical Specifications

product properties
article number	WTL2.05447ZX
series	TX3

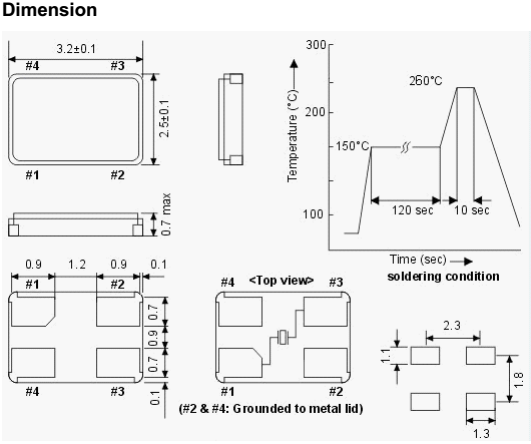

size/dimension	3.2x2.5mm
frequency	20.000MHz
Load capacitance (CL)	18pF
Frequency Tolerance (at 25°C)	±10ppm
Operating frequency stability temperature characteristics	±10ppm
range of working temperature	-20°C--+70°C
operating mode	basic
Packaging/Case	4-SMD, lead free
Bale	Tape and Reel (TR)
Storage temperature range	-55 °C to +125 °C
Shunt Capacitance (C₀)	5.0 pF maximum
driver level	10µW~100µW
Equivalent Series Resistance ESR	80Ω max
Aging @25°C 1^stoneyear (max)	± 3ppm/year
shock resistance	3 drops from 75cm height on 2mm stainless steel plate

Process flow chart
