Trade Assurance WTL DIP 32.768 KHz Customizable Crystal Resonator
- 0.07 10 - 9999 pieces
- 0.05 10000 - 99999 pieces
- 0.03 >=100000 pieces
| Frequency Stability: | ±20ppm | frequency: | 32.768KHz |
| Application level: | / | place of origin; place of origin: | Guangdong, China |
| Packaging Details: | Tape and Reel, 3000pcs/reel (WTL Xtal Quartz 32MHz 9pF Crystal 32 MHz SMD 2016) | Packaging Preview: | |
| Factory tour: | support | Load capacitance: | 15pF |
| Frequency tolerance: | + -20PPM | sample: | support |
| Pay: | Paypal\TT\Western Union | pack: | standard packaging |
| ESR (equivalent series resistance): | 90KΩ | Frequency Range: | 32.768KHz |
| about us: | 20 years experience | Available media: | data sheet |
| Supplier Type: | original manufacturer | model: | WTL3T032768D15FCN |
| brand: | WTL | transportation: | DHL FEDEX TNT UPS EMS etc. |
| Single package size: | 1X1X1 cm | type of packaging: | surface mount |
| Sales unit: | single product | Certificate: | ISO9001, ISO14001, RoHS |
| Warranty: | 1 year | DC: | / |
| Operating Temperature Range (°C): | -20C-+70C | Card: | crystal resonator |
| thing: | 32.768KHz 15pF crystal resonator | Original Equipment Manufacturer: | support |
| Installation type: | surface mount | aspect: | 3mm*8mm |
| Gross weight per piece: | 0.001 kg | Cross reference: | crystal |
WTL----Win-Win to Dragon

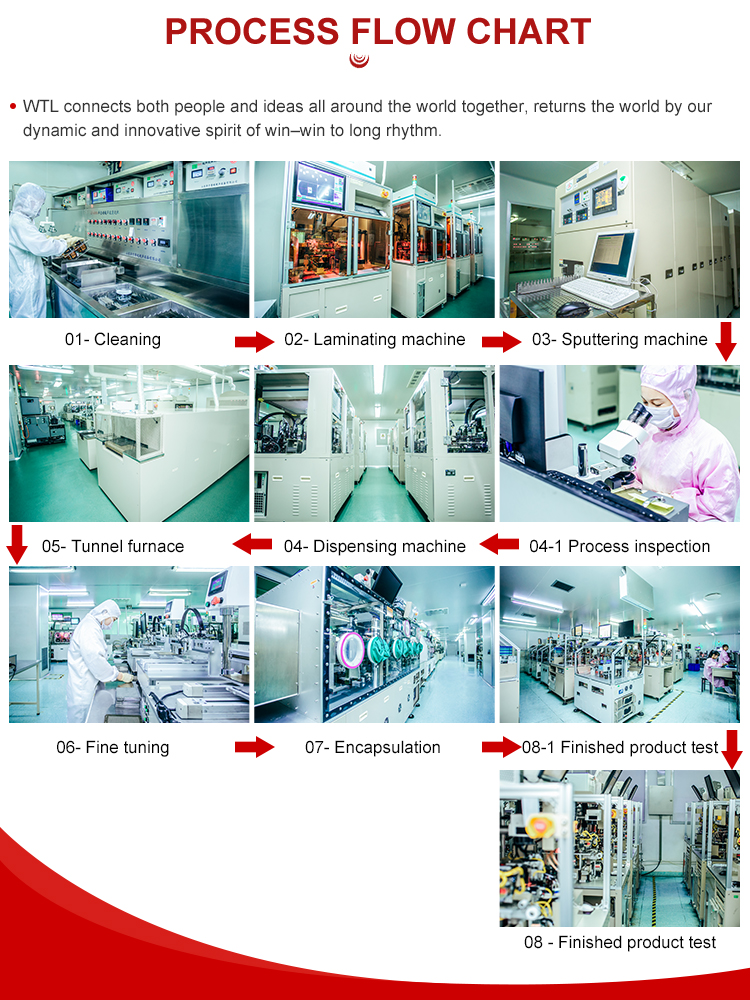

WTL is a professional manufacturer of quartz crystal electronic components in China, established in2001, specialized inResearch and Development,Production and Marketing, WTL offers a variety of crystals to suit a wide range of applications. Whatever your needs, standard or advanced requirements in a special field, we have the right quartz crystal resonators and oscillators for you, backed by a 100% reliability guarantee.
website:www.wtlcrystals.com
feature
1. Wide frequency range
2. High shock resistance
3. Small size
4. Reliable frequency stability
5. Applications: Microprocessor systems, consumer electronics, instrumentation, automotive electronics

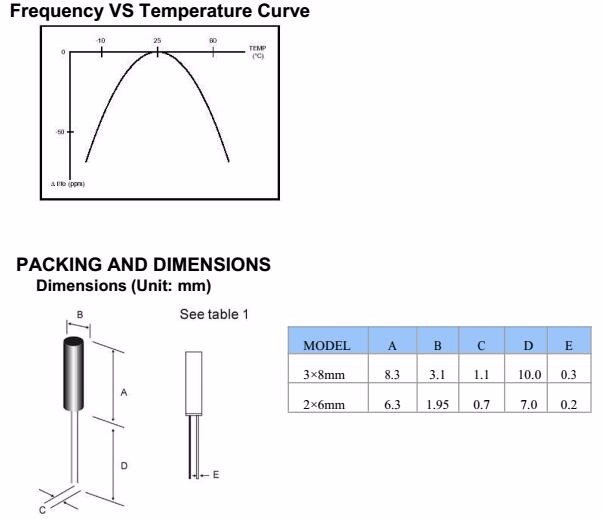

Electrical Specifications
|
Tuning Fork Crystal (3X8mm cylindrical crystal) |
|
|
thing |
Specification |
|
Frequency Range |
32.768KHz |
|
Load capacitance (CL) |
15pF |
|
Frequency Tolerance (at 25°C) |
± 20ppm |
|
range of working temperature |
-20°C+70°C |
|
Storage temperature range |
-55 °C to +125 °C |
|
Shunt Capacitance (C0) |
1.5pF typical |
|
Driver level (typical) |
1.0 µW max |
|
Aging @25°C 1stoneYear (max) |
± 3ppm/year |
