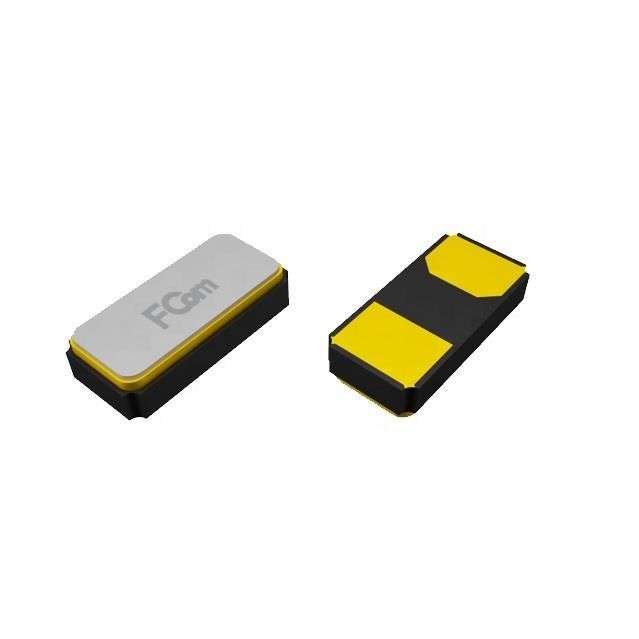

FCom Crystal 3215 SMD 32.768kHz 12.5PF 20PPM 2PIN Oscillator FC135 32.768khz Crystal Oscillator
- 0.22 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Frequency Range: | 32.768kHz | describe: | FCT-3M SMD Quartz Crystal Resonator |
| Supplier type: | original factory | Package: | 3000pcs/plate |
| Frequency Stability: | ±20ppm | Origin: | Guangdong, China |
| Built-in load capacitor: | 12.5pF | frequency: | 32.768kHz |
| model: | FCT-3M 3215 | type of packaging: | SMD 3215 |
| Adjust frequency difference: | ±20ppm | brand: | communication company |
| Temperature and frequency difference: | ±20ppm | Load Capacitance: | 12.5pF |
| Package preview: | Warranty: | 180 days | |
| type: | Quartz crystal resonator, original | brand: | communication company |
| Operating temperature: | -40°C ~ 85°C | impedance: | 40 ohms |
| pay: | Wire transfer in advance | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Nominal frequency: | 32.768kHz | Model: | FCT-3M 32.768kHz |
| Frequency Tolerance: | ±20ppm |
Product Description

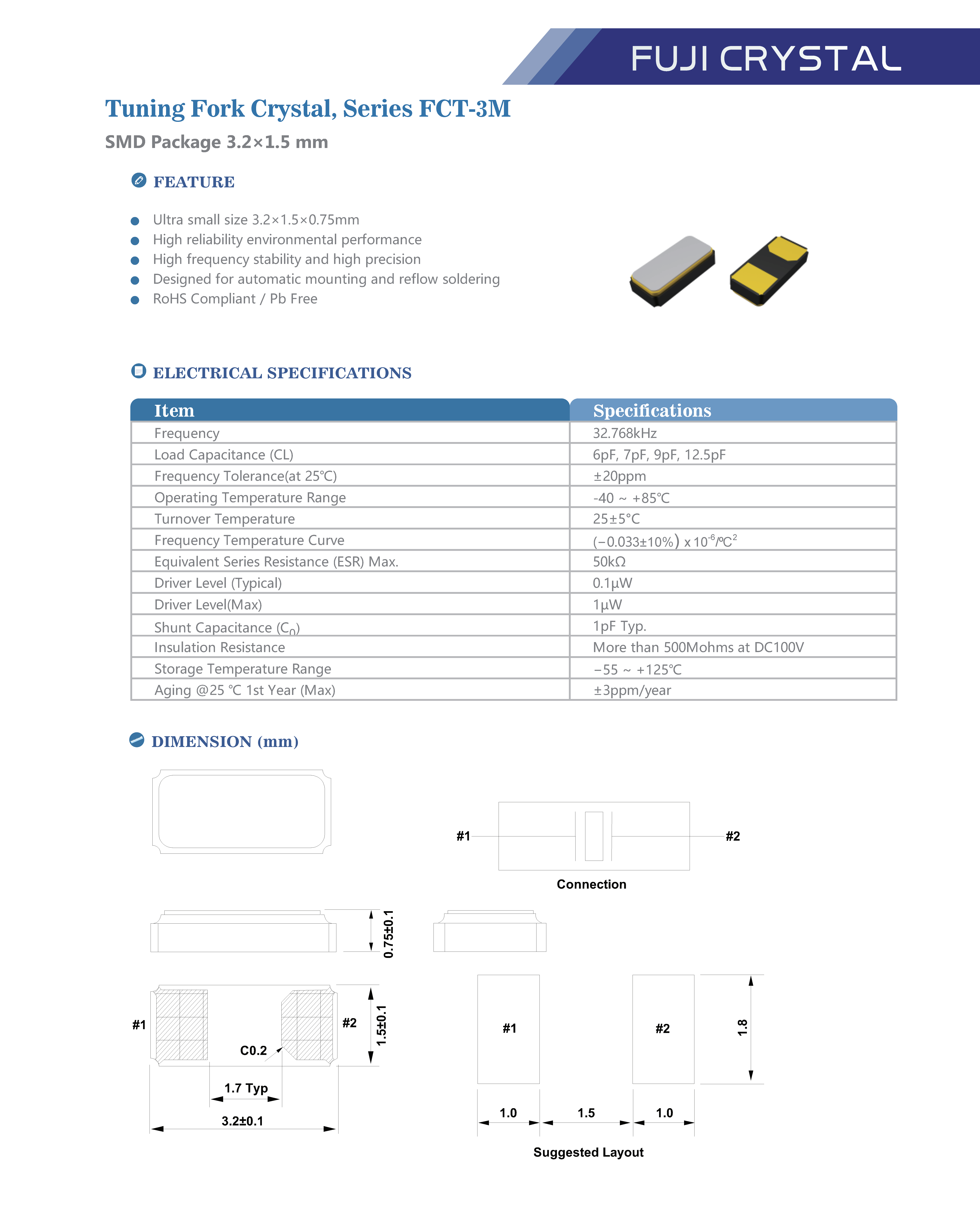

Model: FCT-3M 32.768kHz
brand:communication company
type:Quartz crystal resonator
Nominal frequency:32.768kHz
Adjust frequency difference:±20ppm
Temperature and frequency difference:±20ppm
Load Capacitance:9pF
Specification:3.2mm*1.5mm*0.75mm
3215 32.768kHz 2PIN | ||||
standard frequency | standard frequency | frequency deviation | ||
32.768kHz | 12.5pF | 20ppm | ||
32.768kHz | 9pF | 20ppm | ||
32.768kHz | 7 picofarads | 20ppm | ||
