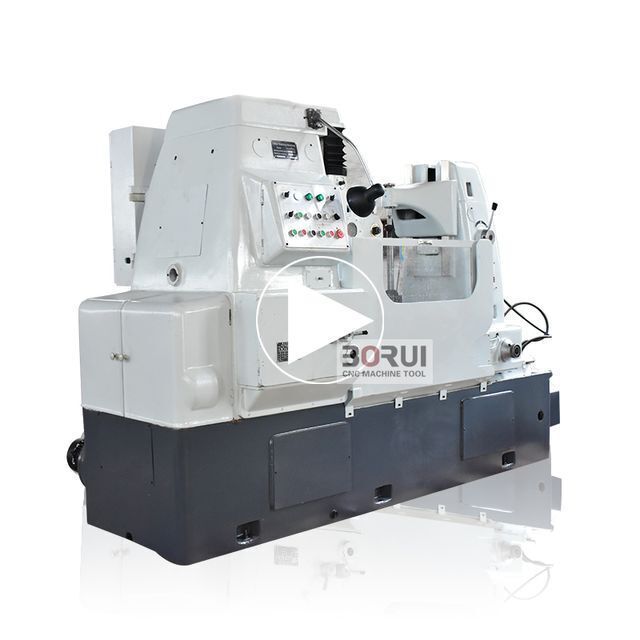

bevel Gear cutting machine Y3180h hydraulic gear hobbing machine gear hobber machine

Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr hemingway hu
Price: $21641.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Max. dimension of cutter:	180x180;
Name:	Spur Gear Hobbing Machine;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
Marketing Type:	New Product 2020;	Showroom Location:	None;
Certification:	ISO9001 CE BV;	Warranty of core components:	1 Year;
Product type:	Vertical Gear Hobbing Machine;	Core Components:	Engine,Gearbox;
Type:	Gear Hobbing Machine;	Port:	Qingdao and Shanghai;
CNC or Not:	Normal;	Dimension(LWH):	275014901870mm;
Package Preview:	;	Power (kW):	5.5kw;
Condition:	New;	Place of Origin:	Shandong China;
Packaging Detail:	Pacing material:plywood packing size :7CBM 2O container could fill 4 sets gear hobbing machines 40 container could fill 8 sets gear hobbing machines;	Worktable hole diameter:	80mm;
Max working module:	10;	Key Selling Points:	Competitive Price;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan;
Supply Ability:	50 Set/Sets per Day;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Max diameter of workpieces:	800/550mm;	Max. helix angle in turning bevel gear:	±45°;
Machinery Test Report:	Provided;	Weight:	5500KG;
Warranty:	1 Year;	Brand Name:	BORUI;
The diameter of worktable:	650mm;	Video outgoing-inspection:	Provided;
Voltage:	220V/380V;	Weight (KG):	6000;

Product Description

INTRODUCTION:

Y3180h is a general precision gear hob machine
The machine is applied for multiple batch production, small batch production and Single part production for cylinder gear, and worm gear.
1. Raised height of vertical column and increased stroke effectively expand the working range.
2. Mechanism with electric tool leap allows longer hob and greatly increases service life of the cutting tool .
3. Worm gear of a high precision over five grade features long service life and steady accuracy.
4. Traditional bearings along the hobs are replaced with rolling bearings to enable greater speed of the tools.
5. External support of the small column tailstock adopts the hinge structure and can be easily opened outward, convenient to hang components of large diameters.

pecifications	Unit	Parameter
Max. hobbing modulus	mm	10[8]
Max. workpiece diameter when processing straight gear	mm	With rear column: 550 Without rear column: 800
Max. workpiece width when processing straight gear (width between centre≥400)	mm	500
Max. processing helix angle	°	±45
Distance from hob cutter center to worktable face	mm	Max.585 Min.235
Distance from hob cutter axes center to worktable axes center	mm	Max. 550 Min. 50
Spindle bore		Morse 5
Max. dimension of cutter	mm	Diameter: 180 Length: 180
Diameter of changeable hobbing centre axis	mm	22, 27, 32, 40
Worktable hydraulic move distance	mm	50
Diameter of work table	mm	650
Hole diameter of worktable	mm	80mm
Max work piece width	mm	300
Min number of teeth of work piece		12
Tool head max vertical travel	mm	350
Taper bore of workpiece mandrel		Morse 5
Degree of spindle rotation		8 gears
Rotary range of spindle	r/min	40~200
Main motor power and rotate speed		N:5.5KW, 1500 r/min
Power and rated speed of rapid motor		1.1kW,1500 r/min
Power and rated speed of motor of hydraulic oil pump		1.1kW, 940 r/min
Power and rated speed of motor of work table		0.55kW, 1500 r/min
Power of motor of cooling pump		0.25kW
Overall dimensions of machine (L× W ×H)	mm	2752×1490×1870
Machine weight(appr)	kg	5500

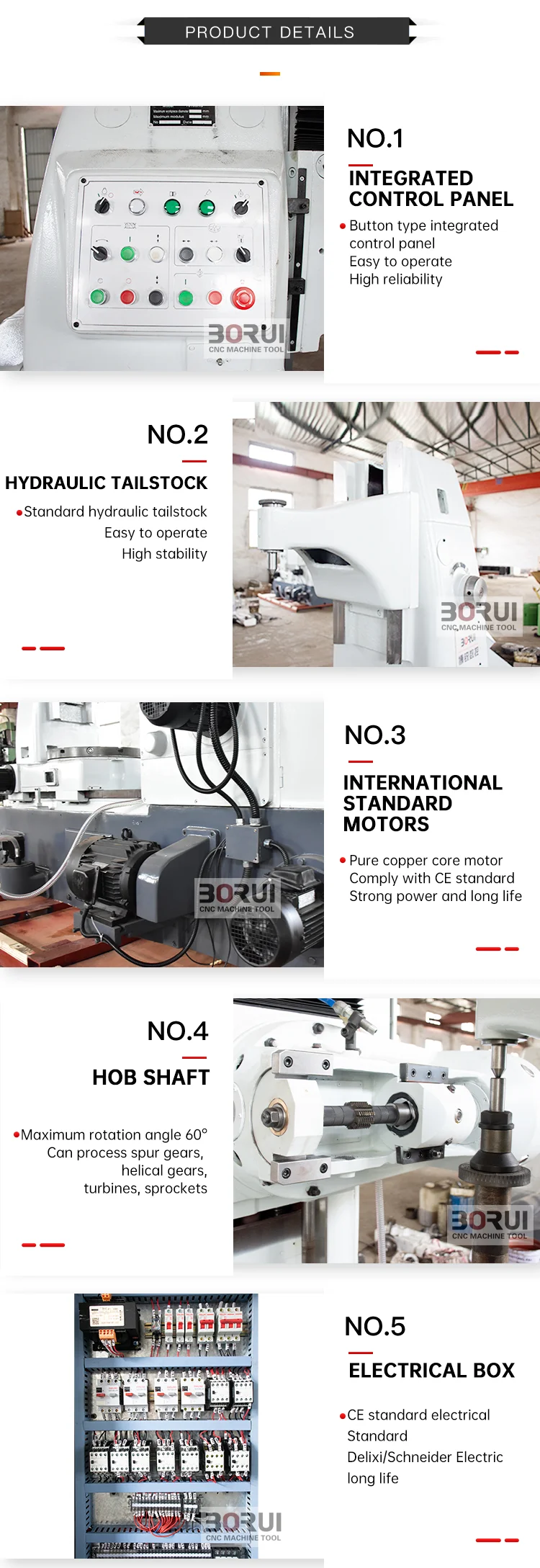

Details Display
