wmw gear creator /gear hobbing machine borui for cam gears Y3150E

Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr hemingway hu
Price: $20000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Applicable Industries:	Manufacturing Plant,Machinery Repair Shops;	Key Selling Points:	Competitive Price;
Place of Origin:	Shandong China;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Type:	Gear Hobbing Machine;	Voltage:	220V/380V;
Weight:	4500kg;	Max diameter and length of hob:	160/160;
Showroom Location:	None;	Supply Ability:	50 Set/Sets per Day;
Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;	The diameter of worktable:	510mm;
CNC or Not:	Normal;	Color:	Customized Optional;
After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;	Certification:	ISO9001 CE BV;
Dimension(LWH):	260015002100mm;	Product type:	Vertical Gear Hobbing Machine;
Warranty:	12 Months,1 Year;	Condition:	New;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Max diameter of workpieces:	500mm;
Weight (KG):	5000;	Machining width:	250mm;
Power(W):	4kw;	Brand Name:	BORUI;
Packaging Detail:	Pacing material:plywood packing size :7CBM 2O container could fill 4 sets 40 container could fill 8 sets;	Keyword:	Worm Gear Hobbing Machine;
Port:	Qingdao and Shanghai;

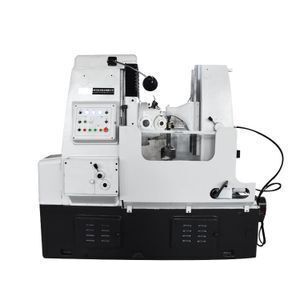

Y3150E Universal Vertical Spur Gear Hobbing Machine

Product Description

The Y3150E universal gear hobbing machine could produce straight teeth and helical teeth,

cylindrical spur teeth,worm gear,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single production

The main feature :

It could machining the spur gear,helical tooth ,cylindrical gear ,worm gear ,chain wheel ,short spline shaft ,suitable for single production ,small and mass production .

Basic guide surface:Hardening treatment

Turbine material :Tin bronze (ZASN10-1)

*The machine is suitable for single-piece production and mass production,As preparing a number of the same type of machine tool ,the most reasonable approach is to separate a certain number of machine tools designed for finishing cutting ,to ensure the machine is working well.

* this Gear Hobbing machine with the stopping automatic device ,safety device ,and lubricating device automatically.

*we also could provide tangential tool rest ,processing worm wheel by the tangential feeding way , according to your requirement.

1	Model	Y3150E
2	Max. dia. of workpiece ( without back column/with back column)	500/500mm
3	Max. modulus	8/6mm
4	Max machining width	250mm
5	Minimum hobbing gear teeth	6
6	Max. travel of carriage in vertical direction	430mm
7	Max. helix angle in turning bevel gear	±45°
8	Distance between axis of cutter and work table face	235~535mm
9	Spindle Taper	MT.5
10	Max. dimension of cutter	Φ160×160mm
11	Max. axial movement of cutter	180mm
12	Diameter of changeable hobbing arbor	22,27,32mm
13	distance from hob center to worktable center	30~330mm
14	Rapid moving speed of work table	50mm
15	External Diameter/bore diameter of work table	510/80mm
16	spindle speed steps	9
17	spindle speed range	40~250rpm
18	axial feeds range	12-step 0.4~4 mm/rev
19	power of main motor synchro-speed	4/1500 kw/rpm
20	power of rapid axial motor synchro-speed	1.1/1500 kw/rpm
21	Power of rapid worktable motor synchro-speed	1.1/1000 kw/rpm
22	Power of Pump motor synchro-speed	1.5/1500 kw/rpm
23	Net Weight	4500 kg
24	Overall Size	2440×1270×1920 mm
