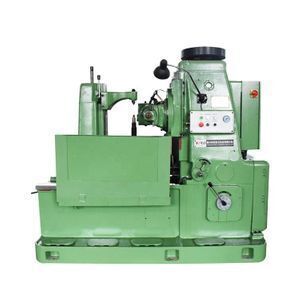

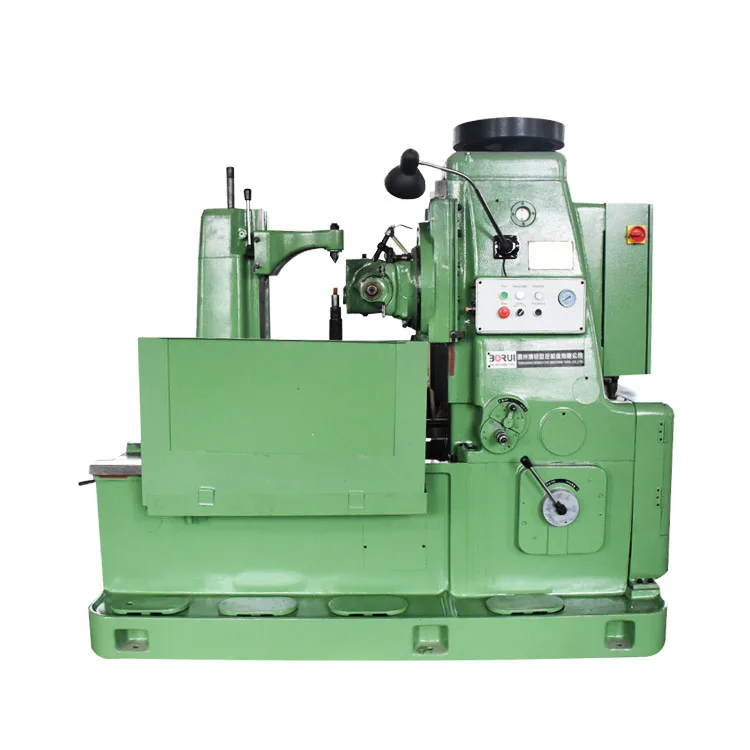

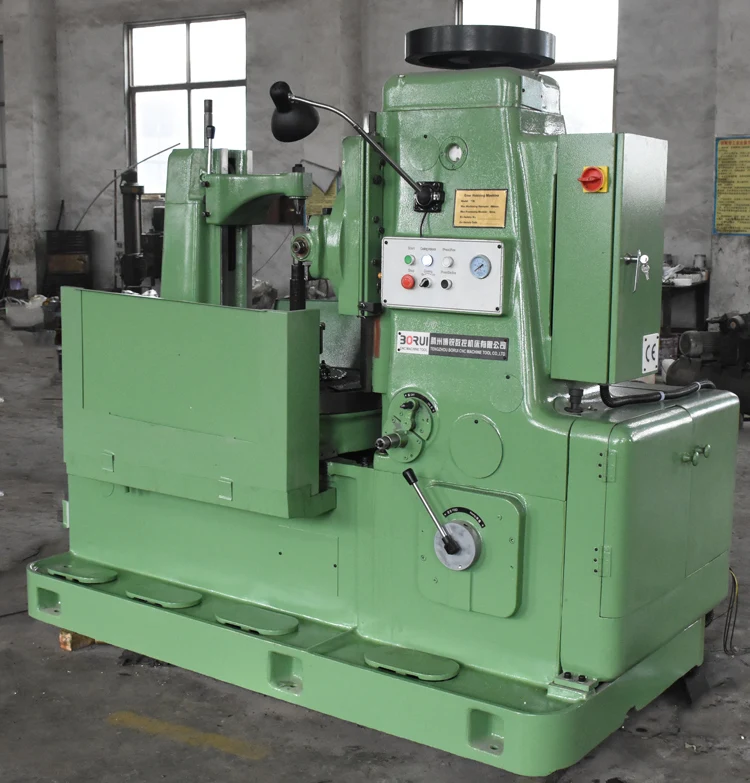

Y38-1 Used china Gear Hobbing Machine For Sale

Supplier: Tengzhou Borui CNC Machine Tool Co., Ltd.
Region: Shandong, China
Contact: Mr hemingway hu
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max Module:	8mm;	The workpiece vertical feed:	0.25-3 mm/r;
Product type:	Automatic Gear Hobbing Machine;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight (KG):	3300;	After-sales Service Provided:	Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;
COLOR:	Customers' Require;	Key Selling Points:	Competitive Price;
Packaging Detail:	plywood ,one packing size is about 7 CBM Y38-1 gear hobbing machine ,manual gear hobbing machine;	Warranty:	1 year;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Construction works ,Energy & Mining;	Showroom Location:	None;
Brand Name:	BORUI;	CNC or Not:	Normal;
Dimension(LWH):	1825x935x1730mm;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;
Diameter of workingtable hole:	80MM;	Supply Ability:	30 Set/Sets per Month;
Certification:	ISO9001 CE BV;	Power (kW):	3;
Place of Origin:	Shandong China;	Diameter of worktable axis:	35MM;
Max diameter of hob:	120MM;	Voltage:	Customer's Requirment;
Type:	Gear Hobbing Machine;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Condition:	New;	Port:	qingdao ,shanghai;
Warranty:	12 Months;	Max diameter of workpiece:	800mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;

Y38-1 Used Manufacture Gear Hobbing Machine For Sale

Product Description

y38-1 gear hobbing machine using :

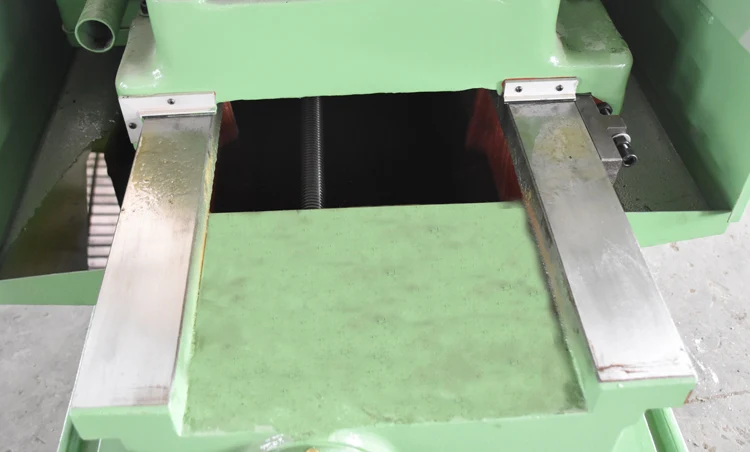

It could machining the spur gear,helical tooth ,arc tooth .2. Basic guide surface:Hardening treatment 3. Turbine material :Tin bronze (ZASN10-1)

Main technical parameters			Y38-1
Max working module	steel		6
	Cast iron		8
Max diameter of cutting cylindrical straight gear	with trestle (mm)		450
	without trestle(mm)		800
Max diameter of cutting Cylindrical helical gear	Rotation angle 30°		500mm
	Rotation angle 60°		190mm
Max vertical travel of hob (mm)			275
Max diameter of hob			120
Distance from hob center to gear embryonic axis	Max(mm)		500
	Min(mm)	With tool post,sliding plate ,shield and dowel	55
		Without tool post,sliding plate ,shield and dowel	30
Minimum distance from worktable surface to hob axis (mm)			195
The changeable spindle diameter of of hob (mm)			22 27 32
The travel length of hob axial movement(mm)			30
The travel length of rear pillar movable trestle			200
Diameter of workingtable hole (mm)			80
Diameter of worktable axis(mm)			35
Pitch diameter of indexing wormwheel (mm)			546
Pitch diameter of indexing worm (mm)			68
Speed of Hob main spindle	Grade		7
	Range (r/min)		47.5-192 r/min
The workpiece vertical feed			0.25-3 mm/r
Main motor power			3 kw
Main motor speed			1420 r/min
Net weight			3300 kg
