wmw gear creator /gear hobbing machine borui for cam gears Y3150E

Product details
After-sales Service Provided:Online support,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service;Certification:ISO9001 CE BV;
Dimension(L*W*H):2600*1500*2100mm;Max diameter and length of hob:160/160;
Type:Gear Hobbing Machine;Color:Customized Optional;
Local Service Location:Egypt,Canada,Turkey,United Kingdom,United States,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Uzbekistan,Tajikistan;Machining width:250mm;
Supply Ability:50 Set/Sets per Day;Key Selling Points:Competitive Price;
Product type:Vertical Gear Hobbing Machine;CNC or Not:Normal;
Showroom Location:None;Weight (KG):5000;
Packaging Detail:Pacing material:plywood packing size :7CBM 2O container could fill 4 sets 40 container could fill 8 sets;Place of Origin:Shandong China;
Condition:New;Port:Qingdao and Shanghai;
Power(W):4kw;Keyword:Worm Gear Hobbing Machine;
Brand Name:BORUI;Applicable Industries:Manufacturing Plant,Machinery Repair Shops;
Voltage:220V/380V;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Weight:4500kg;The diameter of worktable:510mm;
Max diameter of workpieces:500mm;Warranty:12 Months,1 Year;
After Warranty Service:Video technical support,Online support,Spare parts,Field maintenance and repair service;

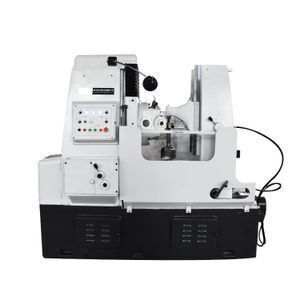

Y3150E Universal Vertical Spur Gear Hobbing Machine

Product Description





The Y3150E universal gear hobbing machine could produce straight teeth and helical teeth,

cylindrical spur teeth,worm gear,chain wheel and short spline shaft, and this hobbing machine suitable for in bulk and single production



The main feature :

It could machining the spur gear,helical tooth ,cylindrical gear ,worm gear ,chain wheel ,short spline shaft ,suitable for single production ,small and mass production .

Basic guide surface:Hardening treatment

Turbine material :Tin bronze (ZASN10-1)

*The machine is suitable for single-piece production and mass production,As preparing a number of the same type of machine tool ,the most reasonable approach is to separate a certain number of machine tools designed for finishing cutting ,to ensure the machine is working well.

* this Gear Hobbing machine with the stopping automatic device ,safety device ,and lubricating device automatically.

*we also could provide  tangential tool rest ,processing worm wheel by the tangential feeding way , according to your requirement.



1

Model

Y3150E

2

Max. dia. of workpiece ( without back column/with back column)

500/500mm

3

Max. modulus

8/6mm

4

Max machining width

250mm

5

Minimum hobbing gear teeth

6

6

Max. travel of carriage in vertical direction

430mm

7

Max. helix angle in turning bevel gear

±45°

8

Distance between axis of cutter and work table face

235~535mm

9

Spindle Taper

MT.5

10

Max. dimension of cutter

Φ160×160mm

11

Max. axial movement of cutter

180mm

12

Diameter of changeable hobbing arbor

22,27,32mm

13

distance from hob center to worktable center

30~330mm

14

Rapid moving speed of work table

50mm

15

External Diameter/bore diameter of work table

510/80mm

16

spindle speed steps

9

17

spindle speed range

40~250rpm

18

axial feeds range

12-step 0.4~4 mm/rev

19

power of main motor synchro-speed

4/1500 kw/rpm

20

power of rapid axial motor synchro-speed

1.1/1500 kw/rpm

21

Power of rapid worktable motor synchro-speed

1.1/1000 kw/rpm

22

Power of Pump motor synchro-speed

1.5/1500 kw/rpm

23

Net Weight

4500 kg

24

Overall Size

2440×1270×1920 mm
