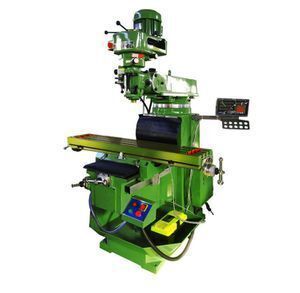

X6325 China manufacturer Taiwan head Vertical turret milling machine

Click here to contact

Product details

Spindle Speed:	65-4500/80-5440 Rpm;	Machine Type:	Turret Milling Machine;
Certification:	CE Certificate;	Single package size:	151.6X155X208 cm;
Package Type:	Plywood wooden box;	Table size:	1270mmX254mm;
Dimension(LWH):	1500 * 1600 * 2000;	Selling Units:	Single item;
Precision:	High Precision;	After-sales Service Provided:	Engineers available to service machinery overseas;
Type:	Vertical;	CNC or Not:	Normal;
Voltage:	220v/380v/415v;	Product name:	X6325 China manufacturer Taiwan head Vertical Turret milling machine;
Spindle taper:	R8/NT30/NT40;	Power(W):	2.2KW;
Condition:	New;	Color:	Opitional;
Single gross weight:	1,600 KG;	Brand Name:	BORUI;
Name:	X6325 Vertical Milling Machine;	Package Preview:	https://sc01.alicdn.com/kf/HTB1i.MymXkoBKNjSZFEq6zrEVXa7.jpg_640x640.jpg;
Warranty:	1 Year;	After-sales Service Provided:	Free spare parts;
Usage:	General;	Place of Origin:	Shandong China;
Weight:	1250kg;

X6325 China manufacturer Taiwan head Vertical Turret milling machine

Product Description

turret milling machine Feature:

1. Dovetail guide rails way On x-axis and Z-axis makes the machine stably and rigidity.Y axis rectangular guide

2. The guide way on saddle is lined with TF wearable material

3.R8 milling head motor and quill diameter Is 85

4. Fixed structure is used to connect the mill head without adapter. Which makes the cut intensity well.

5.The machine with the feature that it could install the slotting head(Optional).

The main specification

Model		X6325
Table size(mm)		1270X254 1370X305
Long travel(mm)		780
Cross travel(mm)		400
Vertical travel(mm)		415

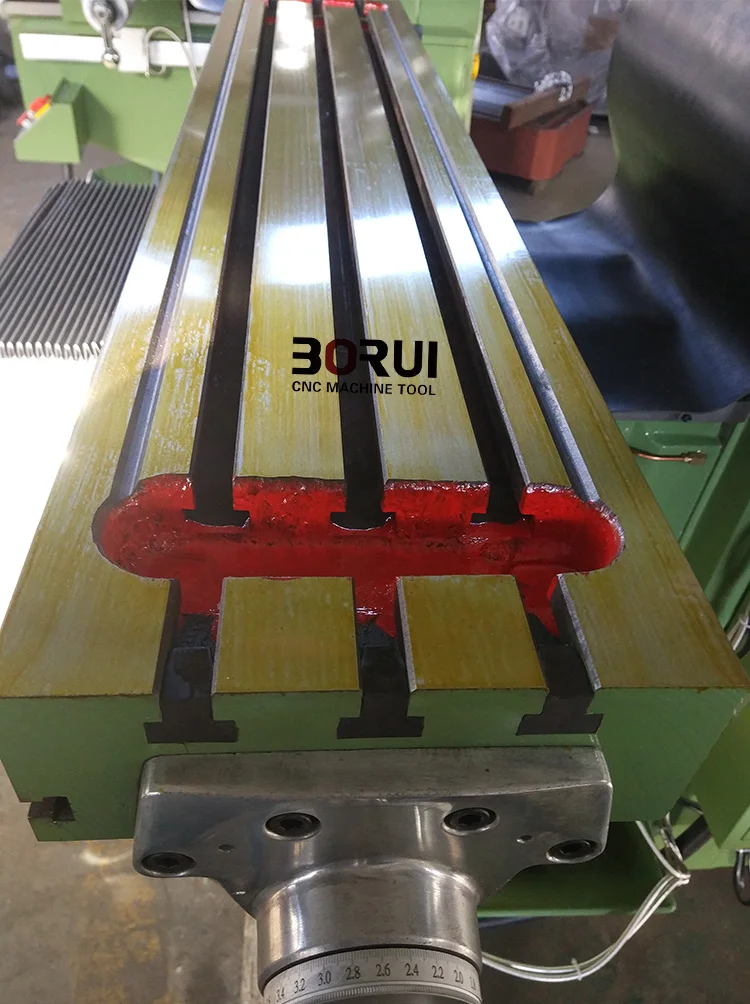

T-slot No. and size		3x16
Ram travel(mm)		470
Distance from spindle nose to table surface(mm)		0-405
Spindle hole taper		Standard:R8 Optional: NT30/40
Spindle travel(mm)		127
Spindle speed		Standard: 16steps Shiftgrade:50HZ:65-4500 60HZ:80-5440
		Optional : step less Variable: 65-4500
Auto quill feed		Three steps: 0.04/0.08/0.15 mm/revolution
Telescopic stroke		470
Spindle Motor		2.2KW

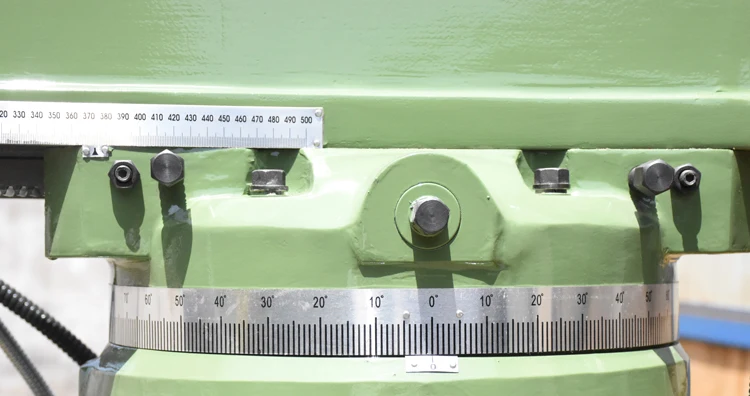

Head swivel		90°
Head tilting		45°
Dimension of package	One miller per case	1516x1550x2080
	Two miller per case	1680x1790x2170
	Three miller per case	1650x2285x2235
G.W./N.W. (kg)		1500/1600

Standard Accessories

Work lamp
Cooling system

Plastic splashing guard
Draw bar

Oil collecting plate
Tool & toolbox

Optional accessories price:

	Name
1:	assemble the operation panel
2	Automatic lubrication system
3	3axis dro
4	2 axis dro

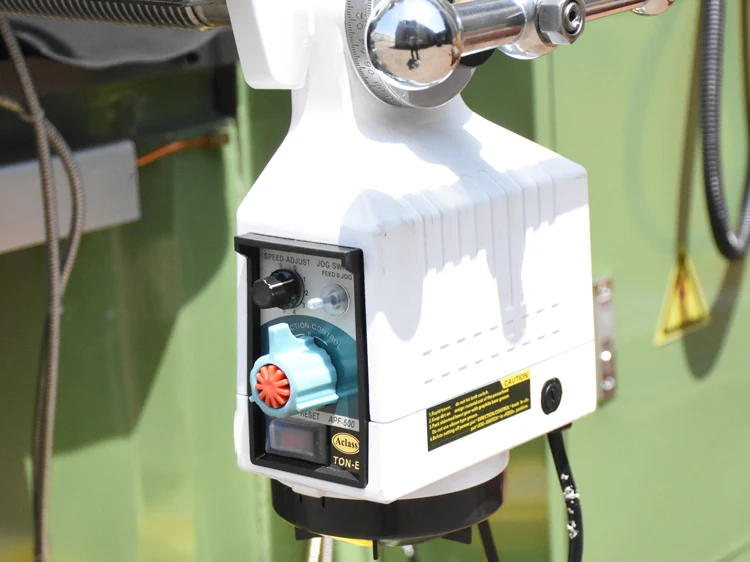

5	X axis Automatic Feeder
6	y axis Automatic Feeder
7	Z axis lifting motor
8	Dividing head
9	Milling chuck
10	Swing/rotary table
11	Flat vice

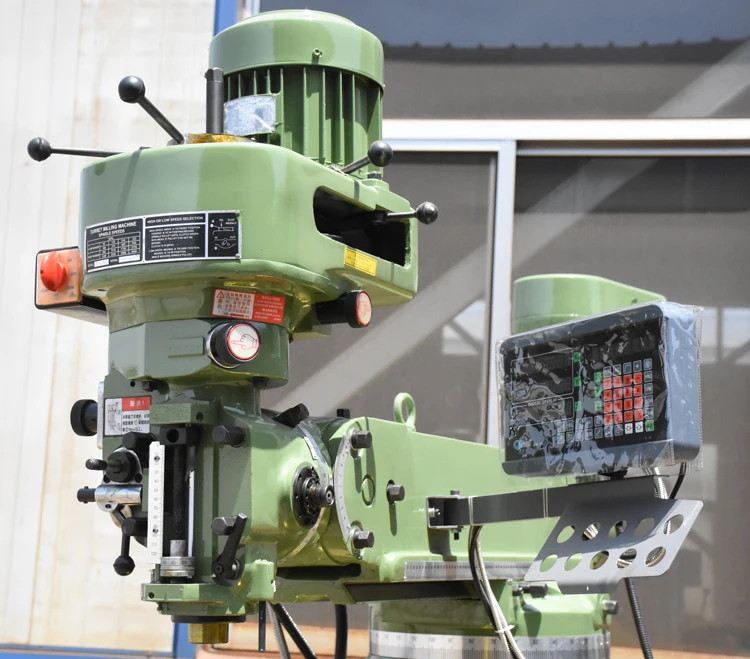

Detailed Images

hot sale

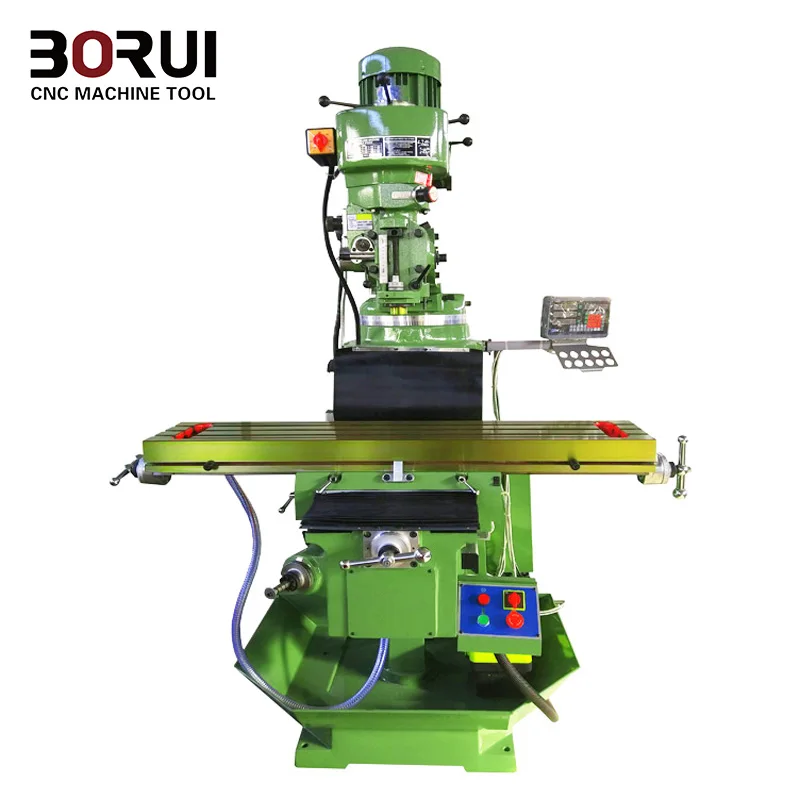

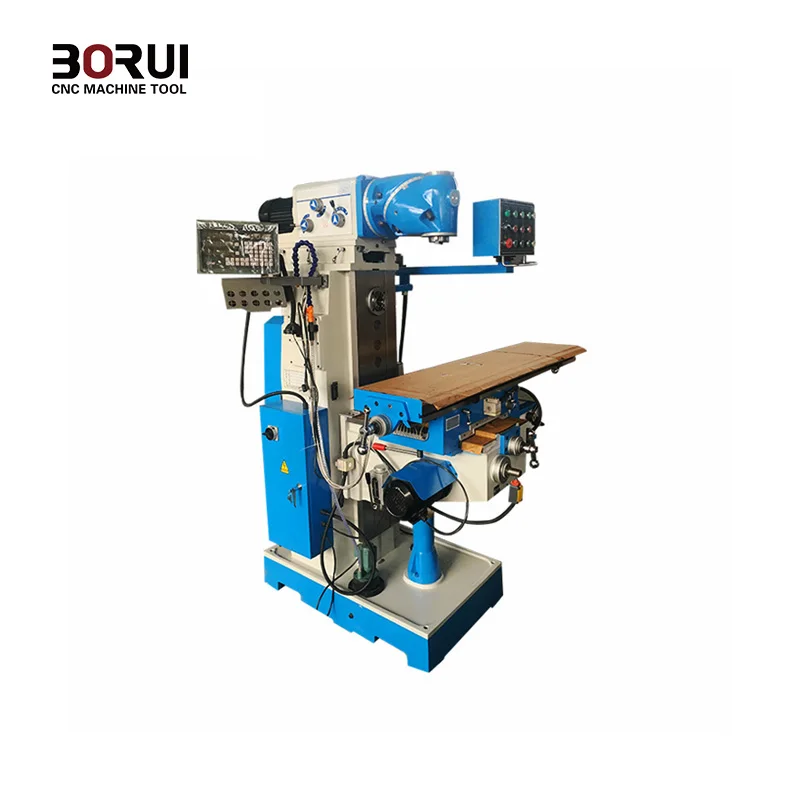

x6325 turret milling machine	x6336 turret milling machine	x6232 Swivel Head Milling Machine

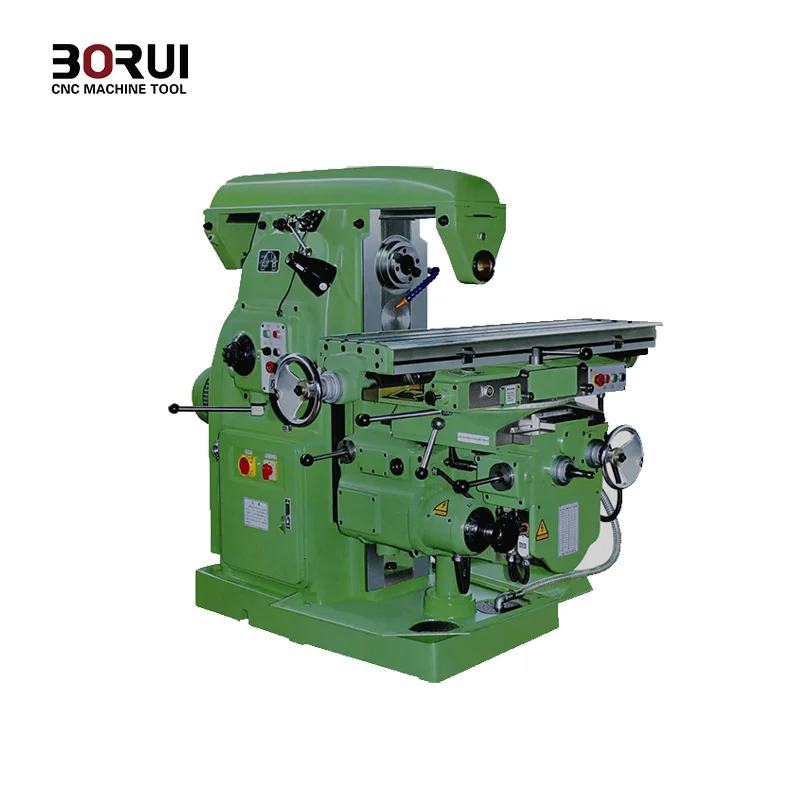

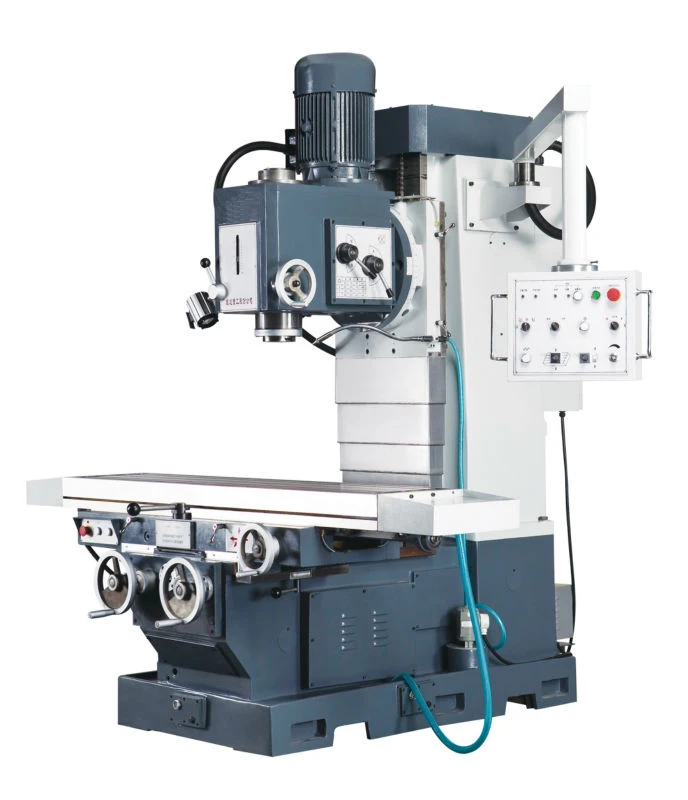

xA7150 bed type milling machine	x6140 horizontal milling machine	x5040 knee type milling machine
