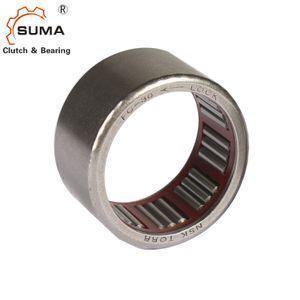

FC20 one way needle roller bearing wheel bearing
-
Supplier: Changzhou Suma Precision Machinery Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms Ellen zhang -
Price: $1.00 / >=100 pieces -
Min. Order: 100 pieces
Product details
| Number of Row: | single row; | Torque (N.m): | 28.5; |
| Model Number: | FC20; | Packaging Detail: | roll packing + carton box; |
| Weight (g): | 17; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining; |
| Delivery Time: | 1-2 Days; | Gurantee: | 1 year; |
| Product name: | FC20 needle bearing; | Place of Origin: | Jiangsu China; |
| Single package size: | 29X28X19 cm; | Selling Units: | Single item; |
| Thickness (mm): | 16; | Brand Name: | SUMA or OEM; |
| Type: | Needle; | Seals Type: | OPEN; |
| Market: | Global; | Package Preview: | ; |
| OEM: | Accept; | Bore Size: | 20 - 20.001 mm; |
| Material: | Gcr15; | Single gross weight: | 0.1 KG; |
| Precision Rating: | P0; |

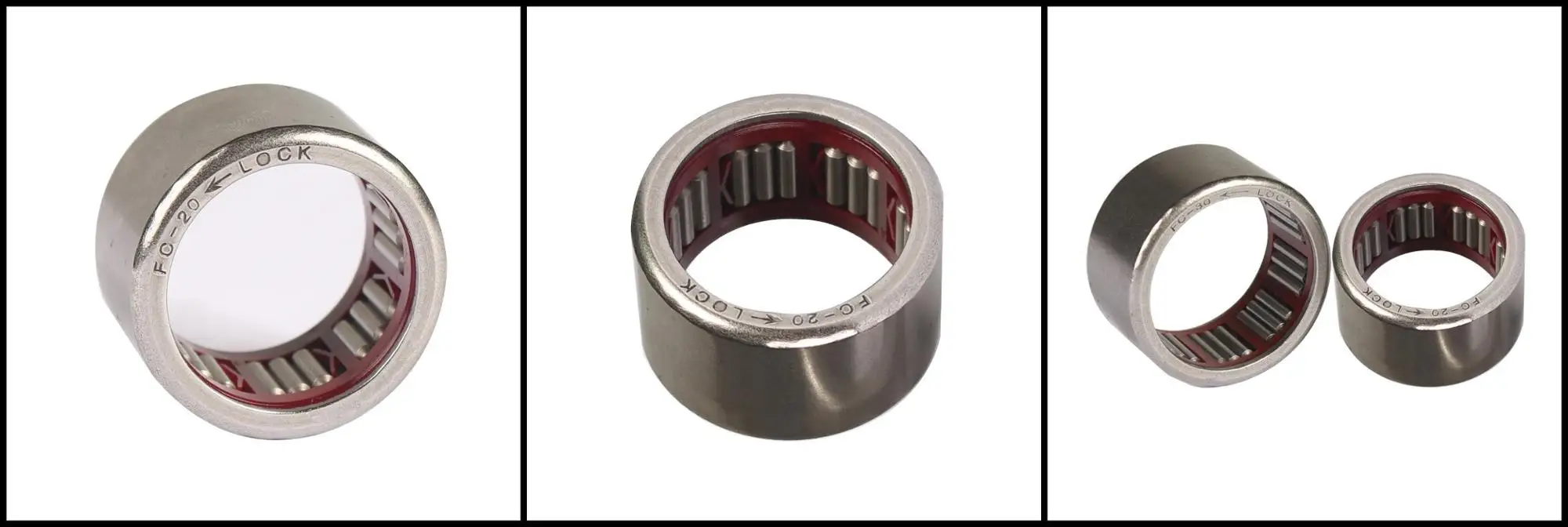

Product Overviews
| Item | FC20 One Way Needle Bearing |
| Material | Gcr15, Stainless steel |
| Size (mm) | 20x26x16 |
| Weight (g) | 17 |
| Torque (N.m) | 28.5 |
| Precision | P6 |
| Gurantee | 1 year |
| Feature | Having a small cross section still has a higher load bearing capacity, therefore, especially suitable for the radial space-constrained. |
| Application | Suitable for unidirectional rotation device. |
| Operating temperature range | -30 ° C to +180 ° C |
| Customize | Accept |
Parameter of FC series needle roller bearing wheel bearing
+
| Type | Weight (g) | Dimesion | |||
| Fw | D | C | Rotational torque (N.m) | ||
| FC4K | 1 | 4 | 8 | 6 | 0.34 |
| FC6 | 3 | 6 | 10 | 12 | 1.76 |
| FC6K | 3 | 6 | 10 | 12 | 1.76 |
| FC8 | 4 | 8 | 14 | 12 | 5.3 |
| FCL8K | 3.5 | 8 | 12 | 12 | 5 |
| FC10 | 4.8 | 10 | 16 | 12 | 6 |
| FCL10K | 4 | 10 | 14 | 12 | 5.3 |
| FC12 | 11 | 12 | 18 | 16 | 12.2 |
| FC14K | 13 | 14 | 20 | 16 | 17.3 |
| FC16 | 14 | 16 | 22 | 16 | 20.5 |
| FC20 | 17 | 20 | 26 | 16 | 28.5 |
| FC25 | 30 | 25 | 32 | 20 | 66 |
| FC30 | 36 | 30 | 37 | 20 | 90 |
| FC35 | 40 | 35 | 42 | 20 | 121 |
| FCB8 | 10 | 14 | 14 | 20 | 5 |
| FCB10 | 15 | 16 | 16 | 20 | 10 |
| FCB12 | 18 | 18 | 18 | 26 | 12.2 |
| FCB16 | 22 | 22 | 22 | 26 | 20.5 |
| FCB20 | 27 | 26 | 26 | 26 | 28.5 |
| FCB25 | 44 | 32 | 32 | 30 | 66 |
| FCB30 | 51 | 37 | 37 | 30 | 90 |
| FCB35 | 58 | 42 | 42 | 30 | 121 |
Application
Company Information
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
