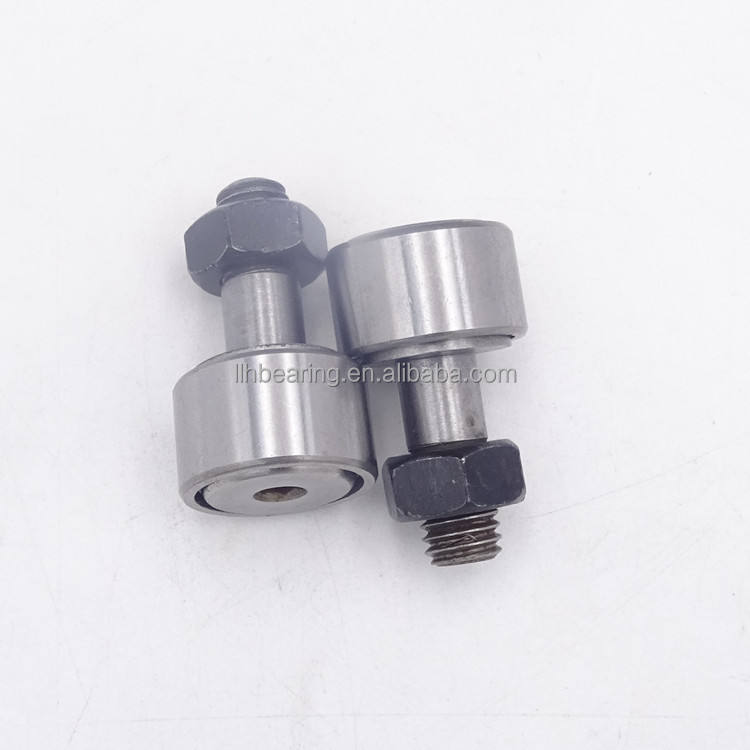

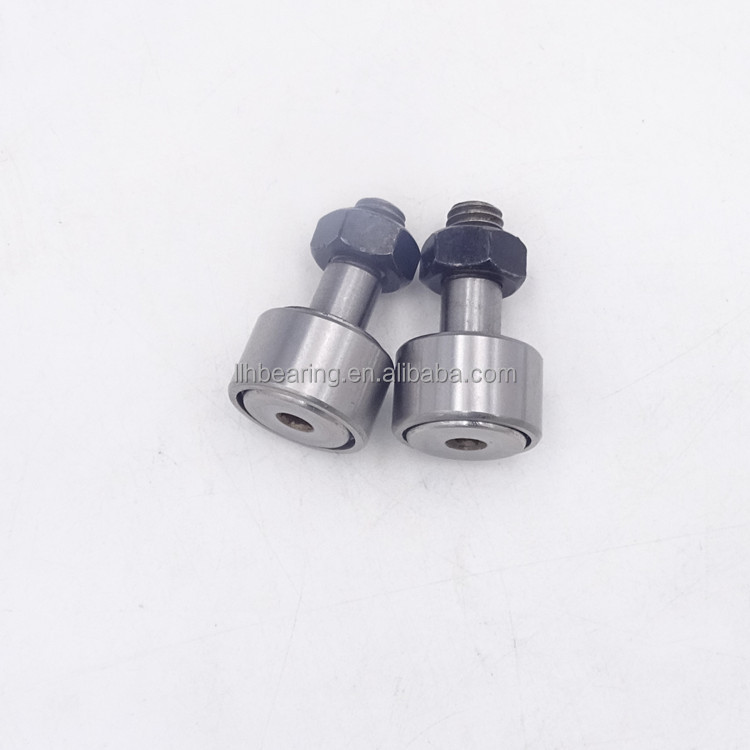

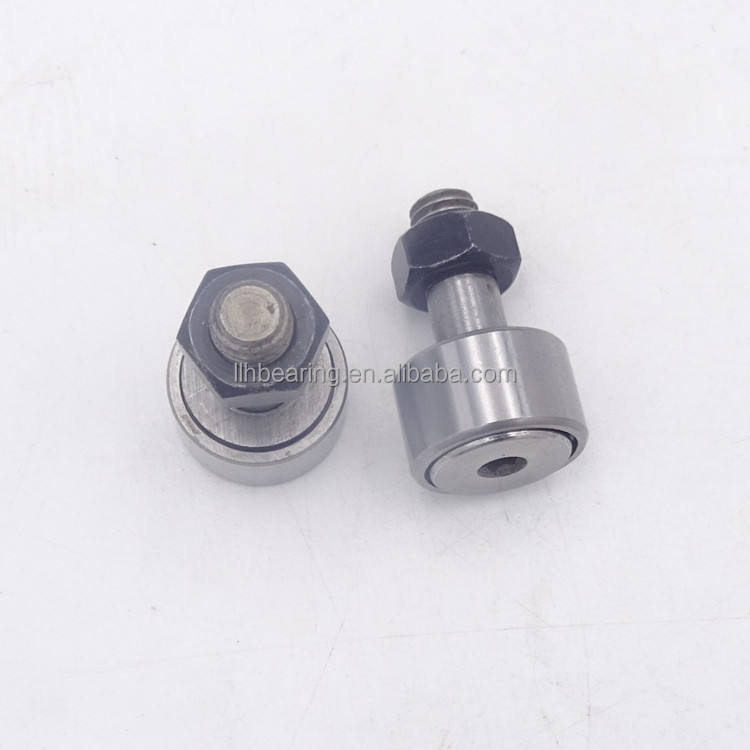

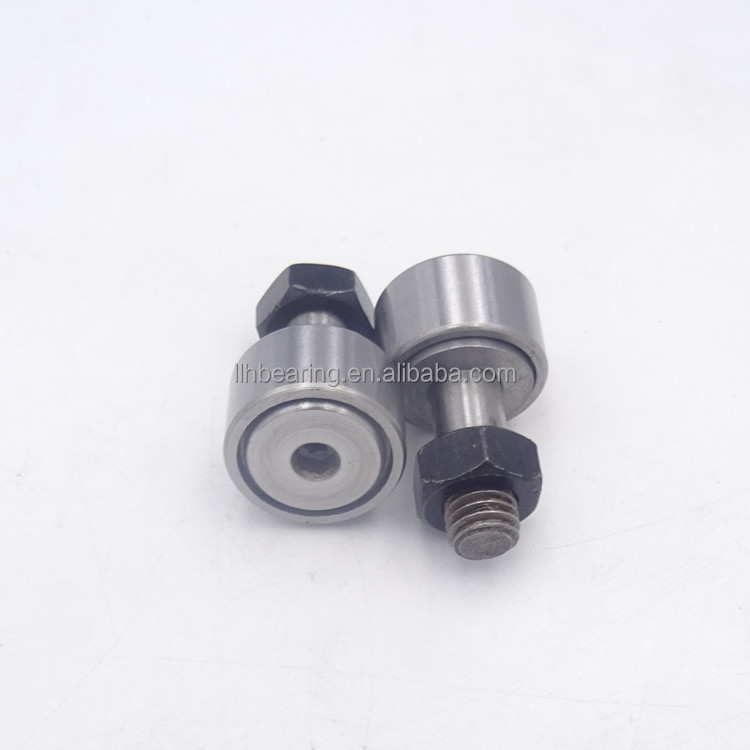

KR19 stud type roller cam follower needle roller bearing

Supplier: Jinan Maolei Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms jiessie zhang
Price: $0.60 / 10 - 99 pieces
$0.45 / >=100 pieces
Min. Order: 10 pieces

Click here to contact

Product details

color:	industrial nature	pack:	single box
Clear:	C0.C1.C2.C3.C4.C5.etc.	port:	Qingdao or according to your requirements
Applicable industries:	Print Shops, Energy & Mining, Advertising Agencies	Serve:	OEM support
sample:	Available	Packaging details:	A: Tubular packaging + outer carton + pallet B: Single box + outer carton + pallet C: Tubular packaging + middle box + outer carton + pallet D: according to your requirements
Certification:	ISO9001:2008	Accuracy level:	P0 P6 P5 P4 P2
Rows:	single row	vibration:	Z1V1 Z2V2 Z3V3 Z4V4
Aperture:	1 - 8 mm	type:	Needle
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	Material:	Chrome steel GCR15
cage:	Steel cage. Brass cage. Nylon cage	Supply capacity:	100,000 pieces per month
Place of origin:	Shandong Province, China	brand:	LLH or as per your request
Seal type:	Open, open 2RS RS	model:	KR19

Cam follower bearingAlso called a track follower. They are designed to follow a sliding or rotating piece (cam) and use rollers or needle rollers as rolling elements. Cam follower bearings are therefore able to replicate specific motions because they are highly versatile. They have thick-walled outer rings that run on rails. They are used to minimize deformation and bending stresses while increasing load-bearing capacity. Generally speaking, cam follower bearings are designed in different configurations, and special structures can be designed according to task requirements.

Stud Cam Follower BearingOne end plate is integrated into the inner ring (stud) and the other end plate is pressed onto the stud up to the shoulder of the inner ring. The studs have holes for lubrication on both ends, and the inner ring is induction hardened to maintain a level of softness in case some modifications are needed.

Inch series: CR, CRH, CF, CFE, CFH, CFHE

Cam follower bearing material

Needle roller: Gcr15, quenched HRC60-65

Ring: Gcr15

Cage: mild steel or reinforced nylon

Both the stud and yoke cam followers have outer diameters that can be cylindrical or crowned. The crowned one. Crowned ones are often used in turntable type applications because they help reduce slippage.

Coronal outer diameter		Cylinder outer diameter		Dimensions (mm)						northwest
No seals	with seal	No seals	with seal	d	D	Second	L	I	G	≈g
10 won	KR10 polypropylene	KR10X	KR10PPX	3	10	7	number 17	9	M3x0.5	4.5
KR12	KR12 polypropylene	KR12X	KR12PPX	4	12	8	20	11	M3x0.5	7.5
KR13	KR13 polypropylene	KR13X	KR13PPX	5	13	9	twenty three	13	M4x0.7	10.5
KR16	KR16 polypropylene	KR16X	KR16 PPX	6	16	11	28	16	M6×1	18.5
KR19	KR19PP	KR19X	KR19 PPX	8	19	11	32	20	M8x1.25	28.5
KR22	KR22 polypropylene	KR22X	KR22PPX	10	number 22	12	36	twenty three	M10×1	45
KR26	KR26 polypropylene	KR26X	KR26PPX	10	26	12	36	twenty three	M10×1	60
30 won	KR30 polypropylene	KR30X	KR30PPX	12	30	14	40	25	M12x1.5	95
KR32	KR32 polypropylene	KR32X	KR32PPX	12	32	14	40	25	M12x1.5	105
KRW 35	KR35 polypropylene	KR35X	KR35PPX	16	35	18	52	32.5	M16x1.5	170
40 won	KR40 polypropylene	KR40X	KR40PPX	18	40	20	58	36.5	M18x1.5	249
KR47	KR47 polypropylene	KR47X	KR47PPX	20	47	twenty four	66	40.5	M20x1.5	390
KR52	KR52 polypropylene	KR52X	KR52PPX	20	52	twenty four	66	40.5	M20x1.5	Chapter 460
KR62	KR62 polypropylene	KR62X	KR62PPX	twenty four	62	29	80	49.5	M24x1.5	815
KR72	KR72 polypropylene	KR72X	KR72PPX	twenty four	72	29	80	49.5	M24x1.5	1140
80 won	KR80 polypropylene	KR80X	KR80PPX	30	80	35	100	63	M30x1.5	1870
KR85	KR85 polypropylene	KR85X	KR85 PPX	30	85	35	100	63	M30x1.5	2030
90 won	KR90 polypropylene	KR90X	KR90PPX	30	90	35	100	63	M30x1.5	222

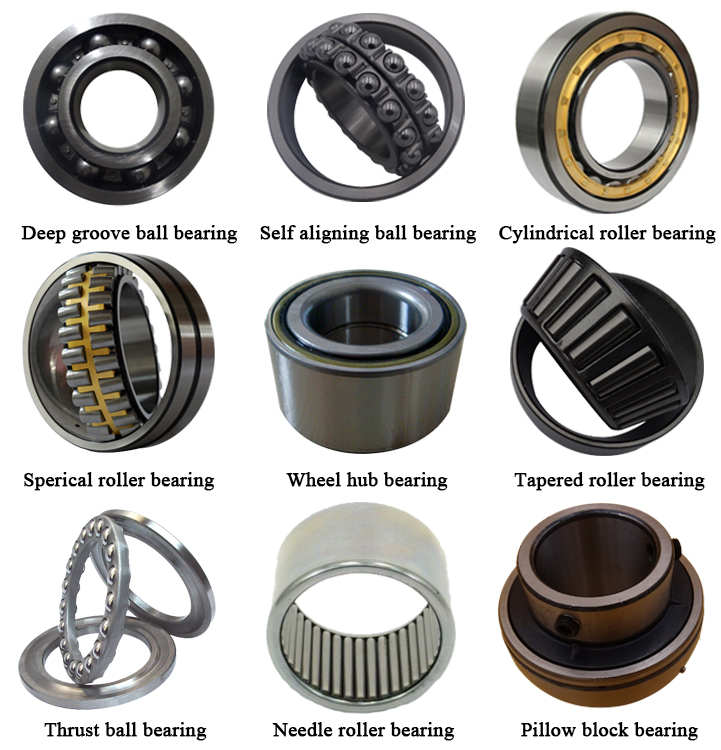

Our main products

our service

1. High speed, high precision, low noise, long life

2. Widely used

3. Large inventory

4. Small orders accepted

5. Competitive price and high quality

6. Various brands

7. Requires little maintenance

8. Support OEM

9. Our company adheres to the business philosophy of "quality first, reputation first", and product specifications are well documented. We enjoy a good reputation in the international market for our perfect services and sufficient supply.

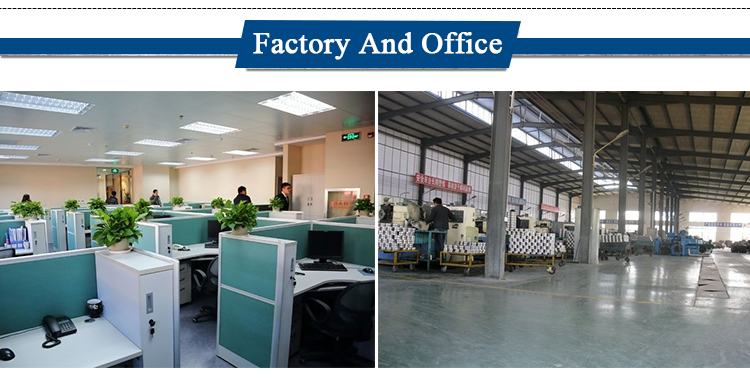

our company

Jinan Maolei Bearing Co., Ltd. is located in Jinan, the "Spring City". We adhere to the business philosophy of "integrity" and "pragmatism and win-win". We also adhere to the corporate spirit of "people-oriented" and "working hard". "Quality first, customer first" is our corporate philosophy. We have our own brand "LLH" and sincerely welcome friends from all over the world to visit the company and negotiate business. We adhere to the concept of "survive by quality" and provide customers with high-quality services.

Packaging and shipping

pack:

A. Tube packaging + outer carton + pallet
B. Single box + outer box + pallet
C. Tube package + middle box + outer box + pallet
D. According to your requirements.

payment terms:
A.100%T/T

B. 30% T/T in advance, 70% with copy of bill of lading (for large orders)
C. Western Union

FAQ

Q: Are you a trading company or a manufacturer?

A: We have been manufacturing bearings for more than 20 years, "Quality is our culture".

Q: How long is your delivery time?

A: If the goods are in stock, it usually takes 1-3 days. Or if the goods are not in stock, it is 15-20 days, depending on the quantity.

Q: What causes bearing noise?

Answer: Bearing noise is related to the bearing and how it is used. Some external factors that affect bearing noise include lubricant type, excessive bearing loads, and improper installation. Once abnormal noise occurs, you can contact our engineers and we will help you find the cause and provide corresponding solutions.
