Textile machine accessories bottom roller bearing LZ2340 textile bearing 40*23*27mm

  • Supplier: Jinan RHD Bearing Co.,Ltd
  • Region: Shandong, China
  • Contact: Ms Jessica Yan
  • Price: $0.50 /piece
  • Min. Order: 1 piece
Click here to contact
Product details

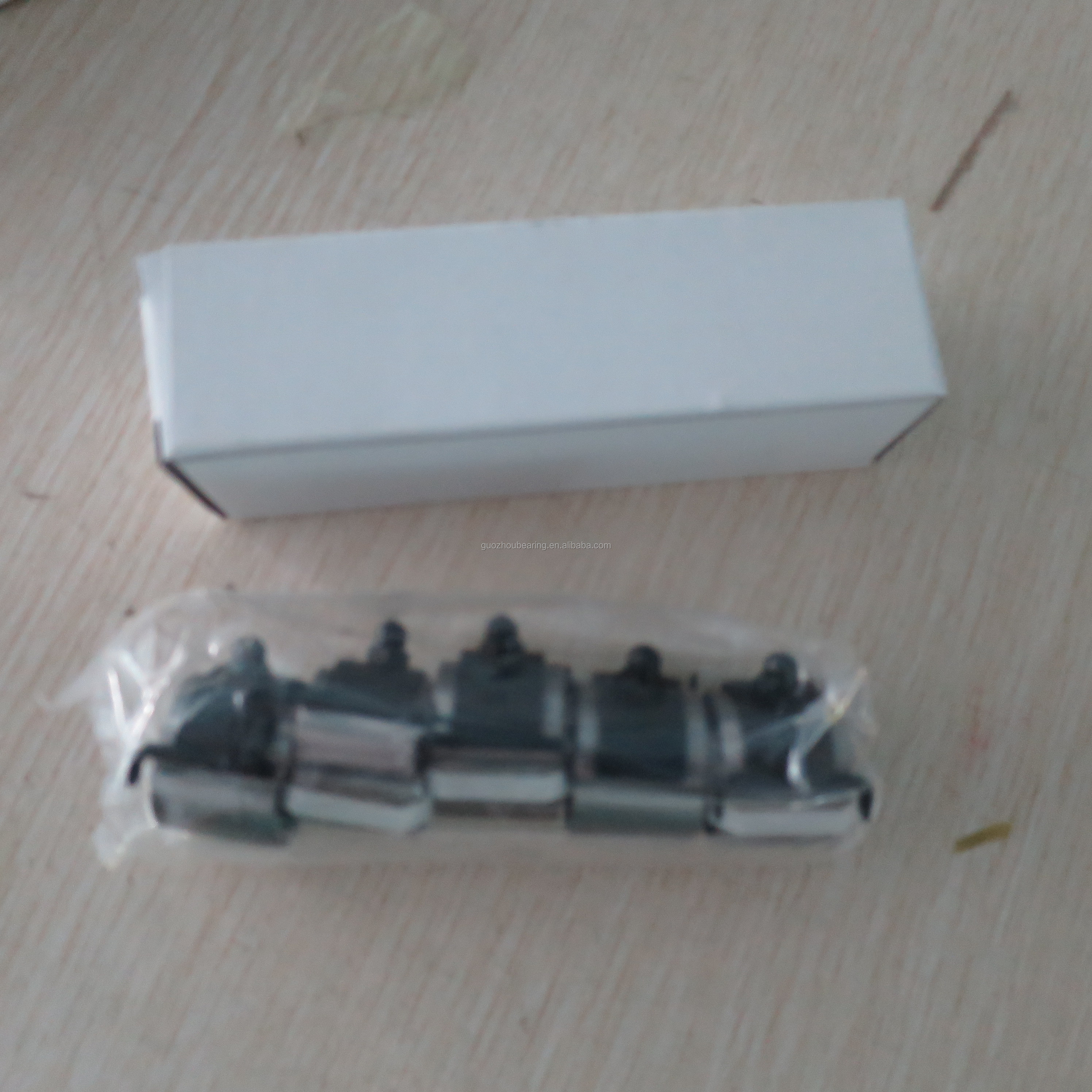

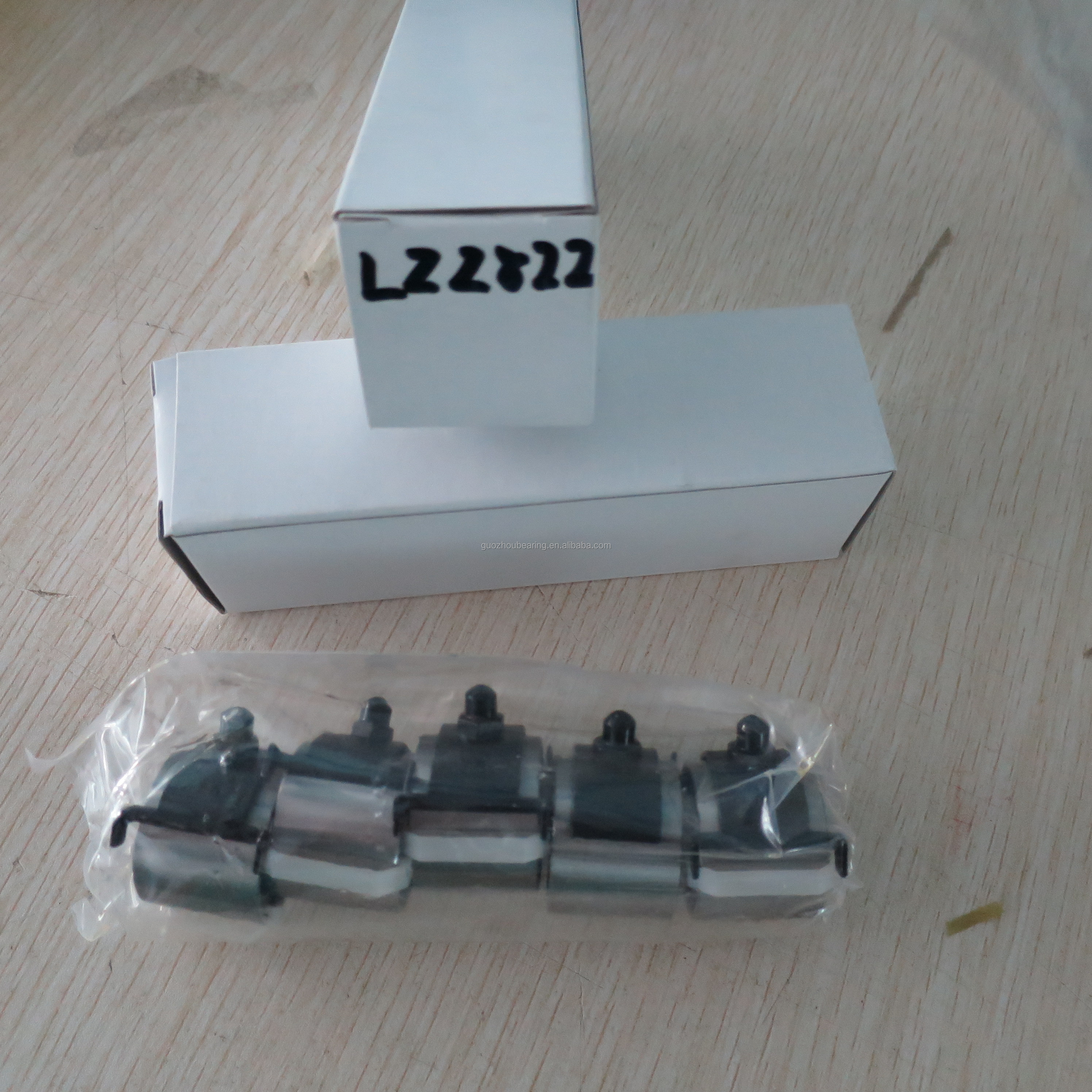

delivery time:Fast deliveryPackaging details:A. Plastic tube packaging + carton + wooden pallet B. Roll packaging + carton + wooden pallet C. Single box + plastic bag + carton + wooden pallet
Applicable industries:Building Materials Stores, Manufacturing Plants, Machinery Repair Shops, Farms, Retail, Construction Engineering, Energy and Mining, Otherspack:original packaging
Clear:C1 C2 C3type:Needle
application:machinePlace of origin:China
port:Qingdao Shanghai Shenzhen Guangzhoupayment terms:Western Union, Wire Transfer, PayPal
brand:XRTMaterial:Chrome steel
model:LZ2340sample:Available
Aperture:1 - 23mmmodel:LZ2340
Supply capacity:10,000 pieces per monthvibration:V1 V2 V3
Serve:OEM serviceNoise level:low noise
Accuracy level:P0 P6 P5 P4 P2

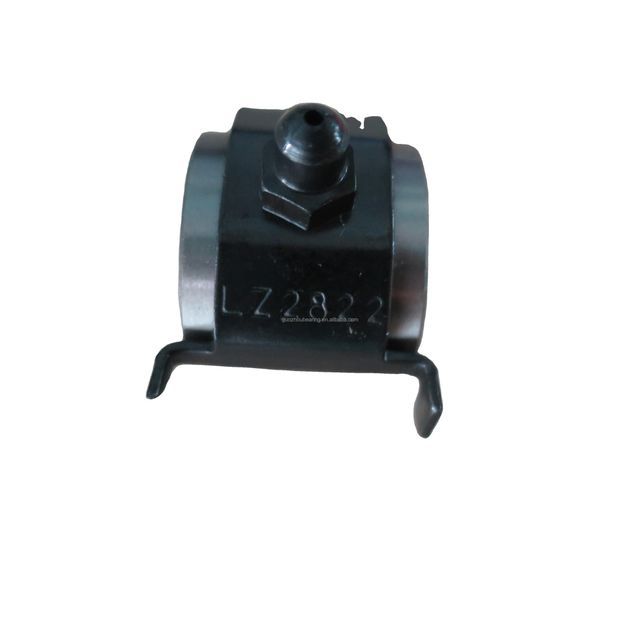

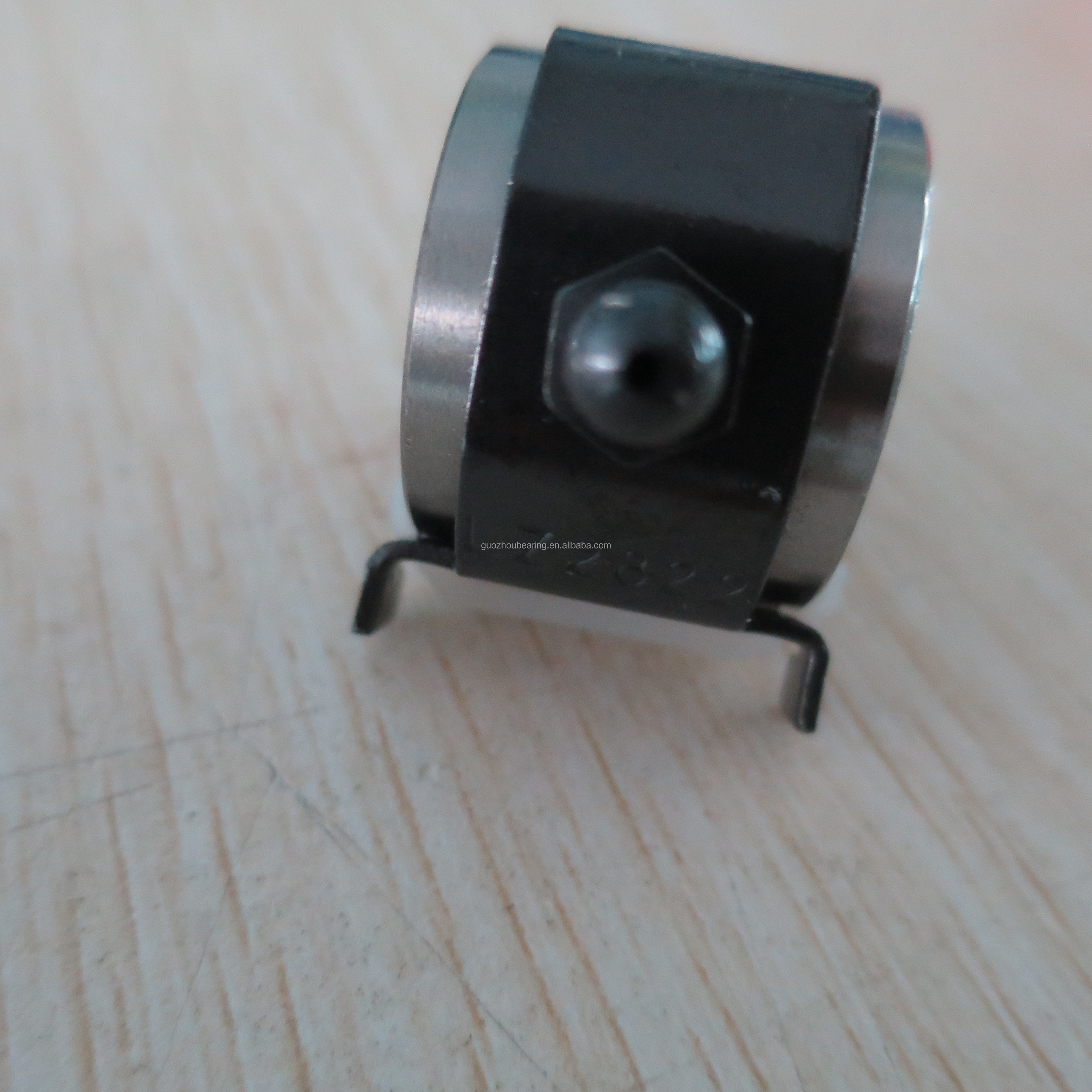

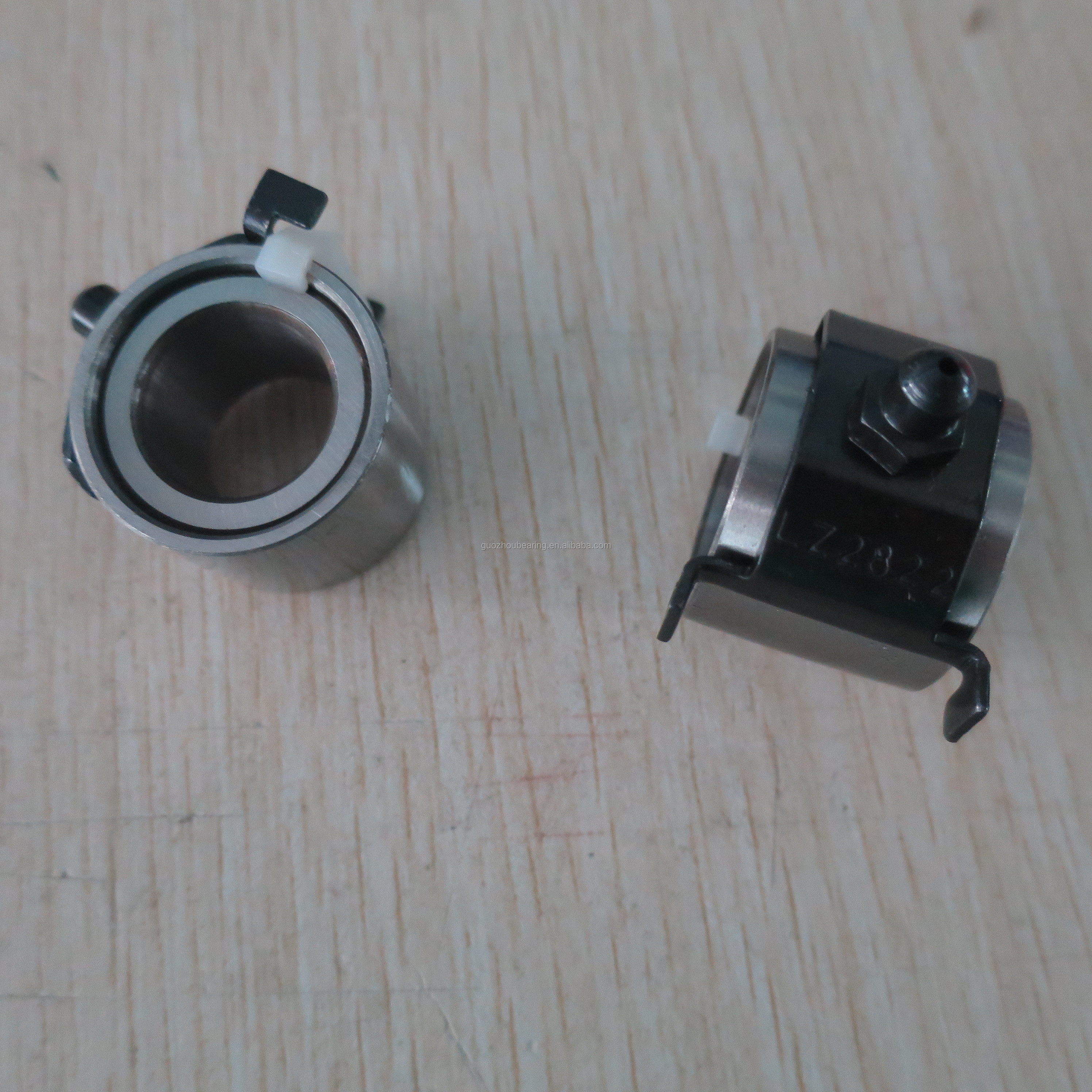

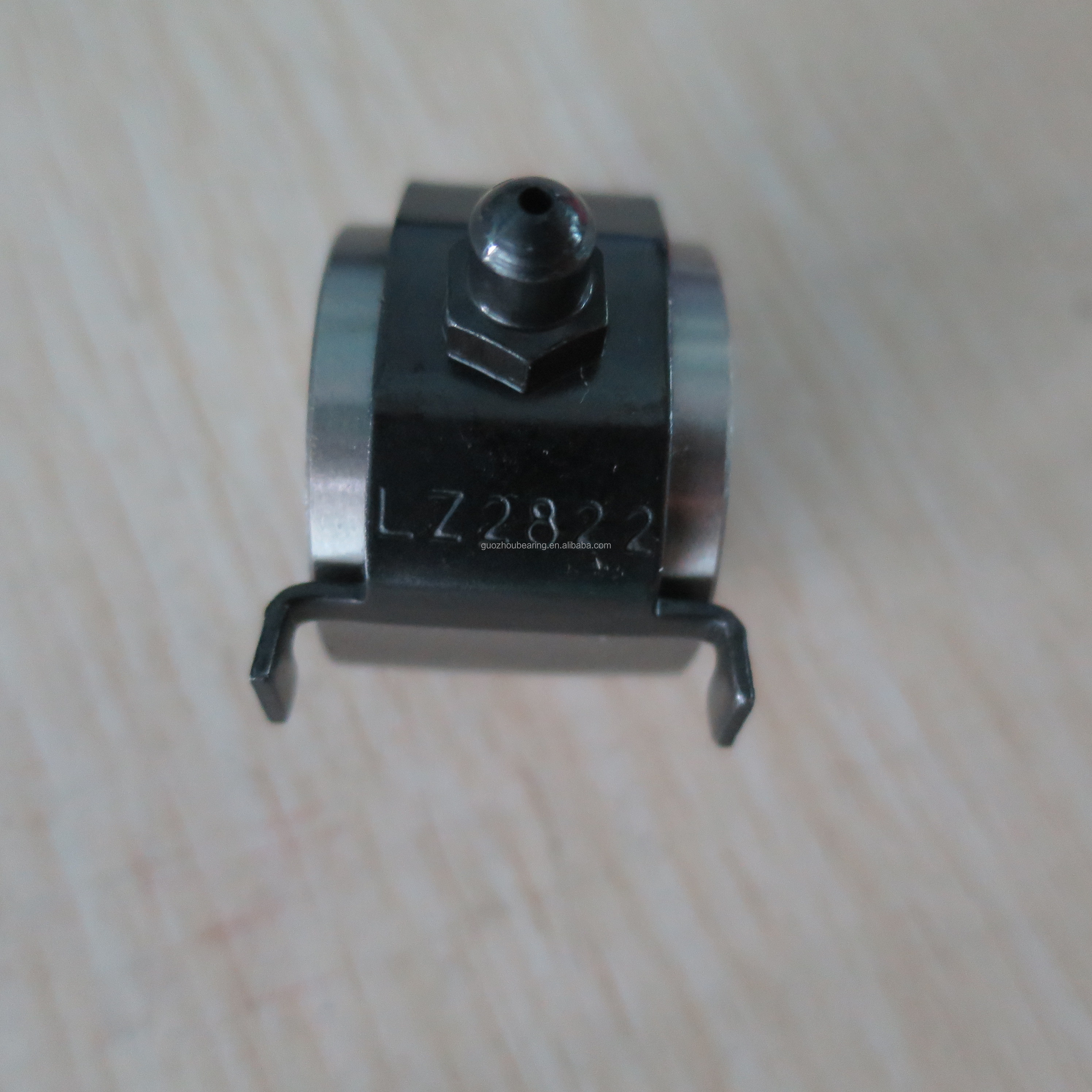

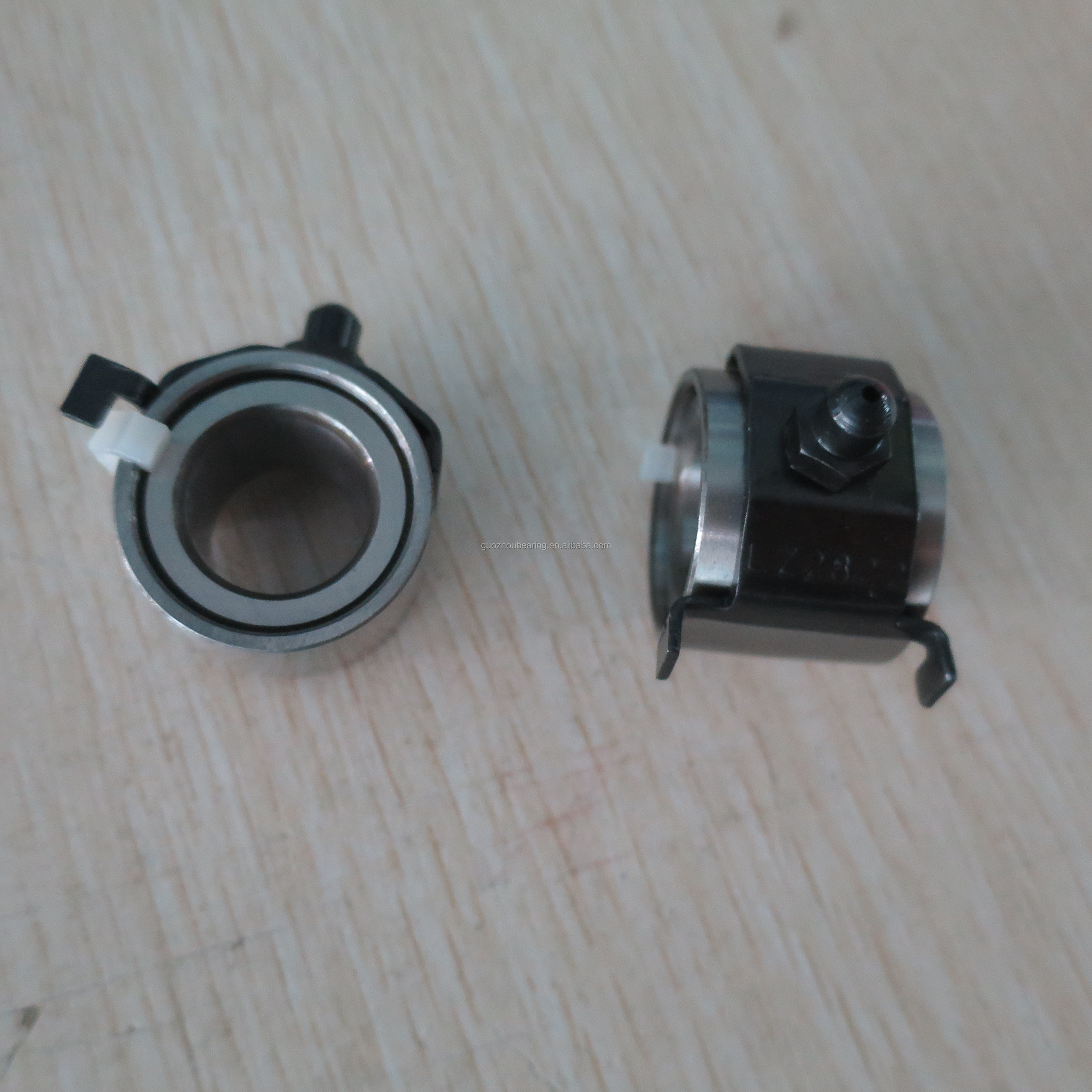

Textile machine bottom roller bearing LZ2340



Lower roller bearing description

Bottom roller bearings are used to support the bottom rollers in ring spinning machines and high-speed frames in the textile industry. Each bearing is ground to strict quality standards to ensure precise operation of the bearing. With "m" section nylon cage.



The rollers of this type of bearing are spherical, and the spherical raceway surface of the seat ring is self-aligning. The characteristic of this type of bearing is that it has a great axial load capacity and can also withstand a certain radial load. Typically oil lubricated, applications for these bearings include hydrogenerators, vertical motors, ship propeller shafts, tower cranes and extruders



The bottom roller bearing is a needle roller bearing that supports the bottom roller (fluted roller) on the spinning frame, roving frame or draw frame.



The rollers of this type of bearing are spherical, and the spherical raceway surface of the seat ring is self-aligning. The characteristic of this type of bearing is that it has a great axial load capacity and can also withstand a certain radial load. Typically oil lubricated, applications for these bearings include hydrogenerators, vertical motors, ship propeller shafts, tower cranes and extruders

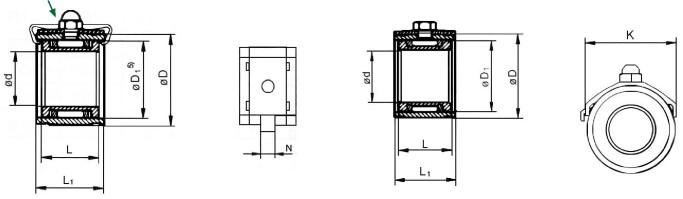

Lower roller bearing related series


type

d

D

K

D1

L

L1

nitrogen

weight



(inner flange)



















UL28-0003590

16,5mm.

28mm.

-

23,90 mm.

19mm.

23mm.

5,9 mm.

0,059 kg.

UL30-0007871

18,5 mm.

30mm.

-

25,40mm.

19mm.

22mm.

5,9 mm.

0,065 kg.

UL30-0003665

18,5 mm.

30mm.

-

25,40mm.

19mm.

22mm.

5,9 mm.

0,065 kg.

UL30-0028276 1)

18,5 mm.

30mm.

-

25,40mm.

19mm.

22mm.

5,9 mm.

0,064 kg.

UL32-0013400

19mm.

32 mm.

-

26,90 mm.

20mm.

24mm.

5,9 mm.

0,079 kg.

UL32-0015143 2)

19mm.

32mm.

-

26,90 mm.

20mm.

24mm.

5,9 mm.

0,079 kg.

UL32-0016548

21mm.

32mm.

-

27,85mm.

19mm.

23mm.

5,9 mm.

0,068 kg.

UL32-0019169

18,5 mm.

32 mm.

-

27,85mm.

19mm.

22mm.

5,9 mm.

0,100 kg.

UL32-0023114 3)

16,295 mm.

32mm.

32.5mm.

26,90 mm.

17 mm.

20 mm.

5,9 mm.

0,100 kg.

UL36-0014782

18,5 mm.

36mm.

-

29,90mm.

19mm.

22mm.

5,9 mm.

0,107 kg.

UL36-0016442

21 mm.

36 mm.

-

29,90mm.

22mm.

26 mm.

5,9 mm.

0,125 kg.

UL40-0025408 3)

22,984 mm.

40 mm.

40,5 mm.

32,85 mm.

21mm.

24mm.

5,9 mm.

0,135 kg.

Bearing project Dimensions (mm) Weight (kg)
Carrying capacity
National standard International Organization for Standardization D d Second C H1 Hydrogen 2 watt nitrogen
-0.05 -0.01 ±0.025   minute maximum 0.4 -0.2
LZ2800 UWL2800 28 16.5 19 twenty two number 17 twenty three — 5.9 0.06 6
LZ2812 — 28 16.5 19 twenty two 16 twenty four 12.2 — 0.06 6
LZ2820 UWL2820 28 16.5 19 twenty two 16 twenty four 20.2 — 0.06 6
LZ2822 UWL2822 28 16.5 19 twenty two 16 twenty four 22.2 — 0.06 6
LZ3200 UWL3200 32 19 20 twenty three 19 25 — 5.9 0.082 7
LZ3224 UWL3224 32 19 20 twenty three 19 27 24.2 — 0.082 7
LZ3226 UWL3226 32 19 20 twenty three 19 27 26.2 — 0.082 7
LZ3600 UWL3600 36 twenty one twenty two 25 twenty one 27 — 5.9 0.119 10
LZ3624 UWL3624 36 twenty one twenty two 25 twenty one 29 24.2 — 0.119 10
LZ3626 UWL3626 36 twenty one twenty two 25 twenty one 29 26.2 — 0.119 10
LZ4000 UWL4000 40 twenty three 23.5 27 twenty three 29 — 5.9 0.16 12
LZ4024 UWL4024 40 twenty three 23.5 27 twenty four 32 24.2 — 0.16 12
LZ16.5 — 30 16.5 19 twenty three 10 twenty four 22.4 — 0.07 6
LZ3000 UWL3000 30 18.5 19 twenty two 18 27   5.9 0.066 6
LZ18.5 UWL3026 30 18.5 19 twenty two 18 27 26.2 — 0.066 6
LZ19 — 36 19 twenty two 26 12.5 28.5 25.4 — 0.116 7
LZ22 — 42 twenty two twenty three 27 15 33 25.4 — 0.16 11
LZ25 — 47 25 25 29 16.7 38 28.2 — 0.218 15
LZ3200G — 32 19 20 twenty three — — — — 0.08 7
