Customed F8-16M hybrid ceramic Si3N4 miniature flat thrust ball bearing 8165mm

Supplier: Jinan Maolei Bearing Co., Ltd.
Region: Shandong, China
Contact: Ms jiessie zhang
Price: $0.50 / 10 - 99 pieces
$0.25 / >=100 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Number of Row:	Single row;	Precision Rating:	P0 P6 P5 P4 P2;
Model Number:	F8-16M;	Packaging Detail:	A: tube package + outer carton + pallets B: single box + outer carton + pallests C: tube package + middle box + outer carton + pallets D: According to your request;
Brand Name:	LLH;	Lubrication:	Grease Oil;
Seals Type:	open;	Package:	Industrial Packing;
Place of Origin:	Shandong, China;	Service:	OEM ODM;
Material:	Chrome Steel/GCr15/52100/stainless Steel;	Size:	8165mm;
Stock:	Large Quantity;	Applicable Industries:	Hotels,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Home Use,Construction works ;
Structure:	Thrust,Thrust;	Type:	BALL;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T;

Features :

Thrust ball bearings consist of two precision washers (rings) and a ball complement spaced by retainer. They can besupplied with or without radius ball grooves in the rings. Thrust ball bearings are used under purely axial loads, and its speed is limited.

According to the capability it falls into Single Direction Thrust Ball Bearings and Double Direction Thrust Ball Bearings,

our thrust ball bearings are the particular type of the Single Direction Thrust Ball Bearings.

Single direction thrust ball bearings have two washers, with grooved raceways. The curvature of the raceways is slightly larger than that of the ball. Out of two washers, one is shaft washer & the other one is housing washer. The bore of the shaft washer isof the shaft dia & the bore of the housing washer is slightly larger than that of shaft washer, to facilitate free rotation. These types of thrust bearings are mainly used where axial load conditions are too large to be accepted by radial bearings. They can accept purely thrust load in single direction & they are not suitable for speed applications.

Application

RC models, Automotive, electric motors, home appliances, construction machinery, transmission shafts, gear shafts,pups, Bicycle and various kinds of professional machinery.

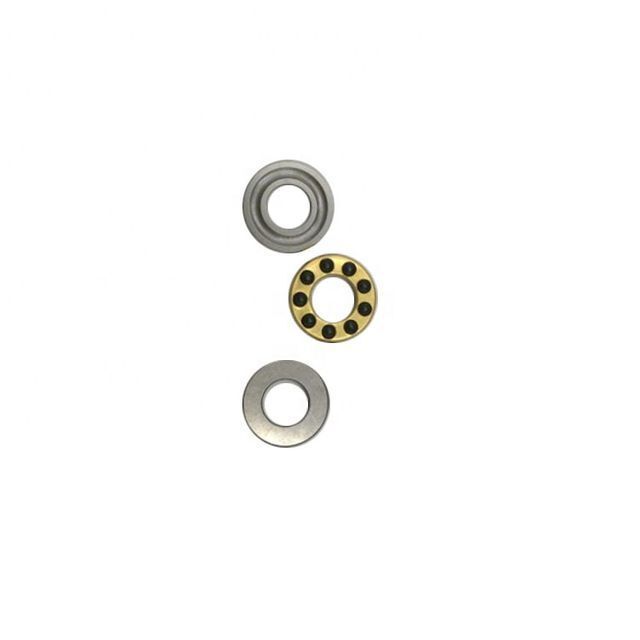

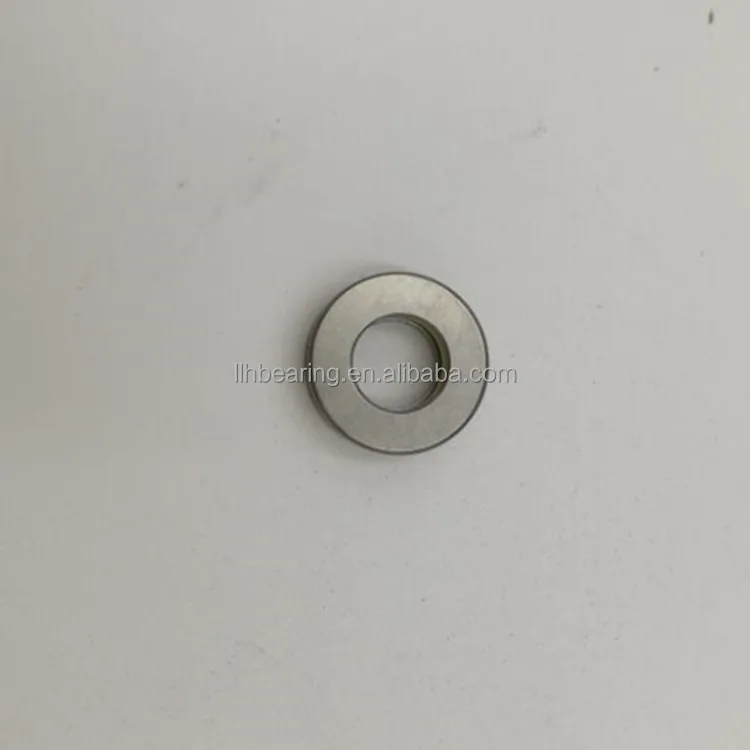

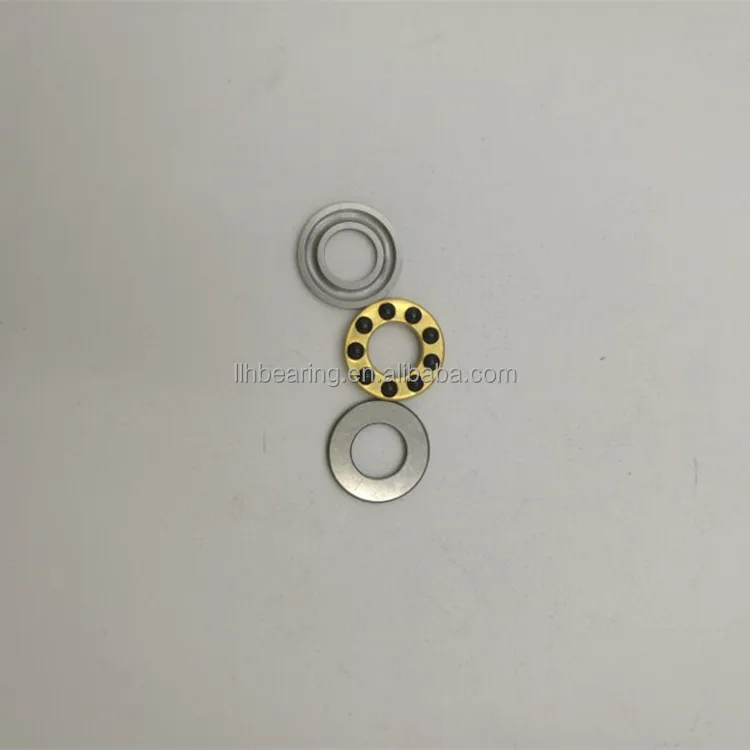

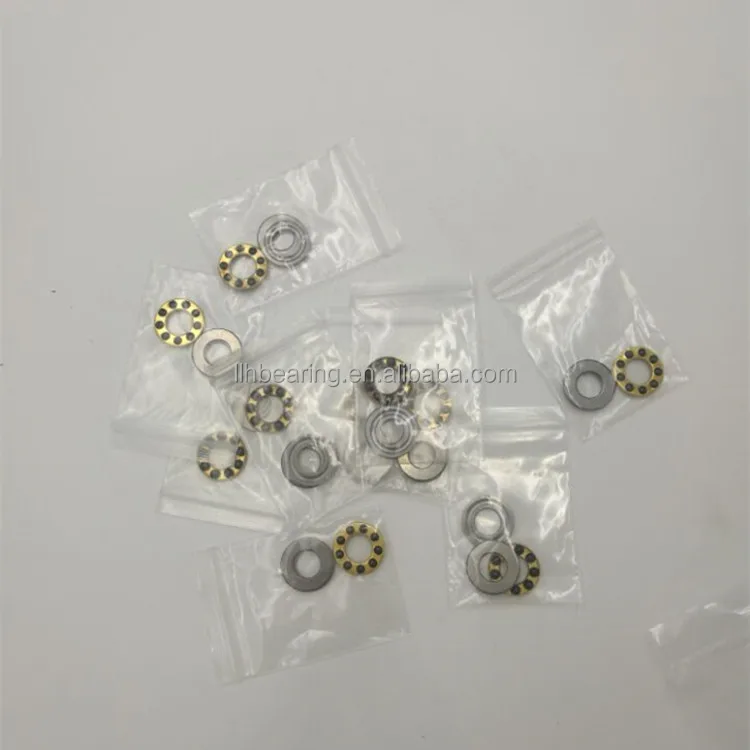

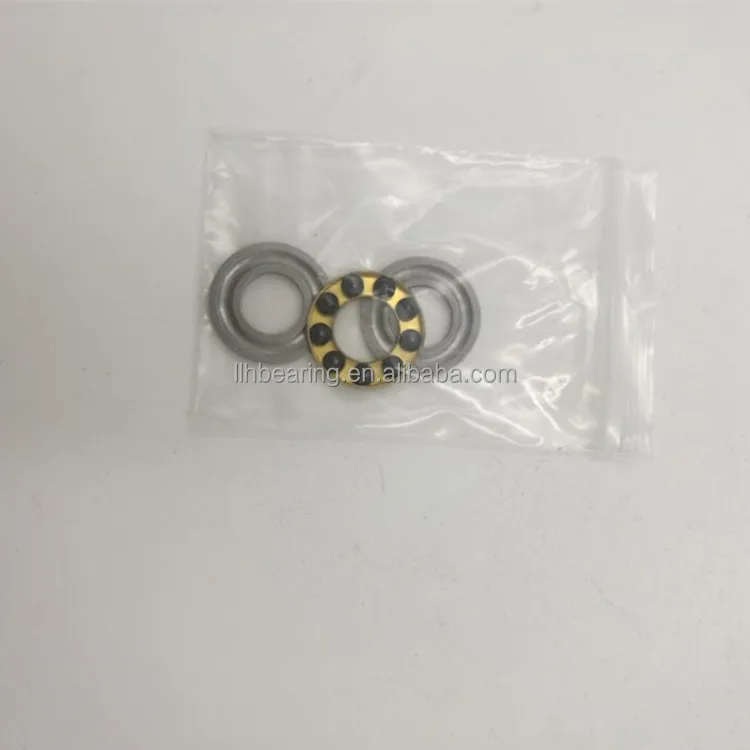

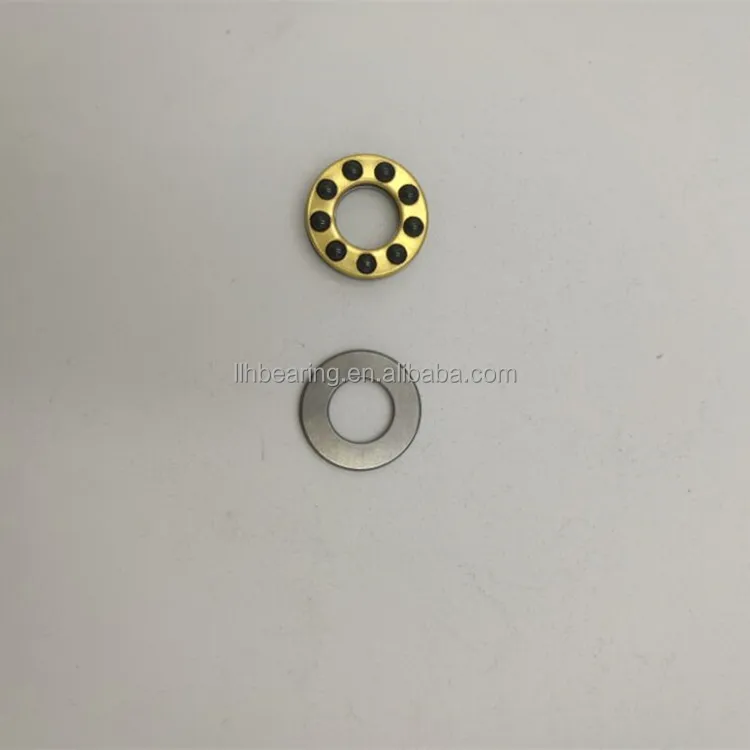

Product Show

Related Model

Model	d	D	h	ball	diameter	KG	grease	oil	Co(KN)	C(KN)
F2.5-6	2.5	6	3	6	1.2	0.0007	16000	17500	0.6	85
F3-8	3	8	3.5	7	1.588	0.001	9100	11700	0.72	0.9
F4-9	4	9	4	8	1.588	0.0012	8800	11400	0.72	0.84
F4-10	4	10	4	9	1.588	0.0016	8800	11400	0.72	0.84
F5-10	5	10	4	9	1.588	0.0015	8500	11100	0.72	0.79
F5-11	5	11	4.5	9	1.588	0.0021	8500	11100	1.7	1.81
F5-12	5	12	4	9	1.58	0.0022	8500	11100	0.79	0.72
F6-11	6	11	4.5	9	1.588	0.002	8500	11100	1.7	1.81
F6-12	6	12	4.5	9	2	0.0024	5000	7000	1.9	1.96
F6-14	6	14	5	5	2.381	0.0036	4000	7000	1.9	1.96
F7-13	7	13	4.5	9	2	0.0025	4000	7000	1.9	1.96
F7-15	7	15	5	8	3	0.004	3600	7000	1.91	1.975
F7-15	7	15	5.5	9	2.381	0.004	3600	7100	1.91	1.974
F7-17	7	17	6	6	3	0.006	3500	7100	2.56	3.15
F8-16	8	16	5	9	3	0.004	4000	7000	1.88	1.943
F8-19	8	19	7	10	3.175	0.009	3000	8000	3.5	3.85
F9-17	9	17	5	10	3	0.0045	3400	5000	1.898	1.75
F9-20	9	20	7	7	3.175	0.0089	2500	4500	3.5	3.85
F10-18	10	18	5.5	10	3.175	0.006	2500	4500	2.56	3.15
F12-21	12	21	5	11	3	0.006	1800	3000	2.1	2.6
F12-23	12	23	7.5	11	3	0.013	1800	3000	3.605	3.9
2805	11.1	22.2	6.35	11	3	0.01	1800	3000	2.35	2.9

More Product:

Jinan Maolei Bearing CO.,LTD is a professional bearing manufacturer and trade company. We have served more than 100 countries in the past 10 years, we can provide various kind of bearings with high quality,low price,short delivery time.

The product include deep groove ball bearing, self-aligning ball bearing, self-aligning roller bearing, cylindrical roller bearing, tapered roller bearing, insert bearing & pillow block bearing,needle bearing and etc.

We can offer customized service to meet customers’ requirements.

We welcome customers from all over the world to establish business relations and cooperate with us.

We committed to be your reliable bearing supplier.

Jinan Maolei Bearing Co., Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.

The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.

We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.

Our advantage

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands
7.Require little maintenance
8. OEM is supported
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

FAQ

Q:What's the MOQ of your company?

A:MOQ is 1pcs.

Q:Could you accept OEM and customize?

A:YES,we can customize for you according to sample or drawing.

Q:Could you supply sample for free?

A:Yes,we can supply sample for free,do you mind to buy her a ticket?

Q:Dose your factory have any certificate?

A:yes.we have ISO 9001:2008,IQNET and SGS. If you want other like CE,we can do for you.

Q:IS you company factory or Trade Company?

A:We have our own factory ;our type is factory +trade.

Q:Could you tell me the material of our bearing?

A:We have chrome steel,and staninless steel,ceramic and plastic material.

Q:Could you offer door to door service?

A:Yes,by express(GHL,FEDEX,TNT,EMS,4-10 days to your city.)

Q:Coould you tell me the payment term of your company can accept?

A:T/T.Western Union,PayPal

Q:Could you tell me the delivery timr of your doods?

A:If stock,in 7days or base on your order quantity

For a fast quotaion for you,could you please let we know

1. which type bearing you need?

such as deep groove ball bearing, self-aligning ball bearing, self-aligning roller bearing, cylindrical roller bearing, tapered roller bearing, insert bearing & pillow block bearing,needle bearing, thrust ball bearing, thrust roller bearing

2. the model number you need. It will be bery appreciate if you have pictures, details information.

3. what's the material you need?

chrome, stainless steel,plastic, ceramic or the others

4.the packing method is the commercial single box or the economic cheaper carton.

5. if you need the special custom type.

kindly please send me the drawing with the date.

welcome to visit ours any time!
