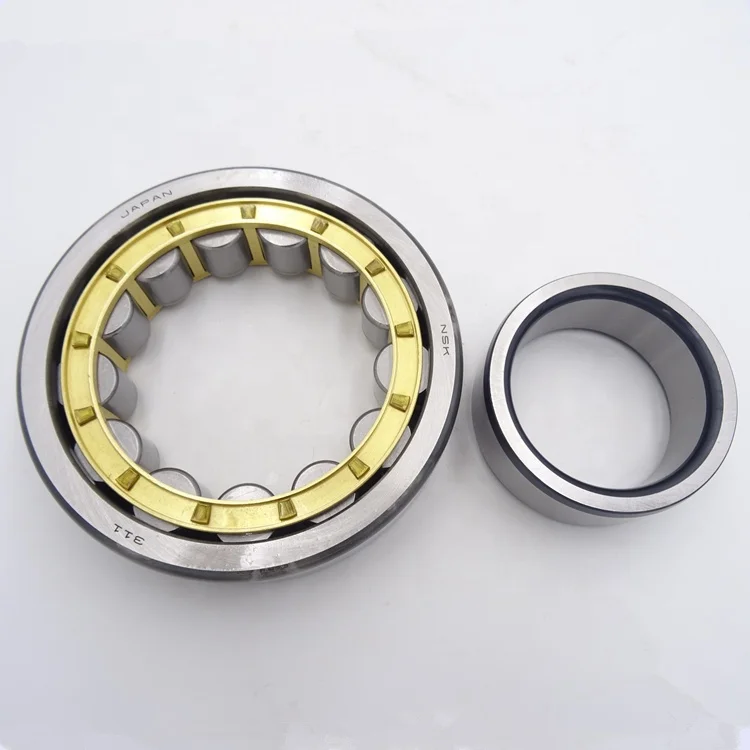

NSK NTN NACHI NU310 cylindrical roller bearing

Product details
Thickness:35;Packaging Detail:A: tube package + outer carton + pallets B: single box + outer carton + pallets C: tube package + middle box + outer carton + pallets D: According to your request;
Certificate:ISO9001;Number of Row:Single Row;
Outer diamater:150;Model Number:NU310;
Brand:NSK;Place of Origin:Germany;
Seals Type:Open;Selling Units:Single item;
Type:Roller;Brand Name:NSK;
Material:Chrome Steel;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Home Use,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
Warranty:1 year;Structure:Cylindrical;
Precision Rating:P0 P6 P5 P4 P2;Single gross weight:1.78 KG;
Model:NU310 cylindrical roller bearing;Inner diameter:70;
Single package size:11X11X3 cm;Product name:Roller bearing;
Package:Original Package;

      NSK NTN NACHI NU310 cylindrical roller bearing



The related models:

Bearing No. Boundary Dimensions (mm) Basic Load Rating (KN) Mass
d D B C Co kg
N308EM NU308EM NJ308EM 40 90 23 76.8 77.8 0.65
N309EM NU309EM NJ309EM 45 100 25 93.0 98.0 0.95
N310EM NU310EM NJ310EM 50 110 27 105.0 112.0 1.20
N311EM NU311EM NJ311EM 55 120 29 128.0 138.0 1.61
N312EM NU312EM NJ312EM 60 130 31 142.0 155.0 1.94
N313EM NU313EM NJ313EM 65 140 33 170.0 188.0 2.42
N314EM NU314EM NJ314EM 70 150 35 195.0 220.0 2.90
N315EM NU315EM NJ315EM 75 160 37 228.0 260.0 3.59
N316EM NU316EM NJ316EM 80 170 39 245.0 270.0 3.90
N317EM NU317EM NJ317EM 85 180 41 265.0 280.0 5.20
N318EM NU318EM NJ318EM 90 190 43 290.0 320.0 6.17
N319EM NU319EM NJ319EM 95 200 45 320.0 350.0 6.92
N320EM NU320EM NJ320EM 100 215 47 355.0 380.0 8.24
N322EM NU322EM NJ322EM 110 240 50 415.0 470.0 11.20
N326EM NU326EM NJ326EM 130 280 58 615.0 735.0 19.30
N328EM NU328EM NJ328EM 140 300 62 665.0 795.0 23.70
N330EM NU330EM NJ330EM 150 320 65 715.0 855.0 26.80

About Cylindrical roller bearings:

1.Cylindrical roller bearings are separable bearings, installation and removal is very convenient.
2.Cylindrical roller bearings can withstand greater radial load, suitable for use in high speed applications.
3.Cylindrical roller bearings can be divided into single row, double row and multi-row cylindrical roller bearings and other different structures.
4.Cylindrical roller bearings can be divided into PO, P6, P5, P4, P2 according to accuracy class.



Cylindrical roller bearing are of high load capacity and can operate at high speeds because they use rollers as their rolling elements. They can therefore be used in applications involving heavy radial and impact loading.

The rollers are cylindrical in shape and crowned at the end in order to reduce the stress concentrations. They are also suitable for applications that require high speed because the rollers are guided by ribs which are either on the outer or inner ring.

There are different types designated NU, NJ, NUP, N, NF for single-row bearings,and NNU, NN for double-row bearings depending on the design or absence of side ribs.



Features

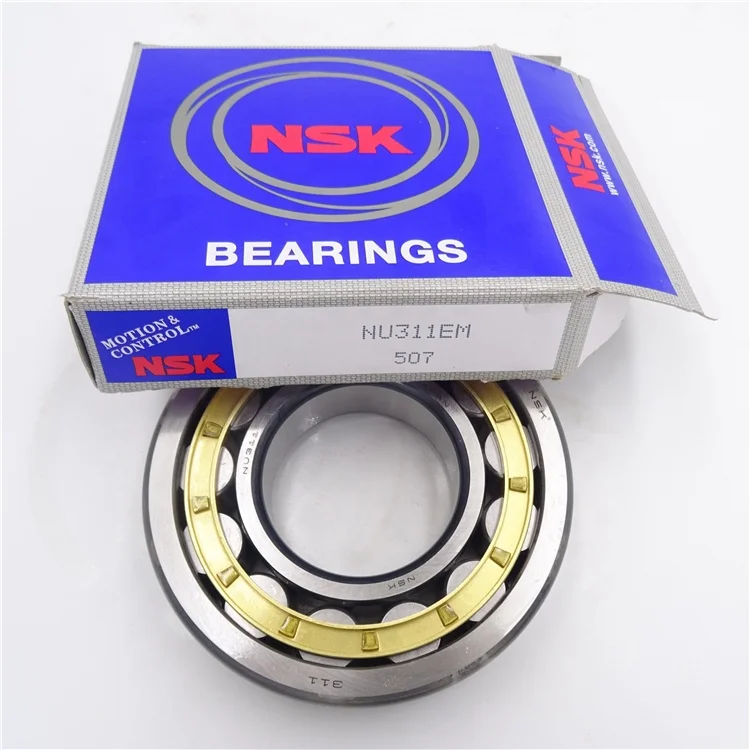

NSK NU314EM NUP205EM Single row Cylindrical Roller Bearing with brass, ring guided cage. These EM series Cylindrical roller bearings have higher load carrying capacity, lower noise and superior cage strength than the ordinary type.



Parameters

Product Name
Cylindrical Roller Bearing
Material
Chrome Steel
Brand name
NTN
Series
NU314EM, NUP205EM
Vibration
V1,V2,V3,V4
Precision Rating
P0 P6 P5 P4 P2
Quality standard
ISO9001, ABEC-1(Z1V1)
Tolerance Grades
ABEC-1 (P0), ABEC-3 (P6),ABEC-5(P5)



Packaging and shipping

A: tube package + outer carton + pallets
B: single box + outer carton + pallets
C: tube package + middle box + outer carton + pallets
D: According to your request

1. How long is your delivery term?
Our standard product delivery term is normally 30 days. A new product development cycle is 60 days in normal. Under normal circumstances, there are standing stock for regular types. You can email us to learn more details.
2. Where is your port of shipment located?
Our main port of shipment is Guangzhou port, and we may operate at other ports if required by the customer.
3. I couldn’t find a design to fit my application in your catalog. Can you help me design a bearing?
Yes, technical expertise is available to assist you with engineering design for custom products. Available options include, but are not limited to, custom rings, retainers, balls, shields, lubricants, and packaging. We look forward to working with you to satisfy your rotary motion requirements.

1.High speed, High Precision, Low Noise, Long Service Life
2.Wide Array of Applications
3.Large Inventories
4.Small order accept
5.Competitive Prices and High Quality
6.Various Brands.
7.Require little maintenance
8. OEM is supported .
9. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

Jinan Maolei Bearing co.,Ltd is a manufacturer and trader specialized in the research, development and production of bearings. is located in the "Spring City" Jinan, with convenient transportation.



The core products of Jinan Maolei bearing Co,.Ltd have a variety of bearings ranging from deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, wheel hub bearings, linear bearings, pillow block bearing, ceramic bearings, plastic bearings, cylindrical roller bearings, angular contact ball bearings, tapered roller bearings, thrust ball bearings, thrust roller bearings and needle roller bearings to spherical plain bearings and other products. All of our products comply with international quality standards ISO 9001 and are greatly appreciated in a variety of different markets throughout the world.



We insist on the philosophies of "integrity" and "pragmatic & win-win business". We also adhere to the "people-oriented" and "advancing" enterprise spirit . "Quality first and customers utmost" is honored as our enterprise concept.
