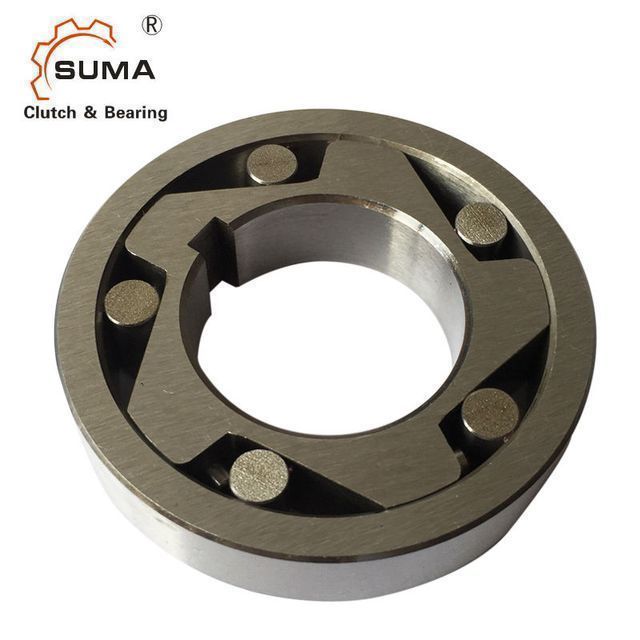

Custom one-way clutch bearing ratchet

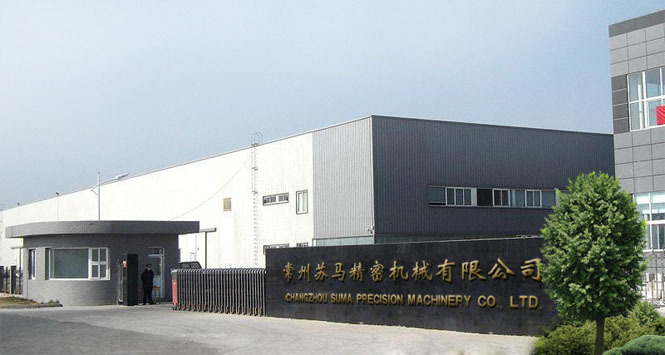

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $3.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

brand:	suma	pack:	Single box or as your request
Seal type:	non-sealed	Accuracy class:	P6
Applicable industries:	Manufacturing plants, mechanical repair shops, printing plants, construction works, energy and mining	Rows:	single row
Supply capacity:	200000 pcs one way bearing ratchet per month	payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal of one way bearing ratchet
product name:	One-way bearing ratchet	port:	Shanghai; Ningbo one-way bearing ratchet
deliver goods:	5-7 days	type:	roller
Outer diameter:	24mm	application:	industrial machine
model:	suma	Package preview:
Torque capacity:	2.1-1063Nm	Origin:	Jiangsu, China
weight:	0.01-1.14kg	thickness:	6-26mm
Packaging Details:	Single box or according to your requirement for one way bearing ratchet	structure:	Cylindrical
Processing:	accept	the inside diameter of:	8 mm

Custom one-way clutch bearing ratchet

Features of one-way bearing ratchet

Specification
product name	One-way bearing ratchet
Material	GCr15
thickness	P6
the inside diameter of	6-80mm
outer diameter	19-140mm
Torque capacity	2.1-1063Nm
weight	0.01-1.14kg
application	industrial machine
pack	Wooden boxes, pipes, pulleys, etc.
payment terms	TT. L/C, D/A, D/P, Western Union
delivery time	2-4 days for sample, 7 days for big order

Performance characteristics of one-way bearing ratchet

structure:This type of star wheel one-way ratchet is a roller type flywheel without bearing support. Bearings need to withstand axial and radial loads. The installation must also provide lubrication and sealing. Nominal external dimensions are the same as 62 series...ball bearings.
Install:A typical arrangement is to mount this type of bearing next to a 62 series bearing with the same positional tolerances. The inner ring is keyed to the shaft (except for 6 mm holes).
tolerant:The outer ring of the one-way ratchet has a positive r6 tolerance and can be pressed into an H7 housing. The case must be strong enougho Does not expand after assembly. Shis Designed to accept ± S/2 inner and outer ring axial misalignment.

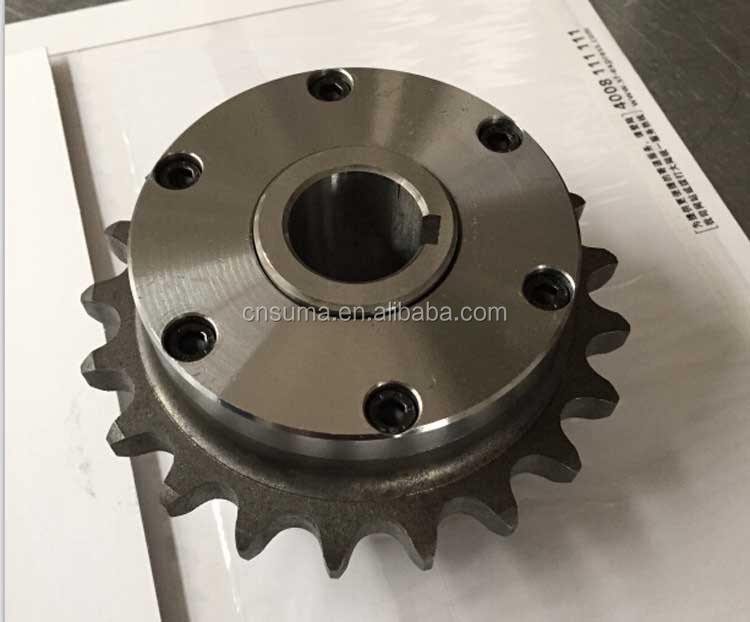

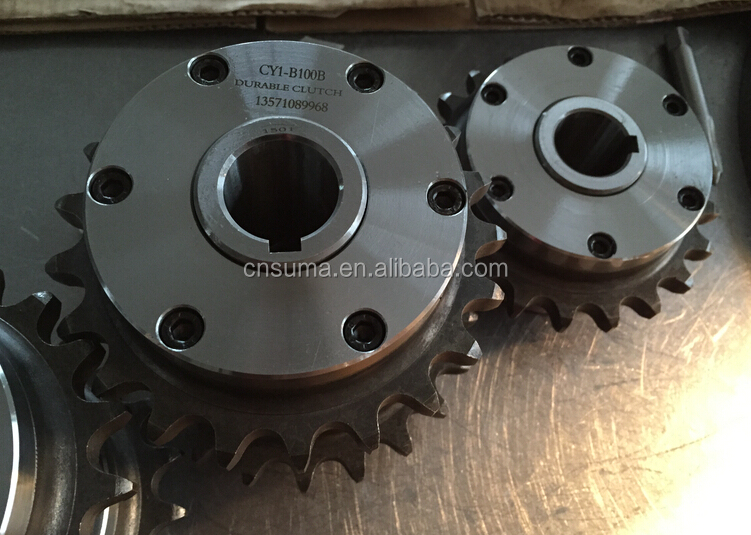

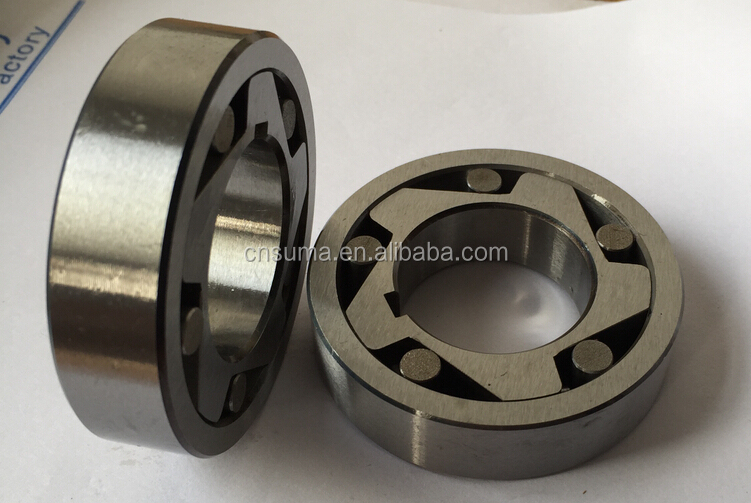

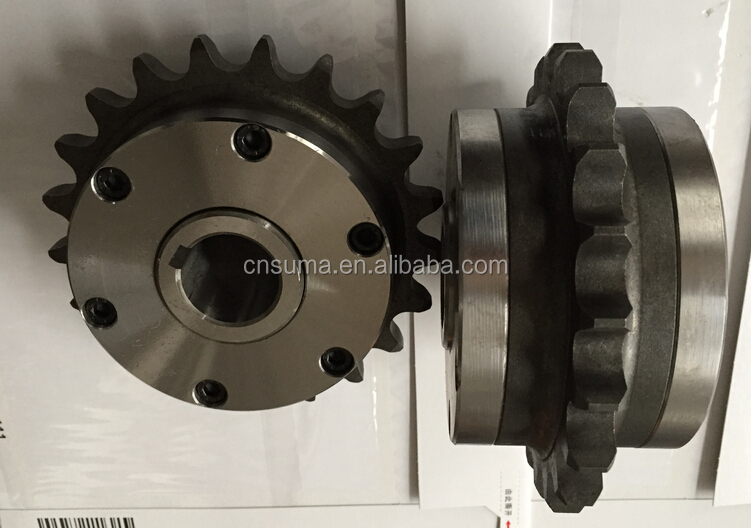

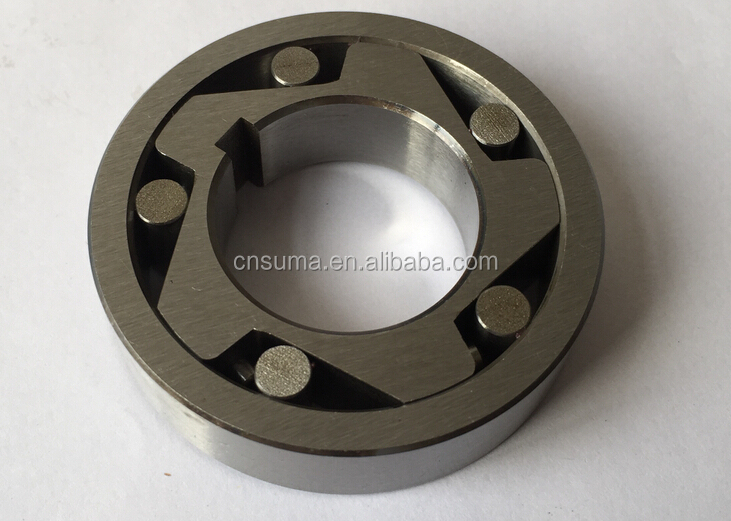

detailed image

Catalog of full cylindrical roller bearings for you to choose

type	size		beyond speed								weight	Resistance torque
star wheel	wxya	TKN1)	nimax2)	namax3)	PhD 6	D5	large	Second	electronic	f		TR
	[mm]	[Niu Mi]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[Kilogram]	[nano]
	6	2.1	5000	7500	19	15.8	6	0.3	0.6	0.3	0.01	0.18
	8	3.8	4300	6500	twenty four	20	8	1.3	0.6	0.6	0.02	0.24
	10	6.8	3500	5200	30	25.9	9	1.3	0.6	0.6	0.03	0.36
	12	13	3200	4800	32	28	10	1.3	0.6	0.6	0.04	0.48
	15	14	2800	4300	35	31	11	1.4	0.6	0.6	0.05	0.7
	20	40	2200	3300	487	40	14	2.4	0.8	0.8	0.12	1.4
	25	56	1900	2900	52	45.9	15	2.4	0.8	0.8	0.14	2.4
	30	Post-90s	1600	2400	62	55	16	2.4	0.8	1	0.22	7.8
	35	143	1300	2000	72	64	17	2.5	0.8	1	0.31	9
	40	185	1200	1800	80	72	18	2.5	0.8	1	0.39	10
	45	218	1000	1600	85	77	19	2.5	1.2	1	0.44	11
	50	230	950	1500	Post-90s	82	20	2.5	1.2	1	0.49	13
	55	308	800	1300	100	Post-90s	twenty one	2.5	1.2	1	0.66	14
	60	508	700	1100	110	100	twenty two	2.5	1.2	1.5	0.81	26
	80	1063	600	900	140	128	26	2.5	1.2	1.5	1.41	58
