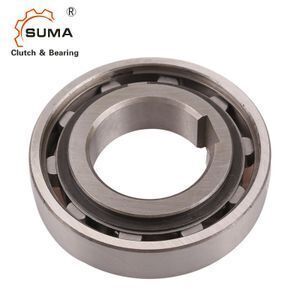

AS 15 AS15 Roller Freewheel Clutch Bearing One Way

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $12.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Material:	GCr15;	Package:	single box or as your requirements;
Single gross weight:	0.1 KG;	Product name:	AS 15 Indexing Overunning Clutch Bearing One Way;
Port:	Shanghai ; Ningbo;	Type:	roller;
Weight:	0.05kg;	Torque:	14Nm;
Seals Type:	Sealed;	Selling Units:	Single item;
Single package size:	19X18X10 cm;	Package Preview:	;
OEM:	Accept;	Precision Rating:	P6;
Packaging Detail:	Standard Industrial Package or as your requirements;	Place of Origin:	Jiangsu China;
Model Number:	AS 15;	Stock:	Rich;
Inner dia.:	15 mm;	Brand Name:	SUMA or OEM;
Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;	Width:	11mm;

AS 15 AS15 Roller Freewheel Clutch Bearing One Way

Product Description

Data Sheet

Item	AS15
Material	GCr15
Bore size	15 mm
Outer dia.	35 mm
Width	11 mm
Torque	14 Nm
Drag torque	0.7 Ncm
Weight	0.05 kg
Port	Shanghai;Ningbo
Delivery time	10-15 days

Feature

Type AS is a roller type freewheel non-bearing supported. Bearings are required to support axial and radial loads. Lubrication and sealing must also be provided by the installation. Nominal outside dimensions are the same as series 62...Ball bearings.

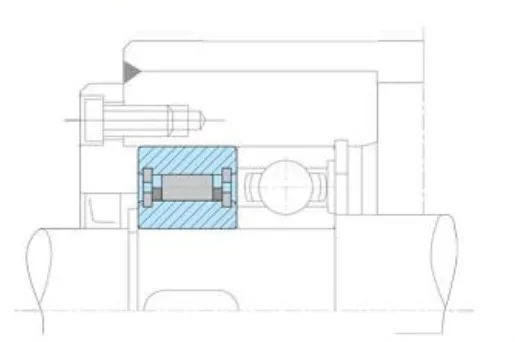

A typical arrangement is to install this type alongside a series 62 bearing within the same location tolerances, as shown on the following page. The inner race is keyed to the shaft (except 6 mm bore).
The outer race has a positive r6 tolerance to give a press fit in a H7 housing. The outer housing must be strong enough

To not expand after assembly. This design can accept an axial misalignment of inner and outer race of ± S/2.

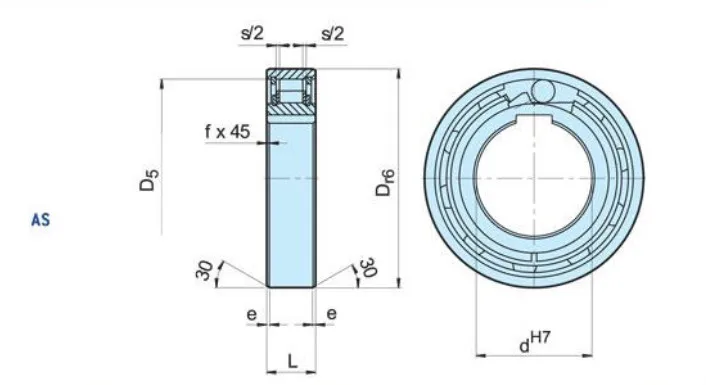

Different Sizes For Your Reference

Type	Size		Overrunning speeds								Weight	Drag torque
AS (NSS)	dH7	TKN1)	nimax2)	namax3)	Dr6	D5	L	s	e	f		TR
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]	[mm]	[mm]	[kg]	[Ncm]
	6	2.1	5000	7500	19	15.8	6	0.3	0.6	0.3	0.01	0.18
	8	3.8	4300	6500	24	20	8	1.3	0.6	0.6	0.02	0.24
	10	6.8	3500	5200	30	25.9	9	1.3	0.6	0.6	0.03	0.36
	12	13	3200	4800	32	28	10	1.3	0.6	0.6	0.04	0.48
	15	14	2800	4300	35	31	11	1.4	0.6	0.6	0.05	0.7
	20	40	2200	3300	487	40	14	2.4	0.8	0.8	0.12	1.4
	25	56	1900	2900	52	45.9	15	2.4	0.8	0.8	0.14	2.4
	30	90	1600	2400	62	55	16	2.4	0.8	1	0.22	7.8
	35	143	1300	2000	72	64	17	2.5	0.8	1	0.31	9
	40	185	1200	1800	80	72	18	2.5	0.8	1	0.39	10
	45	218	1000	1600	85	77	19	2.5	1.2	1	0.44	11
	50	230	950	1500	90	82	20	2.5	1.2	1	0.49	13
	55	308	800	1300	100	90	21	2.5	1.2	1	0.66	14
	60	508	700	1100	110	100	22	2.5	1.2	1.5	0.81	26
	80	1063	600	900	140	128	26	2.5	1.2	1.5	1.41	58
