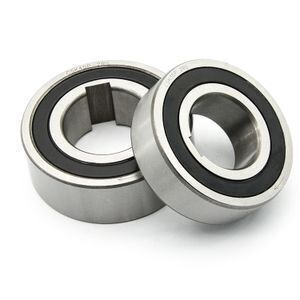

Electric Scooter Bearing CSK30PP 2RS Sprag Clutch Bearing One Way
- 4.20 piece
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| OEM: | Accept; | Stock: | Rich; |
| Drag Torque(Ncm): | 7.5; | Delivery: | 1-2 Days; |
| Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal; | Port: | Shanghai ; Ningbo; |
| Type: | sprag,special; | Packaging Detail: | Carton Box / Wooden Pallet; |
| Torque (Nm): | 138; | Applicable Industries: | Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Retail,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other; |
| Height (mm): | 21; | Model Number: | CSK30PP 2RS; |
| Weight(kgs): | 0.27; | Brand Name: | SUMA; |
| Supply Ability: | 10000 Piece/Pieces per Month; |
Electric Scooter Bearing CSK30PP 2RS Sprag Clutch Bearing One Way
Product Description
DATA SHEET
| One Way Clutch Bearing Indexing Clutch CSK30PP-2RS |
||
| Details | ||
| Model | CSK30PP-2RS | |
| Material | bearing steel | |
| Type | sprag | |
| Inner Diameter | 30 mm | |
| Outer Diameter | 62 mm | |
| Weight | 0.27 kg | |
| Width | 21 mm | |
|
Torque |
138 Nm | |
|
Drag torque |
7.5 Ncm | |
|
bearing loads(dynamic) |
11.7 kN | |
| bearing loads(static) | 6.45 kN | |
| Price terms | FOB,EXW,CIF,CFR | |
| Payment term | T/T,western union,paypal | |
INTRODUCTION:
Types CSK..P and CSK..PP are sprag type freewheels integrated into 62.. series ball bearings (except size 40).They are bearing supported, delivered grease lubricated and protected against dust of more than 0,3 mm.
CSK..PP features a keyway on both the inner and outer race. The recommended mounting tolerances are h6 on the shaft and H6 in a rigid housing. Please contact us when either the ambient or the operating temperature is not within the range +5°C to +60°C.
Different Sizes For Your Reference
+
| Type | Size | Bearing series | Bearing loads | Weight | Drag torque | |||||||
| dynamic | static | |||||||||||
| CSK..P | d | TKN1) | nmax | D | L | b | t | C | C0 | TR | ||
| [mm] | [Nm] | [min-1] | [mm] | [mm] | [mm] | [mm] | [kN] | [kN] | [kg] | [Ncm] | ||
| 12 | 6201 | 9.3 | 10000 | 32 | 10 | 6.1 | 2.77 | 0.04 | 0.7 | |||
| 15 | 6202 | 17 | 8400 | 35 | 11 | 7.4 | 3.42 | 0.06 | 0.9 | |||
| 17 | 6203 | 30 | 7350 | 40 | 12 | 7.9 | 3.8 | 0.07 | 1.1 | |||
| 20 | 6204 | 50 | 6000 | 47 | 14 | 9.4 | 4.46 | 0.11 | 1.3 | |||
| 25 | 6205 | 85 | 5200 | 52 | 15 | 10.7 | 5.46 | 0.14 | 2 | |||
| 30 | 6206 | 138 | 4200 | 62 | 16 | 11.7 | 6.45 | 0.21 | 4.4 | |||
| 35 | 6207 | 175 | 3600 | 72 | 17 | 12.6 | 7.28 | 0.3 | 5.8 | |||
| 40 | – | 325 | 3000 | 80 | 22 | 15.54 | 12.25 | 0.5 | 7 | |||
| CSK..PP | 15 | 6202 | 17 | 8400 | 35 | 11 | 2 | 0.6 | 7.4 | 3.42 | 0.06 | 0.9 |
| 17 | 6203 | 30 | 7350 | 40 | 12 | 2 | 1 | 7.9 | 3.8 | 0.07 | 1.1 | |
| 20 | 6204 | 50 | 6000 | 47 | 14 | 3 | 1.5 | 9.4 | 4.46 | 0.11 | 1.3 | |
| 25 | 6205 | 85 | 5200 | 52 | 15 | 6 | 2 | 10.7 | 5.46 | 0.14 | 2 | |
| 30 | 6206 | 138 | 4200 | 62 | 16 | 6 | 2 | 11.7 | 6.45 | 0.21 | 4.4 | |
| 35 | 6207 | 175 | 3600 | 72 | 17 | 8 | 2.5 | 12.6 | 7.28 | 0.3 | 5.8 | |
| 40 | – | 325 | 3000 | 80 | 22 | 10 | 3 | 15.54 | 12.25 | 0.5 | 7 | |
| CSK..P-2RS | 12 | – | 9.3 | 10000 | 32 | 14 | 6.1 | 2.77 | 0.05 | 3 | ||
| 15 | – | 17 | 8400 | 35 | 16 | 7.4 | 3.42 | 0.07 | 4 | |||
| 17 | – | 30 | 7350 | 40 | 17 | 7.9 | 3.8 | 0.09 | 5.6 | |||
| 20 | – | 50 | 6000 | 47 | 19 | 9.4 | 4.46 | 0.145 | 6 | |||
| 25 | – | 85 | 5200 | 52 | 20 | 10.7 | 5.46 | 0.175 | 6 | |||
| 30 | – | 138 | 4200 | 62 | 21 | 11.7 | 6.45 | 0.27 | 7.5 | |||
| 35 | – | 175 | 3600 | 72 | 22 | 12.6 | 7.28 | 0.4 | 8.2 | |||
| 40 | – | 325 | 3000 | 80 | 27 | 15.54 | 12.25 | 0.6 | 10 | |||
MOUNTING
Detailed Images
Production Flow 1
FAQ
Q: How do you pack the goods?
- Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
- Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet
Q: Can i get the samples from you?
A: It is highly encouraged to ask for the samples for quality check.
Q: Can you promise to deliver the goods in time?
- Small items: In stock.
- Medium Items: 10-15 Days
- Big items: 20-25 Days
