AL35 ALP35 High Quality Roller One Way Bearing Clutch

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $160.00 / 1 - 9 pieces
$145.00 / 10 - 49 pieces
$132.00 / >=50 pieces
Min. Order: 1 piece

Click here to contact

Product details

payment terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal Roller One-Way Clutch	Inner overtaking speed:	1550 rpm
port:	Roller type one-way clutch replacement in Shanghai and Ningbo	Material:	GCr15
Packaging Preview:		type:	roller
brand:	Roller one-way clutch SUMA	pack:	Wooden case or can be customized
Seal Type:	Open	Original Equipment Manufacturer:	accept
product name:	Roller type one-way clutch	thickness:	74mm
ID:	35mm	model:	Roller one-way clutch AL35 ALP35
Torque Capacity:	725 Nm	Outer diameter:	110mm
place of origin; place of origin:	Jiangsu, China	delivery time:	5-7 days
Applicable industries:	Manufacturing plants, mechanical repair shops, printing plants, construction works, energy and mining	Packaging Details:	Carton/Wooden Case Roller Type One-Way Clutch
Accuracy class:	P6	Supply capacity:	500,000/month roller one-way clutch

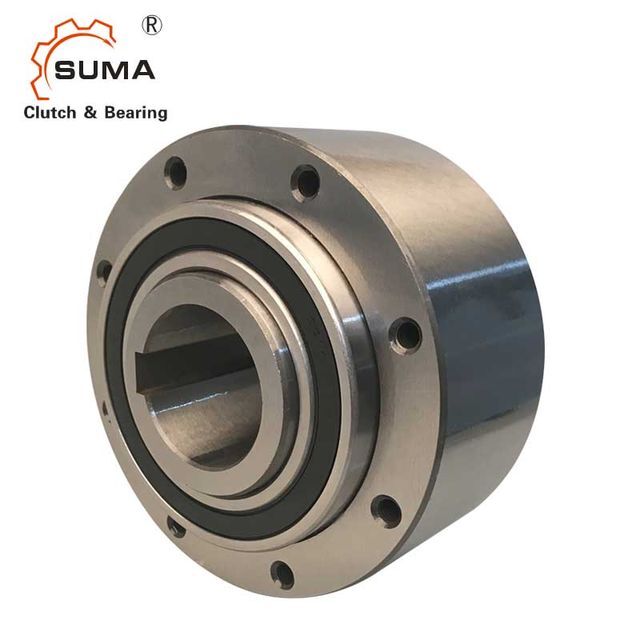

AL35 ALP35 Roller Bearing One-way Clutch

Product Description

AL roller type one-way clutch structure:

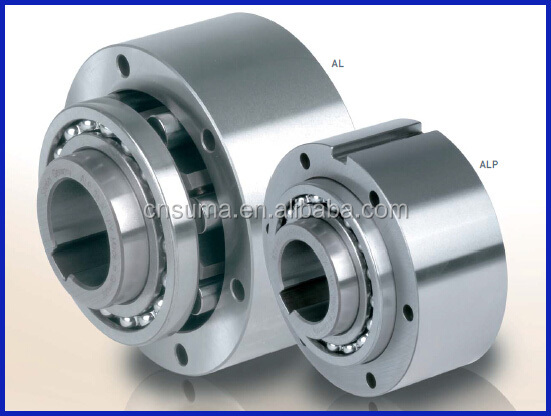

AL and ALP types are roller type flywheels. These units are part of the Stieber modular system. They are supported by bearings using two bearings of the 160.. series and require oil lubrication.

The AL and ALP types are the same, except that the ALP type has a keyway on the outer diameter to transmit torque.

Usable shaft diameter: 12-250mm

Specification
Model	AL35 ALP35
Material	GCr15
Shaft diameter	35mm
outer diameter	110mm
high	74mm
Torque capacity	725 Nm
Inner ring overtaking speed	1550 rpm
Outer ring overtaking speed	3800 rpm
application	Backstop/Override
pack	carton packing/wood packing
delivery time	5-7 days
payment terms	TT, L/C, D/P, D/A, Western Union, Paypal

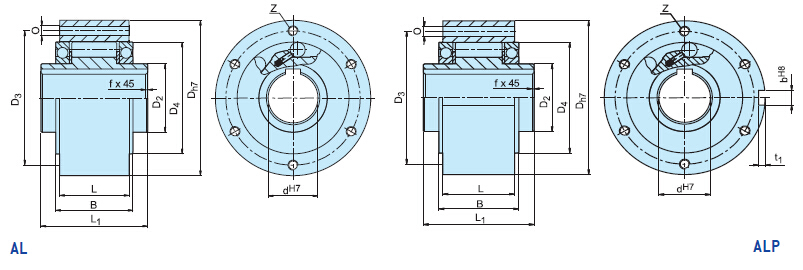

Roller type one-way clutch catalog for your choice

type	size		beyond speed		number										weight	drag moment
	dH7	TKN1)	nimax2)	Namax 3)	seven seven	D2	D4	D3	○	z	L 1	L4)	Second	t1		TR
	[mm]	[Nm]	[min-1]	[min-1]	[mm]	[mm]	[mm]	[mm]			[mm]	[mm]	[mm]	[mm]	[Kilogram]	[Ncm]
aluminum alkaline phosphatase	12	55	4000	7200	62	20	42	51	5.5	3	42	20.3	27	2.4	0.5	3.4
	15	125	3600	6500	68	25	47	56	5.5	3	52	30.3	34.1	2.9	0.8	4.1
	20	181	2700	5600	75	30	55	64	5.5	4	57	34.3	39.1	3.5	1	8
	25	288	2100	4500	90	40	68	78	5.5	6	60	37.3	42.1	4.1	1.5	14
	30	500	1700	4100	100	45	75	87	6.6	6	68	44.3	49.1	4.1	2.2	twenty three
	35	725	1550	3800	110	50	80	96	6.6	6	74	48.3	54.1	4.7	3	60
	40	1025	1150	3400	125	55	90	108	9	6	86	56.3	62.1	4.9	4.6	72
	45	1125	1000	3200	130	60	95	112	9	8	86	56.3	62.1	5.5	4.7	140
	50	2125	800	2800	150	70	110	132	9	8	92	63.3	69.1	5.5	7.2	180
	55	2625	750	2650	160	75	115	138	11	8	104	67	73.1	6.2	8.6	190
	60	3500	650	2450	170	80	125	150	11	10	114	78	84	6.8	10.5	240
	70	5750	550	2150	190	90	140	165	11	10	134	95	103	7.4	13.5	320
	80	8500	500	1900	210	105	160	185	11	10	144	100	108	8.5	18.2	330
	90	14500	450	1700	230	120	180	206	14	10	158	115	125	8.7	28.5	650
	100	20000	350	1450	270	140	210	240	18	10	182	120	131	9.9	42.5	830
	120	31250	250	1250	310	160	240	278	18	12	202	140	152	11.1	65	1080
	150	70000	200	980	400	200	310	360	twenty two	12	246	180	196	12.3	138	1240
	200	175000	150	750	520	260	400	460	26	18	326	240	265	15	315	3800
	250	287500	120	620	610	320	480	545	33	20	396	300	330	15	512	6100
ALM	25	388	2100	2800	90	40	68	78	5.5	6	60	37.3	42.1	4.1	1.7	twenty two
	30	588	1700	2500	100	45	75	87	6.6	6	68	44.3	49.1	4.1	2.5	37
	35	838	1550	2400	110	50	80	96	6.6	6	74	48.3	54.1	4.7	3.2	66
