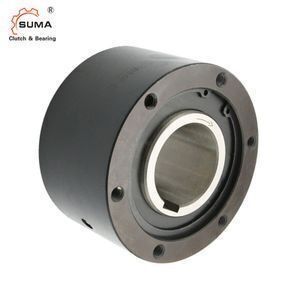

BS85 BS 85 Freewheel Backstop One-Way Clutch Bearing

Supplier: Changzhou Suma Precision Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Ellen zhang
Price: $250.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	;	Width:	115mm;
Package:	Carton Box / Wooden Box;	Seals Type:	sealed;
Torque capacity:	5850Nm;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Printing Shops,Construction works ,Energy & Mining;
Selling Units:	Single item;	Overrunning speed:	300 r/min;
Precision Rating:	P0;	Single package size:	29X28X20 cm;
Packaging Detail:	Carton Box;	Material:	GCr15;
Type:	cam clutch,sprag;	OEM:	ACCEPT;
Product name:	BS85 one way clutch bearing;	Place of Origin:	Jiangsu China;
Drag Torque:	7.84Nm;	Single gross weight:	20.0 KG;
Model Number:	BS85;	Brand Name:	SUMA or OEM;

BS85 BS 85 Freewheel Backstop One-Way Clutch Bearing

Product Description

Features of BS one-way clutch bearing

The BS series Cam Clutches are intended for applications where reverse rotation of the slow speed conveyor head shaft is to be prevented (backstopping).

Product name	Cam Clutch bearing
Model	BS85
Material	GCr15
Inner diameter	85mm
Outer diameter	210mm
Thickness	115mm
Torque capacity	5850Nm
Overrunning speed	300r/min
Application	low speed conveyor , bucket elevator
Package	Carton Box / Wooden box
Payment terms	TT. L/C, D/A,D/P,Western Union
Delivery time	10-15 Days

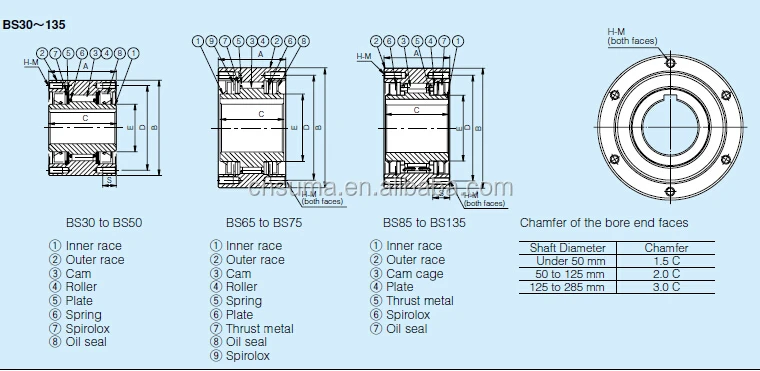

Catalogue of cam clutch bearing for your choice

Model	Torque	Max overrunning	Drag Torque (N-m)	A	B	C	PCD	E	S	H-M Size× Pitch ×No.of Tapped Holes
Model	Capacity (Nm)	(r/min) Inner race	Drag Torque (N-m)	A	B	C	D	E	S	H-M Size× Pitch ×No.of Tapped Holes
BS30	294	350	0.58	64	90	64	80	45	13	M 6 ×P1.0×4
BS50	784	300	0.98	67	125	67	110	70	16	M 8 ×P1.25×4
BS65	1570	340	3.92	90	160	85	140	90	20	M10 ×P1.5×6
BS75	2450	300	5.88	90	170	85	150	100	20	M10 ×P1.5×6
BS85	5880	300	7.84	115	210	110	185	115	30	M12 ×P1.75×6
BS95	7840	250	9.8	115	230	110	200	130	30	M14 ×P2.0× 6
BS110	10800	250	14.7	115	270	110	220	150	30	M16 ×P2.0× 6
BS135	15700	200	19.6	135	320	130	280	180	30	M16 ×P2.0× 8
