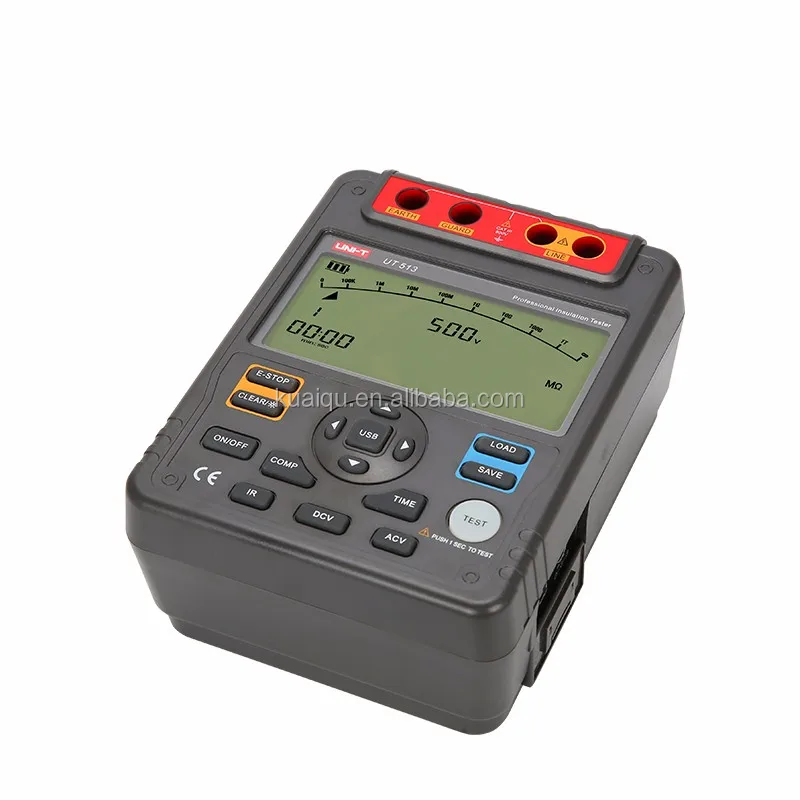

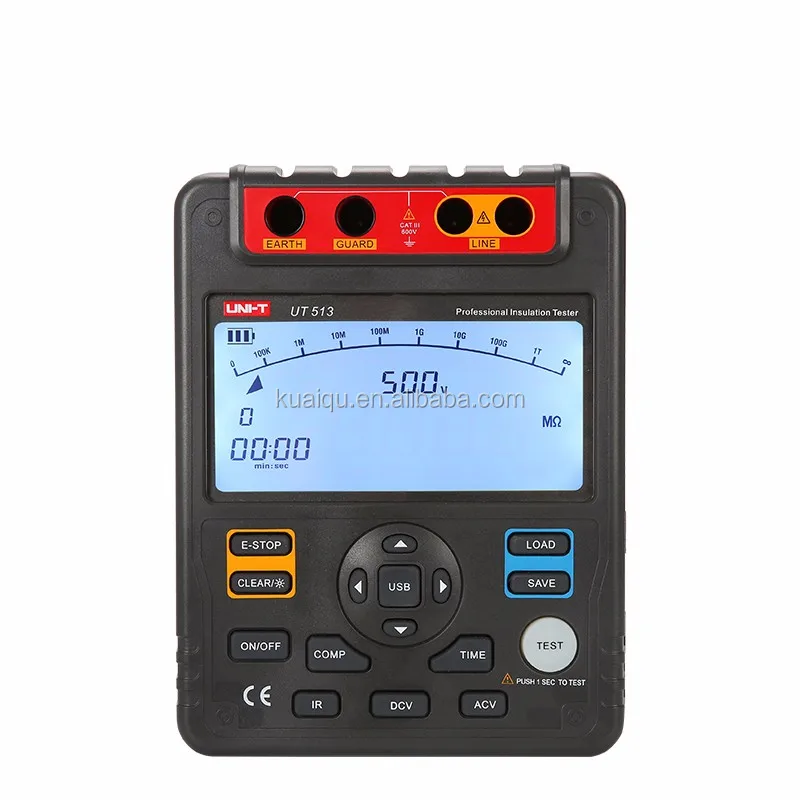

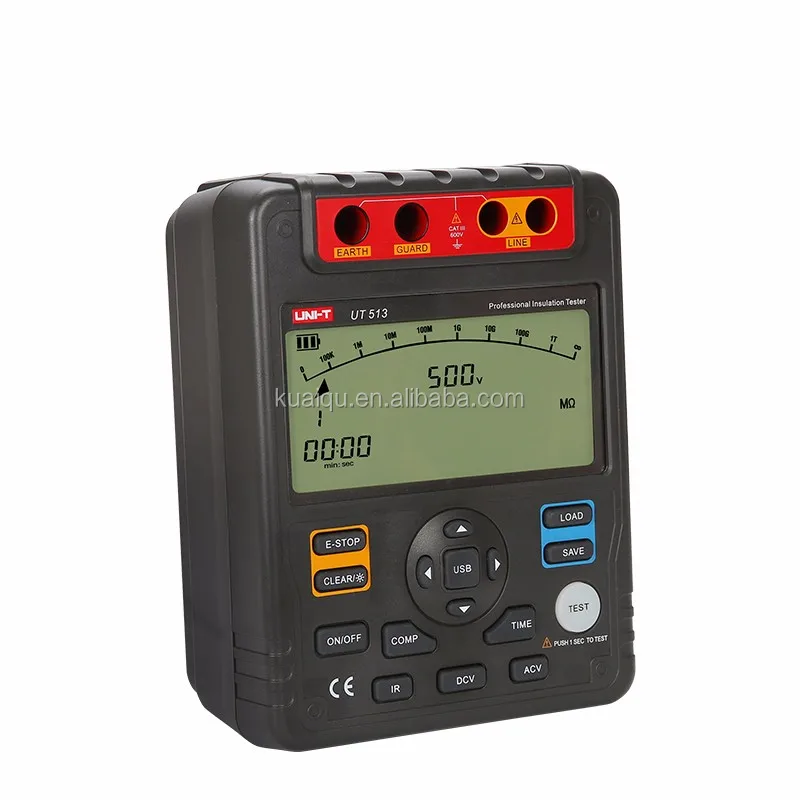

UT513 Auto Range Digital Insulation Resistance Testers Meter Megohmmeter Megger Voltmeter 5000V 1000Gohm USB Interface
- 150.00 >=20 pieces
| Measuring Range: | .; | Port: | FOB ShenZhen; |
| Supply Ability: | 20000 Piece/Pieces per Month; | Place of Origin: | Guangdong China; |
| Weight: | 18.5KG; | Model Number: | UT513; |
| Display Type: | Digital Only; | Packaging Detail: | Packaging Details: Netural packing/Customers packing are acceptable; |
| Payment Terms: | T/T,Western Union; | Insulation Resistance: | 1MΩ~1000GΩ; |
| Brand Name: | UNI-T; | Dimensions: | 202 x 155 x 94 mm; |
| Operating Temperature: | 0-50; | Testing Voltage: | 500V/1000V/2500V/5000V; |
| Accuracy Class: | ±(3%+5); |
UT513 Auto Range Digital Insulation Resistance Testers Meter Megohmmeter Megger Voltmeter 5000V 1000Gohm USB Interface
UT513 series insulation resistance tester adopts new design by combining and large scale integrated circuit and digital circuit, integrated insulation resistance and dc voltage, ac voltage measurement function parameters, such as; Higher accuracy, stable performance, convenient and reliable operation.Suitable for transformer, motor, cable, switch, electrical appliances and other electrical equipment and measuring insulation resistance of the insulating material, is of all kinds of electrical equipment maintenance, test and verification tools.
| Specification | Range | Best Accuracy | |
| Model | UT513 | ||
| Insulation Resistance(Ω) | Test Voltage | 500V/1000V/2500V/5000V | 0%~20% |
| 500V | 1MΩ~20GΩ | ±(3%+5) | |
| 1000V | 2MΩ~40GΩ | ±(5%+5) | |
| 2500V | 5MΩ~100GΩ | ±(3%+5) | |
| 5000V | 10MΩ~1000GΩ | ±(3%+5) | |
| Short Circuit Current | <1.8mA | ||
| DC Voltage (V) | 600V | ±(2%+5) | |
| AC Voltage (V) | 600V | ±(2%+5) | |
| Features | |||
| Display Count | 9999 | ||
| Auto Range | √ | ||
| Auto Power Off | √ | ||
| Low Battery Indication | √ | ||
| Data Logging | 18 | ||
| Comparison | √ | ||
| Polarization Index(PI) | √ | ||
| Dielectric Absorption (DAR) | √ | ||
| USB Interface | √ | ||
| LCD Backlight | √ | ||
| Analogue Bar Graph | 30 | ||
| Over Range Warning | √ | ||
| High Voltage Indication | √ | ||
| Timer | Around 15 minutes | √ | |
| General Characteristic | |||
| Power | 1.5V Alkaline Batteries(LR14)×8 | ||
| LCD Size | 123mm x 58mm | ||
| Product Color | Red & Grey | ||
| Product Net Weight | 2Kg | ||
| Product Size | 202mm×155mm×94mm | ||

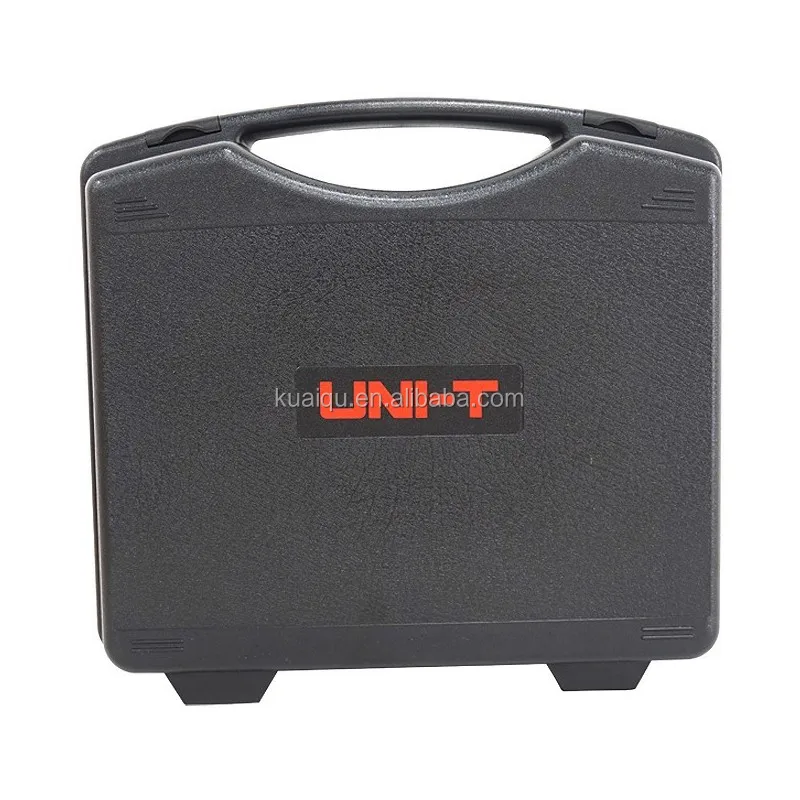

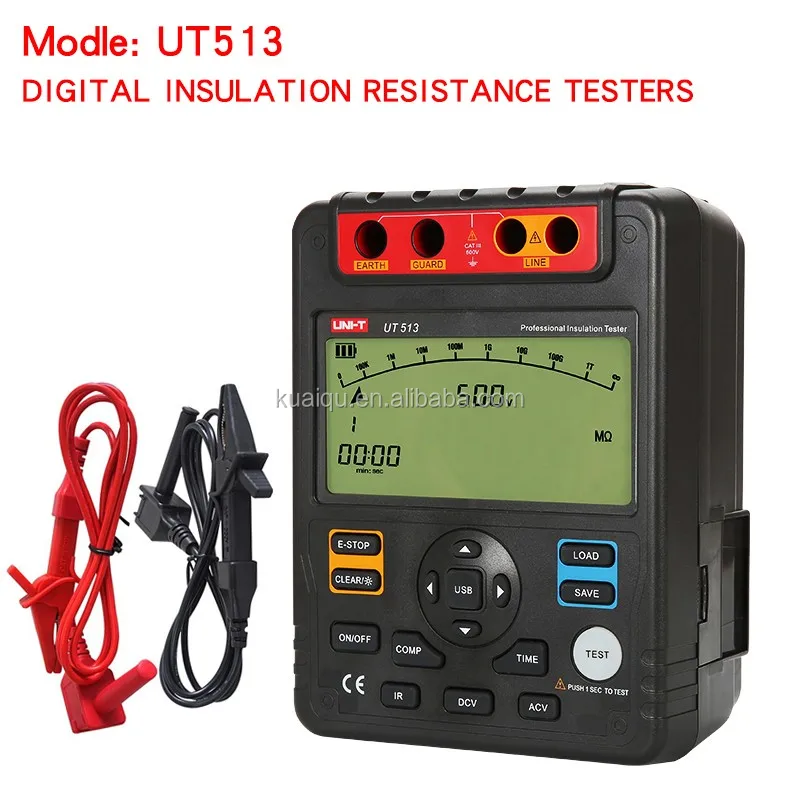

| Standard Accessories | 2PCs of One Plug Test Lead to One Alligator Clip(Black and Green),1 PC of Two Plugs Test Lead to One Alligator Clip(Red), Batteries, Tool Box, USB Cable,PC Software CD, Power Adaptor | ||
| Standard Individual Packing | Gift Box, English Manual | ||
| Standard Quantity Per Carton | 4 PCs | ||
| Standard Carton Measurement | 525mm x 335mm x 345mm (0.061CBM Per Standard Carton) | ||
| Standard Carton Gross Weight | 19Kg | ||
