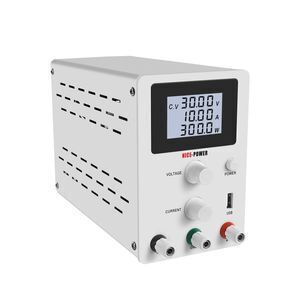

R-SPS3010D Factory Price DC Regulated Power Supply 30V 10A Digital Adjustable Switching Lab Test Repair Power Souce
- 36.36 >=2 units
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Weight: | 1.8KG; | Warranty: | 1 Year; |
| Display Type: | 4 Digits; | Size: | 200x95x140mm; |
| Single package size: | 20X15X25 cm; | Package Type: | Carton Package; |
| Interface: | USB; | Protection: | Overload Protection; |
| Output Current: | 10A; | Product Name: | Switching Power Supply; |
| Input Voltage: | 220V; | Certification: | FCC; |
| Brand Name: | Nice Power; | Output Power: | 300W; |
| Application: | Testing Repairing; | Package Preview: | https://sc01.alicdn.com/kf/H0b9596c5871c4d66b78c621560ad686aE.jpg_640x640.jpg; |
| Selling Units: | Single item; | Place of Origin: | China; |
| Type: | DC Power Supply; | Output Frequency: | 50Hz; |
| Model Number: | R-SPS3010D; | Output Type: | Single; |
| Single gross weight: | 2 KG; | Output Voltage: | 30V; |
R-SPS3010D Factory Price DC Regulated Power Supply 30V 10A Digital Adjustable Switching Lab Test Repair Power Souce
Product Information

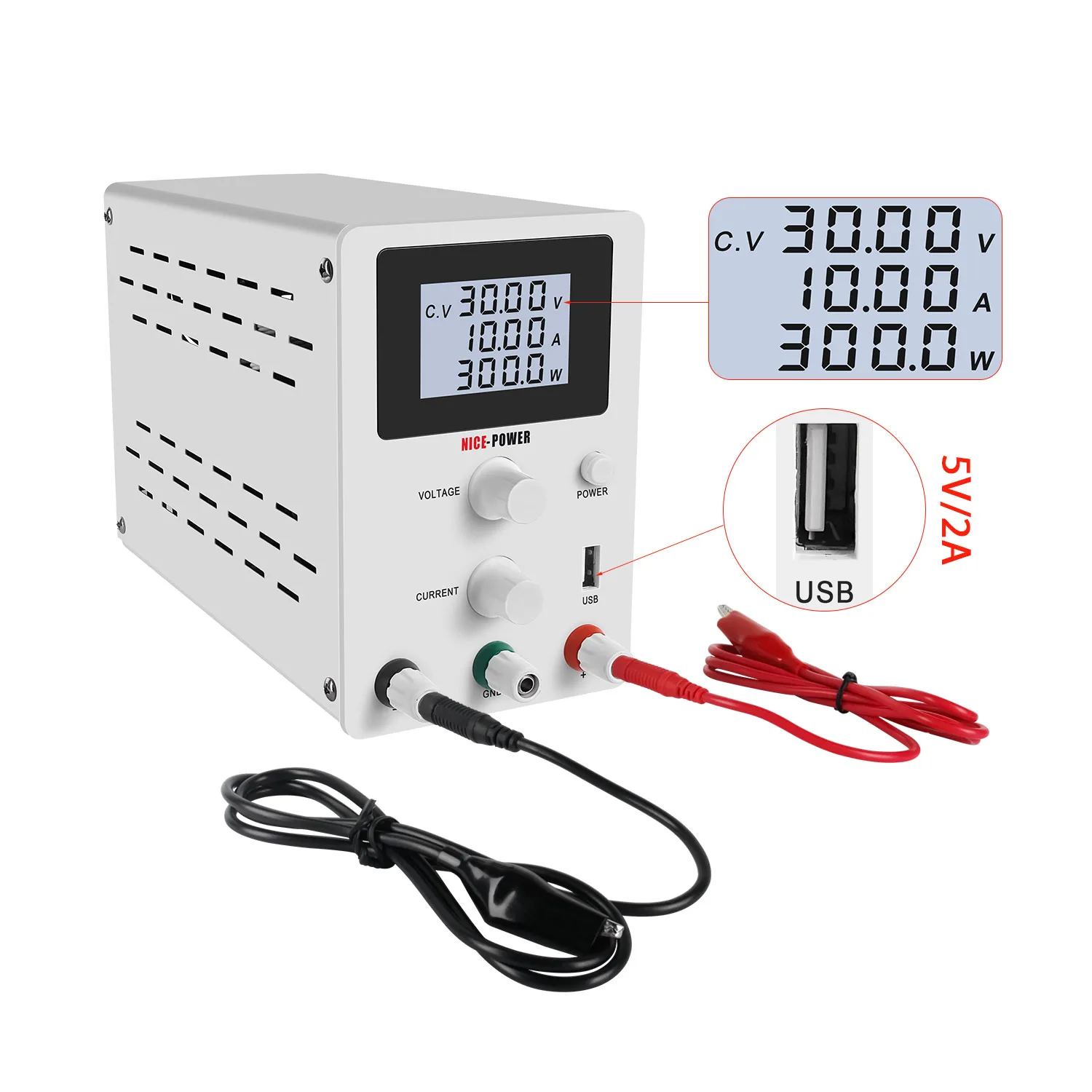

The SPS series is a Digital display mini DC power supply that simultaneously displays voltage, current.
Product Features
Small size, light weight and high power density.
Constant voltage, constant current automatic switching.
Voltage, current, power
Temperature controlled fan heat dissipation, low noise and long life
Application field
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. Product aging, plating.

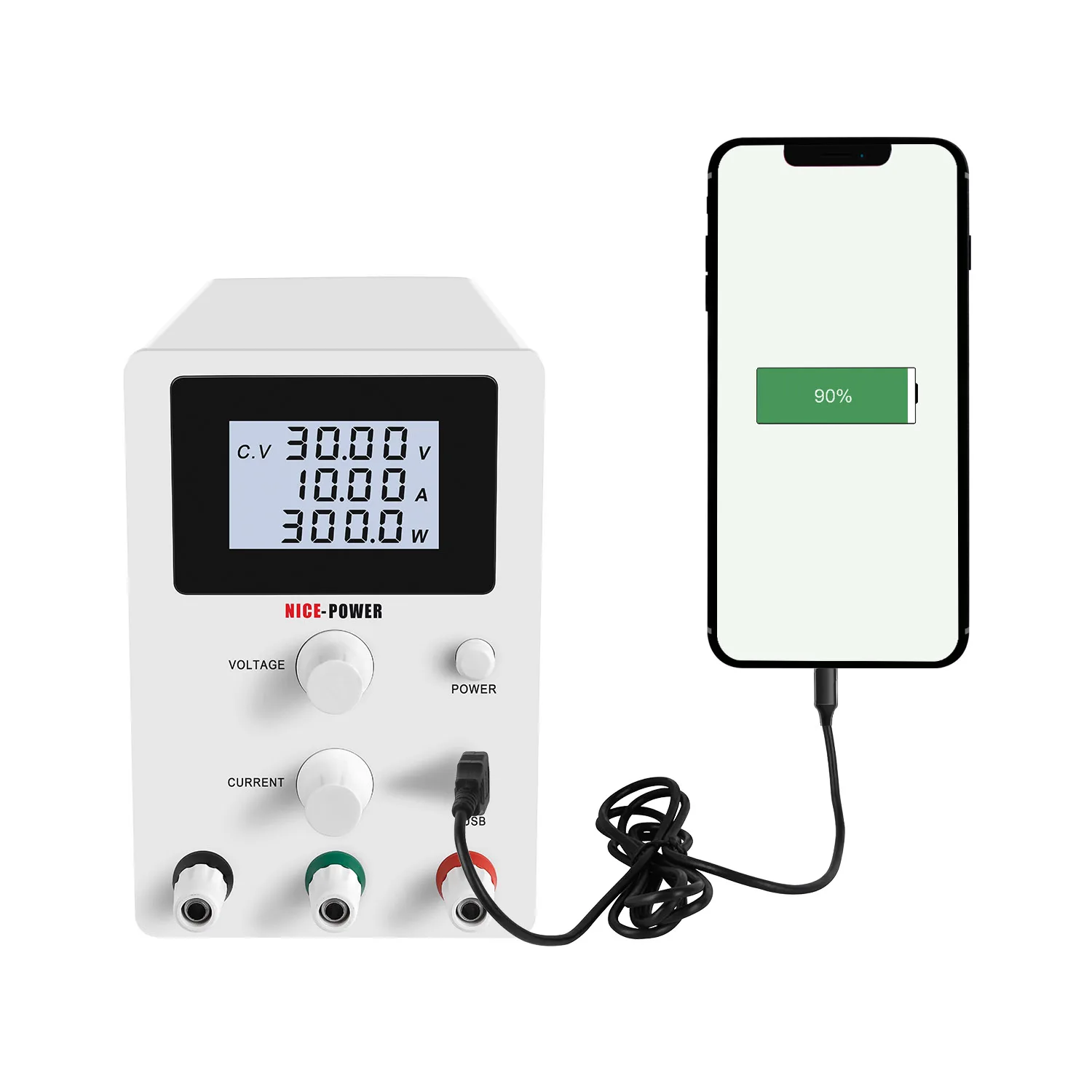

4. Charge the battery.
5. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.
Technology Parameter
| Type | R-SPS3010D | R-SPS605D |
| Output Voltage range | 0-30V | 0-60V |
| Output Current range | 0-10A | 0-5A |
| Voltage Resolution | 0.1V | |
| Current Resolution | 0.001A | |
| Ripple Voltage | Vpp≤1% | |
| Power Effect | CV≤1%+10mV | |
| Effect of Load | CV≤1%+10mV | |
| Digital Display | 4 LED Digital Display | |
| Ripple and Noise | ≤1 MV | |
| Voltage Display Precision | ±1% + 1 digits | |
| Current Display Precision | ±1% + 2 digits | |
| Operating Environment | -10~45℃ /14~113℉ Rh≤90% | |
| Storage Environment | -20~60℃ /4~140℉ Rh≤80% | |
| Size | 95 * 200 * 140mm | |
| Weight | 1595g | |
Detail Images
