KORAD KEL 103 300W 120V 30A Professional Programmable Digital Control DC Electronic Load Tester Electronic Load Battery Tester
- 166.10 >=2 pieces
| Warranty: | 1 Year; | is_customized: | Yes; |
| payment: | TT; | Place of Origin: | Guangdong China; |
| Color: | White; | Single package size: | 25X35X15 cm; |
| Size: | 25cm*20cm*15cm; | Output Power: | 201 - 300W; |
| Brand Name: | KORAD; | Single gross weight: | 7 KG; |
| Display: | Digital display; | Package Type: | Carton Package; |
| MOQ: | 2; | Model: | KEL103; |
| Product name: | Electronic load; | Selling Units: | Single item; |
| Model Number: | KEL103; |

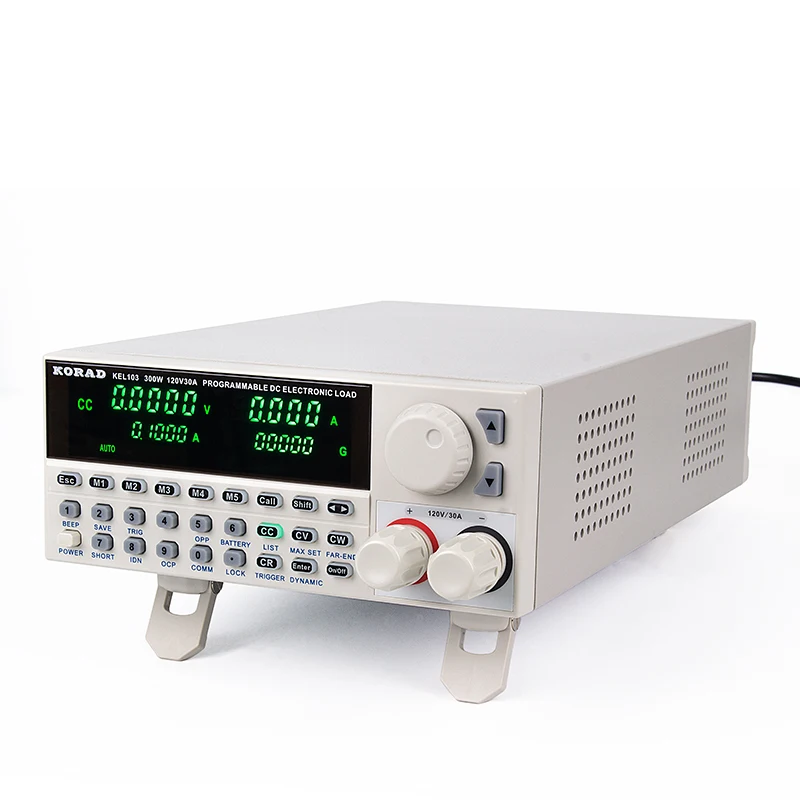

KORAD KEL 103 300W 120V 30A Professional Programmable Digital Control DC Electronic Load Tester Electronic Load Battery Tester
KEL series (150W~300W),single-channel programmable DC electronic loads, are designed for middle & high-end applications. They can be offered as multiple solutions according to customer's need. The online voltage measurements and adjustments or simulate short circuit test using the simple keypad on the front panel, can be used by the end users. KWR series DC loads are a versatile instrument for static and dynamic testing of power supplies, batteries, DC - DC converters, and battery chargers, which provides user the best testing solution.

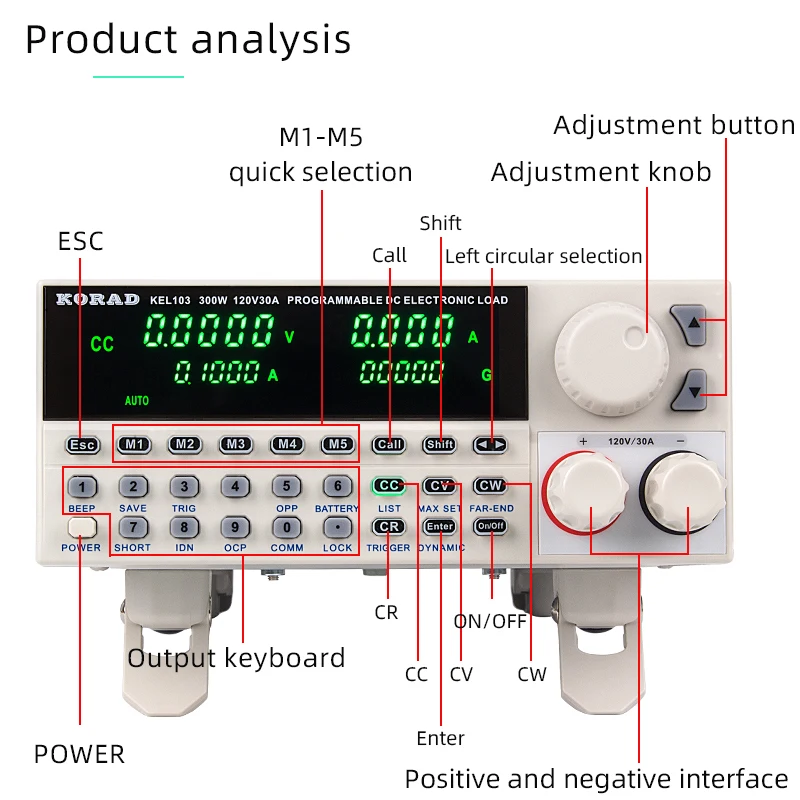

feature
M1-M5 quick recall function
Overload protection, overvoltage protection, overcurrent
protection, high temperature protection
Short-circuit function
Dynamic Testing
OCP / OPP test
Battery test
External trigger
Remote compensation
Baud rate setting
Panel lock

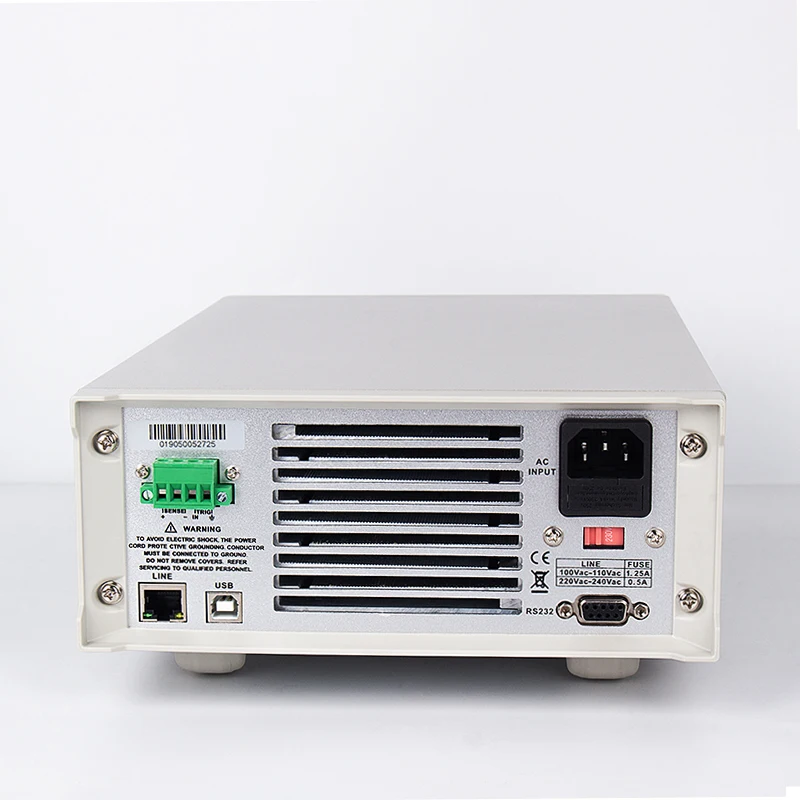

Interface: USB, RS232, network port
110V / 220V voltage input
CE, ROHS compliant
Specifications
| Model | KEL103 | ||
| Input Rating | POWER | 300W | |
| Voltage | 0-120V | ||
| Current | 0-30A | ||
| CC Mode | Range | 0-3A | 0-30A |
| Resolution | 0.1mA | 1mA | |
| Accuracy | ±(0.05%+0.005%FS) | ||
| CV Mode | Range | 0-18V | 0-120V |
| Resolution | |||
| Accuracy | ±(0.05%+0.025%FS) | ||
| CR Mode | Range | 0.05Ω | -7.5KΩ |
| Resolution | 16bit | ||
| Accuracy | 0.015%+0.1S | ||
| CW Mode | Range | 300W | |
| Resolution | 0.01W | ||
| Accuracy | ±(0.1%+0.1%FS) | ||
| Slope | Range | 0-3A | 0-30A |
| Rising | 0.0001-0.15A/us | 0.001-1.5A/us | |
| Falling | 0.0001-0.15A/us | 0.001-1.5A/us | |
| Voltage | Range | 0-18V | 0-120V |
| measurement | Resolution | 0.1mV | 1mV |
| Accuracy | ±(0.025%+0.025%FS) | ||
| Current | Range | 0-3A | 0-30A |
| measurement | Resolution | 0.1mA | 1mA |
| Accuracy | ±(0.05%+0.05%FS) | ||
| Power | Range | 1000W | |
| measurement | Resolution | 0.01W | |
| Accuracy | ±(0.1%+0.1%FS) | ||
| Over power protection | 320W | ||
| Over current protection | 3.3A/33A | ||
| Over voltage protection | 125V | ||
| Over temperature protection | 85℃ | ||
| Input impedance | 150KΩ | ||
| Weight and Dimention(W*D*H) | 5.17KGS/107mm*215mm*386mm | ||

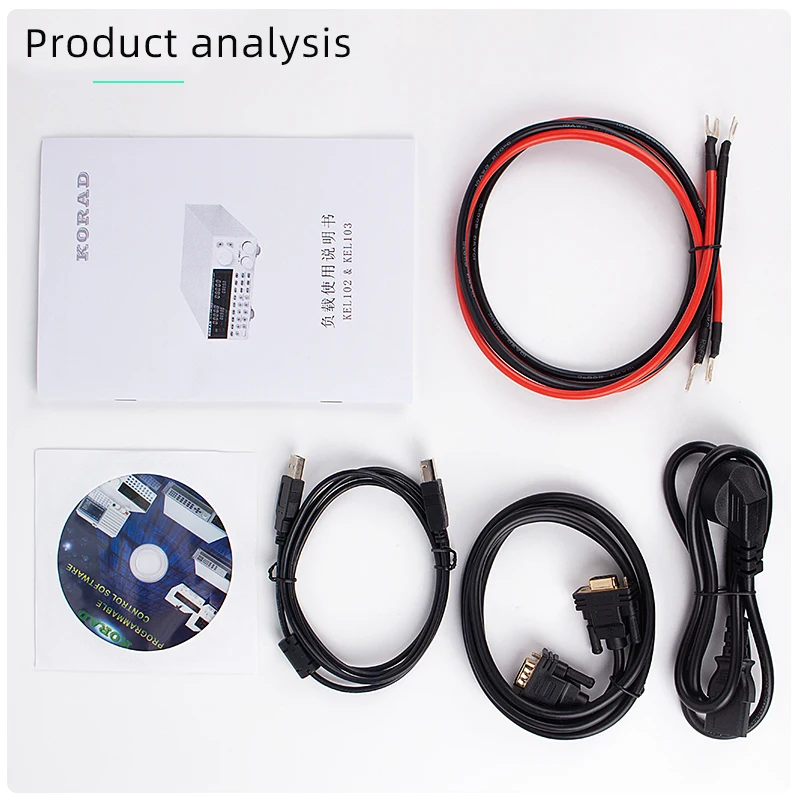

| Accessories | |||
| Interfaces | |||
