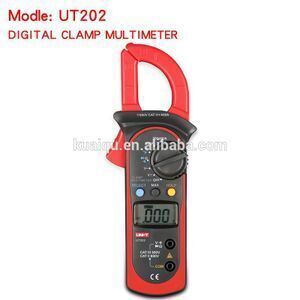

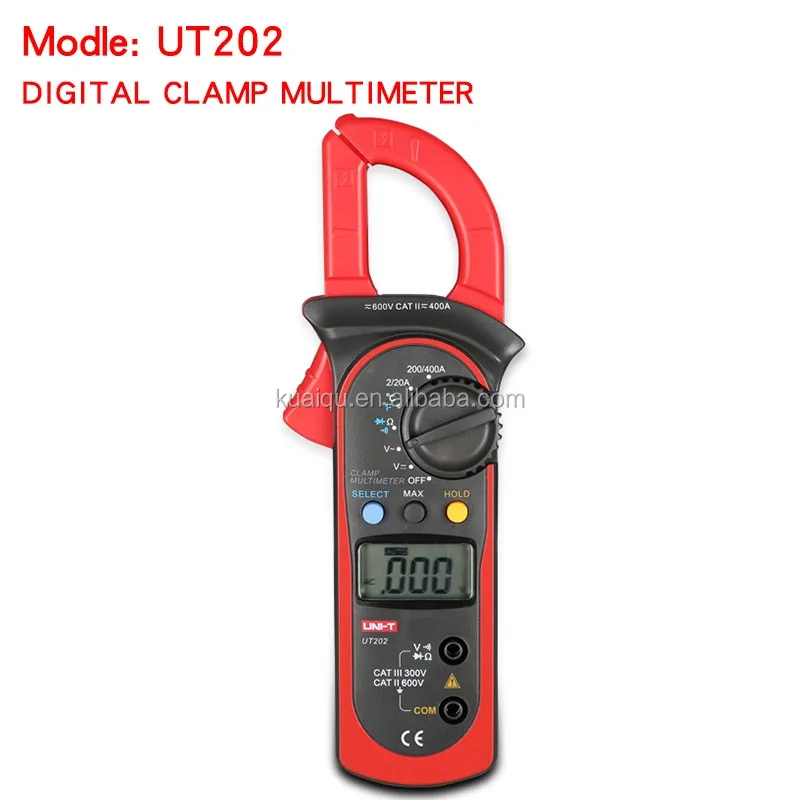

UNI-T UT202 400A 600V Digital Clamp Meters CurrentA VoltageV Resistance C F Temperature Multimeters Auto Range

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $10.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Brand Name:	UNI-T;	On and off beep:	YES;
Dimensions:	210mm * 75.6mm *30 mm;	LCD SIZE:	35.6mm * 18 mm;
Measuring Current Range:	2A/20A/200A/400A;	Display Type:	Digital Only;
Operating Temperature:	0℃~50℃;	Single package size:	35X25X20 cm;
Measuring Resistance Range:	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ;	Measuring Capacitance Range:	/;
Automatic shutdown:	YES;	Temperature:	-40°C ~ 1000°C;
Packaging Detail:	Packaging Details: Netural packing/Customers packing are acceptable;	Opening size:	28mm;
Digital retention:	YES;	Measuring Inductance Range:	/;
Weight:	220g;	Measuring Voltage Range:	2V/20V/200V/600V;
Model Number:	UT202;	Single gross weight:	0.6 KG;
Place of Origin:	Guangdong China;	Input impedance:	≥10MΩ;
Maximum display:	1999;	Selling Units:	Single item;
Diode test:	YES;	Automatic range:	YES;

UNI-T UT202 400A 600V Digital Clamp Meters CurrentA VoltageV Resistance C F Temperature Multimeters Auto Range

Product Information

Specifications	Range	Best Accuracy
Model		UT202
AC Current (A)	2A/20A/200A/400A	±(1.5%+5)
AC Voltage (V)	2V/20V/200V/600V	±(1.2%+5)
DC Voltage (V)	200mV/2V/20V/200V/600V	±(0.8%+1)
Resistance (Ω)	200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ	±(1%+2)
Temperature (°C)	-40°C ~ 1000°C	±(1%+3)
Temperature (°F)	-40°F~1832°F	±(1%+6)
Features
Display Count		2000
Auto Range		√
Jaw Capacity		28mm
Diode		√
Auto Power Off		√
Continuity Buzzer		√
Low Battery Indication		√
Data Hold		√
MAX Mode		√
Full Icon Display		√
Input Impedance for DCV	Around 10MΩ	√
General Characteristic
Power	1.5V Batteries(R03) ×2
LCD Size	35.6mm X 18 mm
Product Color	Red and Grey
Product Net Weight	220g
Product Size	210mm X 75.6mm X30 mm
Standard Accessories	Battery, Test Lead,Carrying Bag,Point Contact Temperature Probe
Standard Individual Packing	Gift Box, English Manual
