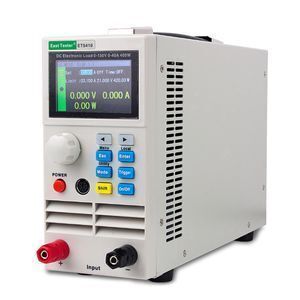

ET5410 400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load Battery Capacity Tester

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $106.60 /piece
Min. Order: 1 piece

Click here to contact

Product details

Model Number:	ET5410;	is_customized:	Yes;
Brand Name:	Zhongchuang;	Output Power:	400W;
Selling Units:	Single item;	Color:	picture;
Packaging Detail:	Carton Package;	Place of Origin:	Guangdong China;
Single package size:	13X23X35 cm;	payment:	TT;
Product name:	Electronic load;	Display:	Digital display;
Name:	DC Electronic load;	Warranty:	1 Year;
MOQ:	1;	input voltage:	0-150V;
Single gross weight:	5.0 KG;

ET5410 400W 150V 40A Battery Tester Single-Channel Programmable DC Electronic Load Battery Capacity Tester

ET54 series single/double channel programmable dc electronic load, USES the high performance chip, high speed, high precision design, provide 1mV,1mA resolution, superior performance, can be widely applied to the charger, switching power supply, linear power supply, production test of all kinds of batteries and other industries, scientific research institutions such asthe test research and development.

Product features:

humanized design.
2.8-inch TFT LCD display, rich display content, support Chinese and English display;
Simple and convenient operation process, with intuitive interface display system, easy to use;
It has the function of key lock to prevent misoperation.

high-performance load:
The basic measurement modes of CC, CV, CR, CP, CC+CV, CR+CV are provided.
Provide professional battery test and LED test;
Dynamic test mode, can test the dynamic power output performance;
Scanning test mode can test the continuity of power output within a certain range.
List mode, which can simulate various loaded state changes;
Short circuit test for simulating load short circuit;
The measurement model of the far end can improve the measurement accuracy when the current is high.
Support external trigger input;
Built-in buzzer alarm;
Power off to maintain data storage function;
Remote operation can be carried out through RS-232 interface and USB Device interface.
With PS2 interface, support external keypad to set data values;

safety protection:
With overvoltage, overcurrent and overpower protection functions, overvoltage and overcurrent parameters can be set flexibly to effectively protect the load.
It has the function of secondary over-temperature protection to realize the double over-temperature protection of software and hardware.
It has the function of intelligent fan speed control, which can effectively reduce the working fan noise.
With output polarity reverse protection;

Main technical indicators:
