High Accuracy PPK GNSS GPS Receiver for Phantom 4 and Mavic

  • 100.00 set
Min. Order: 1 set FOB PRICE
Registered Supplier Direct Contact Inquiry via Message
Product Details
Supply capacity:1000 sets per monthPackaging Details:Phantom 4 and Mavic High Precision PPK GNSS GPS Receiver Packaging Wooden Case
model:F1brand:the gold
Origin:Chongqing, Chinapayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Origin:Chongqing, ChinaWarranty:12 months
frequency:single frequencyapplication:Aerial Surveying, Geospatial Services
model:F1color:black, grey
port:Phantom 4 and Mavic High Precision PPK GNSS GPS Receiver Shipped in Chongqingproduct name:GNSS PPK Kit
weight:18 gramsWarranty:1 year
Customization support:OEM, ODM, OBMsize:60*50*15 mm
usage:Receive and store drone data

High Accuracy PPK GNSS GPS Receiver

Phantom 4 and Mavic



introduce:



PPK is an adapter for Phantom 4 and Mavic 2 series. It's easy to remove so you can still use the travel case. When the P4/Mavic 2 takes a photo, it also records a time stamp in the log file. This position is free from shutter timing errors, horizontal arm errors, and camera calibration errors.



High Accuracy PPK GNSS GPS Receiver for Phantom 4 and Mavic

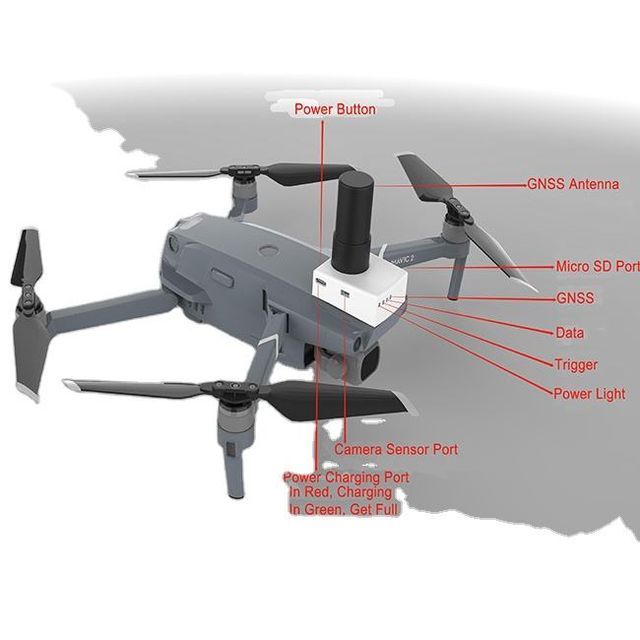

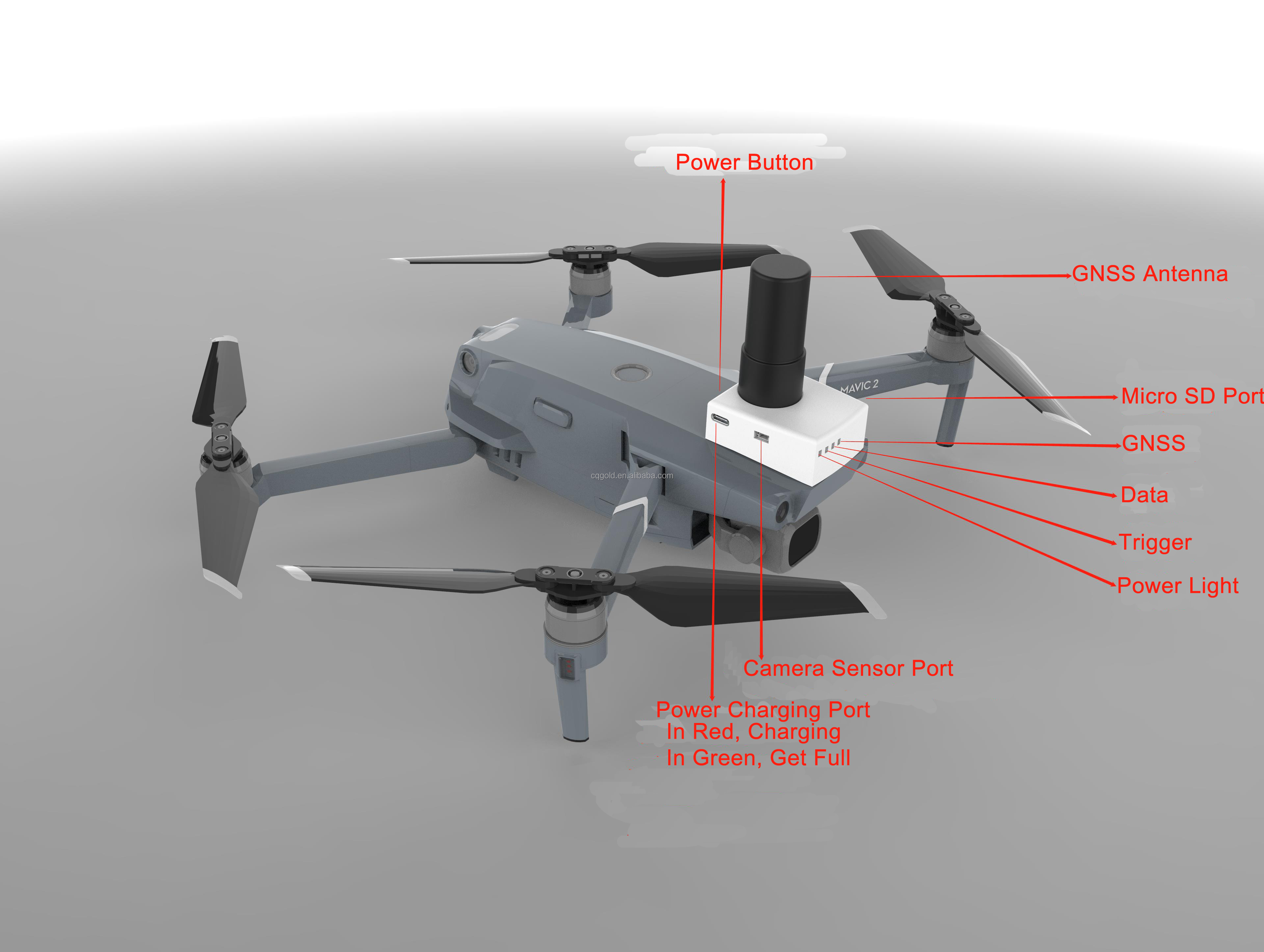

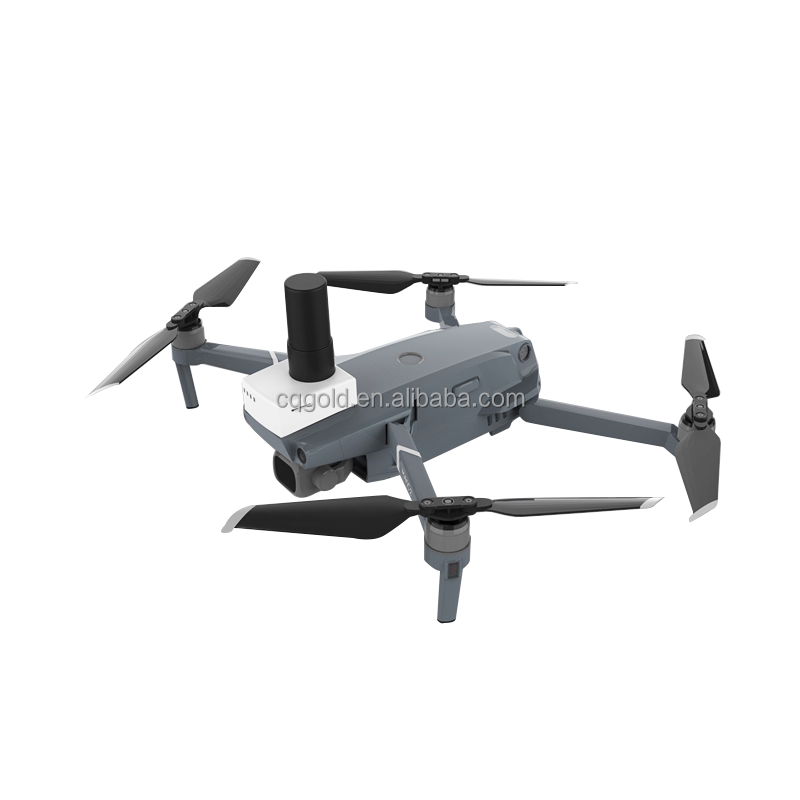

Mavic2 image:

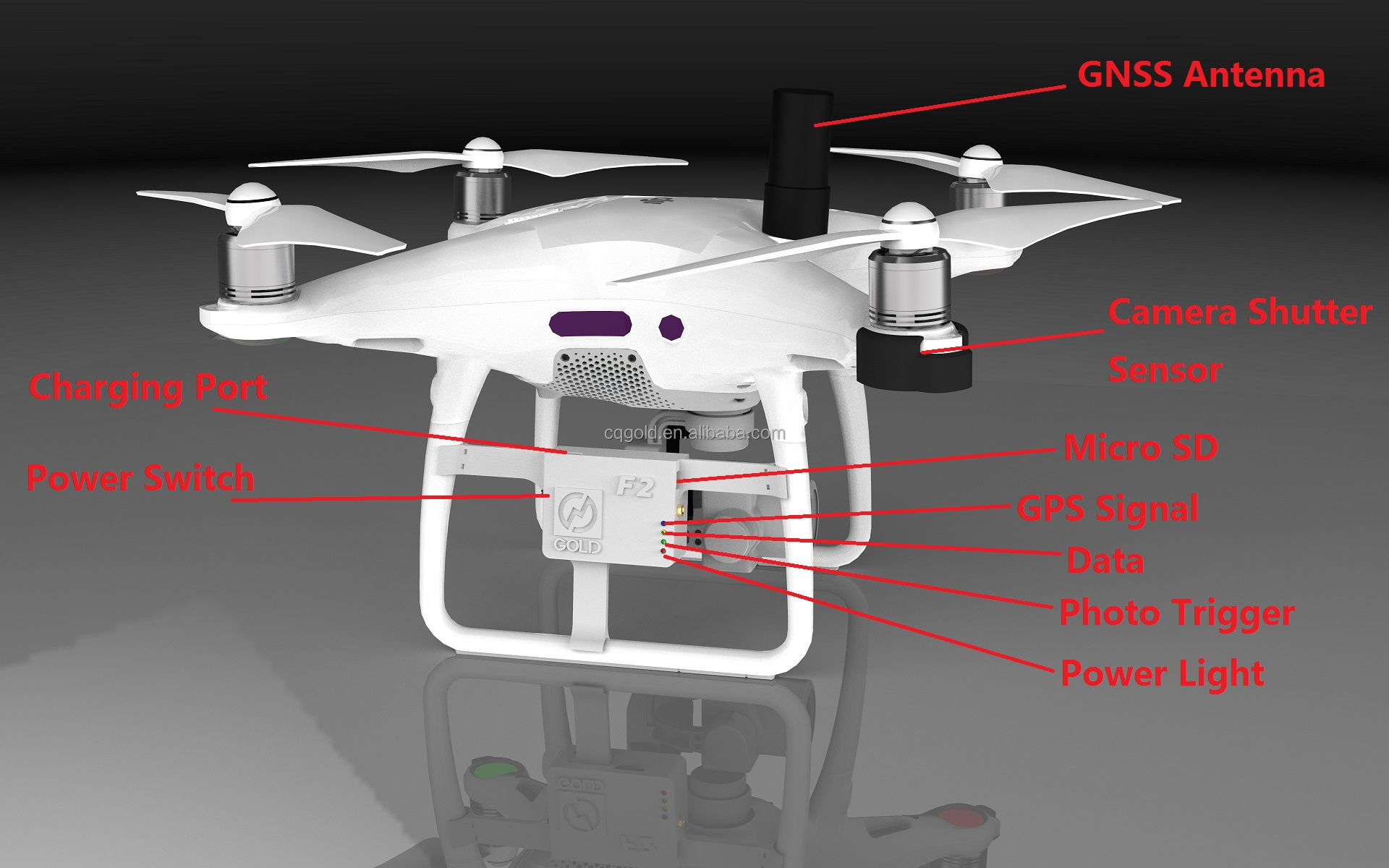

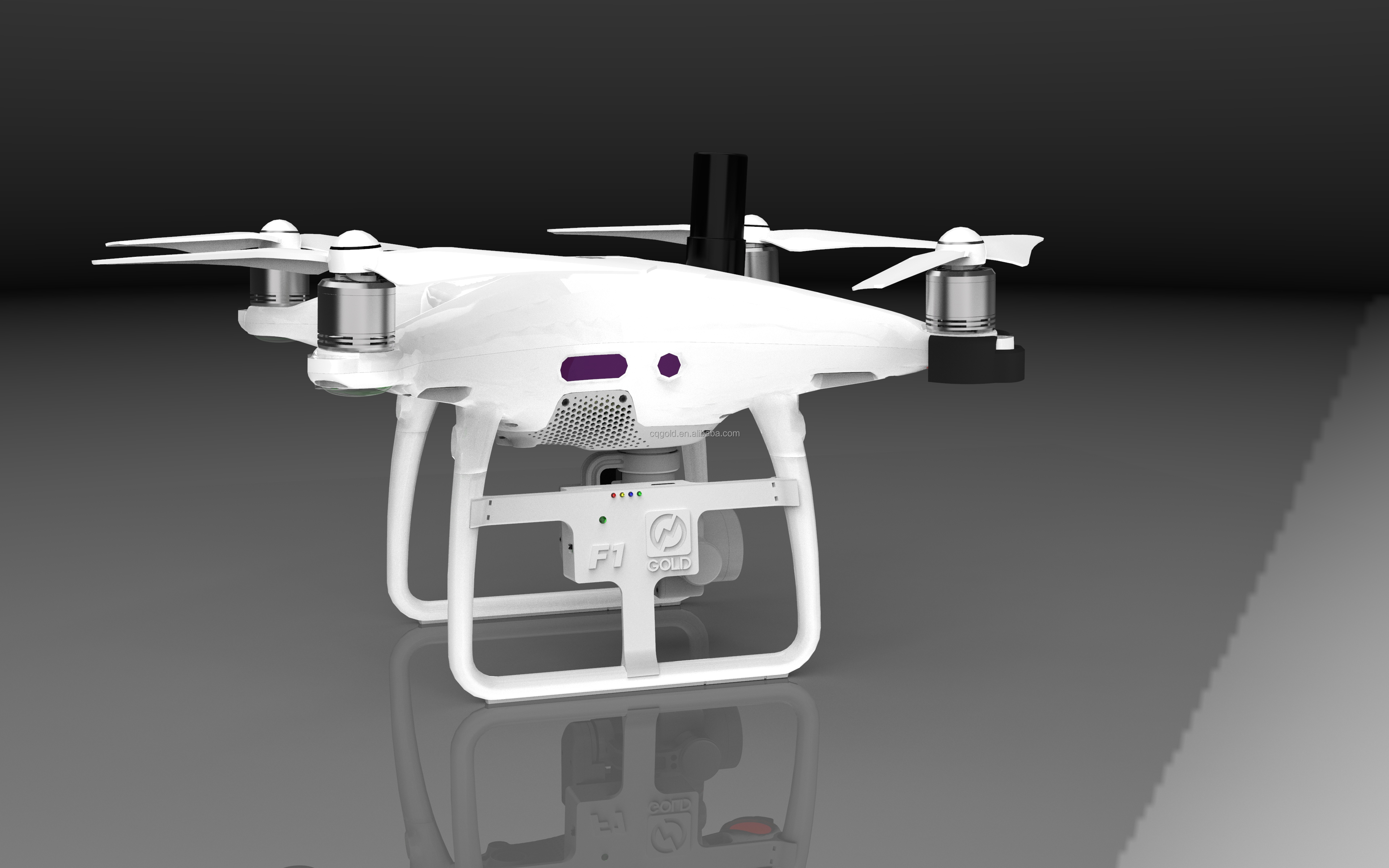

Phantom 4 picture:







Technical Parameters:

High Accuracy PPK GNSS GPS Receiver for Phantom 4 and Mavic



model

F1

F2

Mechanical

size

60x50x15mm

46.25*26.44*11.5mm

weight

18 grams

30 grams

operating time

-25 ~+60

-25 ~+60

GNSS

Signal

GPS/QZSS L1 GLONASS L1

Beidou B1 Galileo E1SBAS

GPS L1/L2,

Glones L1/L2 Beidou B1/B2, Galileo E1, E5

SBAS

Tracking Channel

72

184



interface

Event, TF card

Event, TF card

to lead

Power, Record, SV, Event

Power, Record, SV, Event

position

h

2cm+1ppm

5mm+1ppm

V

4cm+1ppm

10mm+2ppm



update rate

10Hz/5Hz

5Hz to 10Hz

electric

Input voltage

5V, 8V-35V

5V, 8V-35V

Antenna DC

5V

5V

average current

consume

25mA

25mA

data

storage

16 GB

16 GB

Data Format

Linex

Linex

connectivity

antenna

Max

Max





application:

High Accuracy PPK GNSS GPS Receiver for Phantom 4 and Mavic



1. Aerial survey

2. Plant protection surveying and mapping

3. Power-on inspection

4. City management

5. Water conservancy law enforcement and traffic law enforcement

6. Geospatial Services

7. Other fields



main feature:



1. Easy to install and operate;

2. Small size, light weight, easy to carry;

3. Real-time data reception and storage.
