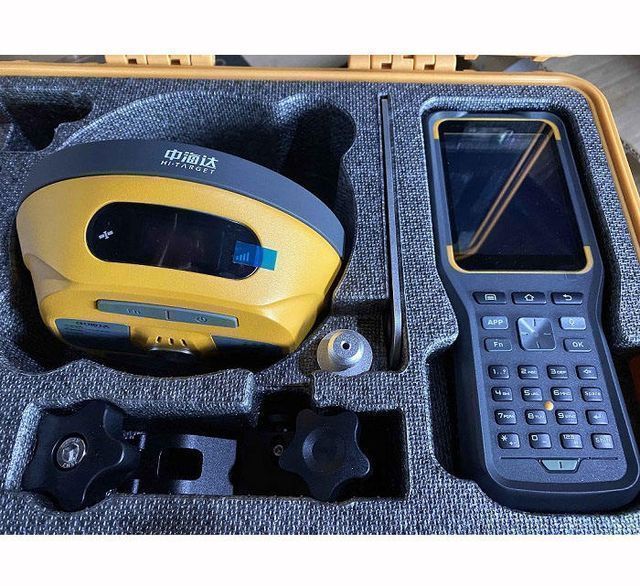

V96H GNSS GPS RTK Receiver Surveyor RTK System

Product details
channel:220Initialize reliability:>99.99%
Packaging Details:V96H GNSS GPS RTK Receiver Measuring Instrument RTK System Packing Wooden Casescreen size:3.7 inches
Satellite support:GLONASS, GPS, SbasInitialization time:<10s
Custom Support:OEM, ODM, OBMpayment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram
model:V96HWarranty:1 year
weight:1.25kgSupply capacity:1000 sets per month
brand:high goalswaterproof:IP67
place of origin; place of origin:Chongqing, Chinamain application:Mapping
port:Chongqing shipped V96H GNSS GPS RTK receiver measuring instrument RTK systemoperating system:Linux operating system
aspect:16.4cm*8.35cm

V96H GNSS GPS RTK Receiver Surveyor RTK System


This GNSS RTK GPS is widely used in the fields of engineering construction and geological surveying. With its good quality, favorable price, high precision, light weight, etc., it is very popular in the market.

*Technical parameters of geodetic survey V96H GNSS receiver:


Measurement
220 channels
Advanced Pacific Crest Maxwell 6 Custom Survey GNSS Technology
High Precision Multiple Correlator for GNSS Pseudo-Range
Unfiltered, low noise, low multipath error, low time domain correlation
Very low noise GNSS carrier phase measurement with <1mm accuracy (1 Hz)
Signal-to-noise ratio in dB-Ha
Proven Pacific Crest low-altitude travel technology
tracked satellite signals GPS: L1C/A, L2C, L2E, L5
at the same time GLONASS: L1C/A, L1P, L2C/A (GLONASS M only), l2p
SBAS: L1 C/A, L5
Galileo: L1 BOC, E5A, E5B, E5ALtBOC
BDS/Compass: B1, B2
QZSS: L1 C/A, L1 SAIF, L2C, L5
position
Performance
static and fast static Level: l2.5mm+0.5ppm RMS
GNSS measurements Verticality: l5mm+0.5ppm RMS
Postprocessing kinematics Level: 1cm+1ppm RMS
(PPK/Stop and go)
GNSS measurements
Vertical: 2.5cm+1ppm RMS
Initialization time: generally 10 minutes
base while rover 5 minutes
Initialization reliability: typically >99.9%
Real Time Kinematics (RTK)
Measurement
Horizontal.8mm+1ppm RMS
Vertical.15mm+1ppm RMS
Initialization time typically < 8 seconds
Initialize reliability. Usually > 99.9%
Code differential GNSS
position
Horizontal.25cm+1ppm RMS
Vertical.50cm+1ppm RMS
SABS: horizontal 0.50m, vertical 0.85m
hardware physical Dimensions (W x H): 18.20cm x 9.80cm (7.17 in. x 3.86 in.)
Weight: 1.25 kg (2.76 lb) without built-in battery
Operating: -45°C to +65°C (-49°F to +149°F)
storage temperature. -55°C to +85°C (-67°F to +185°F)
Humidity: 100%, consider
Waterproof and dustproof. IP67 dustproof, protection
Temporary immersion depth 1 m (3.28ft)
shock and vibration. Designed for survival
A 3 m (9.84 ft) natural fall onto concrete.
electric Power 6V to 28V DC external power input
Power consumption≤3.5w
Automatic switching between internal and external power
Rechargeable, Removable 7.4V, 5000mAh Li-Ion Battery
Batteries in the internal battery compartment
Internal battery life Static 13-15 hours
RTK rover (UHF/GPRS/3G) 10-12 hours
RTK base 8-10 hours
Input and output interface 1×Bluetooth
1×Standard USB2.0 interface
1×TNC UHF connector
2 x RS232 serial ports
2×DC power input (8-5-pin)
1×Micro SD card interface
communicate
&
data storage
3G communication Fully integrated, fully sealed internal 3G,
Compatible with GPRS
Network RTK (via CORS) range 20-50km
Inside HI-TRAGERT
UHF radio (standard)
Frequency: 450~470MHz, 116 channels
Transmit power: 1W, 2W, 5W, adjustable
Transmission speed: 9.6Kbps, 19.2Kbps
Working range: 5km typical, 8-10km optimal
Pacific Crest XDL Micro
Internal UHF radio
Frequency: 403-473MHz
Transmit power: 0.5W, 2W adjustable
Transmission speed: up to 19.2Kbps
Working range: typical 3-5km, optimal 8-10km
Hi-Target External UHF
radio (standard)
Frequency: 460MHz, 116 channels
Transmission power: 5W, 10W, 20W, 30W adjustable
Transmission speed: up to 19.2Kbps
Working range: typical 8-10km, optimal 15-20km
Pacific Crest ADL Advantage
Pro External UHF Radio
Frequency: 390-430MHz or 430-470MHz
Transmit power: 4W to 35W adjustable
Transmission speed: up to 19.2Kbps
Working range: typical 8-10km, optimal 15-20km
Support other external
communication equipment
For example, an external GSM modem.
Data Format CMR: sCMRx, CMR, CMR+ I/O
RTCM: RTCM2.1 2.2 2.3 3.0 3.1 3.2 I/O
Navigation output ASCII: NMEA-0183
Navigation output binary: GSOF
1 pulse per second

* Features of Geodetic RTK GPS Base and Rover:
Linux operating system
ARM 9G20 400MHz CPU, embedded Linux OS, support faster data transfer.

Smart operation
*Equipped with smart speaker guidance throughout operation. The voice assistant helps you quickly master V60 operation. Language can be customized.
*Industrial LED display on the front control panel, showing all the information and status of the work.
*Multiple one-click operations to make your work easy. Set the base with one click and automatically select the base coordinates from the base list.
* Automatic system logging makes receiver diagnostics easy.

RINEX storage
Static data can be saved directly in RINEX format. The V60 is fully compatible with other brands of receivers.

Quick upgrade
Simply copy the updated firmware to the V60 and reboot to complete the upgrade in seconds.

Multi-constellation tracking
* 220 tracking channels.
*Support GPS, GLONASS, GALILEO, BDS, SBAS.
*Built-in NGS certified antenna.

High Power Transceiver UHF Radio
* Transceiver UHF radio switches operating modes between base and rover.
*5 watt (max) HI-TARGET internal UHF radio and 2 watt (max) Pacific Crest micro XDL internal UHF radio are optional
*Pacific Crest TrimTalk© internal UHF radio is compatible with other RTKs.

Works seamlessly in CORS systems
*Built-in GPRS/GSM/3G module makes V60 perfectly match with network RTK positioning.

long life battery
*Powered by 5000mAh Li-ion battery.
*Static working time 13 - 15 hours
*RTK Rover(UHF/GPRS/3G) working time 10 - 12 hours
*RTK base working hours 8 - 10 hours

Rugged design, IP67
*IP67 dust/waterproof.
* Withstands 3 meters natural drop to concrete.
* Fast tracking, perfect avoidance or reduction of obstacles and multipath effects, ensuring excellent positioning capabilities.
