Product Details

model:	GDBC-901	Package preview:
power supply:	AC220V±10%,50Hz	Warranty:	1 year
Ratio range:	1-10000	Supply capacity:	500 pieces per month
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram	port:	Chongqing
brand:	gold	Place of origin:	Chongqing, China
Ratio measurement error:	1~2000 ± 0.2%RDG 2000~1	Test voltage:	0~80V
strength:	Electronics	Function:	Three-phase transformer test
Customization support:	original design manufacturer	Packaging details:	TTR Meter automatic three-phase transformer turns ratio tester 1. Wooden box with foam inside; 2. No fumigation required, does not affect delivery; 3. IEC standard; 4. Customer OEM packaging is also available; 5. Can be shipped by air or sea ; 6. The product is packaged in paper or wood. 7. Packaging, logos and patterns can be customized. If ordering more than 1 piece, the weight of the goods will change. Please contact customer service.
Phase measurement error:	1 degree	product name:	Transformer ratio group measuring instrument
Current output:	0~1000A	application:	The connection method is Y type, D type

Product Description

GOLD GDBC-901 TTR meter

Automatic transformer ratio tester

introduce

Voltage ratio measurement of three-phase or single-phase transformers
Group vector measurement of three-phase transformers.
Polarity measurement of single-phase transformers or CT/PT
Voltage ratio error calculation
Current transformer ratio measurement
Excitation current measurement in ratio testing
Reproduces the AC test voltage of the power supply, reducing the impact of bad power supplies
Save test results in tester internal memory
Print test results via microprinter
Reverse connection detection device to prevent high-pressure injection operators
Software and hardware integrated overcurrent protection unit
Upload test results to PC via RS232 and create text reports through software

Function

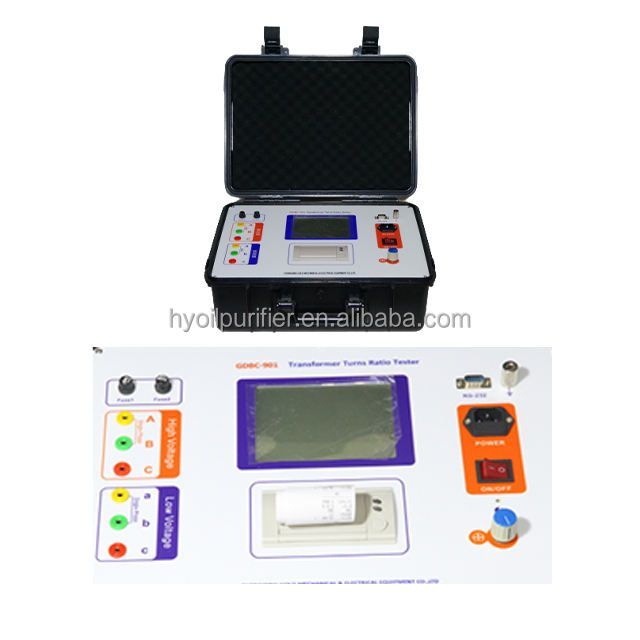

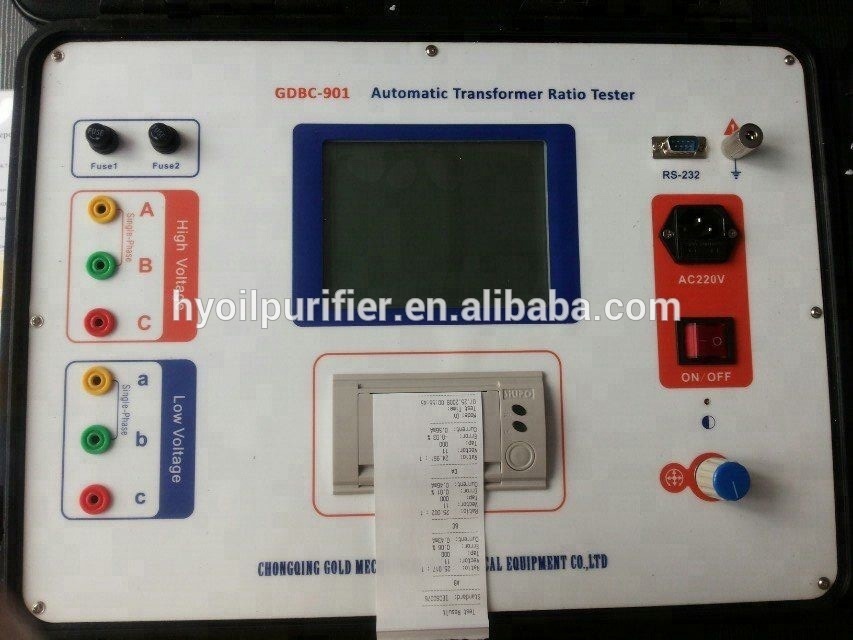

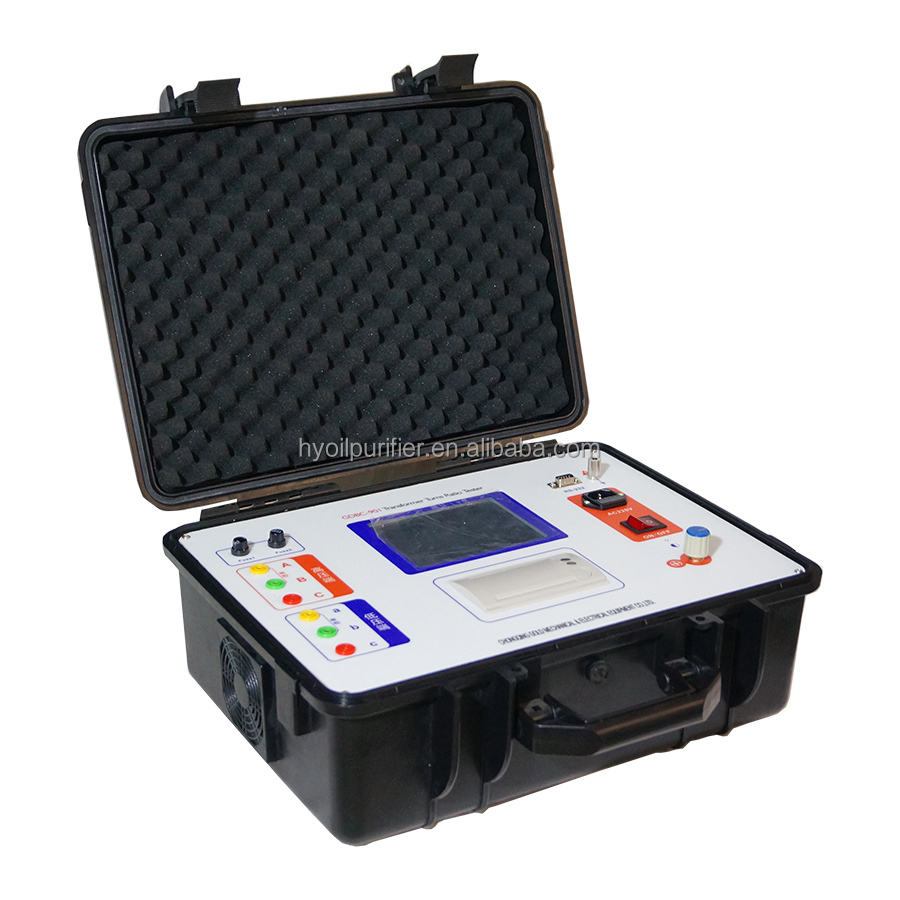

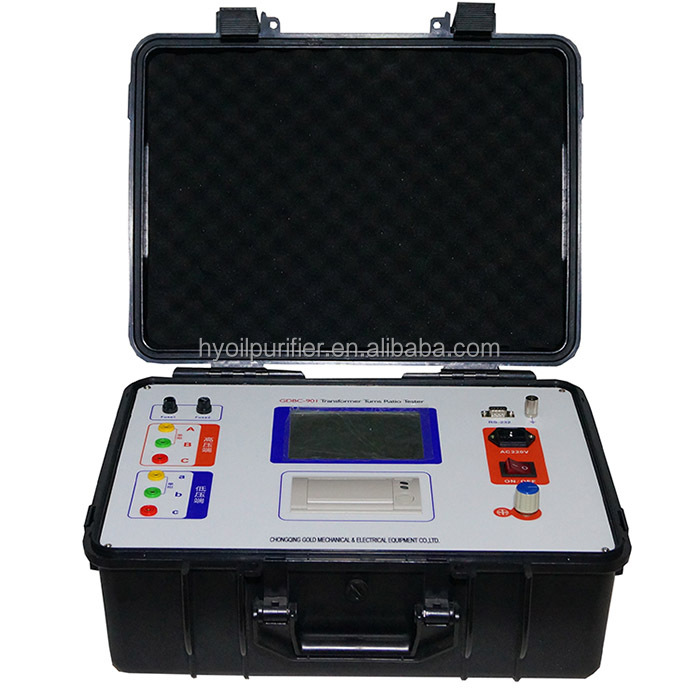

-GDBC-901 TTR tester front and side

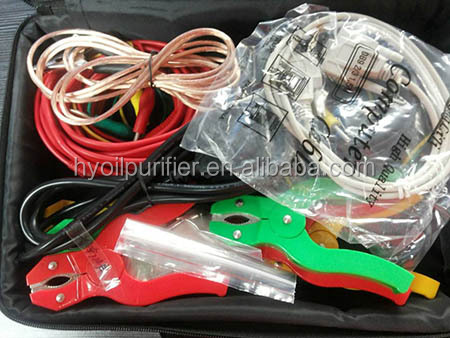

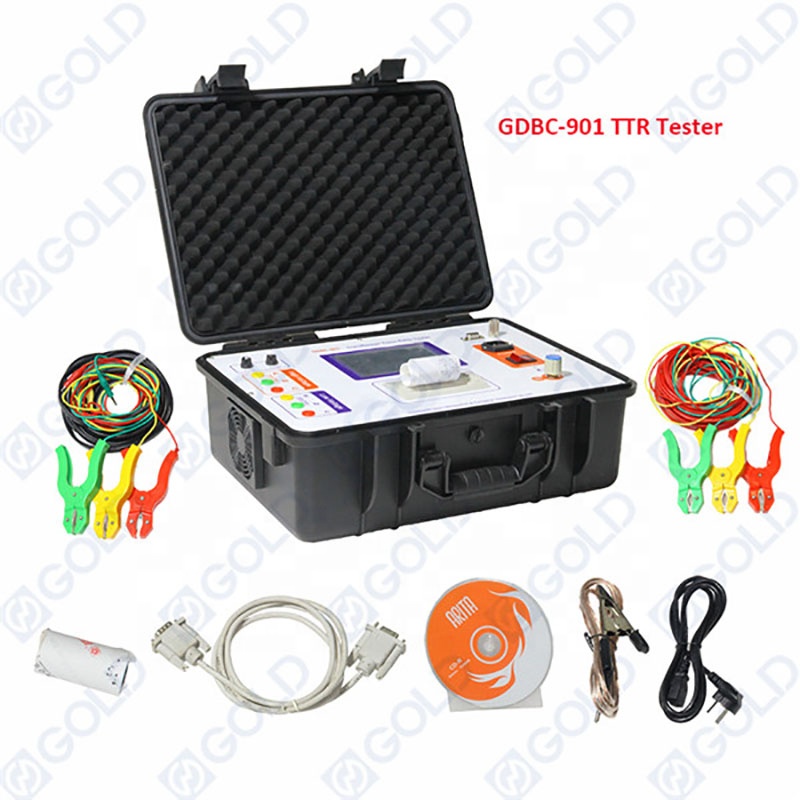

-GDBC-901 TTR tester accessories

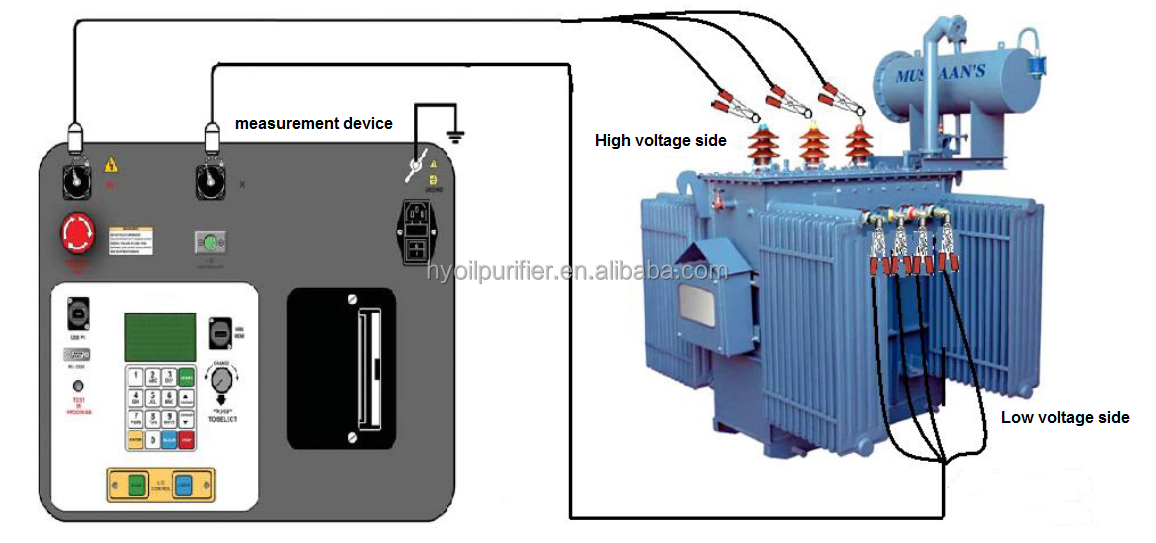

-GDBC-901TTR tester connection method

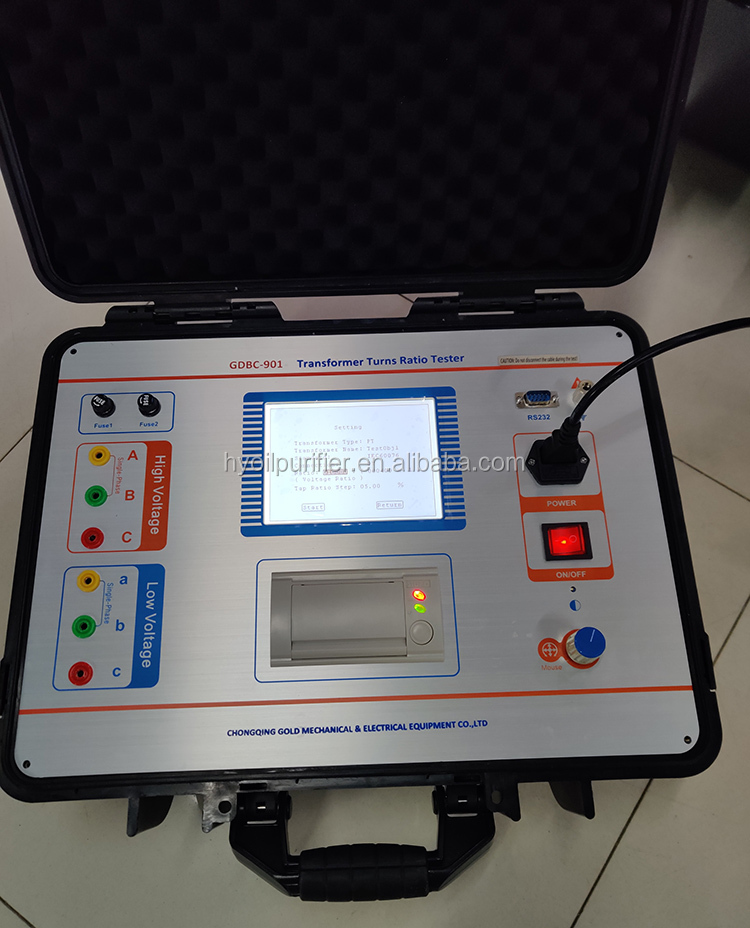

-GDBC-901 TTR tester is under test

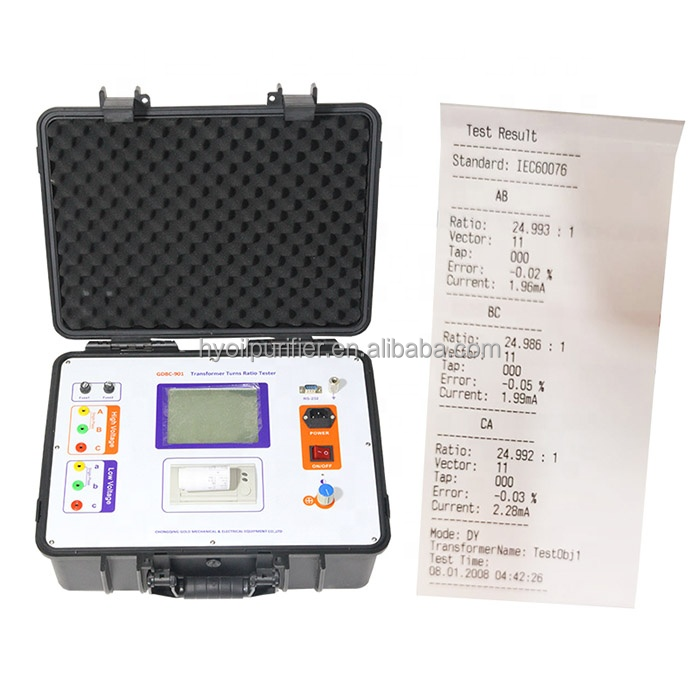

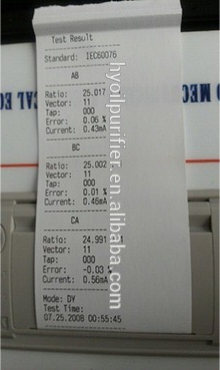

-GDBC-901 TTR tester test results

Specification

Item name	GDBC-901 single-phase and three-phase transformer ratio TTR tester
Ratio measuring range	1-10000
group measurement	1-12
Phase measurement error	1 degree
ratio measurement error	1-2000±0.2%RDG 2000-10000±0.5%RDG
Test voltage	0~80V, frequency 50Hz
power supply	AC220V±10%, 50Hz/60Hz
ambient temperature	0-50℃
humidity	≤85%R
aspect	584536CM
weight	22kg
