5W- 36W 5V 12V 24V 36V 48V Custom Open Frame Power Supply PCBA Design 1A 2A 3A
- 1.25 100 - 999 pieces
- 1.20 >=1000 pieces
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| Protect: | OCP OVP OTP SCP | enter: | AC 100-240v 50-60hz |
| pack: | PE bag + carton | Output frequency: | 50~60Hz |
| The output voltage: | 5V-48V | product name: | Power Adapter |
| Input voltage: | 90-240V | color: | Black |
| brand: | will | Name: | Customized PCBAs |
| payment terms: | wire transfer | port: | Shenzhen |
| efficiency: | ErP | Origin: | Guangdong, China |
| Supply capacity: | 10000 pieces per week | The output voltage: | 12V±5% |
| model: | WP120200P | output type: | many kinds of |
| Warranty: | 2 years | Certificate: | UL FCC CE GS CB BS SAA PSE KC |
| Packaging Details: | PE bag with white box | Output current: | 0.5A-3A |
Product Description
5W- 36W 5V 12V 24V 36V 48V Customized Open Frame Power Supply PCBA Design 1A 2A 3A
enter | Input voltage | 100V - 240V AC |
input frequency | 50 - 60 Hz | |
No-load power loss | 0.1W max | |
energy efficiency | ErPV | |
output | The output voltage | 12V±5% |
Maximum load current | 1A | |
Output Ripple and Noise | Maximum 200mVp-p | |
DC power cord | UL2464 / UL2468 | 1M/1.2M/1.5M/1.8M/2M |
Connector | DC plug | 5.5 mm x 2.1 mm 5.5 mm x 2.5 mm 4.0 mm x 1.7 mm 3.5 mm x 1.35 mm or others |
USB | Micro USB | |
USB Type-C | ||
other | waterproof connector | |
with case | ||

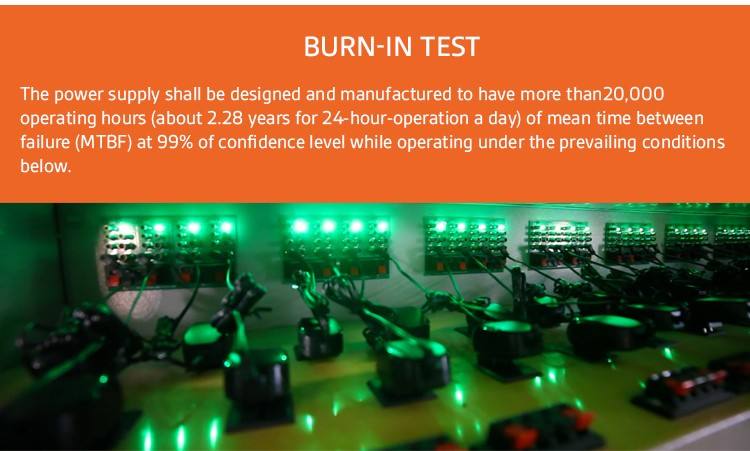

reliability test | MTBF | 20,000 hours |
Insulation resistance | DC500V 30MΩ | |
HI-TOP test | 3,750 VAC, 50 Hz | |
glow wire test | 750°C | |

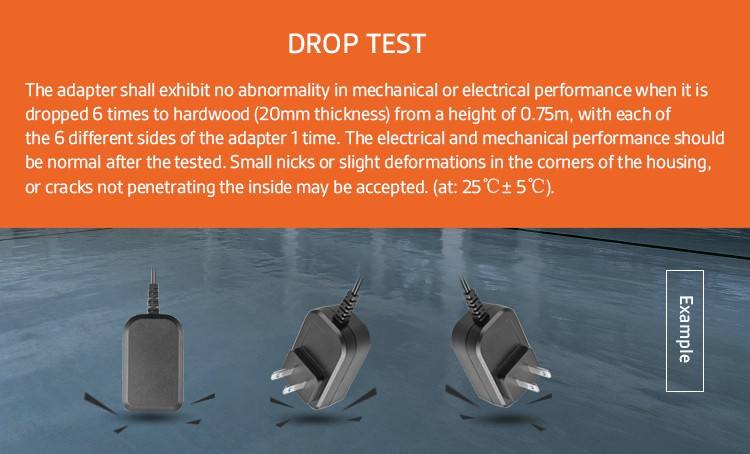

drop test | 0.75M | |
Bending test | 1,000 times | |
Salt spray test | 24 hours | |
Protect | overcurrent protection | see spec sheet |
overvoltage protection | see spec sheet | |
over temperature protection | see spec sheet | |
Short circuit protection | see spec sheet | |
Safety certification | CE TUV-GS CB | |
environmental protection | SGS certification | RoHS 2.0 Compliant arrival |
Warranty | 24 months |

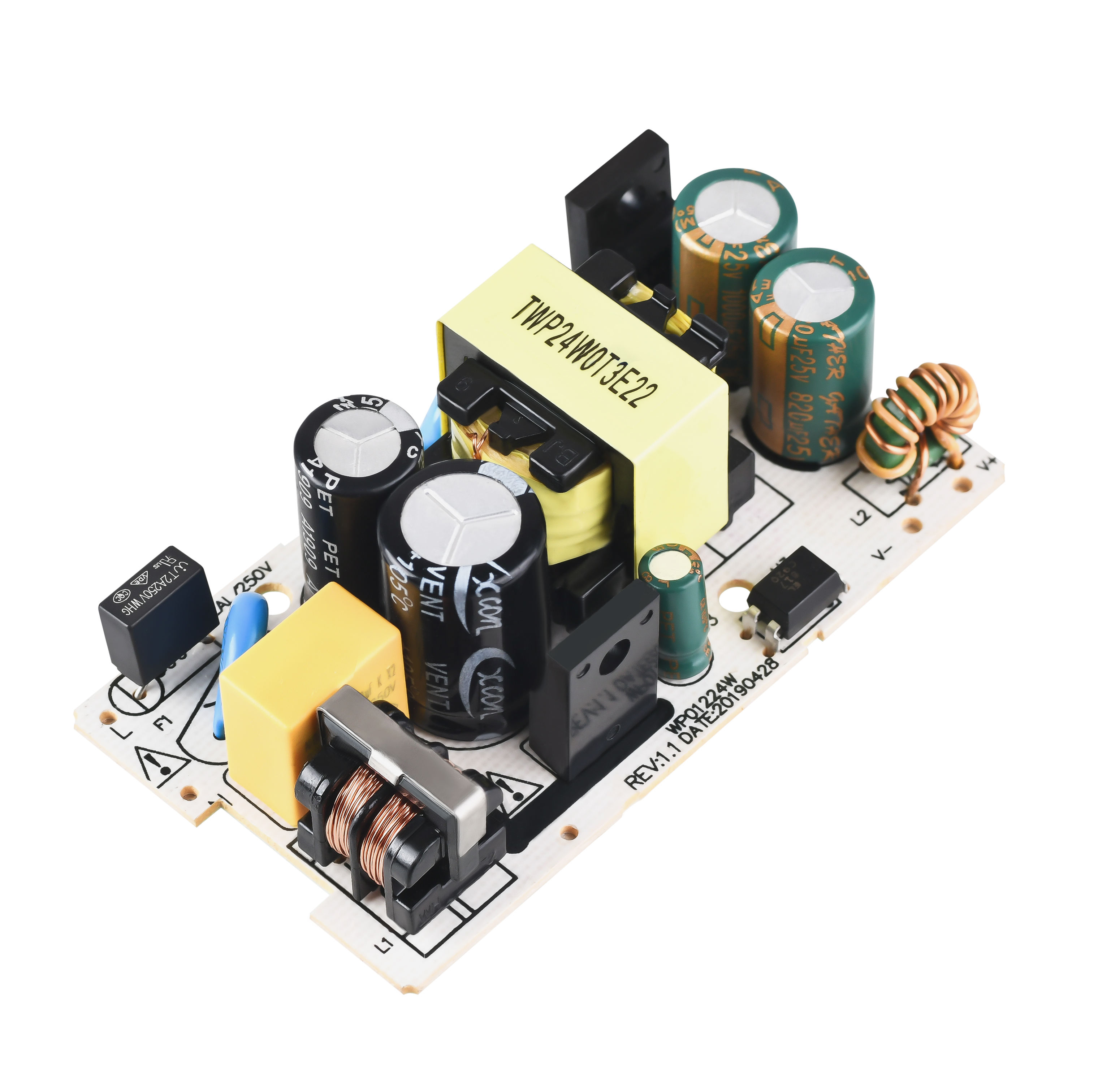

detailed image
