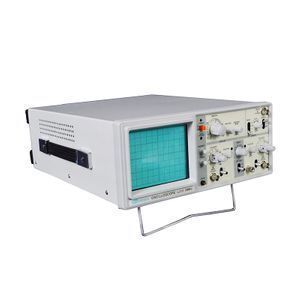

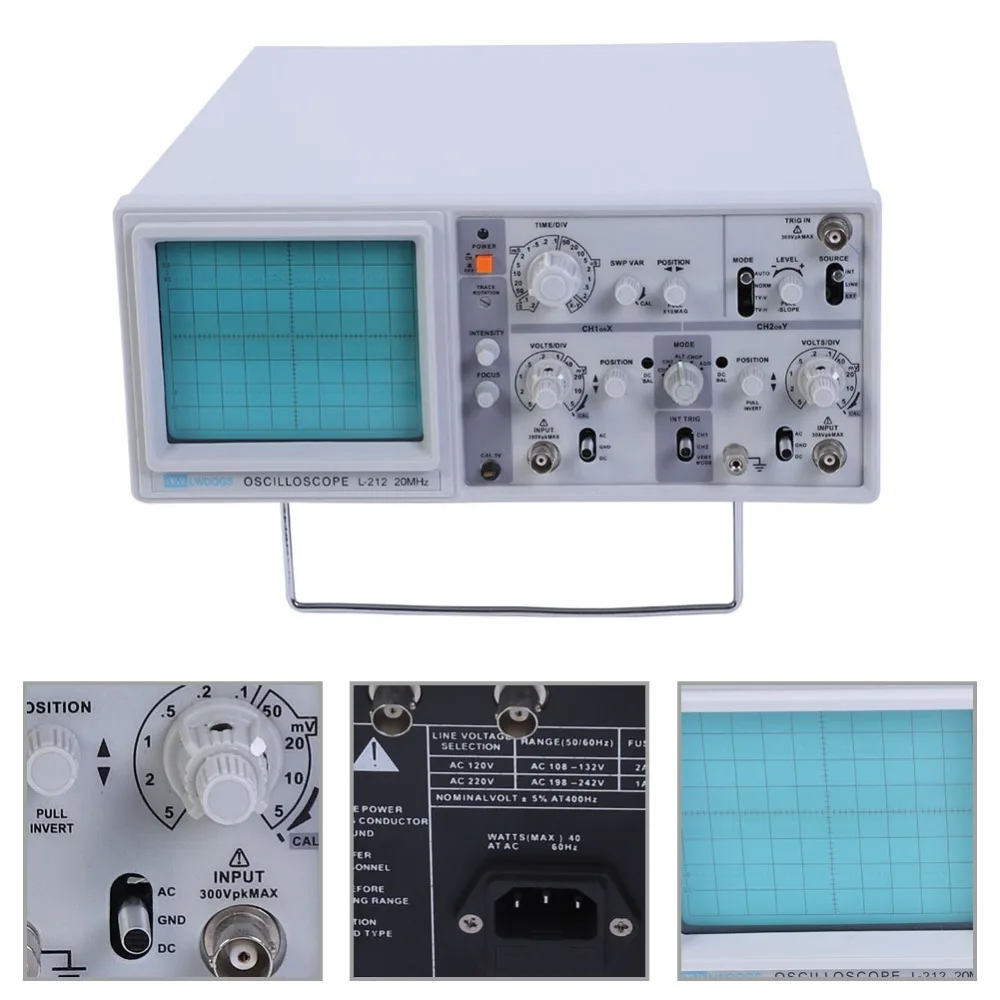

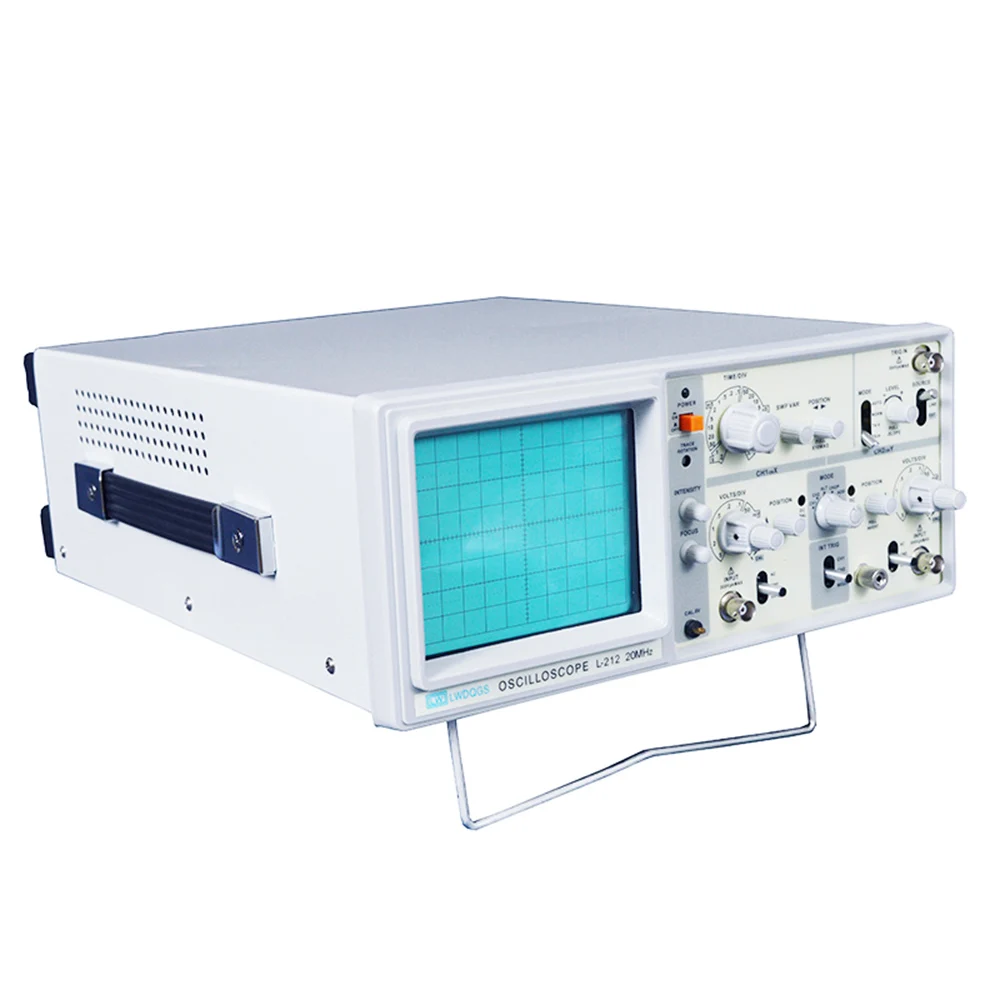

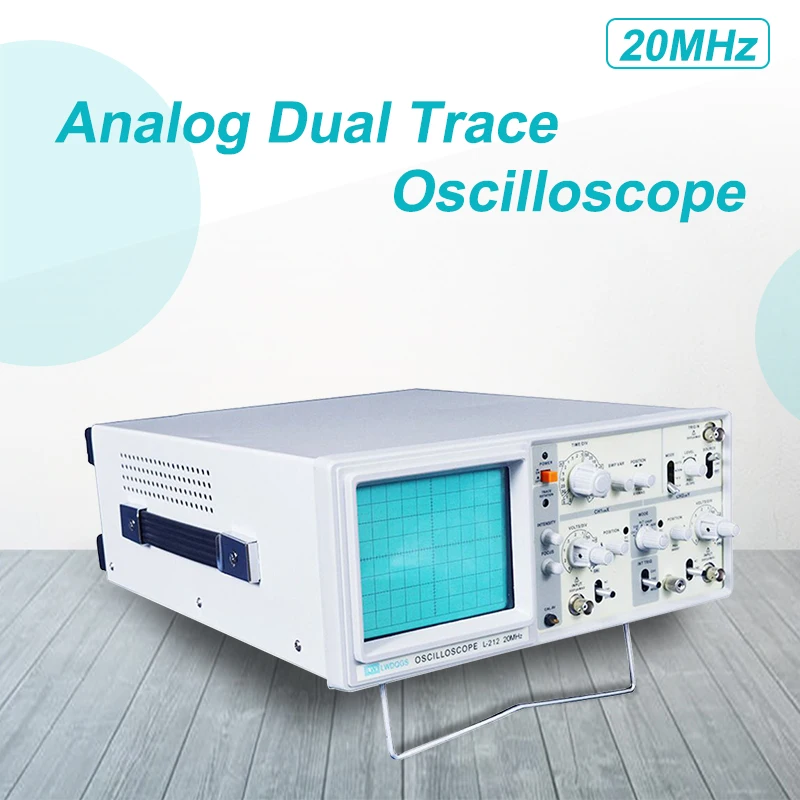

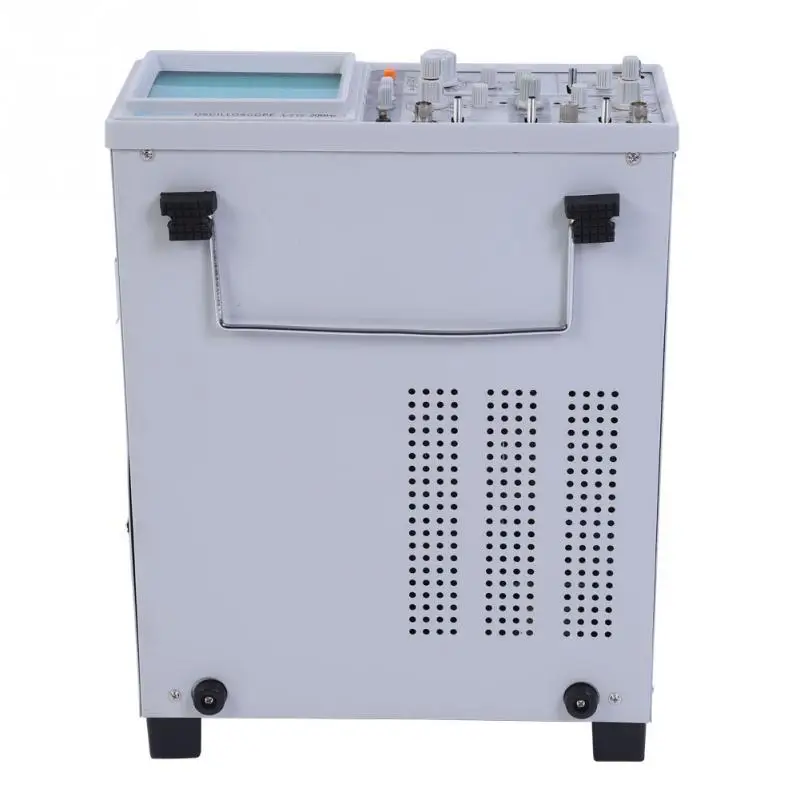

LW High Quality Oscilloscope L-212 Analog Oscilloscope 20MHz Dual Channel Portable Bench Oscilloscope

Supplier: Shenzhen Kuaiqu Electronic Co., Ltd.
Region: Guangdong, China
Contact: Mr James Zhang
Price: $149.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Single package size:	51X39X23 cm;	Precision:	3%;
Single gross weight:	10 KG;	Channel:	Dual channel;
Rise Time:	≤17.2ns;	Brand Name:	Longwei;

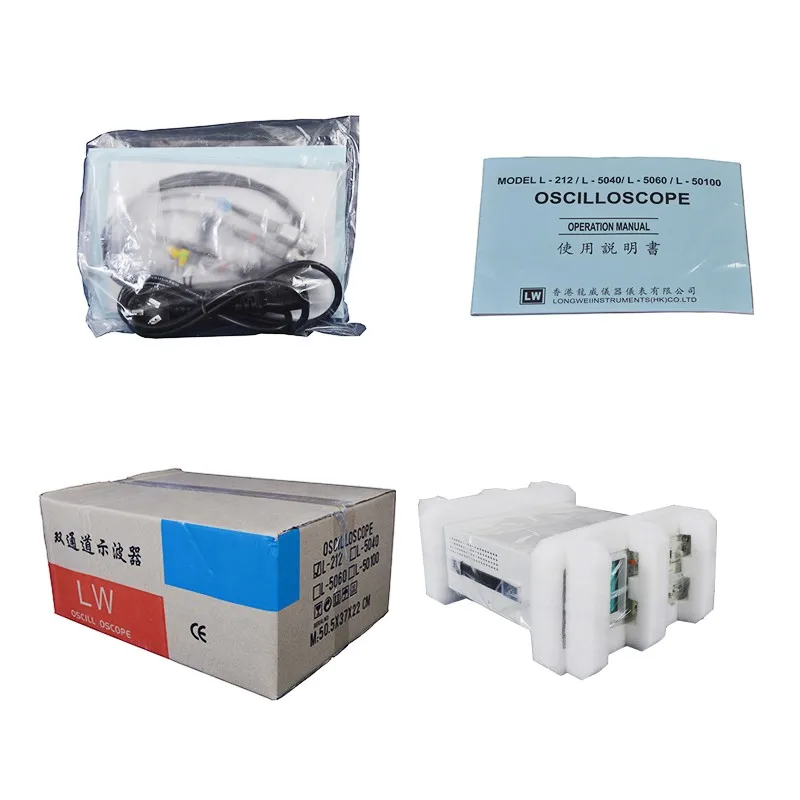

Storage:	Waveform;	Package Type:	Packaging Details: Netural packing/Customers packing are acceptable;
Polaraulic Selector:	±CH2;	Selling Units:	Single item;
Type:	Analog Oscilloscope;	Maximum Input Voltage:	250V (≤1KHz);
Product Name:	Analog Oscilloscope;	Display Mode:	CH1 CH2 CH3 ADD ALT CHOP;
Bandwidth:	20MHz;	Model Number:	L-212;
Place of Origin:	Guangdong China;	Time Base:	0.2us/div~0.2s/div;

LW High Quality Oscilloscope L-212 Analog Oscilloscope 20MHz Dual Channel Portable Bench Oscilloscope

Features:

Dual channels/dual traces, X-Y mode
6" display, high brightness oscilloscope tube
High sensitivity triggering, up to 1mV/division clearer display than ordinary oscilloscope

TV synchronous separation circuit to observe stable TV signal

Triggering mode: AUTO/NORM/AV-V/AV-H

Vertical: ALT/CHOP/ADD

X-x10/Y-x5

Polarity reversal

CH1 Sync output

Power supply: AC 220V ADN (110V optional)

Parameter		Type
		L-212		L-5040	L-5060	L-50100
Frequency Range		DC-20MHz		DC-40MHz	DC-60MHz	DC-100MHz
In case the screen		8*10div(1div=1cm)		8*10div	8*10div	8*10div
Vertical deflection	display mode	CH1 CH2 CH3 ADD ALT CHOP
	deflection factor	5mV/div to 5V/div±3%(1mV/div±5%)
	risetime	≤17.2ns	≤17.2ns		≤17.2ns	≤17.2ns
	polarity selection	±CH2
	Maximum input voltage selection	250V (≤1KHz)
HoriZontal Deflection	display mode	1,10,X-Y
	time base	0.2us/div~0.2s/div	0.2us/div~0.2s/div		0.2us/div~0.2s/div		0.2us/div~0.2s/div
	Sweep width	×10	×10		×10		×10
	precision	3%	3%		3%		3%
Waveform correction		Frequency 1KHz 20% voltage: 0.5v 1%
Input Impedance		1MΩ	1MΩ		1MΩ		1MΩ

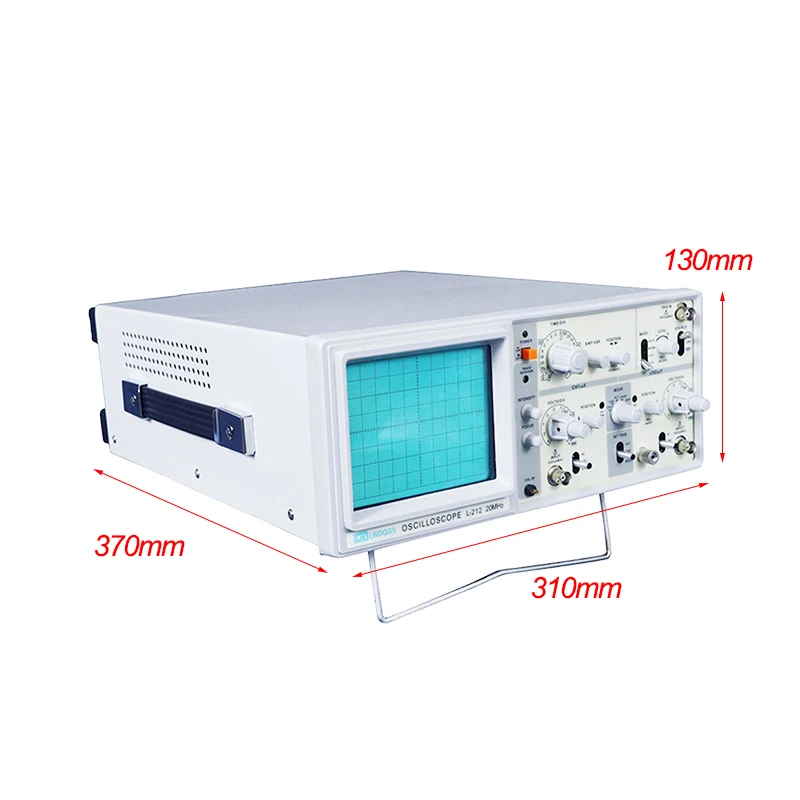

Size		370×310×130mm
Weight		8Kg
