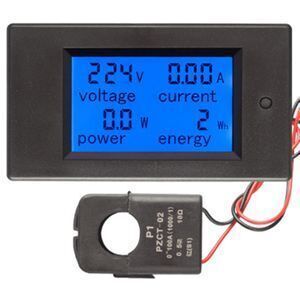

Peacefair PZEM-061 With Split CT Factory Price 220V 100A 4in1 LCD Digital Display AC Current Meter

Product details
Selling Units:Single item;Display Type:Digital Only;
Supply Voltage:AC 80-260V;Single package size:14X11X4 cm;
Phase:Signle Phase;Voltage range:AC 80-260V;
Display:LCD;Package Type:The size of the inner carton:14*11*4cm The size of outside carton:46*38*38cm(100pcs/one carton);
Usage:Amp Measurement;Type:Ammeter;
Certificate:CE FCC;Model Number:PZEM-061;
Measuring Range:0-100A;Place of Origin:Zhejiang China;

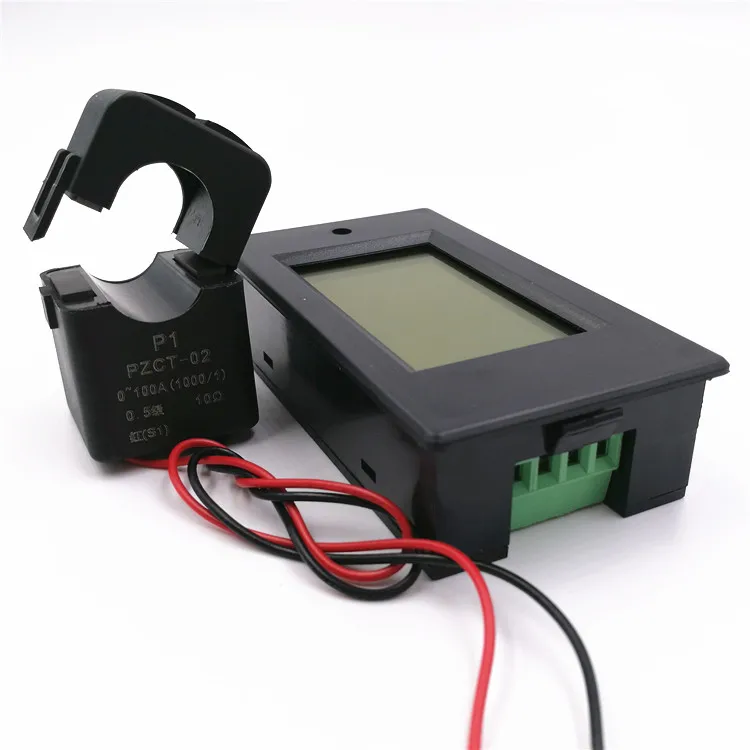

Operating Temperature:-10-60degree;CT:Split CT;
Current range:0-100A;backlight color:blue;
Dimensions:89.6*49.6*24.4mm(L*W*H);Weight:146g;
Accuracy Class:1.0;Single gross weight:0.17 KG;
Brand Name:Peacefair;

 Peacefair PZEM-061 With Split CT Factory Price 220V 100A 4in1 LCD Digital Display AC Current Meter

Product Type

PZEM-061     AC Single Phase electric Meter

Function

1. Electrical parameter measurement function (voltage, current, active power, energy)

2. Overload alarm function (over power alarm threshold, backlight and power flashing to alarm).

3. Power alarm threshold preset function (can set power alarm threshold).

4. The reset function of energy key.

5. Store data when power off.

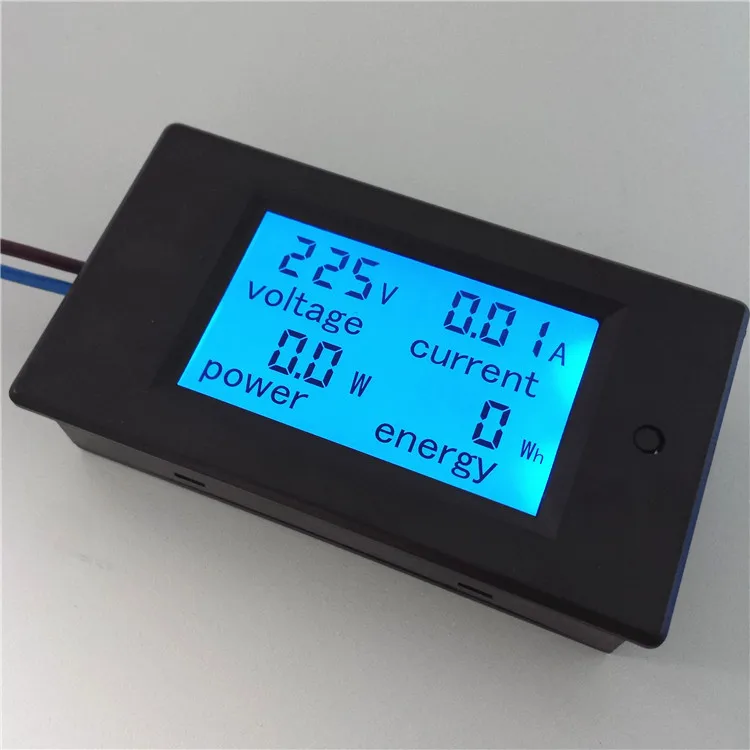

6. Large-screen LCD (display voltage, current, active power, energy at the same time)

7. Backlight function.

Test Parameters Range

1. Voltage:  80~260V

2.  Current:  0~100A

3.  Power: 0~22000W

4.  Energy:  0~9999kWh

Accuracy

1.0 grade

refresh rate

1S

Display Size

51*30mm

Product Size

89.6*49.6*24.4mm

Unit Weight

146g(with Split CT)

package

Carton

Precautions

1. This module is suitable for indoor, please do not use outdoor.

2. Applied load should not exceed the rated power.

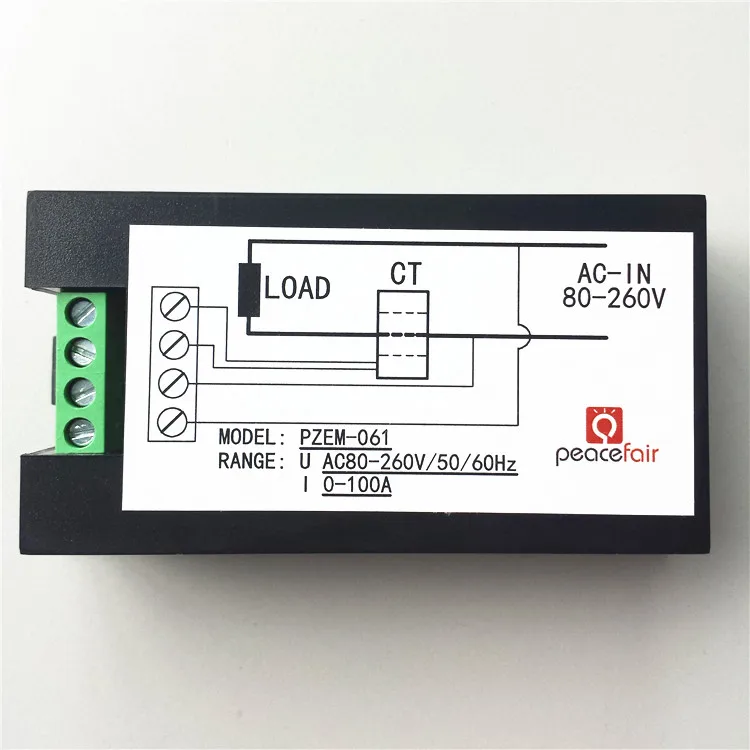

3. Wiring order can’t be wrong.

Note

It can't be used in the circuit which has much  interference such as inverter,silicon controlled.otherwise will be easily to damage the meter





II.Display format

1.       Power: test range: 0~22kW

Within 1kW, the display format is 0.0~999.9W;

Within 1kW~10kW, the display format is 1000~9999W;

10kW and above, the display format is 0.1~22.0kW.

2.       Energy: test range: 0~9999kWh

Within 10KWh, the display format is 0~9999Wh;

10kWh and above, the display format is 10~9999kWh.

3.      Voltage: test range: 80~260V

Display format: 80~260V

4.       Current: test range: 0~100A

Display format: 0.00~99.99A

III. Key

1.       Backlight control

Short press the key to turn on or off the backlight, the backlight has memory function, it can store the on or off state when power off.

2. Reset energy

Step1: Long press the key for 5 seconds until the number in energy display window flash, then release the key.

Step2: Short press the key again, then the energy value is cleared and exit the reset flashing state. If you don’t want to clear, then long press the key for 5 seconds again until the number doesn’t flash, it means the energy value is not cleared and will exit the reset state.

3.       Set power alarm threshold

Step1: Long press the key until the LCD screen display “SET CLr”, then release the key to enter the setting state

Step2: Power window display the current power alarm value and the last digit begin to flash, then you can short press to plus 1, when there is no operation over 3 seconds, it will switch the digit position automatically, the setting method is as same as the above.

Step3: After finish the setting, long press the key over 5 seconds will store automatically and exit, the range of active power threshold is 0.0~22.0kW
