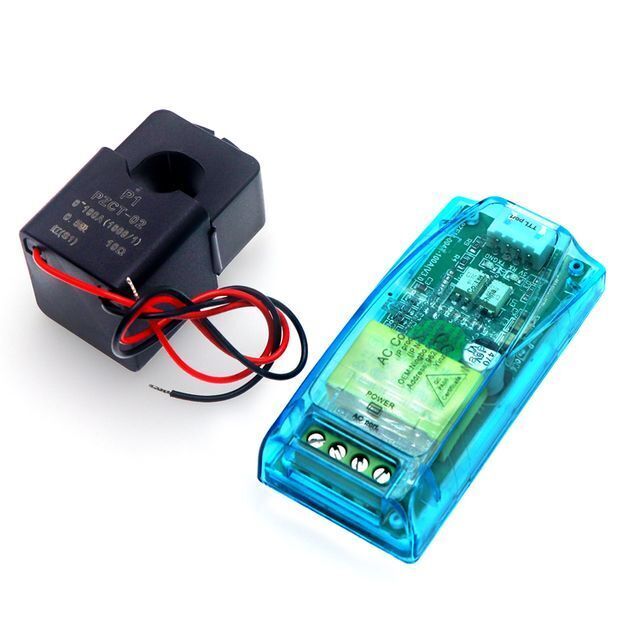

PZEM-004T New Version AC Single Phase 250V TTL Port Current and Voltage Electric Digital Kwh Meter Energy Meter

Product details
Style:AC Energy Meter;Model Number:PZEM-004T;
Selling Units:Single item;Brand Name:Peacefair;

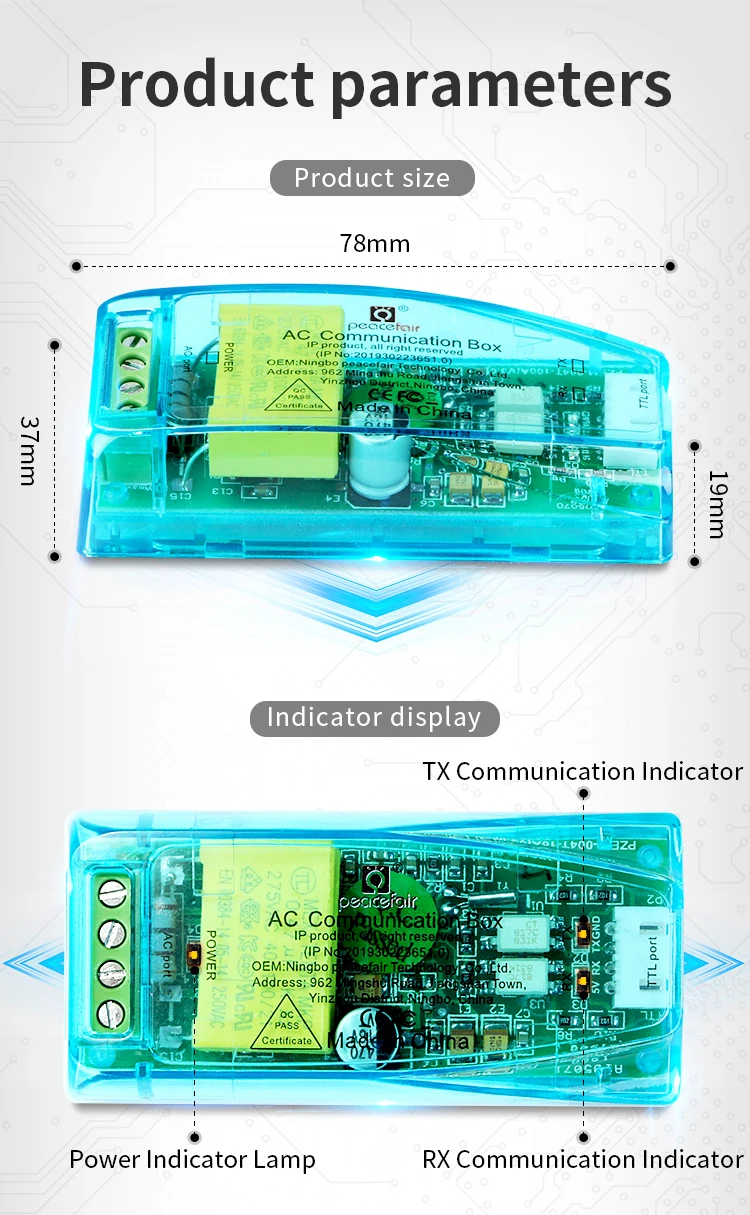

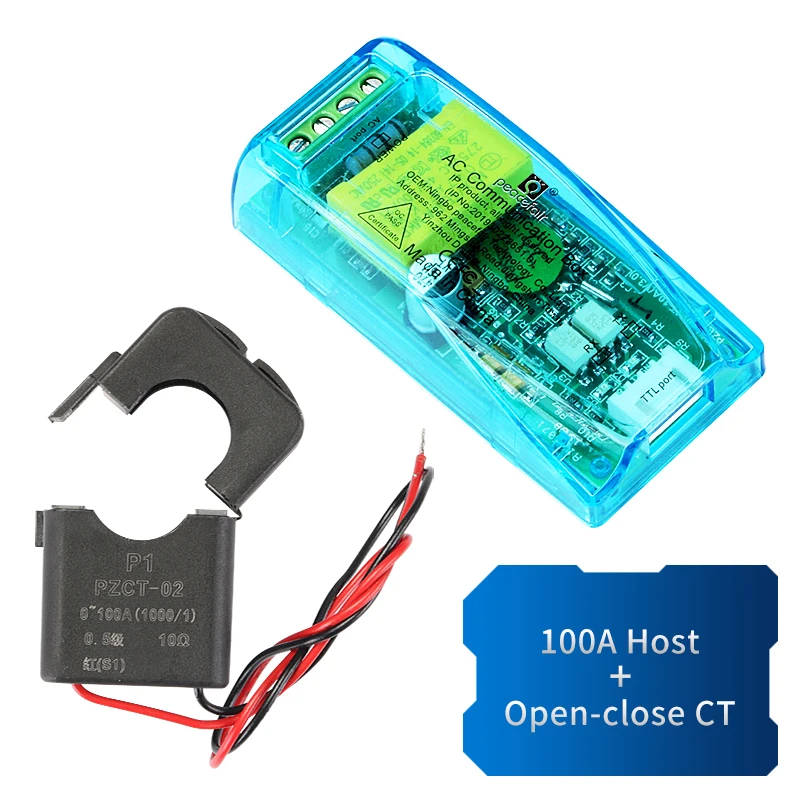

Dimensions:78*37mm;accessory:split CT;
Type:AC Energy Meter;Accuracy Class:1.0grade;
Measuring Voltage Range:80-260V;Operating Temperature:-10-60degree;
Energy test range:0-9999.99kwh;Place of Origin:Zhejiang, China;
Communication:TTL;Power Range:0-23kw;
Current test range:0-100A;Single package size:15.2X12X6 cm;
Packaging Detail:carton;Package Preview:;
Voltage test range:80-260V;Certificate:CE FCC;
Measuring Current Range:0-100A;Single gross weight:0.155 KG;
unit weight:131g;
Product Description
Voltage
* Measuring range:80~260V
* Resolution: 0.1V
Current
* Measuring range: 0~100A
* Resolution: 0.001A
Active power
* Measuring range:0~23kW
* Resolution: 0.1W
Power factor
* Measuring range: 00~1.00
* Resolution: 0.01
Frequency
* Measuring range: 45Hz~65Hz
* Resolution: 0.1Hz
Active energy
* Measuring range: 0~9999.99kWh
* Resolution: 1Wh

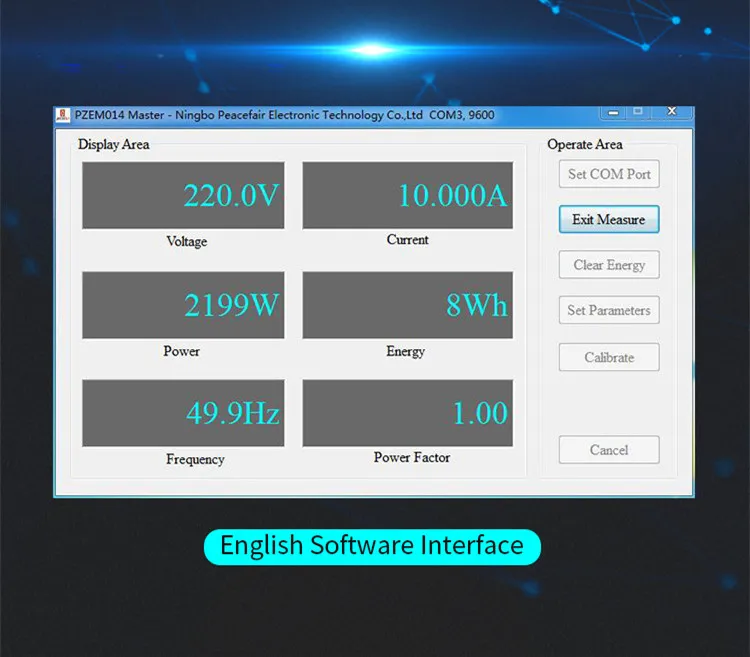

* Reset energy: use software to reset.

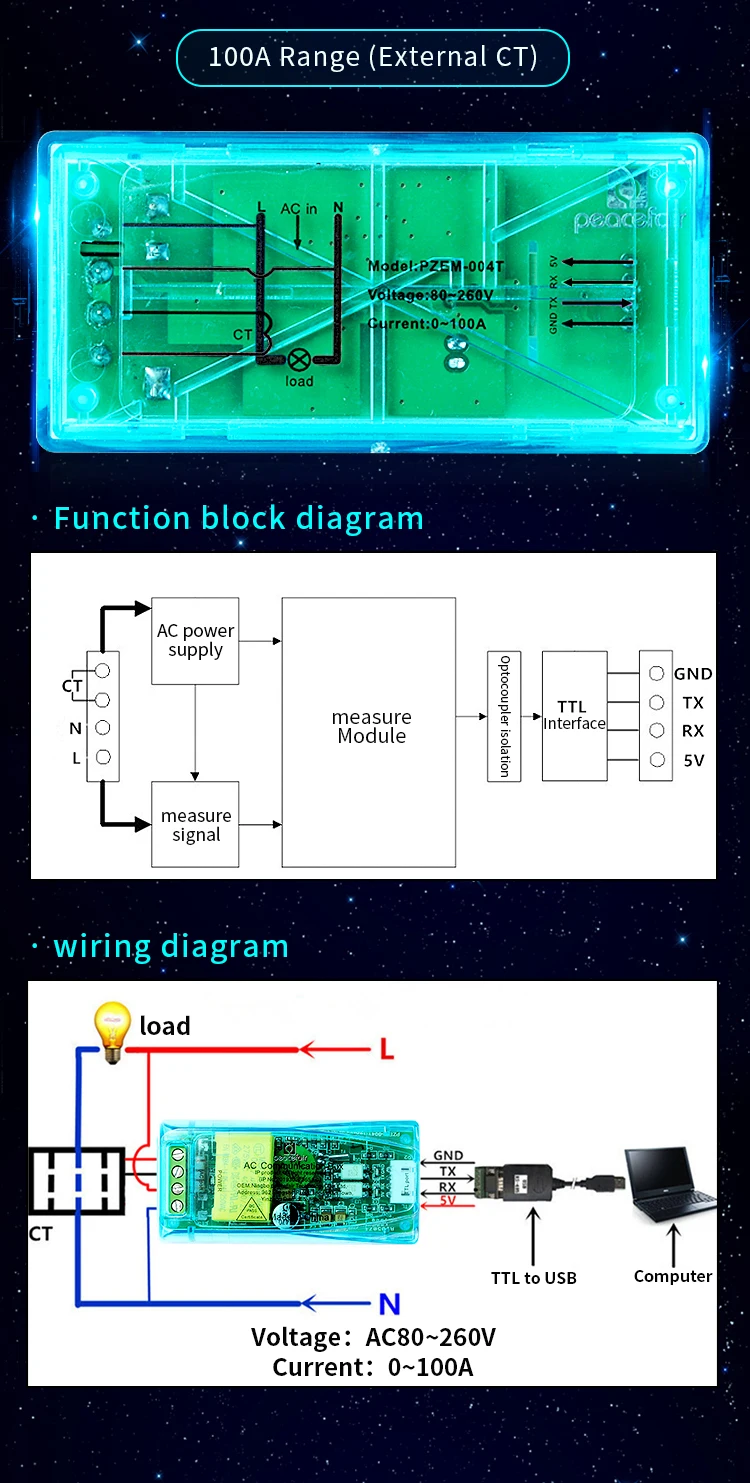

PZEM-004T AC communication module, the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the TTL interface.
Product Type
PZEM-004T 3.0v
Function
the module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module
is without display function, the data is read through the TTL interface.
Voltage Range
AC 80-260V
Current Range
100A
Active Power
0-23KW
Energy Range
Energy Range
Power Factor
0.00~1.00
Frequency
45Hz~65Hz
Weight
131g
Communication Port
TTL interface
Physical layer protocol
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
