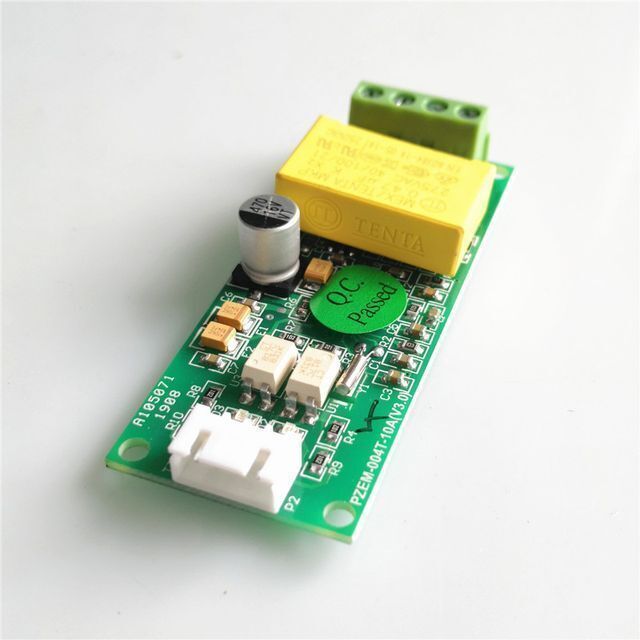

PZEM-004T New High precision AC Single Phase Current 10A TTL Modbus Kwh Power Meter

Supplier: Ningbo Peacefair Electronic Technology Co., Ltd.
Region: Zhejiang, China
Price: $5.50 / 2 - 19 units
$5.00 / 20 - 49 units
$4.50 / 50 - 99 units
$4.00 / >=100 units
Min. Order: 2 units

Click here to contact

Product details

Packaging Detail:	carton;	Operating Temperature:	-10-60drgee;
Selling Units:	Single item;	Brand Name:	peacefair;
Dimensions:	73.3*30mm;	Certificate:	CE FCC;
Current test range:	0-10A;	Measure parameters:	Electrical Parameter Measurement;
Type:	Panel Ammeter;	Single package size:	13X10X6 cm;
Measuring Current Range:	0-10A;	Single gross weight:	0.1 KG;
Model Number:	PZEM-004T;	Voltage test range:	AC80-260V;
Accuracy Class:	1.0gread;	Place of Origin:	Zhejiang China;
unit weight:	45g;	Name:	Digital Ammeter;
Communication:	TTL;	Measuring Voltage Range:	AC80-260V;

Product Description

PZEM-004T 3.0 220V 10A USB TTL Modbus AC Ampere Energy Meter Smart kwh Meter Single Phase

Product Type	PZEM-004T 3.0v

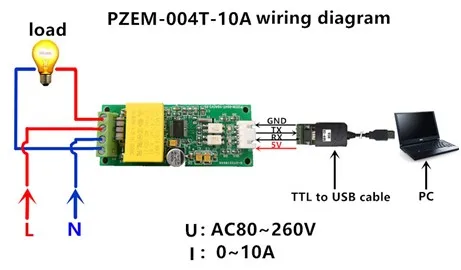

Function	This module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy,without display, the data is read through the TTL interface.
Voltage Range	AC 80-260V
Current Range	0-10A(only the PCB)
Active Power	0-2.3KW
Energy Range	Energy Range
Power Factor	0.00～1.00
Frequency	45Hz～65Hz
Weight	46g

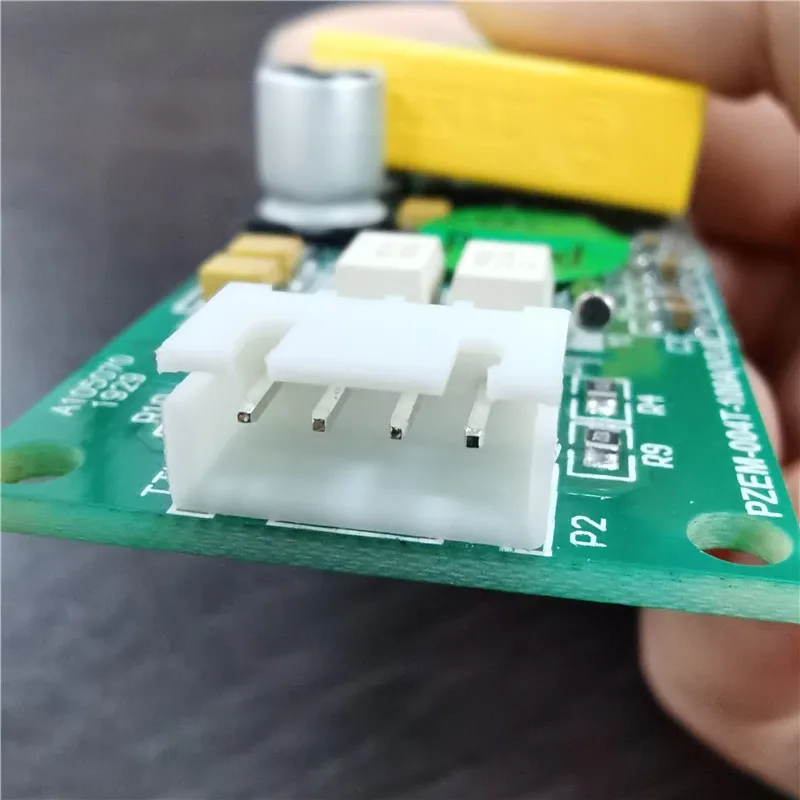

Communication Port	TTL interface
Physical layer protocol	Baud rate is 9600, 8 data bits, 1 stop bit, no parity

Voltage

* Measuring range:80～260V

* Resolution: 0.1V
Current

* Measuring range: 0～10A
* Resolution: 0.001A
Active power

* Measuring range:0～2.3kW
* Resolution: 0.1W
Power factor

* Measuring range: 00～1.00
* Resolution: 0.01
Frequency

* Measuring range: 45Hz～65Hz
* Resolution: 0.1Hz
Active energy

* Measuring range: 0～99kWh
* Resolution: 1Wh
* Reset energy: use software to reset.

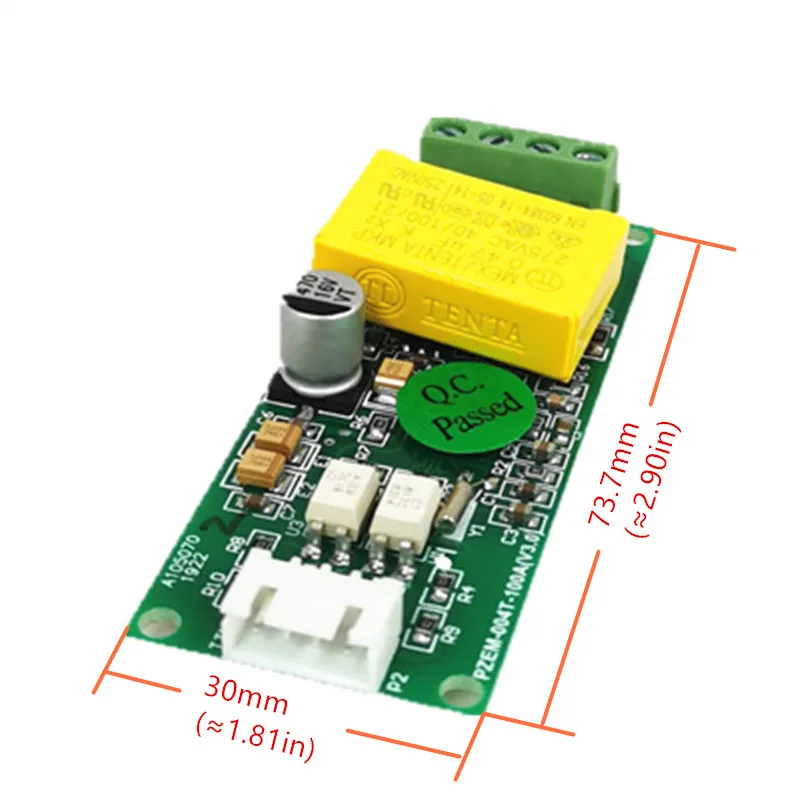

Size Information

Related Products

Company Introduction

Ningbo Peacefair Electronic Technology Co., Ltd. is founded in 2 0 1 4. The area of the factory is 1800square meters, has two assembly line. We are a professional manufacturer engaged in the research, development, production, sale and service of AC and DC Electric digital power meter, Voltage meter and Energy meter. Our products have the patent and C E, F C C certificates.
