New condition 3.5 cbm self-loading concrete mixer truck

Supplier: WEIFANG MAP IMPORT AND EXPORT CO., LTD.
Region: Shandong, China
Contact: Ms Cindy Xin
Price: $21000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

After-sales Service Provided:	Free spare parts,Online support;	Place of Origin:	Shandong China;
Port:	Qingdao port;	Concrete output:	4 m3 / cans, 12 cubic meters/hour;
Engine:	Yuchai YC04122G;	Certification:	ISO CE;
Payment Terms:	L/C,D/P,T/T,Western Union,MoneyGram;	UNIQUE SELLING POINT:	High operating efficiency;
Packaging Detail:	1 unit in 120GP,3units in 140HQ container;	Power(W):	85KW;
Condition:	New;	Dimension(LWH):	7.04.2.63.4;
drum capacity:	4 Cubic;	Warranty:	1 Year;
Supply Ability:	300 Unit/Units per Year;	Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Farms,Construction works ,Energy & Mining;
Dimension:	7040x2600x3400mm;	Bucket:	700 litres, hydraulic valve;
Brand Name:	MAP;	Drive:	4*4 wheel drive;
Weight:	7100;

Product Description

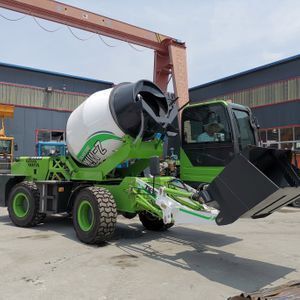

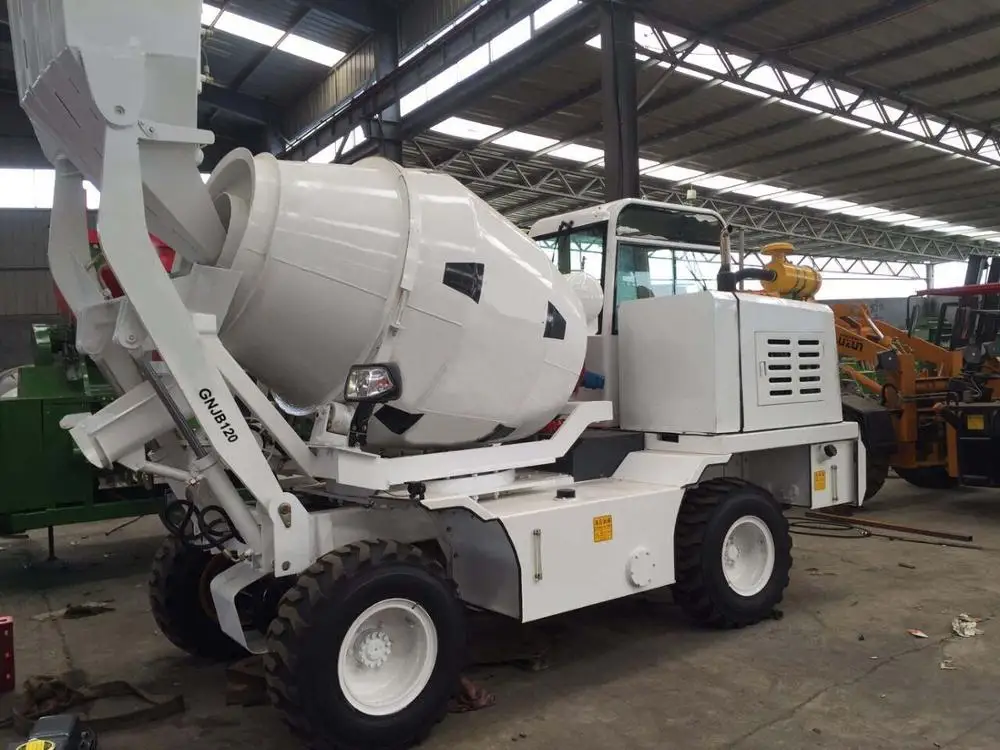

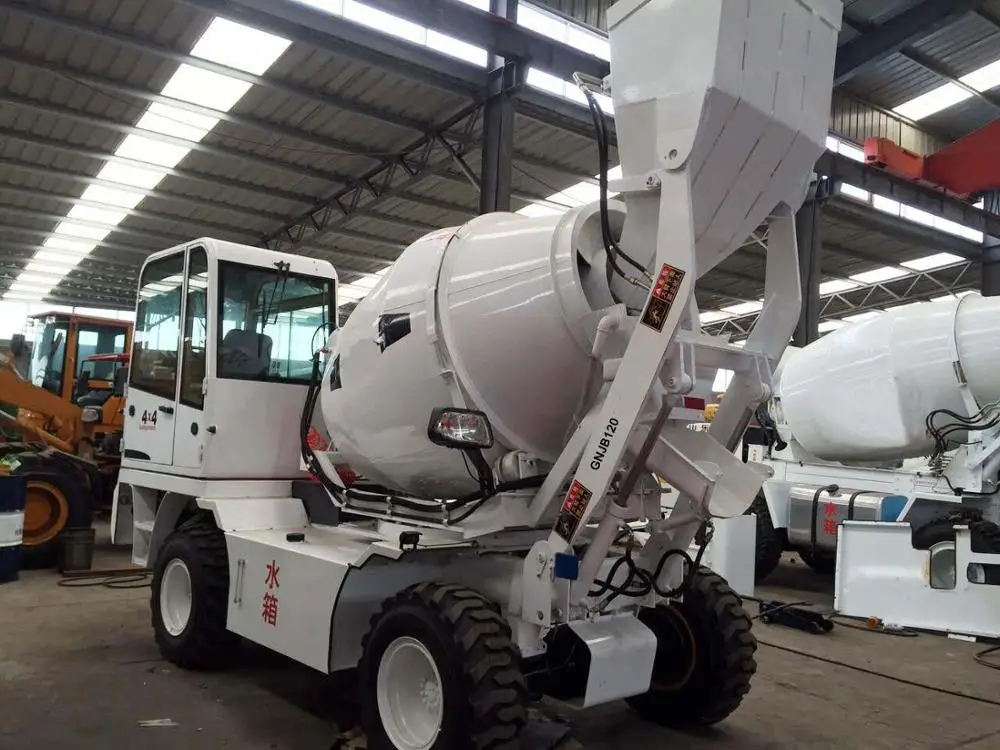

New condition 3cbm self-loading concrete mixer truck

The self loading concrete mixer is widely used in concrete mixer transport.it can self loading the sand,water,concrete from one place to other place.the drum capacity is 4 cubic meter.

MODEL

GNJZY4000Automatic feeding mixers

Mixing system

Drum capacity of 6.1 cubic meters, the discharge opening height 1.8 meters

Production capacity

Concrete output: 4 m3 / cans, 12 cubic meters/hour

The engine

Yuchai YC04122G, water-cooled, 4 cylinder / 4.836 litres, 85 kw / 2400 RPM

The transmission way

Full hydraulic pressure drive, 4 wheel drive and two wheel steering, domestic axle

Walking speed

9 km/hour at low speed, high speed 10-20 km/hour
