Civil residential printer concrete machine

Click here to contact
Product details
Health status:newIf customizable:Yes
Dimensions (L*W*H):3*6m, 3.3*6.6m, 3.6*7.2mSide panel:slidable
Showroom location:not anybrand:TC
weight:17000-23000KGMachine material:all steel
inner box:retractablein principle:hydraulic
Production capacity:2-3 hourssize:3*6m, 3.3*6.6m, 3.6*7.2m
Unique Selling Points:Full hydraulic systemport:Wuhan, Shanghai, Ningbo, any port in China
Warranty:1 yearpayment terms:Letter of Credit, T/T, Western Union, MoneyGram
Packaging Details:Packed in a wooden box.Local service location:not any
Supply capacity:100 sets per monthAfter Warranty Service:Video technical support, online support, spare parts, on-site maintenance and repair services
application:Civil Housing and Public BuildingsApplicable industries:Hotels, Clothing Stores, Building Materials Stores, Mechanical Repair Stores, Manufacturing Plants, Food and Beverage Plants, Farms, Restaurants, Home Use, Retail, Food Stores, Printing Stores, Construction Works, Energy and Mining, Food and Beverage Stores, Advertising Agencies
After-sales service provided:Video technical support, on-site installation and commissioning training, on-site maintenance and repair services, free spare parts, online supportProduction Method:Reinforced concrete fill
place of origin; place of origin:Chinaautomation:semi-automatic
Molding time:2-3 hours
Product Description
Concrete composite house, also known as prefabricated concrete house, belongs to concrete prefabricated building, which is a new construction method with good energy saving and low cost. With reinforced concrete structure, the unit modules are prefabricated in the factory with special equipment, and then shipped directly to the site for assembly. The prefabrication level is high, the size is accurate, and the construction speed is very fast, and 500 square meters can be built in one day, which greatly improves the construction speed. Industrialized production of concrete houses
Concrete mixer A (Model: TC8041)
Feed amount
800L
Emissions
500L
efficiency
25 cubic meters/hour
Rotating speed
35 rpm
Aggregate size
up to 80 mm
blade
14
Voltage
380V
strength
18.5kW
Machine size
428*279*651mm
weight
3950 kg
Batching machine A (Model: TC8051)
Weighing volume
800L
storage hopper
5m³
efficiency
48m³/h
batch error
±1%
Maximum weight
3000kg
transfer speed
1m/s
Voltage
380V
strength
12kW
Machine size
560*183*270cm
weight
2450kg

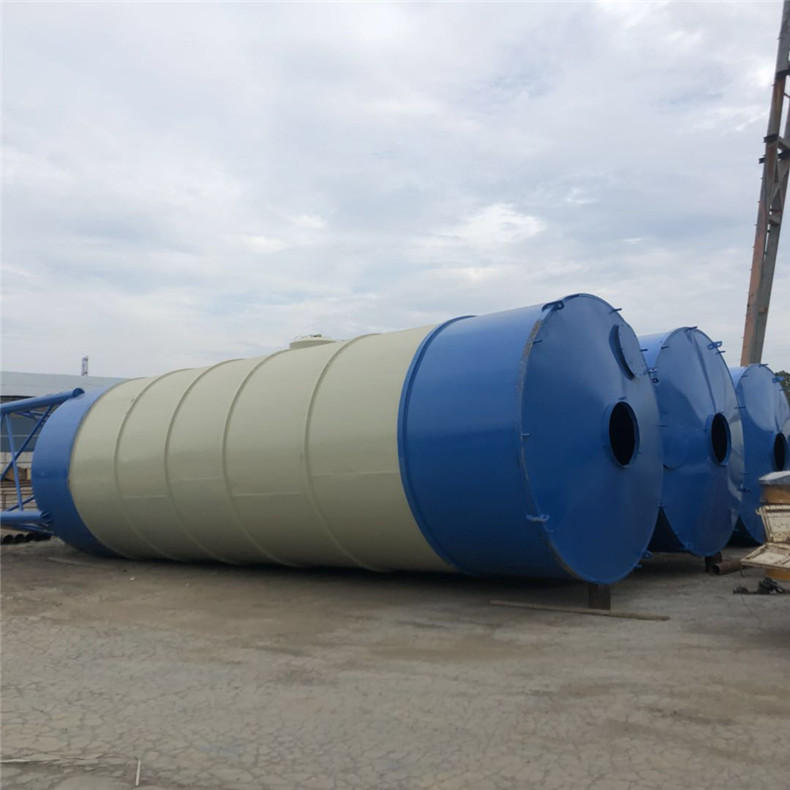

Assemble Tank A
(Model: TC8061)
storage weight
80 tons
Fuel tank capacity
60m³
Tank diameter
280cm
Line segment height
900 cm
Overall height of the tank
1105cm
trestle height
300 cm
steel thickness
6mm
weight
3600kg

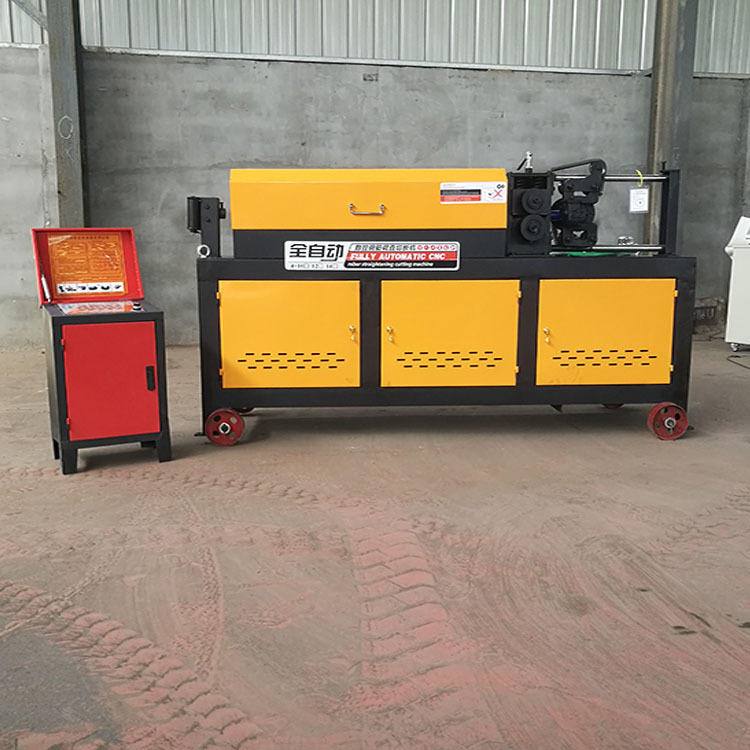

CNC Rebar Processing Machine (Model: TC8030)
processing speed
20-40m/min
Machining diameter
4-14mm steel bar
Rebar type
Round bar, deformed bar
in principle
hydraulic
Control System
CNC
Voltage
380V
strength
9kW
Machine size
200*75*110cm
weight
900kg

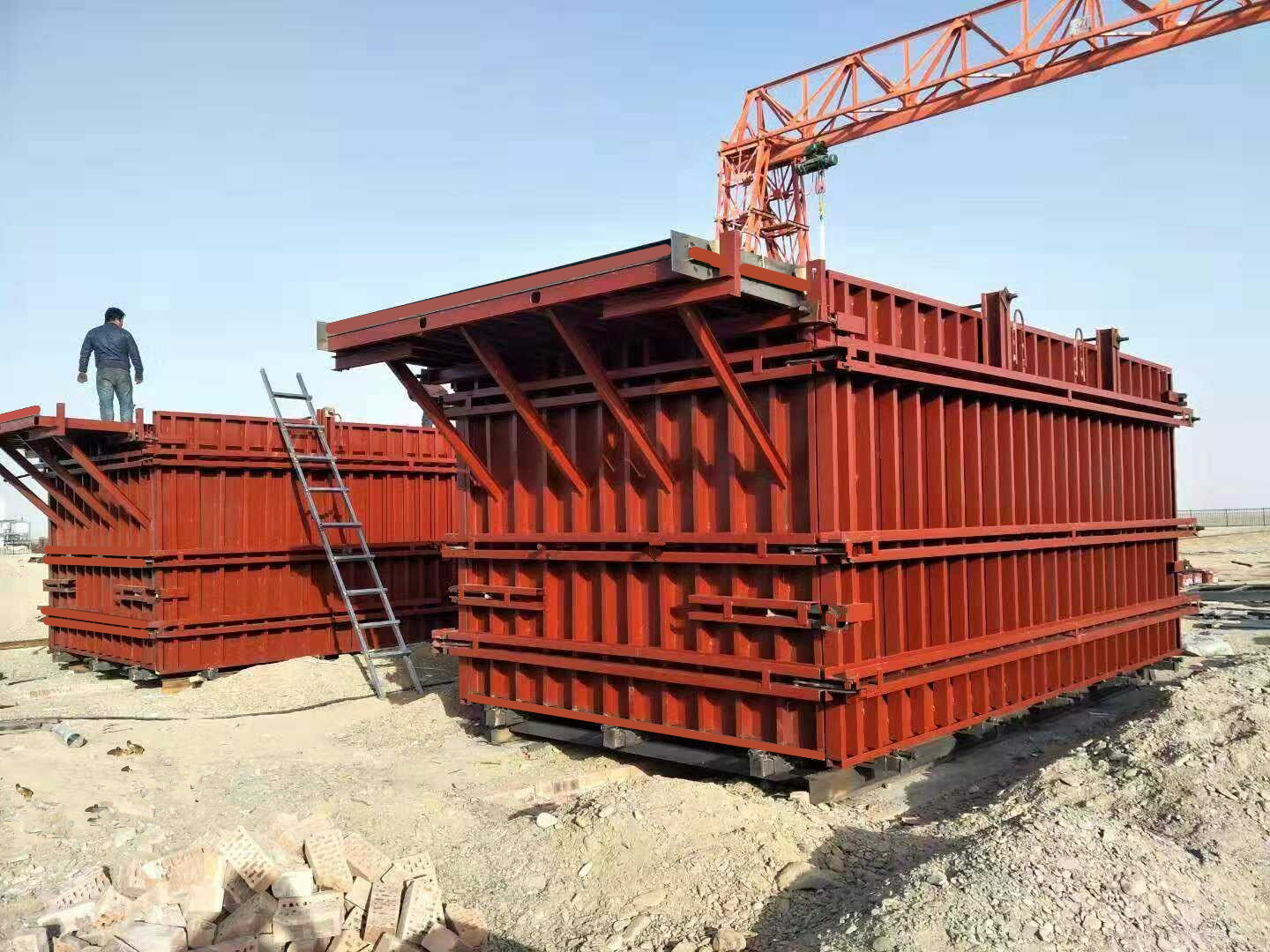

Housing Forming Machine (Model: TC8010)
in principle
hydraulic
automation
semi-automatic
ways to produce
Reinforced concrete fill
Molding time
2-3 hours
Machine material
all steel
side panel
slidable
inner box
retractable
weight
17000-23000KG
size
3*6m, 3.3*6.6m, 3.6*7.2m
if customizable
Yes

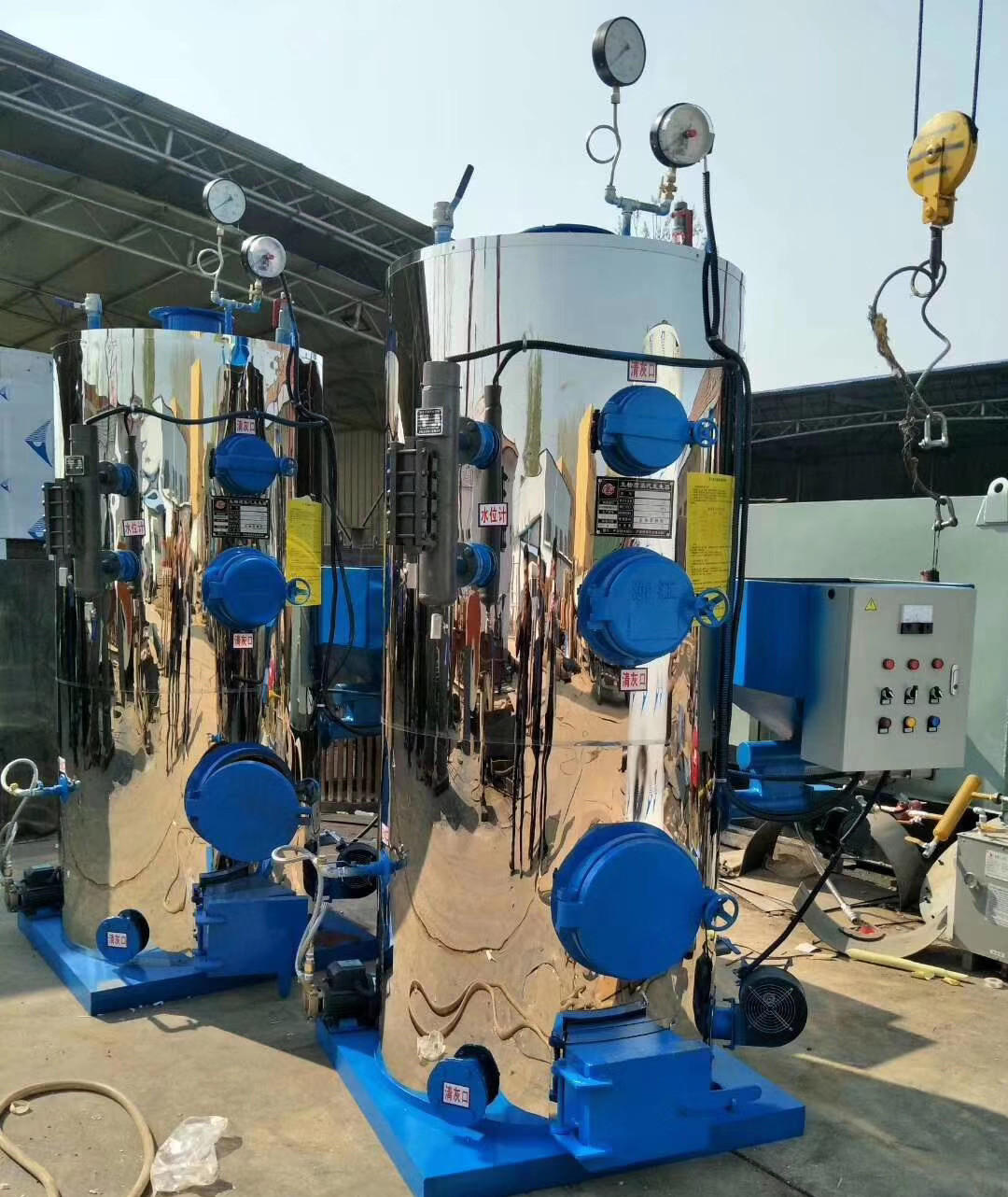

Housing rapid curing machine B
(Model: TC8022)
efficiency
1000kg/h evaporation
preset pressure
0.7Mpa
temperature
170 degrees Celsius
Voltage
380v
strength
3.3kW
weight
4500 kg
size
1.5m in diameter, 2.8m in height
Production process of concrete modular houses
1. Machining the steel bar with CNC steel bar, weaving the steel bar (rebar) into a grid, and covering it on the inner chassis of the forming machine.

2. Produce concrete with concrete machine.

3. Adjust the molding machine, use the gantry crane and hopper to lift the concrete and pour it into the machine until it is full

4. Cover the molding machine with the cover of the quick-setting machine, and then turn on the quick-setting machine to quickly set the concrete.

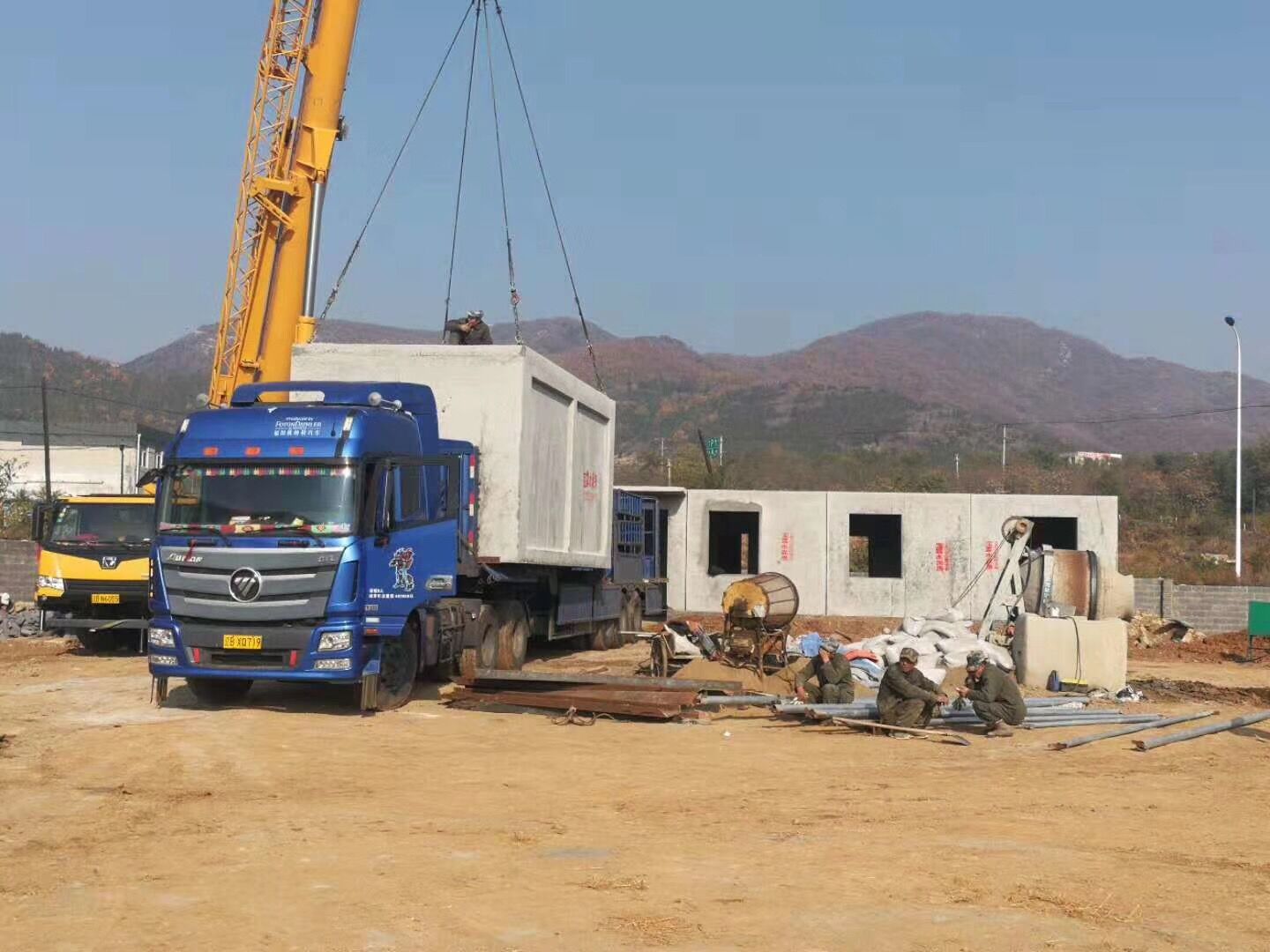

5. After 2-3 hours, the modular house of one unit is completed, pull the side panels of the forming machine, adjust the shrinkage of the inner chassis to separate the walls of the house. Use a gantry crane to lift the house and store it.
Concrete Modular Home Features
Low construction cost:The house was built for half the cost of a traditional brick and mortar home.

Extremely fast construction:High level of prefabrication, fast construction speed, 500 square meters per day, greatly improving construction speed

Shock resistance:It can withstand a magnitude 9 earthquake and will not collapse as a whole due to local damage during an earthquake.

Wind resistance:It can withstand hurricanes up to 200 km/h. The weight of each unit module is 20 tons (the weight of 10 cars).

longevity:The life of the reinforced concrete main structure can reach more than 100 years

Flame Retardant:The solid wall of reinforced concrete structure has a long fire resistance time.

Soundproofing:The sound insulation of the wall can reach more than 65dB.

insulation:Reinforced concrete structure solid wall, good thermal insulation

Energy saving and environmental protection:Newly built green buildings do not generate construction waste during construction, and can be demolished again during demolition and reuse.

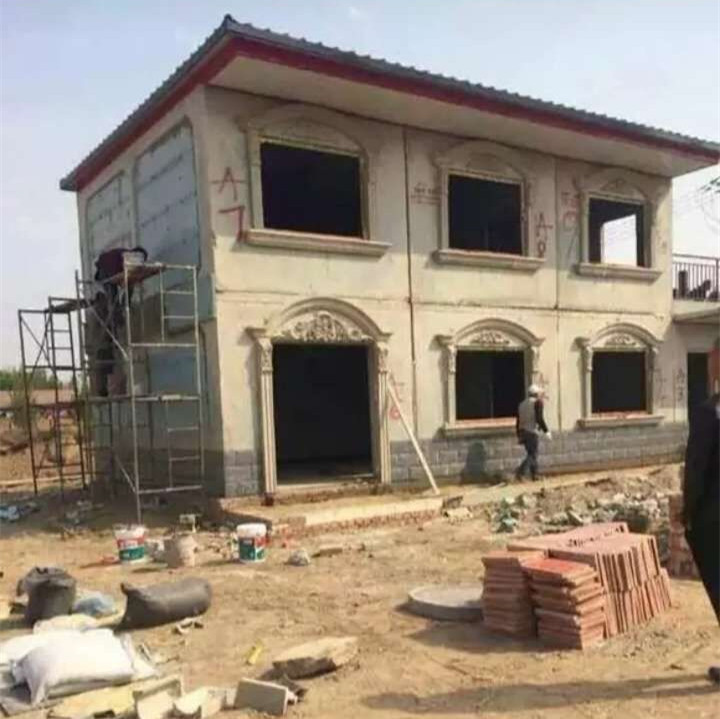

Flexible assembly:Can be assembled into various styles of houses and buildings, each room can be assembled by one or more unit modules, up to five floors

Advantage
It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire resistance, sound insulation and heat insulation.

Compared with traditional brick-concrete houses, the main advantages of concrete composite houses are low construction cost, good earthquake resistance, long service life, fast construction speed, labor saving, long service life, no construction waste, and can be demolished by demolition. It is in line with the development direction of environmental protection construction advocated by the world.

We have 3 scale production lines corresponding to differentproductivityfor your information
scale
small
middle
big
Total Price (USD)
87,000
143,000
266,000
productivity
600 unit modules (houses)/year
1200 units
Module (House)/Year
2400 units
Module (House)/Year
configure
2 setshouse forming machine
1 setFast curing machine A
1 setCNC rebar processing machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssemble Tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (30 days)
4 setshouse forming machine
1 setHouse quick curing machineSecond
2 setsCNC rebar processing machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssemble Tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (40 days)
8 setshouse forming machine
2 setsHouse quick curing machineSecond
3 setsCNC rebar processing
machine
1 setConcrete mixerSecond
1 setbatching machineSecond
1 setAssemble the tankSecond
Accessories and Tools
On-site debugging equipment and technical training for engineers (50 days)

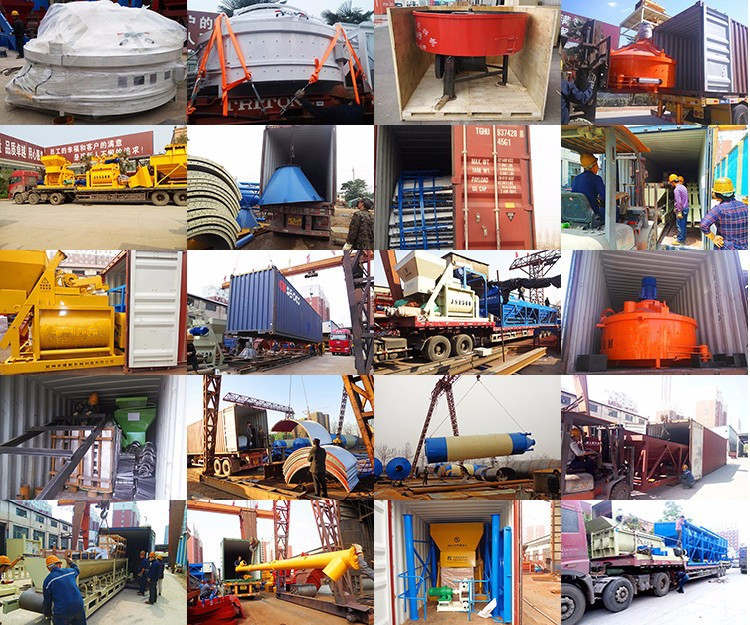

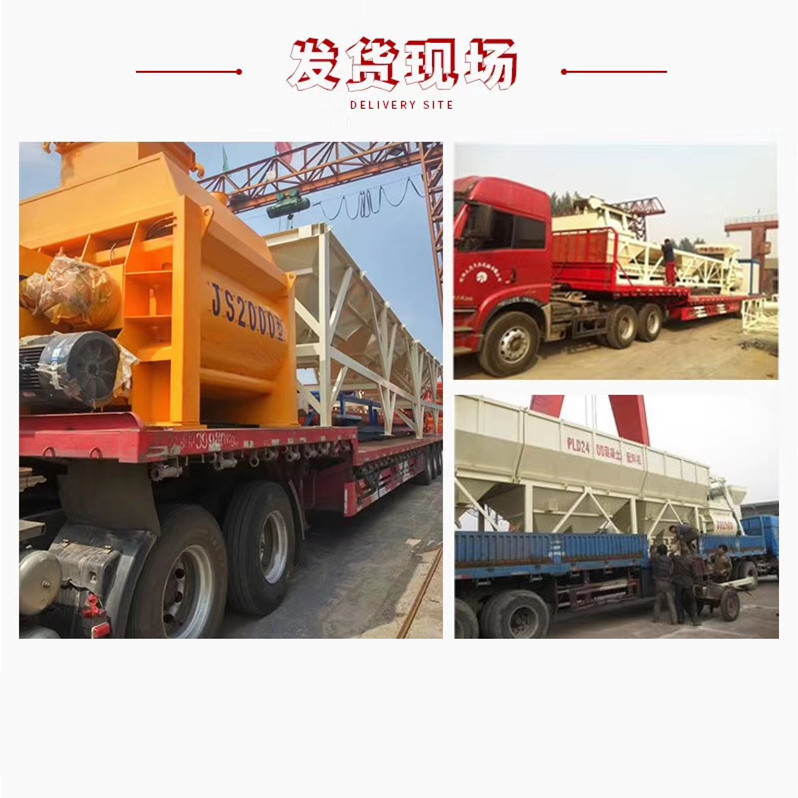

Packaging and Shipping
our company

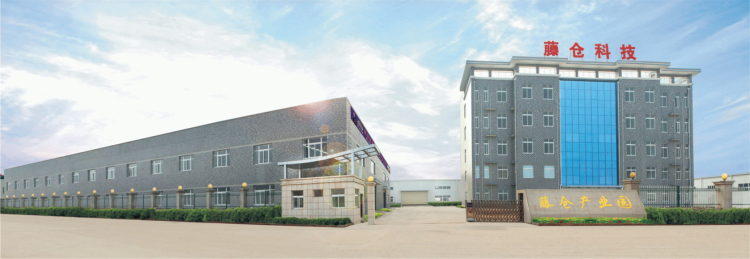

Hubei Tengcang Building Materials Technology Co., Ltd. has newly built a five-star industrial park, covering an area of ​​23,000 square meters. It is located in the National High-tech Development Zone of Xiaogan City, Hubei Province, the "hometown of Dongyong", Wuhan City Circle. It has scientific research buildings, office buildings, standardized workshops and automation equipment, etc. hardware facilities. We have more than 100 scientific and technical personnel and are an entity enterprise specializing in the production of new decorative materials, building materials, building materials, building equipment and optoelectronic devices
FAQ
1. What are your delivery terms?
We accept EXW, FOB, CFR, CIF, etc. You can choose the most convenient or cost-effective one.

2. Are you a factory or a trading company?
we are the manufacturer

3. How much land is needed to build a factory?
The land area should be at least 80m*40m.

4. Can the concrete modules be customized to any size?
No, currently, the general dimensions for a concrete module are:
Width*Length: 3*6m, 3.3*6m, 3.3*6.3m, 3.3*6.6m, 3.5*7m, 3.6*6m, 3.6*6.6m, 3.6*7.2m.
Height: 2.8m, 3m, 3.2m,
Eaves length: 0-1.5m.
