3d house printer concrete building mold house machine

Click here to contact
Product details
Supply capacity:100 sets per monthIf it can be customized:Yes
payment terms:L/C, T/T, Western Union, MoneyGramautomation:semi-automatic
Unique selling point:Full hydraulic systemVideo shipment inspection:if
Production capacity:2-3 hoursport:Wuhan, Shanghai, Ningbo, any port in China
Core components:PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pumpsize:3*6m, 3.3*6.6m, 3.6*7.2m
application:Residential houses and public buildingsHealth status:new
Mechanical test report:ifLocal service location:not any
Origin:Chinaweight:17000-23000KG
Packaging Details:Packed in wooden case.in principle:in principle
inner box:retractableMarketing Type:2019 Hot Products
After-sales service provided:Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online supportAll steel:slideable
Warranty:1 yearApplicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
brand:technical committeeForming time:2-3 hours
Machine material:All steelProduction Method:RC padding
Core component warranty:1 yearShowroom location:not any
Dimensions (L*W*H):3*6m, 3.3*6.6m, 3.6*7.2mAfter warranty service:Video technical support, online support, spare parts, on-site maintenance and repair services
Product Description

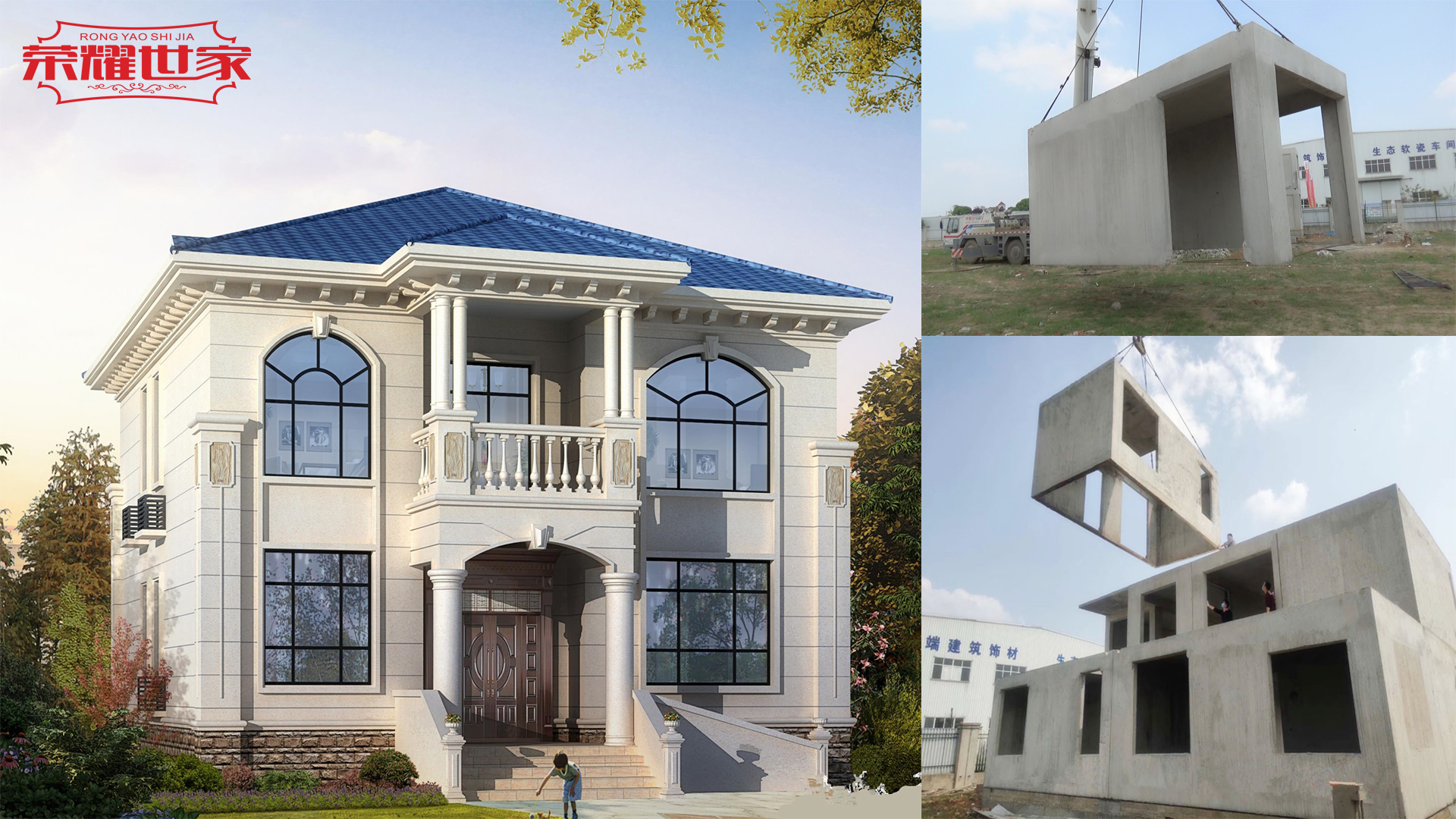

Concrete prefabricated houses, also known as prefabricated concrete houses, belong to concrete prefabricated buildings and are a new type of construction method with good energy saving effect and low cost. The reinforced concrete structure is used, and the unit modules are prefabricated in the factory through special equipment, and then directly transported to the site for assembly.
The level of prefabrication is high, the size is accurate, and the construction speed is extremely fast. 500 square meters can be built in one day, which greatly improves the construction speed. Realized the industrial production of concrete houses
machine details
We need six machines to complete the production

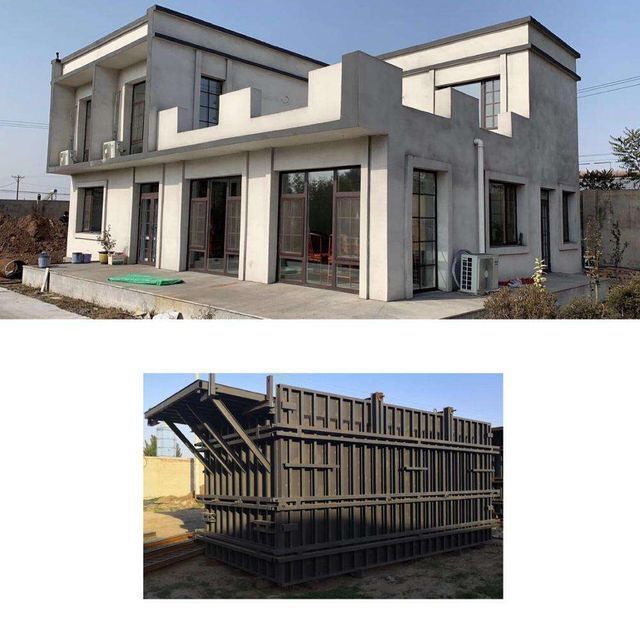

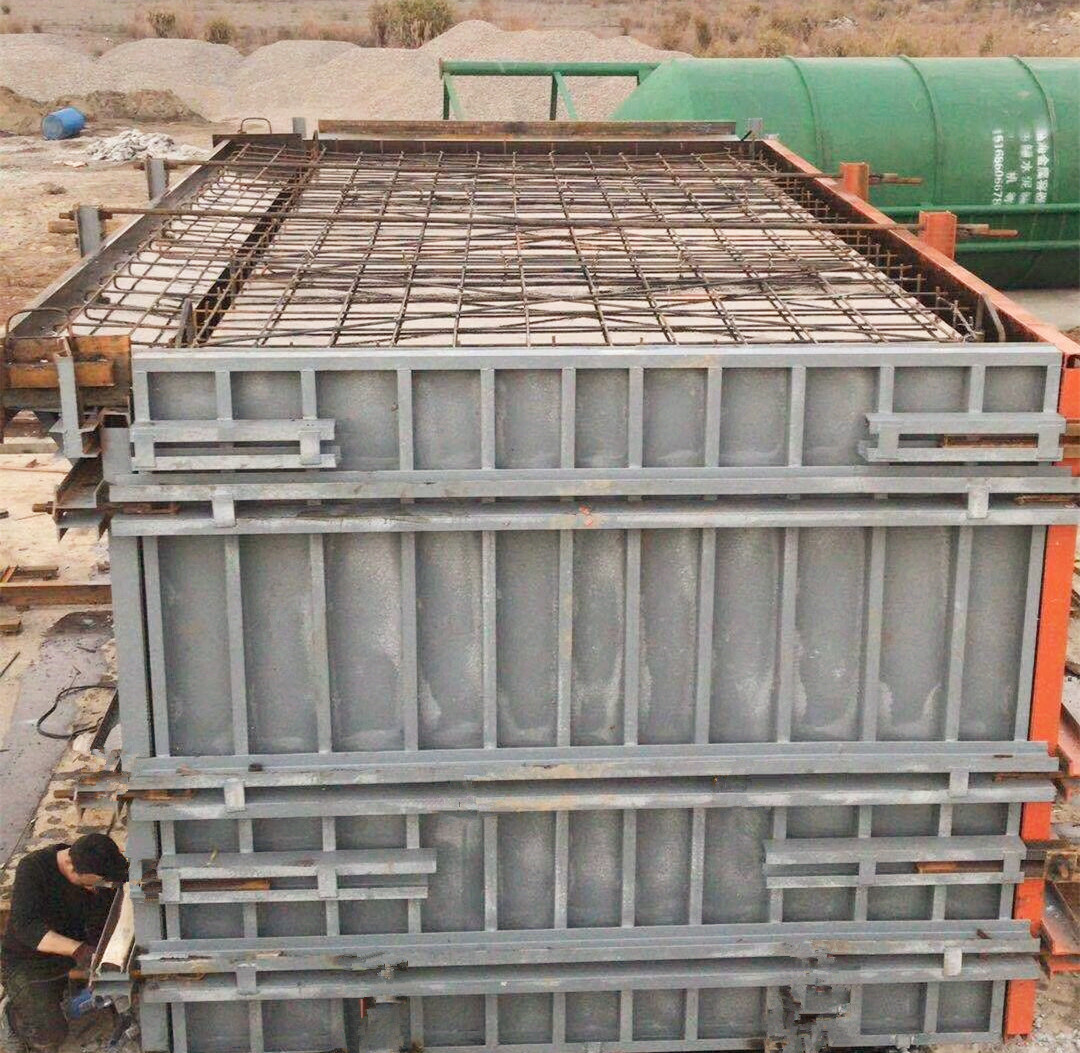

house forming machine
(Model: TC8010)
in principle
hydraulic
automation
semi-automatic
Production Method
RC padding
molding time
2-3 hours
Machine material
All steel
side page
slideable
inner box
retractable
weight
17000-23000KG
size
3*6m, 3.3*6.6m, 3.6*7.2m
if it can be customized
Yes

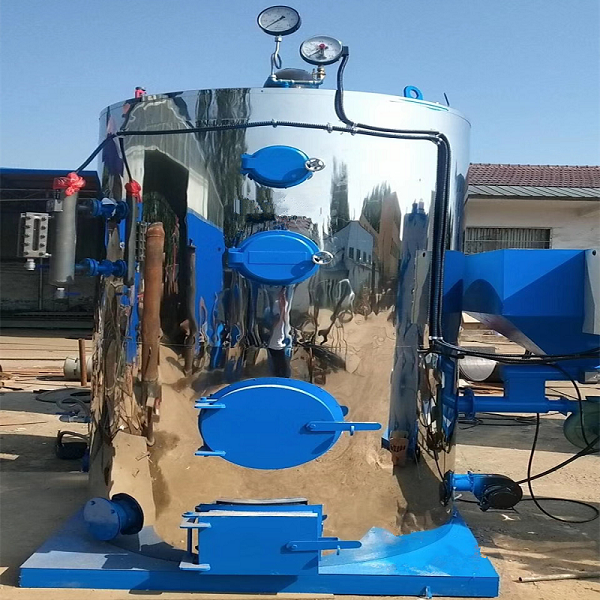

House quick-setting machine A
(Model: TC8021)
efficiency
500kg/h evaporation capacity
preset pressure
0.7Mpa
temperature
170 degrees Celsius
Voltage
380V
strength
1.4kw
weight
2500 kg
size
Diameter 1m, height 2.6m
CNC Rebar Processing Machine (Model: TC8030)
processing speed
20-40m/min
Processing diameter
4-14mm steel bar
Rebar type
Round bars, deformed bars
in principle
hydraulic
Control System
CNC
Voltage
380V
strength
9 kW
Machine size
200*75*110cm
weight
900 kg
concrete mixing plant
Concrete mixer A (model: TC8041)
Feed amount
800L
emissions
500L
efficiency
25 cubic meters / hour
Rotating speed
35 rpm
total size
up to 80mm
blade
14 computers
Voltage
380V
strength
18.5kw
Machine size
428*279*651mm
weight
3950 kg

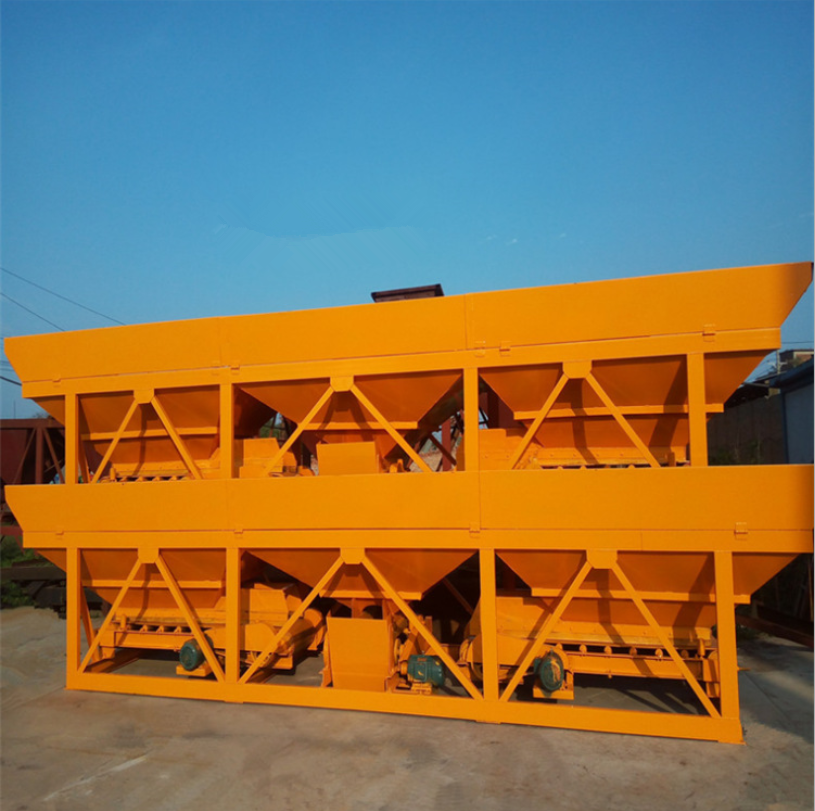

Batching machine A (model: TC8051)
Weigh volume
800L
storage hopper
5 cubic meters
efficiency
48 cubic meters / hour
batch error
±1%
Maximum weighing value
3000 kg
transfer speed
1 m/s
Voltage
380V
strength
12kw
Machine size
560*183*270cm
weight
2450 kg

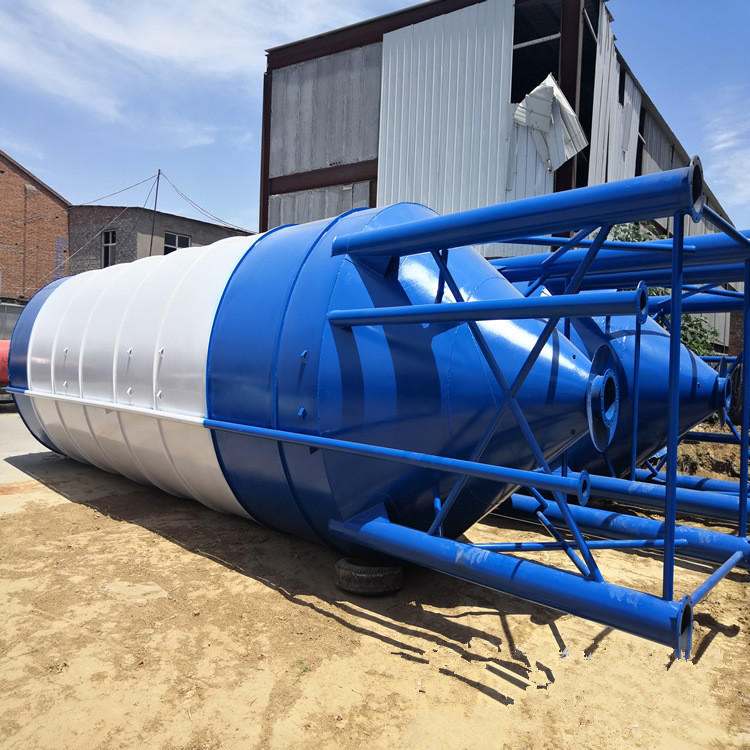

Assembled Storage Tank A (Model: TC8061)
storage weight
80 tons
tank volume
60 cubic meters
Tank diameter
280cm
straight line height
900cm
Overall height of the tank
1105cm
Trestle height
300cm
Steel thickness
6 mm
weight
3600 kg
Accessories and Tools
Concrete hopper, welding machine, steel wire rope, U-shaped buckle, vibrating rod, cover box...etcrs.

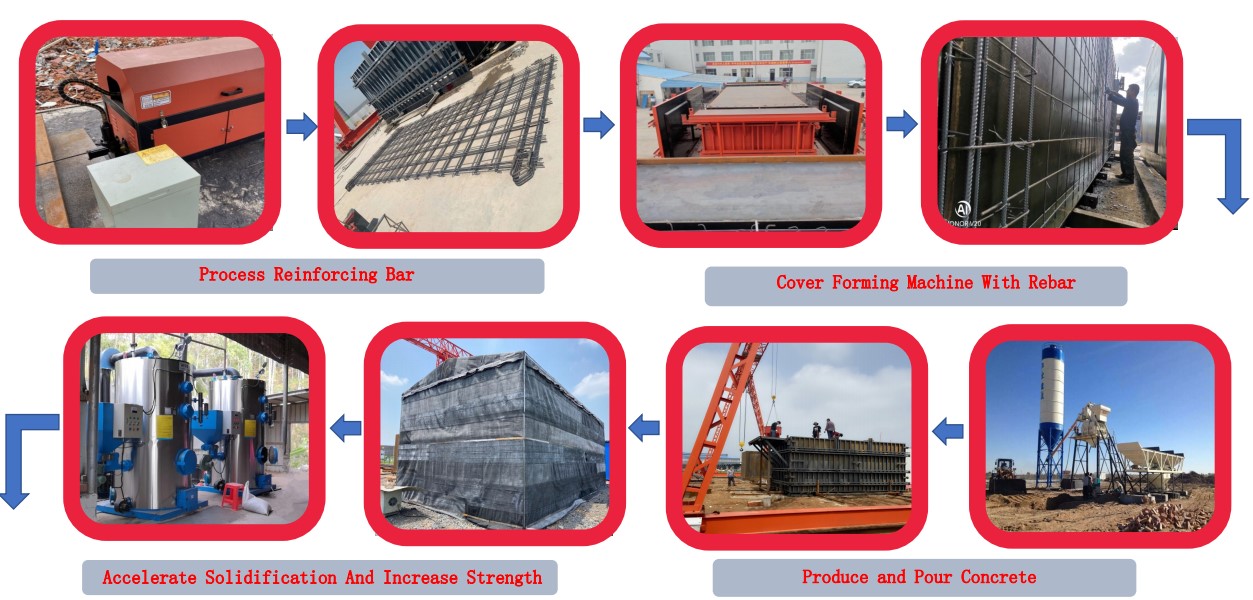

Production process of concrete composite house
1. Process the steel bars with a CNC steel bar machine, weave the steel bars (reinforced bars) into a grid, and cover the inner chassis of the forming machine.

2. Produce concrete with concrete machinery.

3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete into the machine until it is full

4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete set quickly.

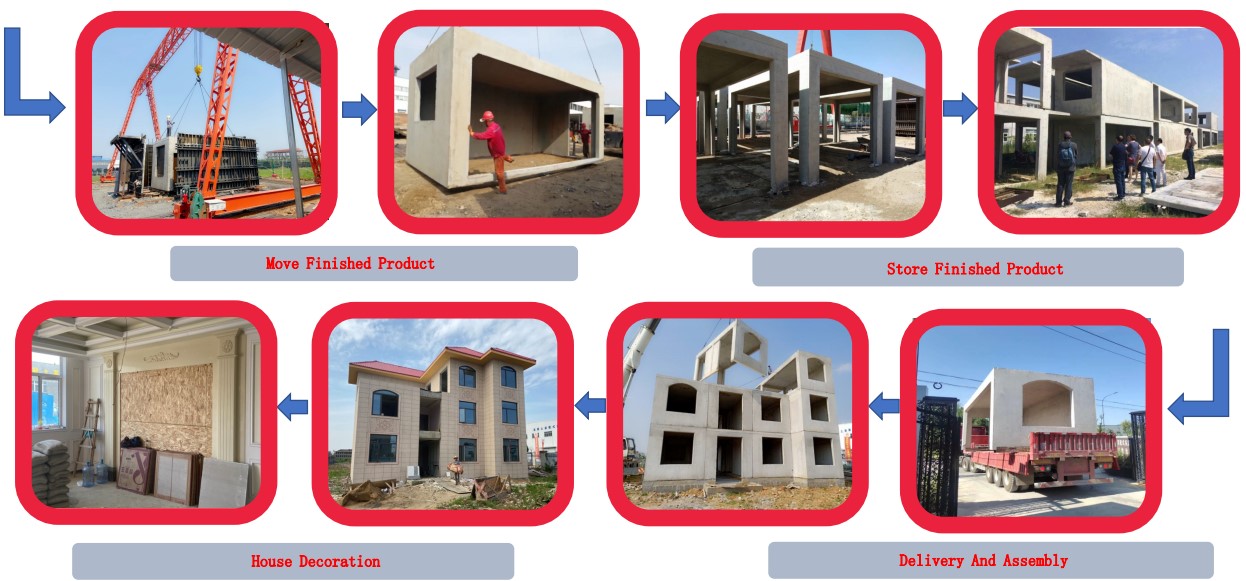

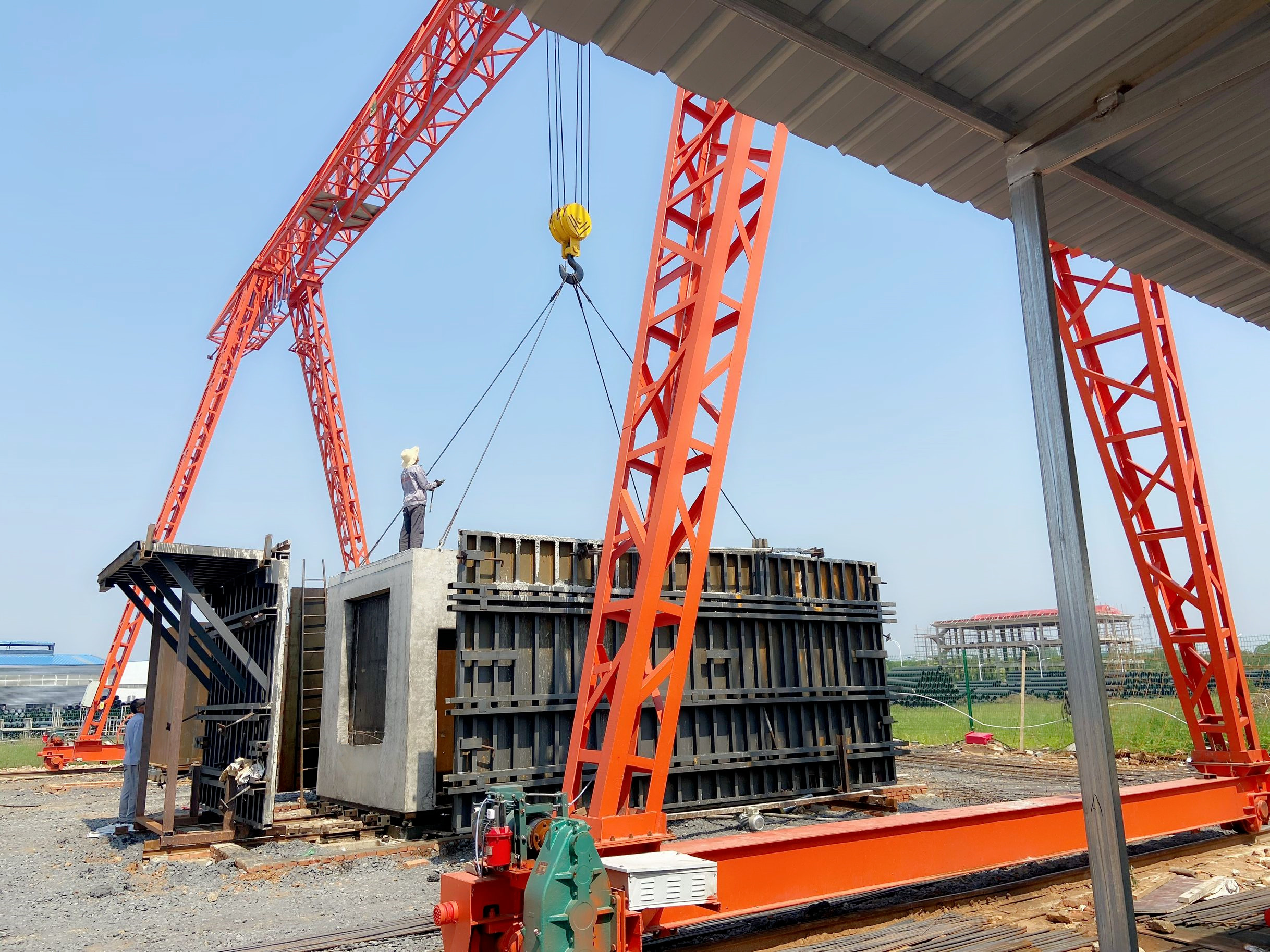

5. After 2-3 hours, a unit modular house is completed, pull the side panels of the forming machine, and adjust the inner chassis to shrink to separate the walls of the house. Use the gantry crane to lift the house and store it.
detailed image

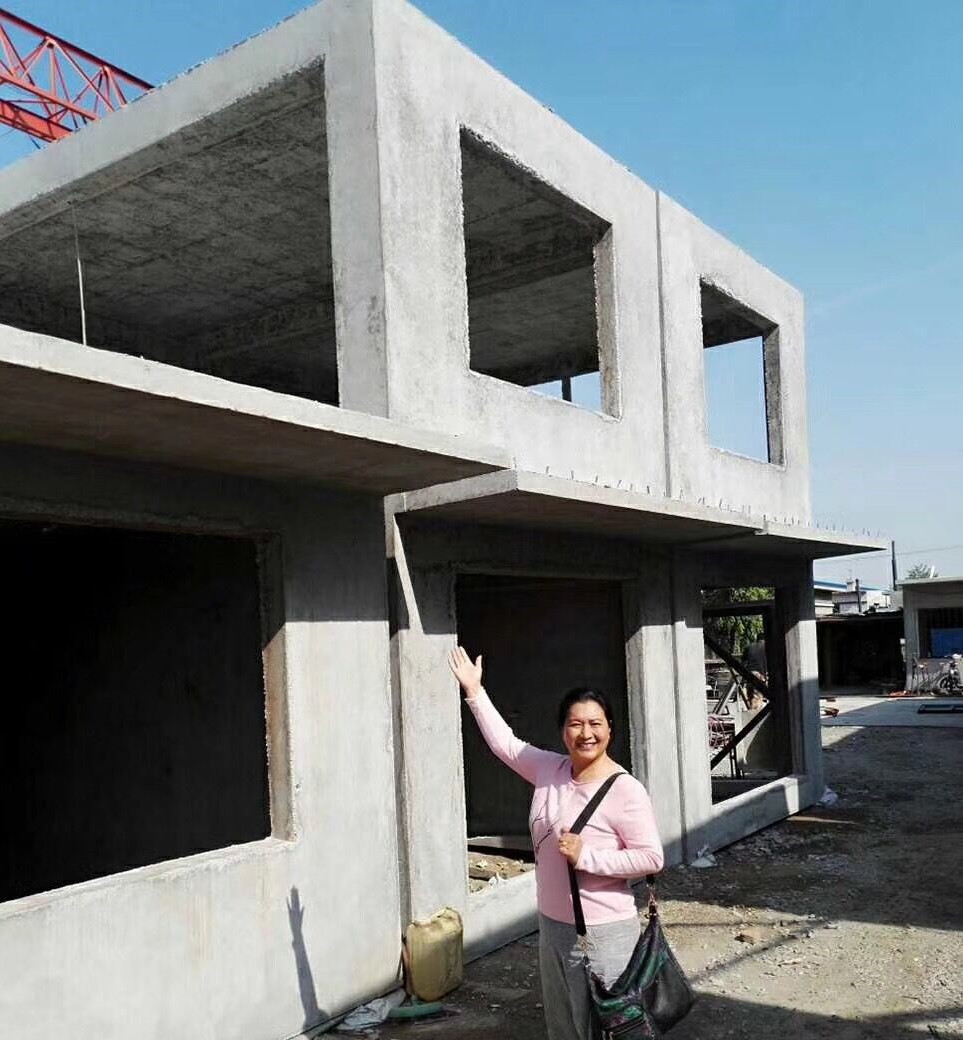

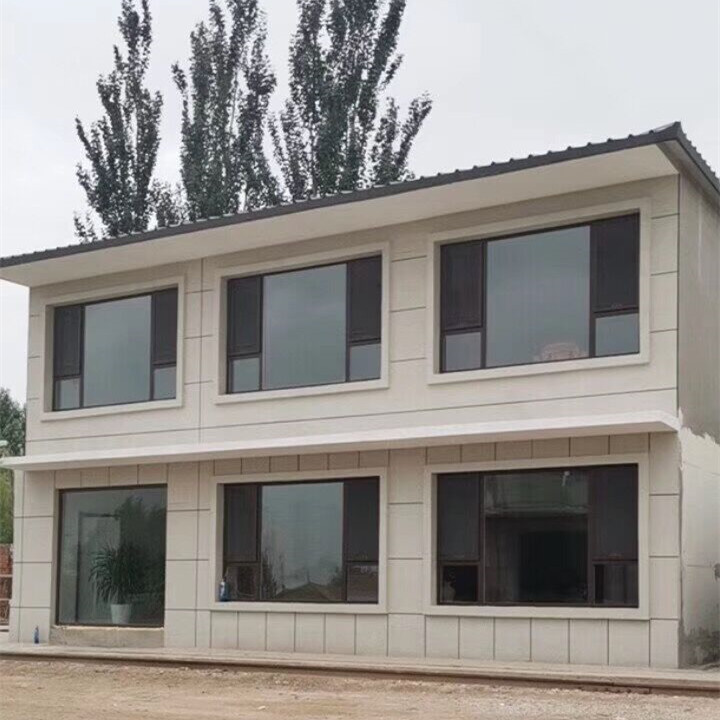

Features of concrete modular houses
Low construction cost: The house cost half as much to build as a traditional brick-and-concrete house.

Extremely fast construction:High level of prefabrication and fast construction speed, 500 square meters per day, greatly improving the construction speed

Shock resistance: It can resist earthquakes of magnitude 9, and will not collapse as a whole due to local damage during earthquakes.

Wind resistance: It can withstand a hurricane with a speed of 200 kilometers per hour. Each unit module weighs 20 tons (the weight of 10 cars).

longevity: Reinforced concrete main structure life can reach more than 100 years

Flame retardant:Reinforced concrete structure solid wall, long fire resistance.

Sound insulation: The sound insulation of the wall can reach more than 65dB.

insulation: Reinforced concrete structure solid wall, good thermal insulation

Energy saving and environmental protection: A new type of green building, no construction waste is generated during the construction process, and it can be cleared and reused when it is demolished.

Flexible assembly: It can be assembled into various styles of housing buildings, and each room can be assembled by one or more unit modules, up to five floors.
Advantage
It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire protection, sound insulation and heat insulation.

Compared with traditional brick-concrete houses, the main advantages of concrete composite houses are low cost, good earthquake resistance, long service life, fast construction speed, labor saving, long service life, no construction waste, and can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.
