Rapid construction of new condition precast concrete house machine

Supplier: Hubei Tengcang Building Materials Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sam Xiao
Price: $87000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Fuel tank capacity:	60 cubic meters	Overall height of the tank:	1105cm
port:	Wuhan, Shanghai, Ningbo, any port in China	Straight segment height:	900cm
weight:	3600 kg	brand:	technical committee
place of origin; place of origin:	China	application:	Residential houses and public buildings
Tank diameter:	280cm	Warranty:	1 year
Supply capacity:	100 sets per month	Steel Thickness:	6 mm
After warranty service:	Video technical support, online support, spare parts, on-site maintenance and repair services	State of health:	new
payment terms:	L/C, T/T, Western Union, MoneyGram	Dimensions (LWH):	36m, 3.36.6m, 3.6*7.2m
After-sales service provided:	Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support	Trestle height:	300cm
Unique selling point:	Full hydraulic system	Applicable industries:	Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
Storage weight:	80 tons	Packaging Details:	Packed in wooden case.
Showroom location:	not any	Local service location:	Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan

Product Description

We need six machines to complete the production

parameter	Concrete mixer A (Model: TC8041)	concrete mixer B (Model: TC8042)
Feed amount	800L	1600L
emissions	500L	1000L
efficiency	25 cubic meters / hour	50 cubic meters / hour
Rotating speed	35 rpm	25 rpm
total size	up to 80mm	up to 80mm
blade	14	20
Voltage	380 volts	380 volts
strength	18.5 kW	37 kW
Machine size	428279651mm	877344654cm
weight	3900 kg	8750 kg

parameter	Batching machine A (model: TC8051)	ingredients machine B (Model: TC8052)
Weigh volume	800L	1200L
storage hopper	5 cubic meters	7 cubic meters
efficiency	48 cubic meters / hour	60 cubic meters / hour
batch error	±1%	±1%
Maximum weighing value	3000 kg	4000 kg
transfer speed	1 m/s	1.25m/s
Voltage	380V	380V
strength	12kw	16 kW
Machine size	560183270cm	900250350cm
weight	2450 kg	4500 kg

parameter	Assembled storage tank A (Model: TC8061)	Assembly storage Tank B (Model: TC8062)
storage weight	80 tons	150 tons
volume	60 cubic meters	111 cubic meters
diameter	280cm	320cm
straight line height	900cm	1350cm
total height	1105cm	1584cm
Trestle height	300cm	300cm
Steel thickness	6mm	8 mm

parameter	CNC Rebar Processing Machine (Model: TC8030)
processing speed	20-40m/min
Processing diameter	4-14mm steel bar
Rebar type	Round bars, deformed bars
in principle	hydraulic
Control System	CNC
Voltage	380v
strength	9 kW
Machine size	20075110cm
weight	900 kg

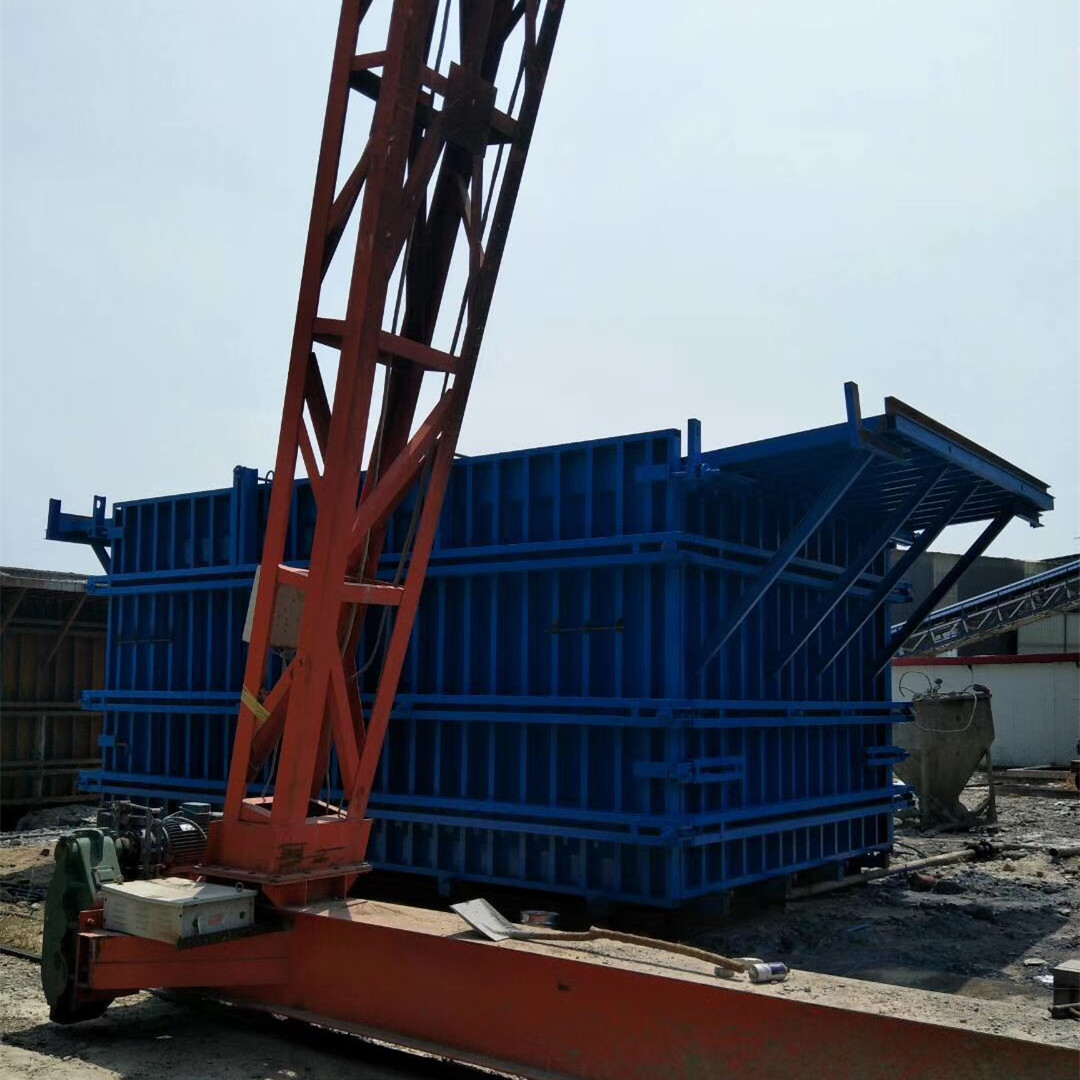

parameter	house forming machine (Model: TC8010)
in principle	hydraulic
automation	semi-automatic
Production Method	RC padding
molding time	2-3 hours
Machine material	All steel
side page	slideable
inner box	retractable
weight	17000-23000KG
size	36m, 3.36.6m, 3.6*7.2m
customizable	yes

parameter	House quick-setting machine A (Model: TC8021)	house fast- condensate machine B (Model: TC8022)
efficiency	500kg/h evaporation capacity	1000kg/h evaporation capacity
preset pressure	0.7Mpa	0.7Mpa
temperature	170 degrees Celsius	170 degrees Celsius
Voltage	380V	380V
strength	1.4kw	3.3kw
weight	2500 kg	4500 kg
size	Diameter 1m, height 2.6m	Diameter 1.5m, height 2.8m

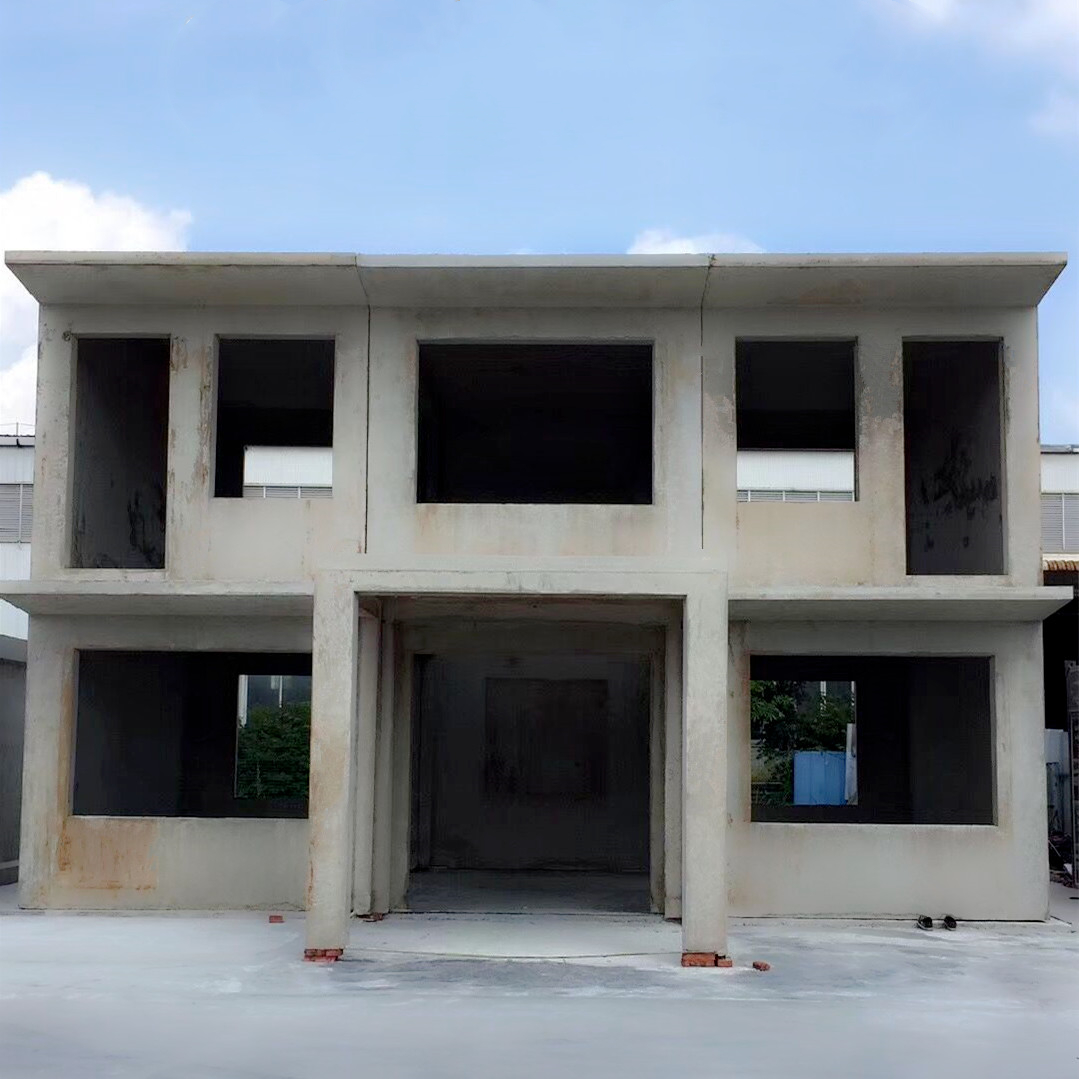

Features of concrete modular houses

1) Low building cost
2) The construction speed is extremely fast
3) Shock resistance
4) Wind resistance.
5) Long life

6) Flame retardant
7) Sound insulation
8) Insulation
9) Energy saving and environmental protection
10) Flexible assembly

detailed image

Accessories and tools:

Concrete hoppers, welding machines, steel wire ropes, U-shaped buckles, vibrating rods, cover boxes...etc.

Production process of concrete composite house

1. Process the steel bars with a CNC steel bar machine, weave the steel bars (reinforced bars) into a grid and cover the inner chassis of the forming machine.

2. Produce concrete with concrete machinery.

3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete into the machine until it is full

4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete set quickly.

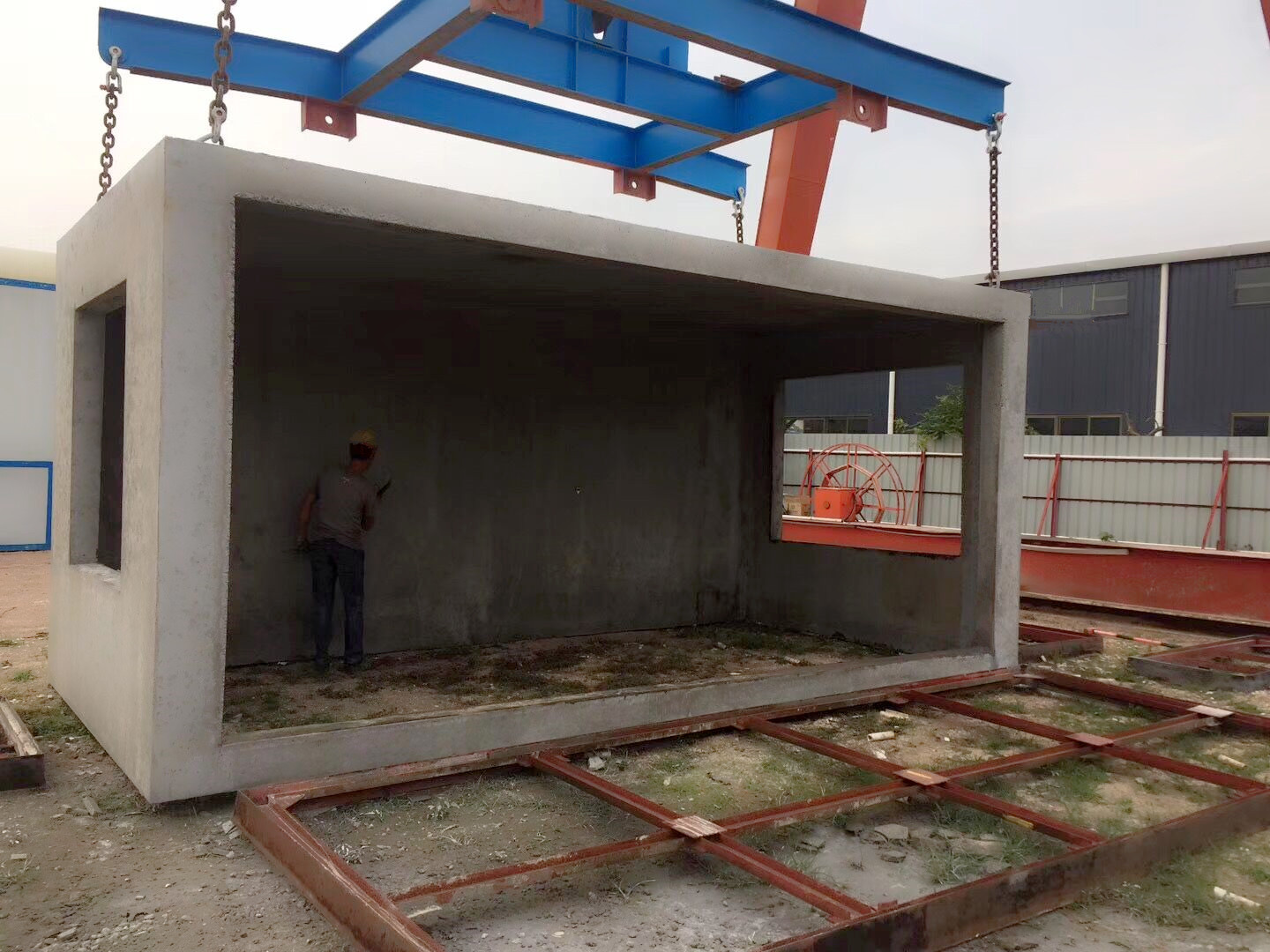

5. After 2-3 hours, a unit modular house is completed, pull the side panels of the forming machine, and adjust the inner chassis to shrink to separate the walls of the house. Use the gantry crane to lift the house and store it.

We can purchase tools and equipment for customers, or search and purchase locally

Advantage

It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire protection, sound insulation and heat insulation.

Compared with traditional brick-concrete houses, the main advantage of concrete composite houses is lowThe construction cost is low, the earthquake resistance is good, the service life is long, the construction speed is fast, labor and labor are saved, the service life is long, no construction waste is left, and it can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.

We have three Scale production lines corresponding to different capacities for your reference.

small

Total price: $87,000

productivity:
600 unit modules (houses)/year

Configuration:
2 setsHouse forming machine 1 set House fast curing machine A1 setCNC Rebar Processing Machine
1 setconcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (30 days)

middle

Total price: $143,000

productivity:
1200 unit modules (houses)/year

Configuration:
4 setshouse forming machine1 setHouse fast curing machineSecond
2 setsCNC Rebar Processing Machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (40 days)

Big

Total price: $266,000

productivity:
2400 unit modules (houses)/year

Configuration:
8 setshouse forming machine
2 setsHouse fast curing machineSecond
3 setsCNC Rebar Processing
machine
1 setConcrete mixerSecond
1 setBatching machineSecond
1 setAssembled storage tankSecond
Accessories and Tools
On-site debugging equipment and technical training for engineers (50 days)

our service

We will provide:

1) Commissioning equipment and technical training,

2) Teach customers to produce, design and assemble houses, let our customers produce and sell houses locally
