Prefab Modular House Prefab Prefab House Equipment China 2021

Click here to contact
Product details
Core component warranty:1 yearPackaging Details:export wooden box
Preset temperature:170 degrees CelsiusAfter-sales service provided:On-site installation, commissioning and training
Mechanical test report:ifpressure:0.7Mpa
payment terms:L/C, T/TCore components:alarm lock
Video outbound inspection:ifShowroom location:not any
brand:Teng CangHealth status:new
strength:3.3 kWWarranty:1 year
weight:17000-23000KGApplicable industries:Hotels, clothing stores, building materials stores, manufacturing plants, machinery repair shops, food and beverage factories, farms, restaurants, home furnishing, food stores, printing shops, construction projects, advertising companies
efficiency:1000kg/h evaporation capacityWeight (kg):17000
Voltage:380VKey words:house making machine
size:3*6m, 3.3*6.6m, 3.6*7.2mOrigin:Hubei, China
Marketing Type:2020 New ProductsName:House quick-setting machine B
Product parameters
parameter

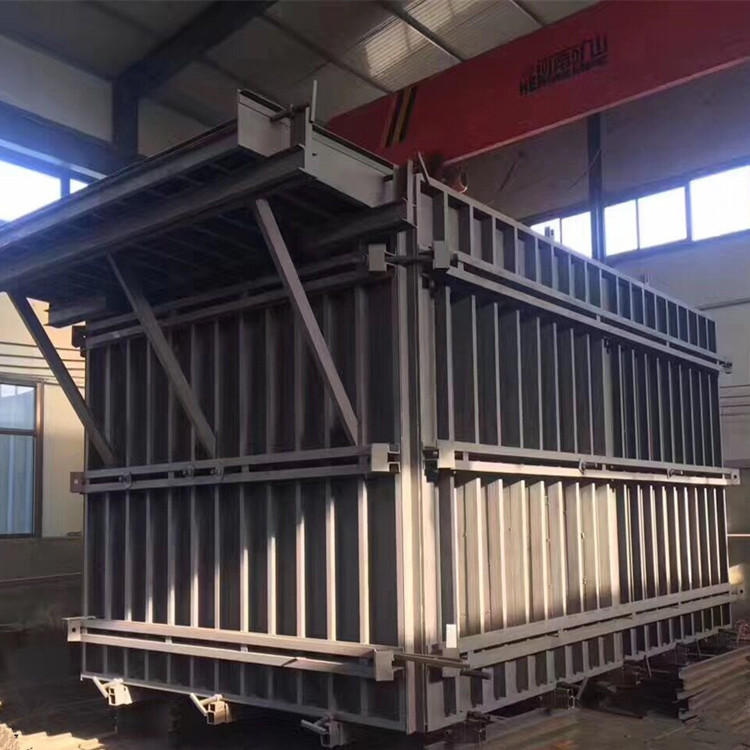

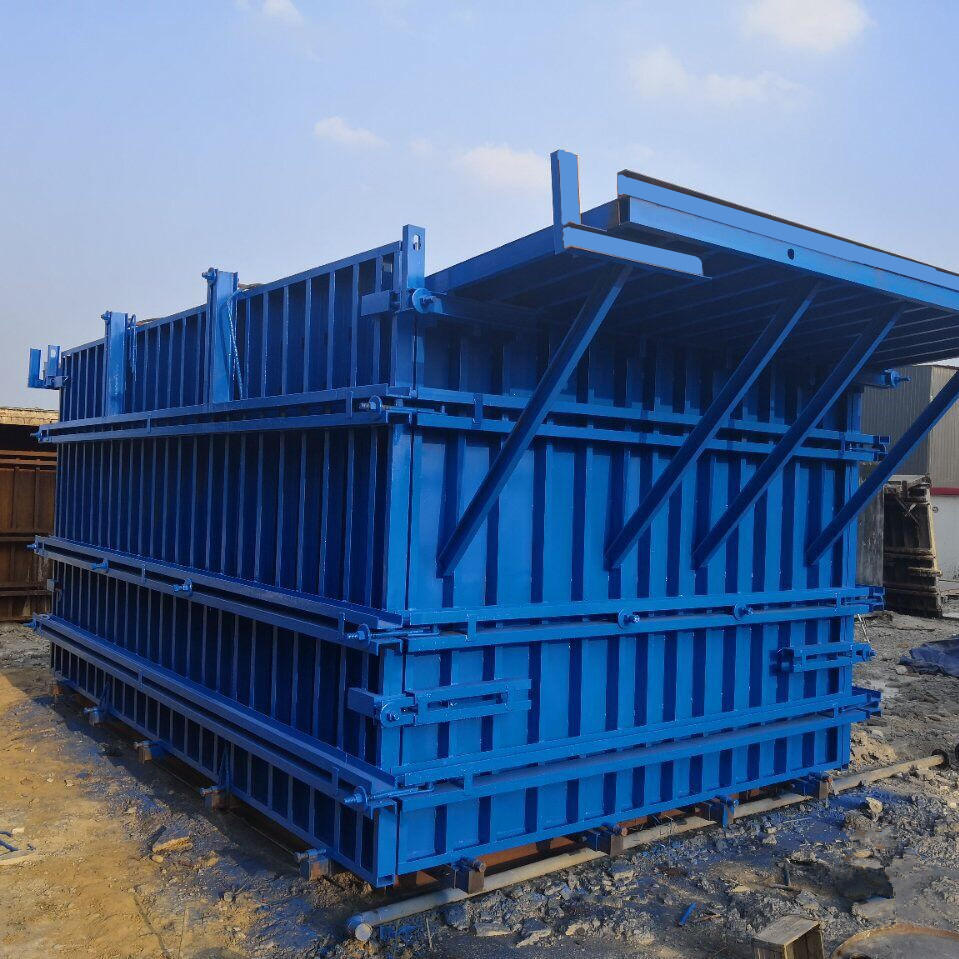

house forming machine
type
TC7010
in principle
hydraulic
automation
semi-automatic
production method
reinforced concrete filling
molding time
2-3 hours
Machine material
All steel
side panel
slideable
inner box
retractable
weight
17000-23000KG
size
3*6m, 3.3*6.6m, 3.6*7.2m
parameter
house quick setting machine
type
A(TC7020)
B(TC7021)
efficiency
500kg/h evaporation capacity
1000kg/h evaporation capacity
preset pressure
0.7Mpa
0.7Mpa
temperature
170 degrees Celsius
170 degrees Celsius
Voltage
380V
380V
strength
1.4 kW
3.3 kW
weight
2500 kg
4500 kg
size
1m in diameter, 2.6m in height
Diameter 1.5m, height 2.8m
parameter

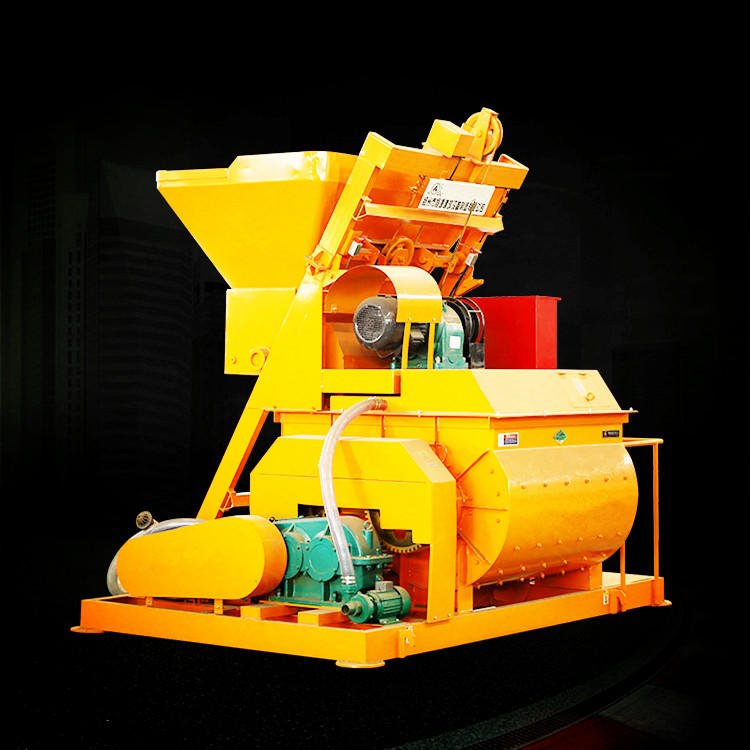

Concrete mixer
type
A(TC7031)
B(TC7032)
Feed amount
800L
1600L
Discharge
500L
1000L
efficiency
25 cubic meters / hour
50 cubic meters / hour
Rotating speed
35 rpm
25 rpm
aggregate size
up to 80mm
up to 80mm
blade
14 units
20 units
Voltage
380V
380V
strength
18.5 kW
37 kW
Machine size
428*279*651mm
877*344*654 cm
weight
3900 kg
8750 kg
parameter

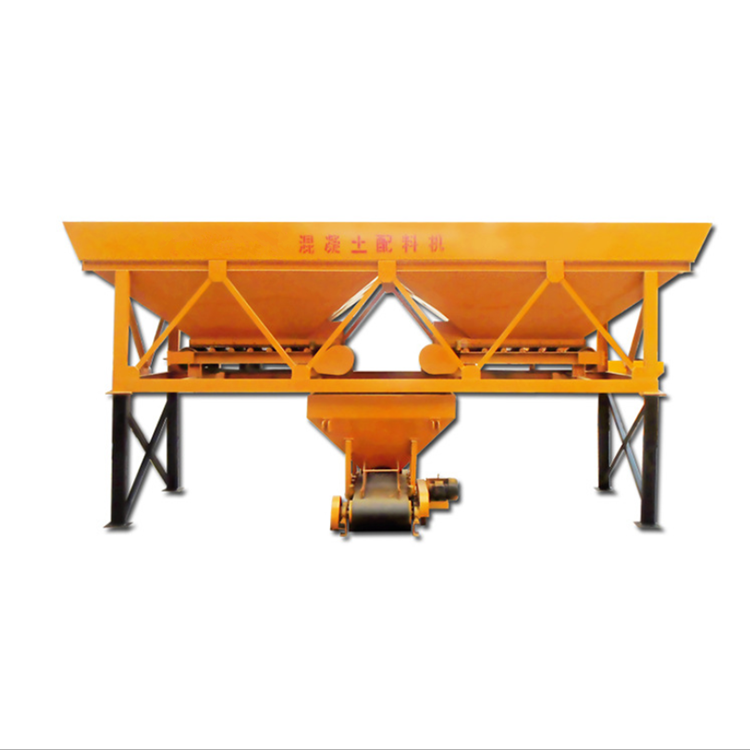

Batching machine
type
A (TC7041)
B(TC7042)
Weigh volume
800L
1200L
storage hopper
5 cubic meters
7 cubic meters
efficiency
48 cubic meters / hour
60 cubic meters / hour
batch error
±1%
±1%
Maximum weighing value
3000 kg
4000 kg
transfer speed
1 m/s
1.25m/s
Voltage
380V
380V
strength
12 kW
16 kW
Machine size
560*183*270cm
900*250*350cm
weight
2450 kg
4500 kg
parameter

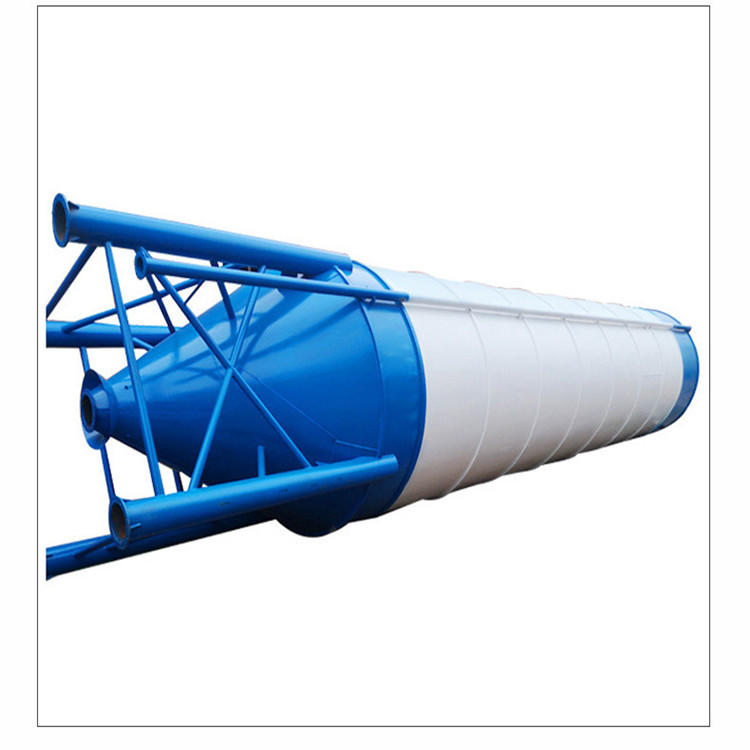

Assembled storage tank
type
A(TC7051)
B(TC7052)
storage weight
80 tons
150 tons
Tank volume
60 cubic meters
111 cubic meters
Tank diameter
280 cm
320 cm
straight section height
900 cm
1350 cm
Total height of the tank
1105 cm
1584 cm
Trestle height
300 cm
300 cm
Steel thickness
6mm
8mm
parameter

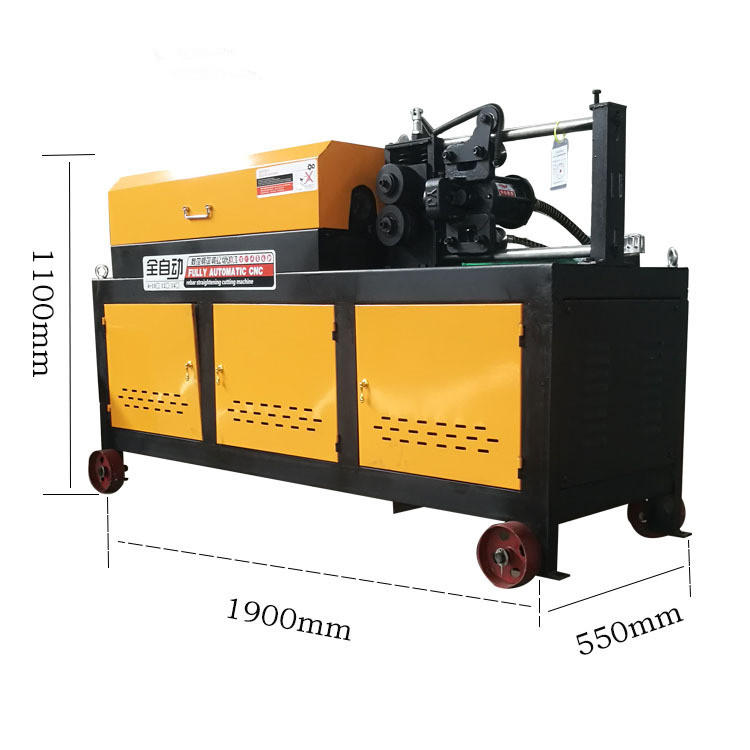

CNC Rebar Processing Machine
type
TC7021
processing speed
20-40m/min
Processing diameter
4-14mm steel bar
in principle
hydraulic
Control System
CNC system
Voltage
380V
strength
9 kW
Machine size
200*75*110cm
weight
900 kg
Product Description

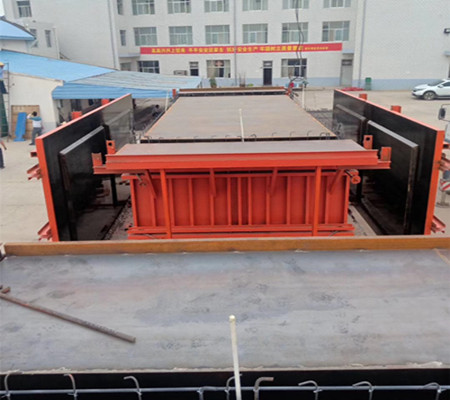

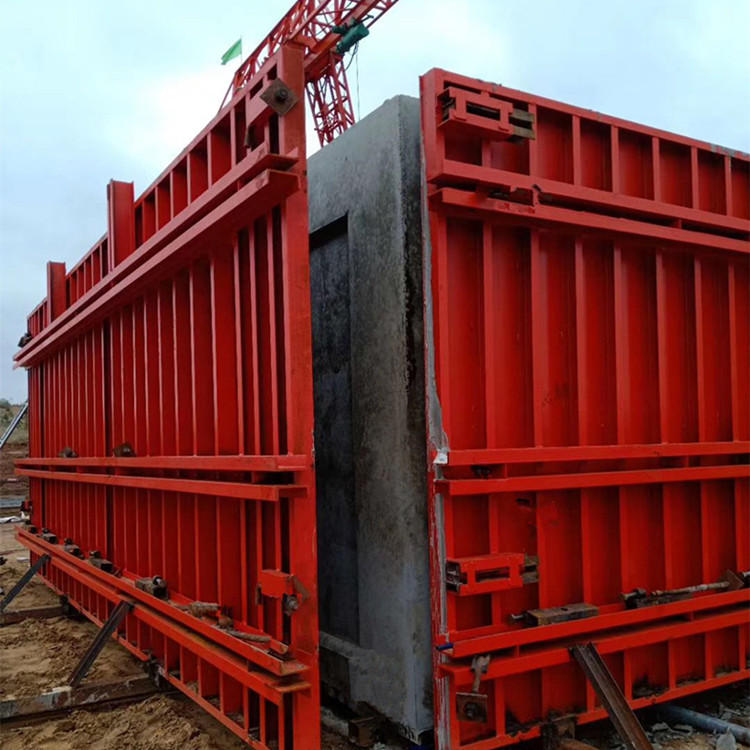

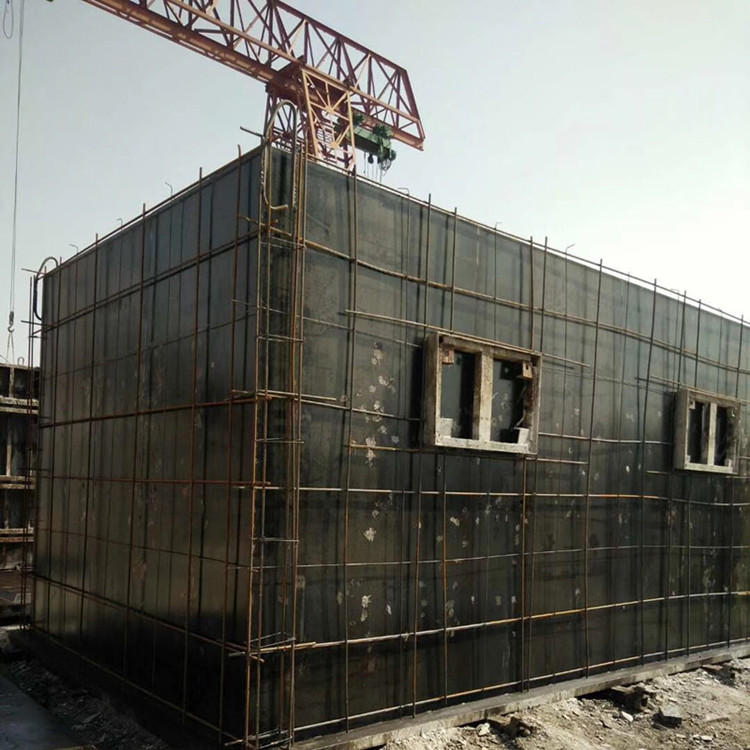

This molding machine is used in the production of concrete modular houses.
The production process of concrete houses

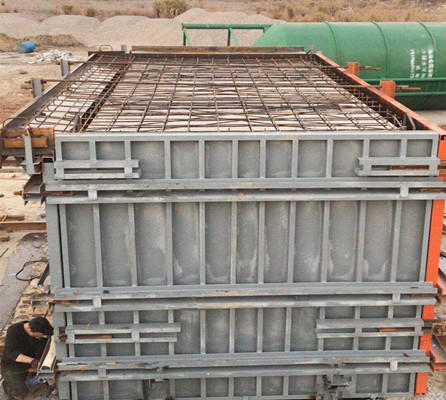

1. The steel bar is processed by the CNC steel bar machine, and the steel bar (reinforced bar) is woven into a grid and covered on the inner chassis of the forming machine.

2. Produce concrete with concrete machinery.

3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete, and pour it into the machine until it is full.




4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete solidify quickly.

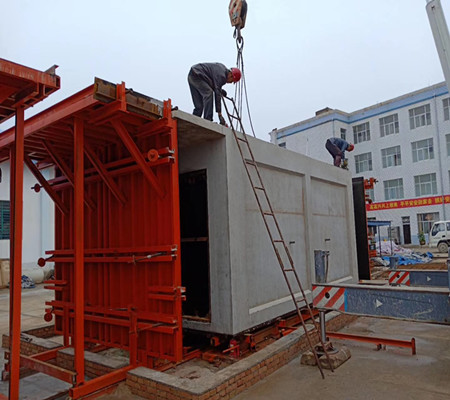

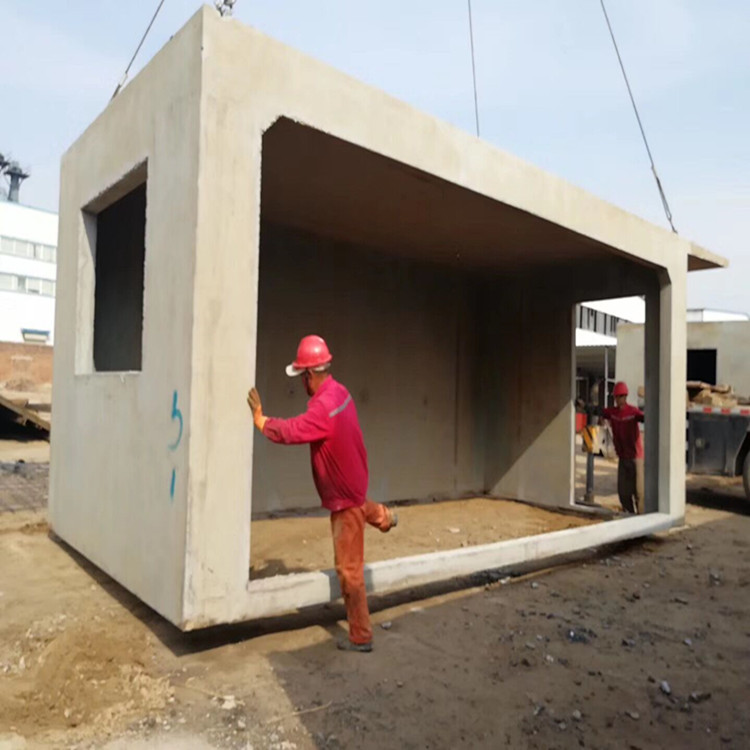

5. After 2-3 hours, a unit combined house is completed, pull out the side panel of the forming machine, adjust the shrinkage of the inner chassis, and separate the house wall. Use the gantry crane to lift the house and store it.

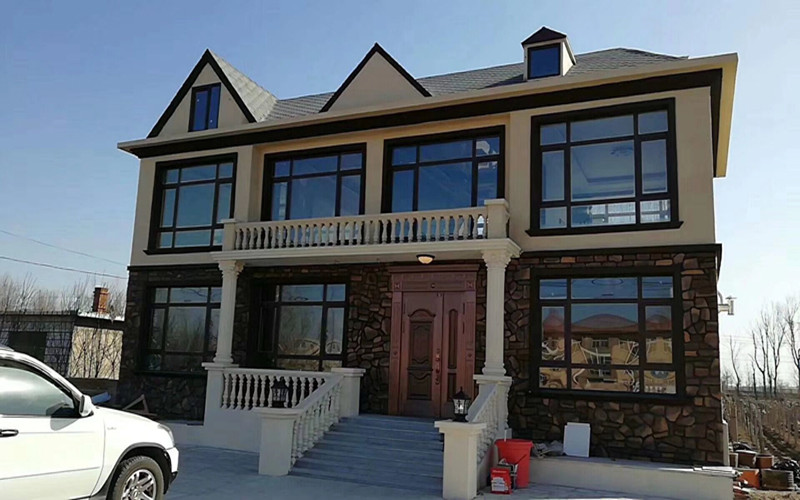

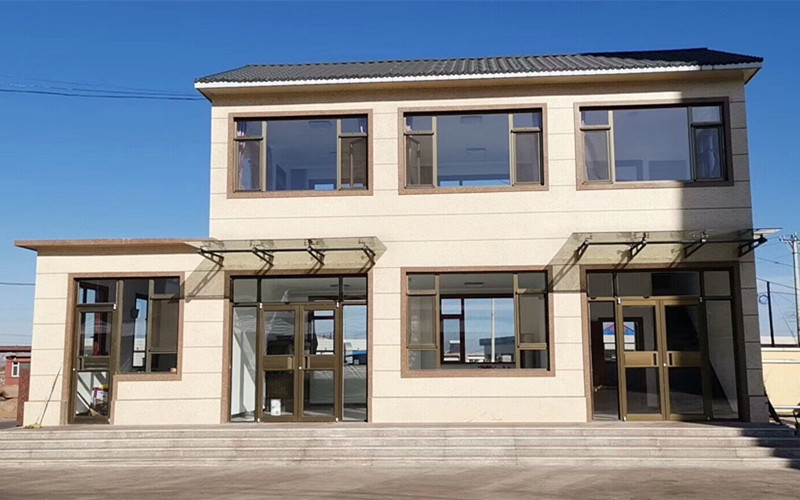

Concrete Modular House Features

1. Low cost of building houses: the construction cost of this kind of houses is only half of that of traditional brick-concrete houses.

2. The construction speed is extremely fast: the degree of prefabrication is high, and the construction speed is fast, 500 square meters per day, which greatly improves the construction speed.

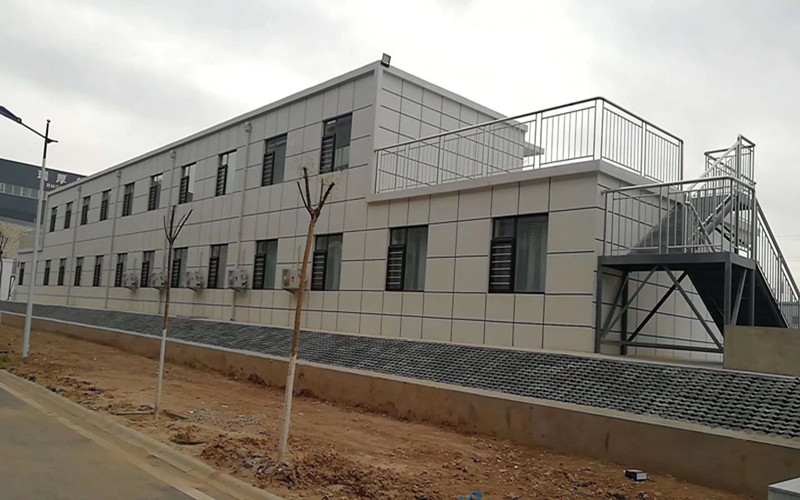

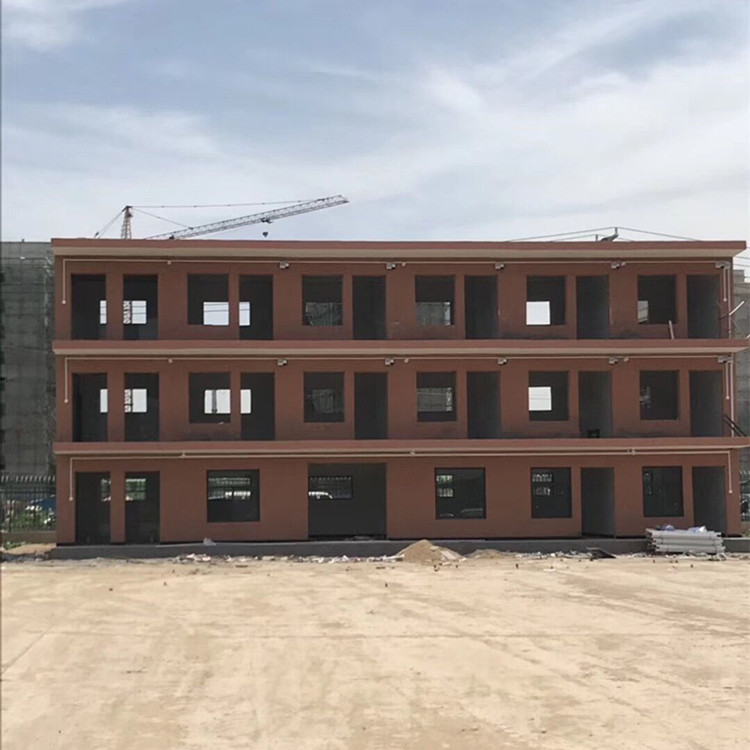

3. Earthquake resistance: It can withstand an earthquake of magnitude 9, and it will not collapse as a whole due to local damage during an earthquake. 4. Wind resistance: can resist 200 km/h hurricane. Each unit module weighs 20 tons (the weight of 10 cars). 5. Long service life: the reinforced concrete main structure has a service life of more than 100 years. 6. Flame retardant: solid wall with reinforced concrete structure, long fire resistance time. 7. Sound insulation: the sound insulation of the wall can reach more than 65dB. 8. Thermal insulation: reinforced concrete structure solid wall, good thermal insulation performance. 9. Energy saving and environmental protection: new green building, no construction waste will be generated during construction, and it can be cleared and reused during demolition. 10. Flexible assembly: It can be assembled into houses and buildings of various styles. Each room can be assembled from one or more unit modules, up to five floors.

Size Information
General size of unit module
width length
3*6m, 3.3*6m, 3.3*6.3m, 3.3*6.6m, 3.5*7m, 3.6*6m, 3.6*6.6m, 3.6*7.2m
S
Medium
L
XL
high
2.8m, 3m, 3.2m,
26
27.9
29.9
31.9
Eave length
0-1.5m
15.3
15.9
16.5
17.1
