High precision flexible concrete 3d printer house for building walls

Product details
Health status:newAfter-sales service provided:Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support
After warranty service:Video technical support, online support, spare parts, on-site maintenance and repair servicesOrigin:China
Packaging Details:Packed in wooden case.brand:technical committee
Dimensions (L*W*H):3*6m, 3.3*6.6m, 3.6*7.2mTrestle height:300cm
weight:3600 kgFuel tank capacity:60 cubic meters
Overall height of the tank:1105cmport:Wuhan, Shanghai, Ningbo, any port in China
payment terms:L/C, T/T, Western Union, MoneyGramSteel Thickness:6 mm
Tank diameter:280cmUnique selling point:Full hydraulic system
Straight segment height:900cmApplicable industries:Hotels, clothing stores, building supplies stores, machinery repair shops, manufacturing plants, food and beverage factories, farms, restaurants, home use, retail, food stores, printing shops, construction, energy and mining, food and beverage stores, advertising agencies
Warranty:1 yearapplication:Residential houses and public buildings
Storage weight:80 tonsSupply capacity:100 sets per month
Showroom location:not anyLocal service location:Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Vietnam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Russia, Spain, Thailand, Japan, Malaysia, Australia, Morocco, Kenya , Argentina, South Korea, Chile, United Arab Emirates, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan, Ukraine, Kyrgyzstan, Uzbekistan, Tajikistan
Product Description
We need six machines to complete the production
parameter
Concrete mixer A
(Model: TC8041)
concrete mixer B
(Model: TC8042)
Feed amount
800L
1600L
emissions
500L
1000L
efficiency
25 cubic meters / hour
50 cubic meters / hour
Rotating speed
35 rpm
25 rpm
total size
up to 80mm
up to 80mm
blade
14
20
Voltage
380 volts
380 volts
strength
18.5 kW
37 kW
Machine size
428*279*651mm
877*344*654cm
weight
3900 kg
8750 kg
parameter
Batching machine A (model: TC8051)
ingredients
machine B
(Model: TC8052)
Weigh volume
800L
1200L
storage hopper
5 cubic meters
7 cubic meters
efficiency
48 cubic meters / hour
60 cubic meters / hour
batch error
±1%
±1%
Maximum weighing value
3000 kg
4000 kg
transfer speed
1 m/s
1.25m/s
Voltage
380V
380V
strength
12kw
16 kW
Machine size
560*183*270cm
900*250*350cm
weight
2450 kg
4500 kg
parameter
Assembled storage tank A
(Model: TC8061)
Assembly storage
Tank B
(Model: TC8062)
storage weight
80 tons
150 tons
volume
60 cubic meters
111 cubic meters
diameter
280cm
320cm
straight line height
900cm
1350cm
total height
1105cm
1584cm
Trestle height
300cm
300cm
Steel thickness
6 mm
8mm
parameter
CNC Rebar Processing Machine (Model: TC8030)
processing speed
20-40m/min
Processing diameter
4-14mm steel bar
Rebar type
Round bars, deformed bars
in principle
hydraulic
Control System
CNC
Voltage
380v
strength
9 kW
Machine size
200*75*110cm
weight
900 kg
parameter
house forming machine
(Model: TC8010)
in principle
hydraulic
automation
semi-automatic
Production Method
RC padding
molding time
2-3 hours
Machine material
All steel
side page
slideable
inner box
retractable
weight
17000-23000KG
size
3*6m, 3.3*6.6m, 3.6*7.2m
customizable
Yes
parameter
House quick-setting machine A
(Model: TC8021)
house fast-
condensate
machine B
(Model: TC8022)
efficiency
500kg/h evaporation capacity
1000kg/h evaporation capacity
preset pressure
0.7Mpa
0.7Mpa
temperature
170 degrees Celsius
170 degrees Celsius
Voltage
380V
380V
strength
1.4kw
3.3kw
weight
2500 kg
4500 kg
size
Diameter 1m, height 2.6m
Diameter 1.5m, height 2.8m
  • Features of concrete modular houses

1) Low building cost
2) The construction speed is extremely fast
3) Shock resistance
4) Wind resistance.
5) Long life
6) Flame retardant
7) Sound insulation
8) Insulation
9) Energy saving and environmental protection
10) Flexible assembly
detailed image
Accessories and tools:
Concrete hoppers, welding machines, steel wire ropes, U-shaped buckles, vibrating rods, cover boxes...etc.

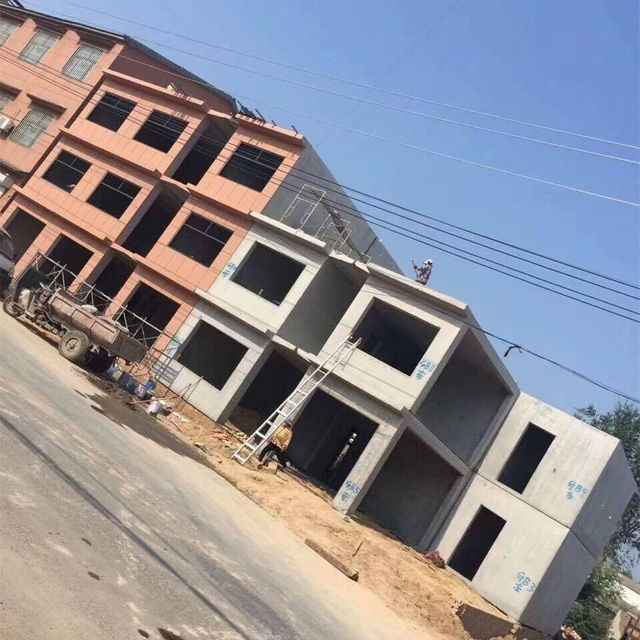

Production process of concrete composite house
1. Process the steel bars with a CNC steel bar machine, weave the steel bars (reinforced bars) into a grid and cover the inner chassis of the forming machine.

2. Produce concrete with concrete machinery.

3. Adjust the molding machine, use the gantry crane and the hopper to lift the concrete into the machine until it is full

4. Cover the molding machine with a quick-setting machine cover, and then turn on the quick-setting machine to make the concrete set quickly.

5. After 2-3 hours, a unit modular house is completed, pull the side panels of the forming machine, and adjust the inner chassis to shrink to separate the walls of the house. Use the gantry crane to lift the house and store it.
We can purchase tools and equipment for customers, or search and purchase locally

Advantage
It has the characteristics of earthquake resistance, wind resistance, moisture resistance and fire protection, sound insulation and heat insulation.

Compared with traditional brick-concrete houses, the main advantage of concrete composite houses is low
The construction cost is low, the earthquake resistance is good, the service life is long, the construction speed is fast, labor and labor are saved, the service life is long, no construction waste is left, and it can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.
We have three Scale production lines corresponding to different capacities for your reference.
small
total price: $87,000

productivity:
600 unit modules (houses)/year

Configuration:
2 setsHouse forming machine 1 set House fast curing machine A1 setCNC Rebar Processing Machine
1 setconcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (30 days)
middle
total price: $143,000

productivity:
1200 unit modules (houses)/year

Configuration:
4 setshouse forming machine1 setHouse fast curing machineSecond
2 setsCNC Rebar Processing Machine
1 setConcrete mixer A
1 setBatching machine A
1 setAssembled storage tank A
Accessories and Tools
On-site debugging equipment and technical training for engineers (40 days)
big
total price: $266,000

productivity:
2400 unit modules (houses)/year

Configuration:
8 setshouse forming machine
2 setsHouse fast curing machineSecond
3 setsCNC Rebar Processing
machine
1 setConcrete mixerSecond
1 setBatching machineSecond
1 setAssembled storage tankSecond
Accessories and Tools
On-site debugging equipment and technical training for engineers (50 days)
our service
We will provide:
1) Commissioning equipment and technical training,
2) Teach customers to produce, design and assemble houses, let our customers produce and sell houses locally
