Precast Concrete Precast 3D Printer House Block Machine

Supplier: Hubei Tengcang Building Materials Technology Co., Ltd.
Region: Hubei, China
Contact: Mr Sam Xiao
Price: $46000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local service locations:	not any	application:	Residential houses and public buildings
Tank diameter:	280 cm	Supply capacity:	100 sets per month
Production capacity:	600-2400 sets of modules (residential)/year	Total height of water tank:	1105 cm
Core component warranty:	1 year	Dimensions (LWH):	36m, 3.36.6m, 3.6*7.2m
port:	Wuhan, Shanghai, Ningbo, any port in China	Tank volume:	60 cubic meters
Voltage:	380V	Marketing Type:	Hot Products of 2019
After Warranty Service:	Video technical support, online support, spare parts, on-site maintenance and repair services	Mechanical test report:	if
Applicable industries:	Hotels, Clothing Stores, Building Materials Stores, Machinery Repair Shops, Manufacturing Plants, Food and Beverage Factories, Farms, Restaurants, Household, Retail, Food Stores, Printing Shops, Construction, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Showroom location:	not any
After-sales service provided:	Video technical support, on-site installation, commissioning and training, on-site maintenance and repair services, free spare parts, online support	Video outbound inspection:	if
Storage weight:	80 tons	payment terms:	L/C, T/T
Core components:	PLC, engine, bearing, gearbox, motor, pressure vessel, gear, pump	weight:	3600 kg
Packaging Details:	Packed in wooden case.	Steel Thickness:	6mm
Trestle height:	300 cm	Origin:	Hubei, China
Unique selling point:	Full hydraulic system	Warranty:	1 year
Health status:	new	strength:	1.4 kW
brand:	TC	Straight section height:	900 cm

Product Description

We need six machines to complete the production

parameter	house forming machine (Model: TC8010)
in principle	hydraulic
automation	semi-automatic
production method	reinforced concrete filling
molding time	2-3 hours
Machine material	All steel
side panel	slideable
inner box	retractable
weight	17000-23000KG
size	36m, 3.36.6m, 3.6*7.2m
customizable	Yes

parameter	House quick-setting machine A (Model: TC8021)	house fast- condensate machine B (Model: TC8022)
efficiency	500kg/h evaporation capacity	1000kg/h evaporation capacity
preset pressure	0.7Mpa	0.7Mpa
temperature	170 degrees Celsius	170 degrees Celsius
Voltage	380V	380V
strength	1.4 kW	3.3 kW
weight	2500 kg	4500 kg
size	1m in diameter, 2.6m in height	Diameter 1.5m, height 2.8m

parameter	CNC Rebar Processing Machine (Model: TC8030)
processing speed	20-40m/min
Processing diameter	4-14mm steel bar
Rebar type	Round bars, deformed bars
in principle	hydraulic
Control System	CNC system
Voltage	380 volts
strength	9 kW
Machine size	20075110cm
weight	900 kg

concrete mixing plant

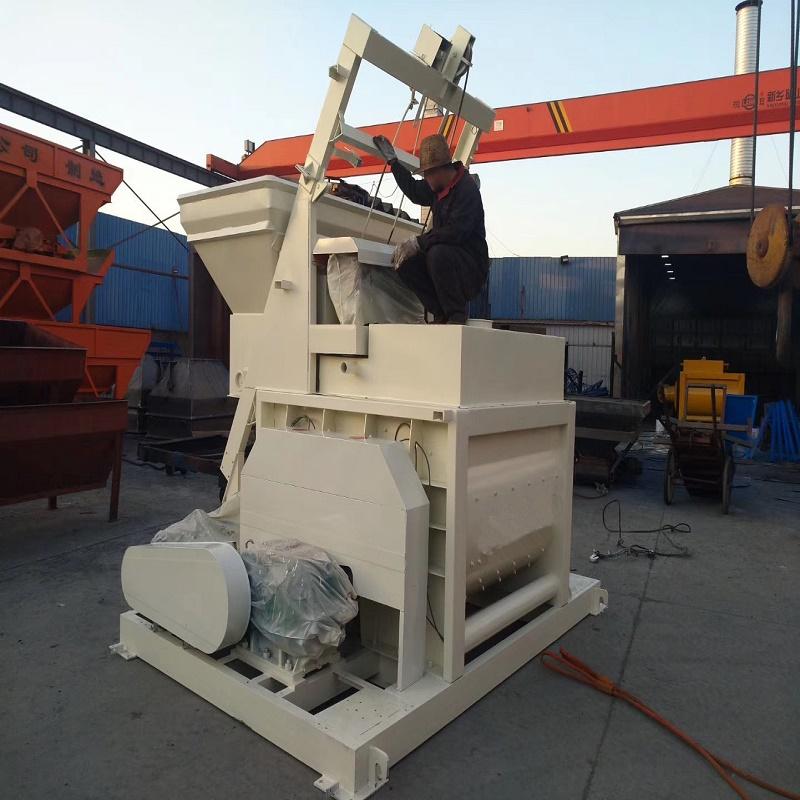

parameter	Concrete mixer A (Model: TC8041)	concrete mixer B (Model: TC8042)
Feed amount	800L	1600L
Discharge	500L	1000L
efficiency	25 cubic meters / hour	50 cubic meters / hour
Rotating speed	35 rpm	25 rpm
aggregate size	up to 80mm	up to 80mm
blade	14 pieces	20 pieces
Voltage	380 volts	380 volts
strength	18.5 kW	37 kW
Machine size	428279651mm	877344654 cm
weight	3900 kg	8750 kg

parameter	Batching machine A (model: TC8051)	ingredients machine B (Model: TC8052)
Weigh volume	800L	1200L
storage hopper	5 cubic meters	7 cubic meters
efficiency	48 cubic meters / hour	60 cubic meters / hour
batch error	±1%	±1%
Maximum weighing value	3000 kg	4000 kg
transfer speed	1 m/s	1.25m/s
Voltage	380V	380V
strength	12 kW	16 kW
Machine size	560183270cm	900250350cm
weight	2450 kg	4500 kg

parameter	Assembled storage tank A (Model: TC8061)	Assembled storage Tank B (Model: TC8062)
storage weight	80 tons	150 tons
volume	60 cubic meters	111 cubic meters
diameter	280 cm	320 cm
straight section height	900 cm	1350 cm
total height	1105 cm	1584 cm
Trestle height	300 cm	300 cm
Steel thickness	6mm	8mm

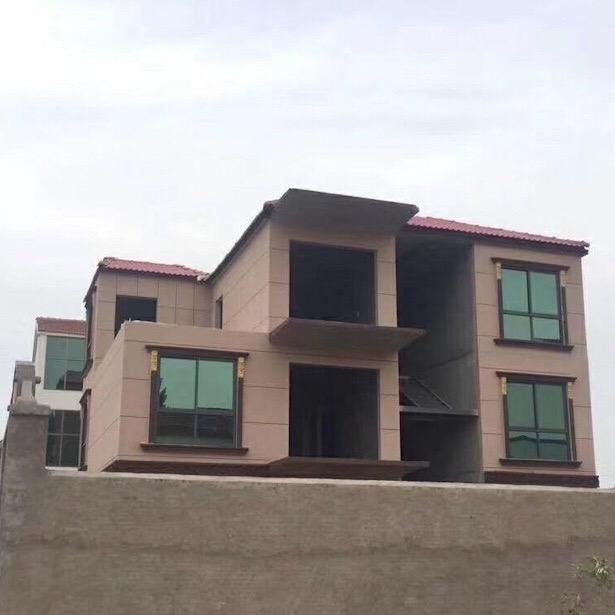

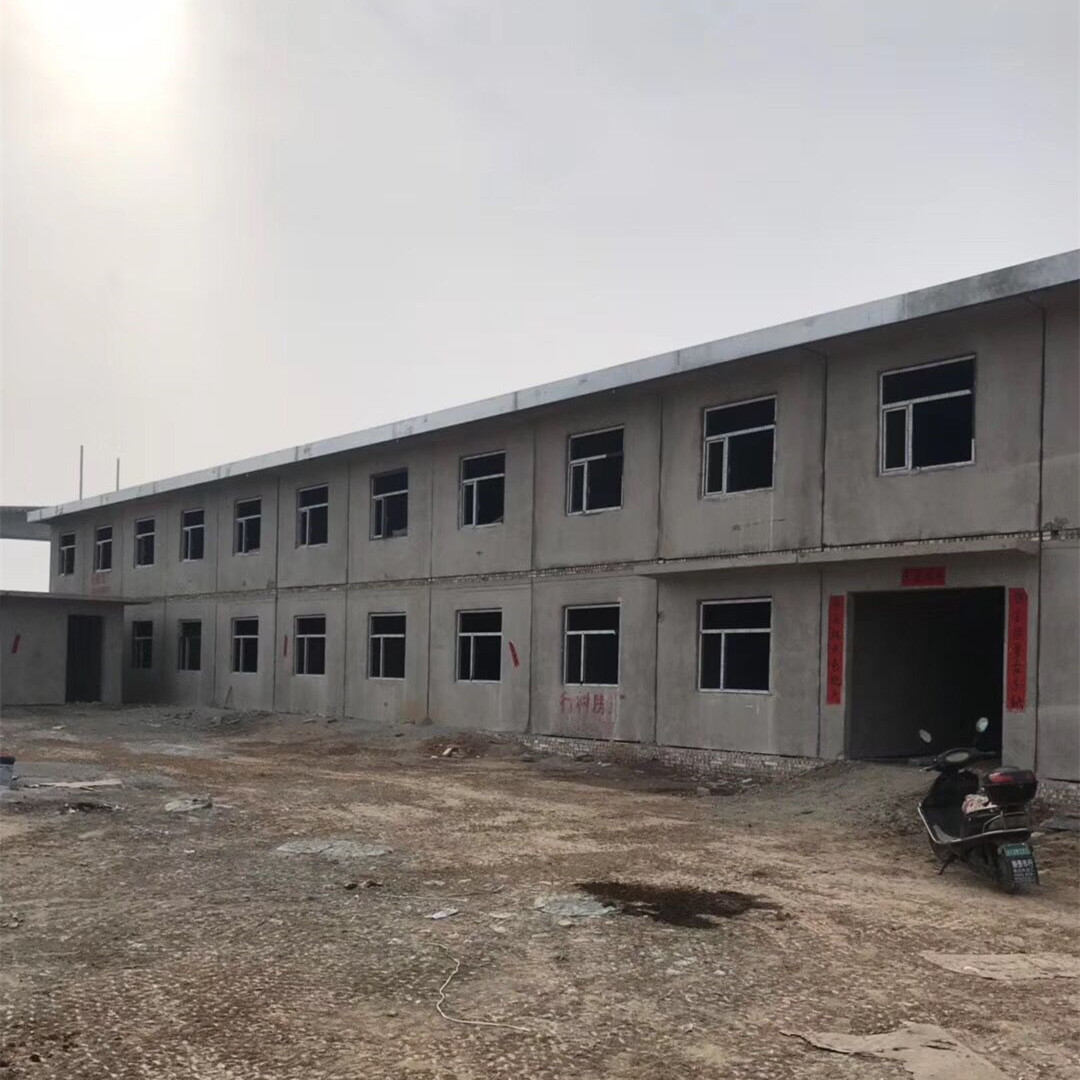

Concrete Modular House Features

1) Low building cost
2) Extremely fast construction speed
3) Anti-seismic ability
4) Wind resistance.
5) Long life

6) Flame retardant
7) Sound insulation
8) Insulation
9) Energy saving and environmental protection
10) Flexible assembly

detailed image

Accessories and tools:

Concrete hoppers, welding machines, wire tops, U-shaped buckles, vibrating rods, lid boxes...etc.

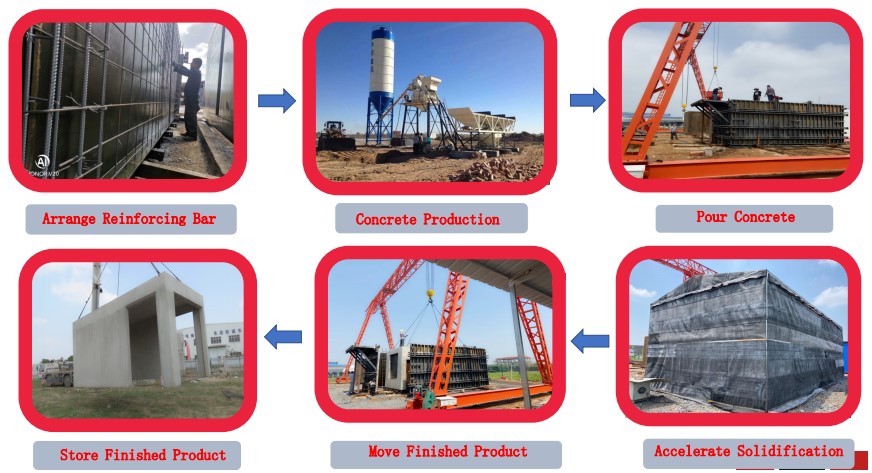

The production process of concrete modular houses

1. The steel bar is processed by the CNC steel bar machine, and the steel bar (rebar) is woven into a grid and covered on the inner chassis of the forming machine.

2. Produce concrete with concrete machinery.

3. Adjust the forming machine, use the gantry crane and the hopper to hoist the concrete into the machine until it is full

4. Cover the molding machine with the quick-setting machine cover, and then turn on the quick-setting machine to make the concrete solidify quickly.

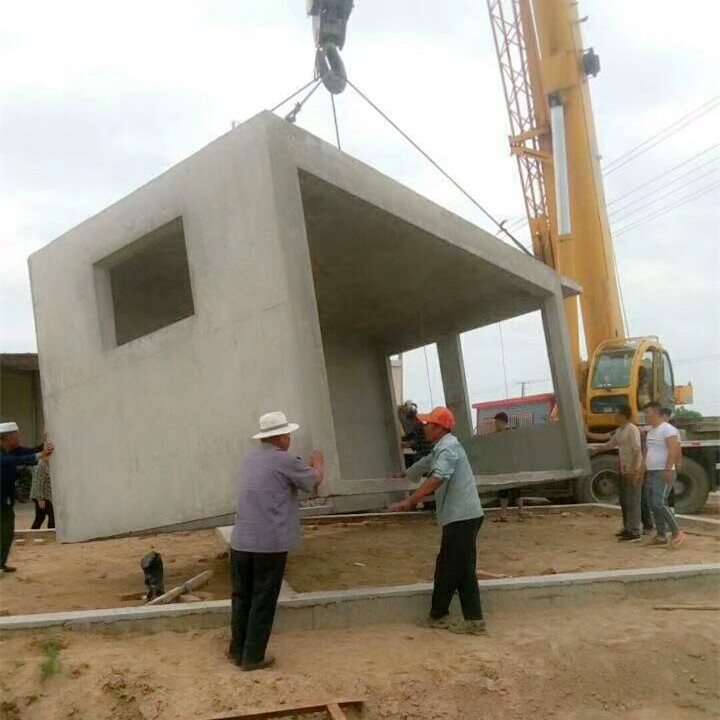

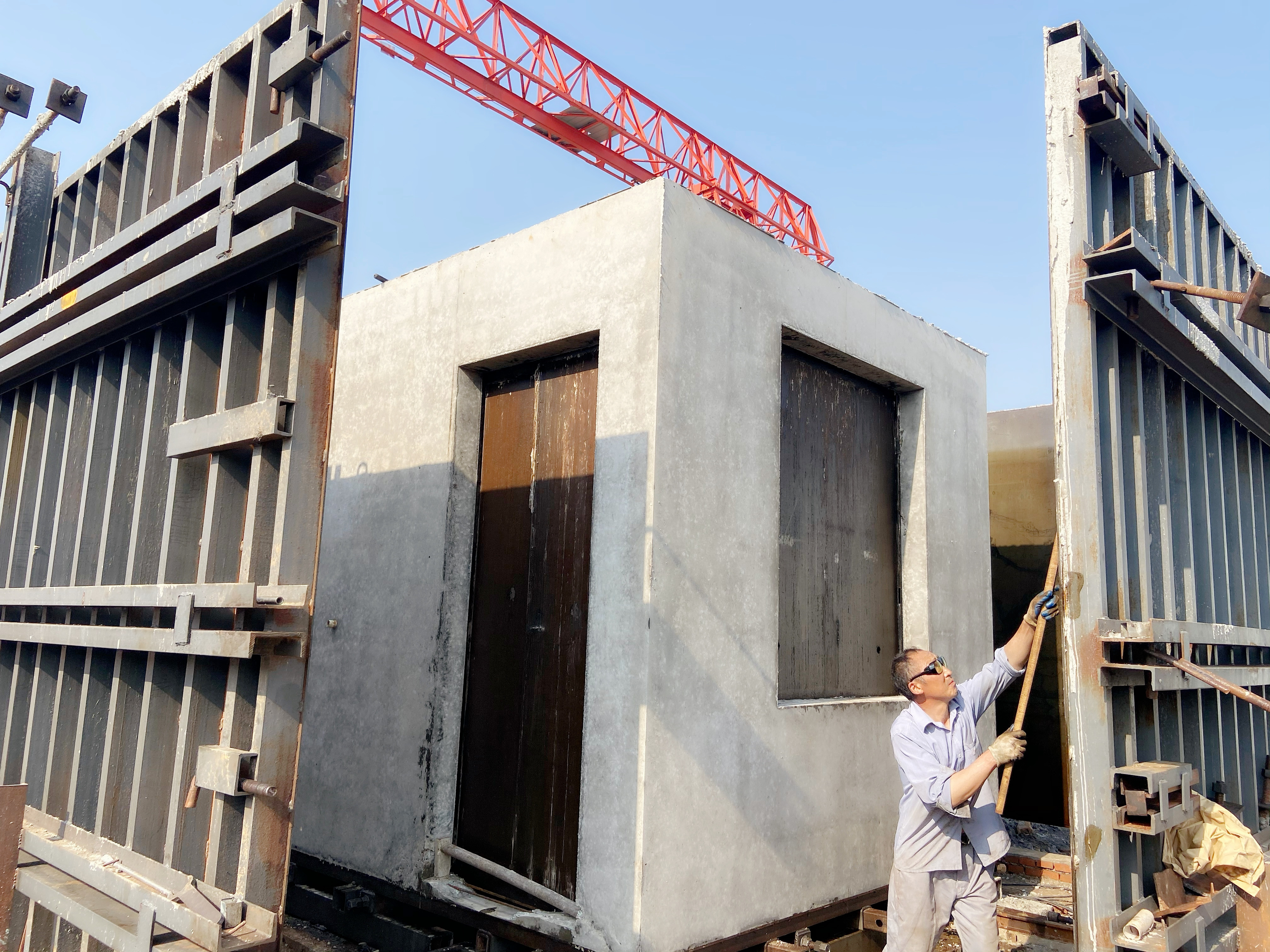

5. After 2-3 hours, a unit combined house is completed, pull out the side panel of the molding machine, adjust the shrinkage of the inner chassis, and separate the house wall. Use the gantry crane to lift the house and store it.

We can purchase tools and equipment for customers, or search and purchase locally

Advantage

It has the characteristics of earthquake resistance, wind resistance, moisture resistance, fire prevention, sound insulation and heat insulation.

The main advantage of concrete modular houses is their low cost compared to traditional brick-and-concrete housesThe construction cost is low, the anti-seismic performance is good, the service life is long, the construction speed is fast, the labor is saved, the service life is long, no construction waste is left, and it can be removed during demolition. It is in line with the development direction of environmental protection construction advocated by the world.

our service

We will provide:

1) Equipment commissioning and technical training,

2) Teach customers to produce, design and assemble houses, and let customers produce and sell houses locally
