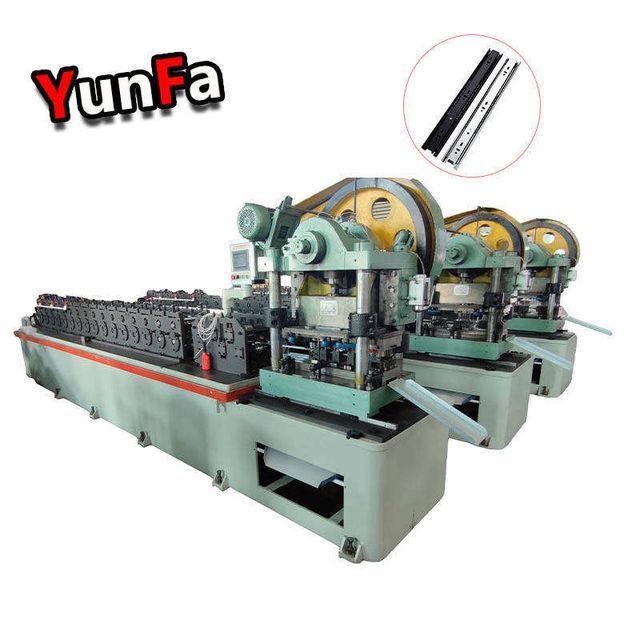

China Manufacturer Manufacturing Machine Technology Production Line Guide Rail Telescopic Channel Roll Forming Machine Drawer Slide
- 70000.00 1 - 1 sets
- 50000.00 >=2 sets
Registered Supplier
Direct Contact
Inquiry via Message
Product Details
| color: | customer request | Mechanical test report: | not available |
| brand: | shipped | Packaging Details: | drawer rail forming machine plywood box |
| Showroom location: | not any | Health status: | new |
| Weight (kg): | 15.6 | Core component warranty: | 1 year |
| Warranty: | 1 year | Applicable materials: | cold rolled steel |
| Video shipment inspection: | if | Supply capacity: | 10 sets per month |
| Material Thickness: | Based on demand | Package preview: | |
| Applicable industries: | manufacturing plant | Marketing Type: | New Products 2022 |

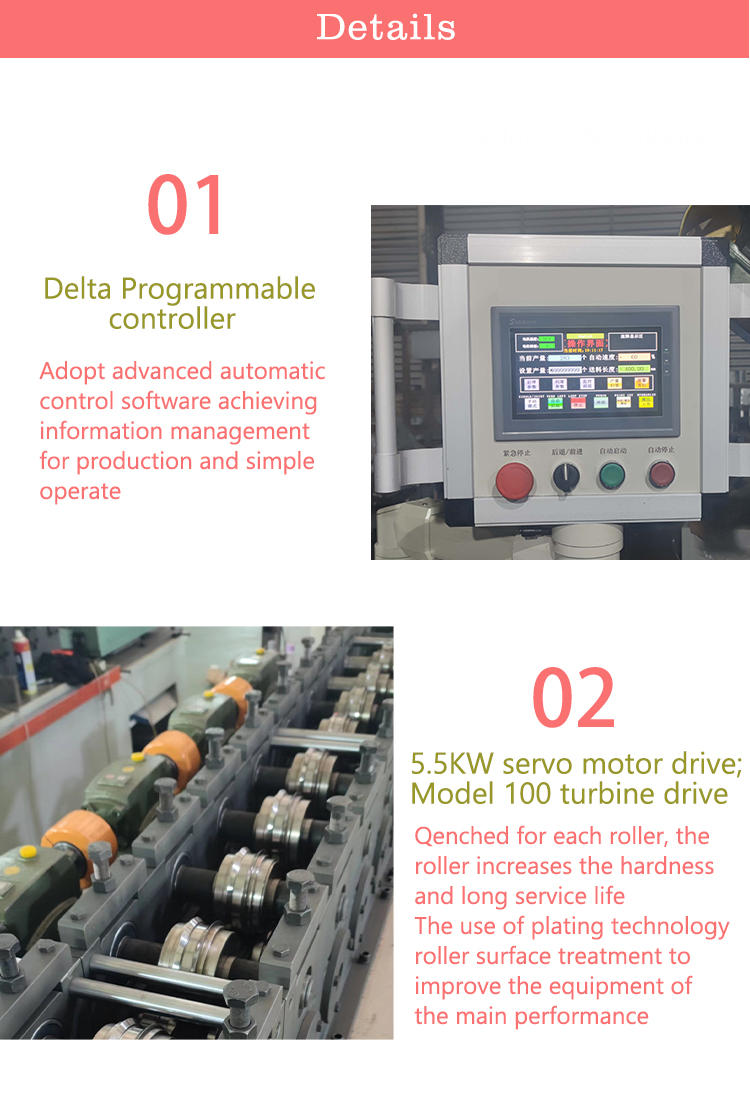

| Core components: | PLC, engine, bearing, gearbox, motor | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Model: | 27#,35#,40#,42#,45# | Voltage: | 380V 50HZ |
| Warranty: | 1 year | port: | Shantou, Shenzhen, Guangzhou |
| Origin: | melon |
Product Description

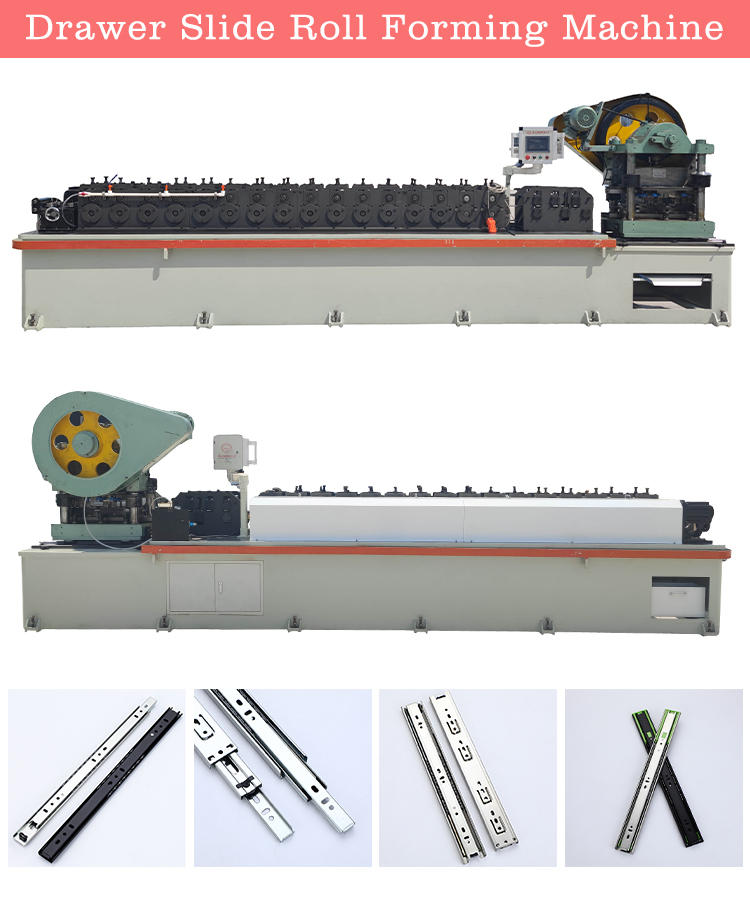

describe | Drawer Slide Roll Forming Machine |
feature | Triple Ball Bearings |
Product width | 35mm/40mm/42mm/45mm/53mm |
product length | 200mm - 650mm (8''-26'') |
Product thickness | 0.7-1.5mm |
strength | 380V/50Hz/3 phase |
Motor Power | 5.5KW |
Machine size | 800*1000*12000mm |
machine weight | About 5.3t |
thing | describe | Function | quantity |

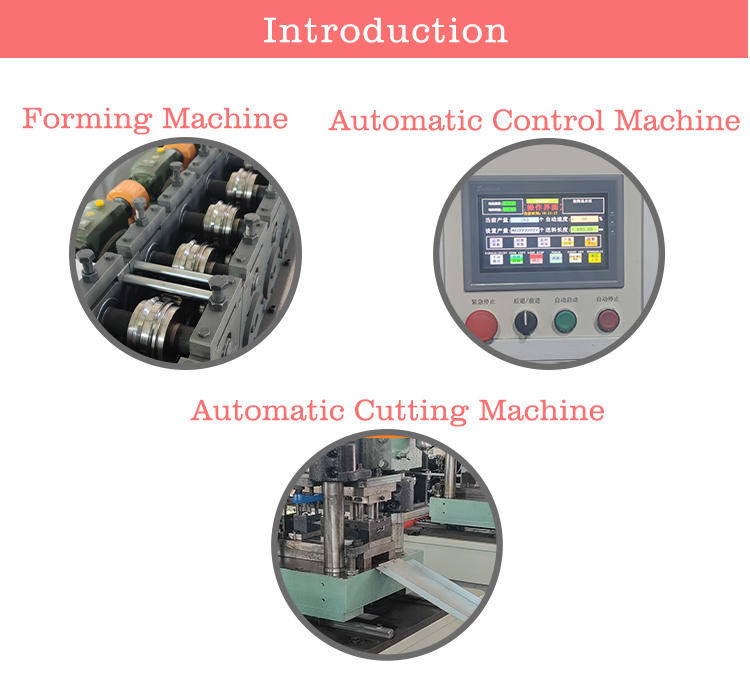

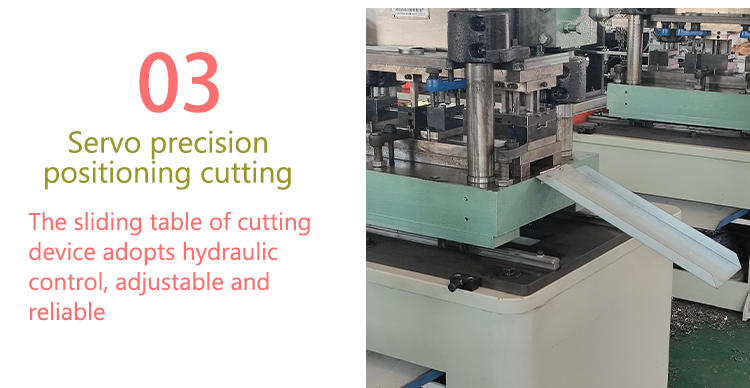

1 | Roll Forming Machine (outside) | 1. Uncoiler 2. Molding 3. Punching and cutting | 1 set |
2 | Roll Forming Machine (middle) | 1 set | |
3 | Roll Forming Machine (Inside) | 1 set | |
4 | punching die | Punching and cutting guides for roll forming machines | 3 sets |
5 | Ball cage production line | 25T punch + feeder + motor uncoiler | 1 set |
6 | Automatic ball loading device | Ball cage + steel ball + mid-slip + oil injection | 1 set |
7 | Rivet assembly machine | For riveted assembly with plastic parts | 1 set |
