10 ton capacity Diesel Dumped Truck for Mining and Building

Supplier: WEIFANG MAP IMPORT AND EXPORT CO., LTD.
Region: Shandong, China
Contact: Ms Cindy Xin
Price: $24500.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Marketing Type:	Ordinary Product;	Engine:	DEUTZ TD226B or CUMMINS engine;
Condition:	New;	Supply Ability:	100 Unit/Units per Month;
Machinery Test Report:	Provided;	Dimension:	7300X2400X3630MM;
Power:	92KW;	Core Components:	Engine,Gearbox;
Local Service Location:	None;	Type:	Hydraulic;
Packaging Detail:	nude packed ,will fixed in container;	Application:	Building Bridge;
After Warranty Service:	Video technical support;	color:	red,yellow,etc;
Port:	Qingdao;	Showroom Location:	None;
Certification:	CE ISO;	Video outgoing-inspection:	Provided;
Weight:	9850;	UNIQUE SELLING POINT:	Fully hydraulic system;
Brand Name:	YS;	Place of Origin:	Shandong China;
Payment Terms:	L/C,T/T;	Applicable Industries:	Building Material Shops,Construction works ,Energy & Mining;
Warranty of core components:	1 Year;	Package Preview:	;
Name:	Concrete Laser Screed;	Warranty:	2 Years,1 Year;

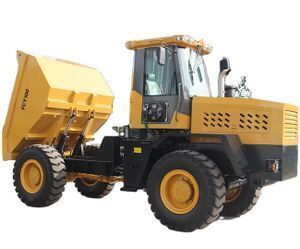

Site Dumper FCY100&FCY100R

Product Description

10TON Site Dumpers (FCY100 AND FCY100R) FCY100 with 4.5CBM usual bucket,FCY100R with 4.5CBM rotating bucket

1. Wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield, protecting road section, the municipal engineering, underground mines and so on.

2. 4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.

3. Easy operation, small turning radius can be used in a narrow site.

4. With self-loading bucket can realize the multifunction tools.

5. CUMMINS Engine as optional makes the performance more reliable

Item	Specifications
Payload	10000kg
Operating weight	9850 kg
Hopper capacity	4.5 m³
Maximum speed	25-30 km/h
Handbrake available on grade	25%
Max grade ability	25%
Distance of road after brake	≤2.5m with load and speed 10km/h
Minimum turn radius	4.5 m
Ground clearance	248 mm
Loading discharge angle	48.4⁰
Time of discharge	8 s
Hydraulic pressure	16 Mpa
Wheel base	2000 mm
Wheel tread	1580 mm
Engine power	92KW
Dimensions (L x W x H)	7300X2400X3630MM
Engine model	DEUTZ TD226B or CUMMINS engine
Rated Power	92KW
Speed	2400 R/Min
C. Drive System
Brand	JINGYI
Transmission:	Power shift 4Forward and 2 reverse gears
Drive shaft:	Tubular-type, open-type, rigid needle-bearing universal joint
Driving axle:	Main drive type: single-stage hyperbolical bevel gear dive
D. Frame
Frame:	Channel steel welding type, two-section articulated connection
Tire:	17.5-25

Packaging & Shipping

Loading and Delivery

FAQ

1.How can I place order?1.How can I place order?

A: You can contact us by email about your order details, or place order on line.

2.How can I pay you?

A: After you confirm our PI, we will request you to pay. T/T or start order from Alibaba trade assurance

3. Are you factory supplier?

A: Yes, we are real factory supplier for over10years, own a super technical team to serve adjusting design for customers

4.How many tons site dumper do you produce ?

A:We are specilized in producing site dumper cover 1ton to 10tons. Model:FCY10, FCY20, FCY30, FCY50, FCY70, FCY100.
5. Which brand engine do you have for site dumpers?

A:We company choose good quality engine for site dumpers, Changchai, Xichai, Weichai Power engine / cummins engine/ Deutz diesel engine and so on optional.

6. What's the order procedure?

A: First we discuss order details, production details by email or TM.Then we issue you a PI for your confirmation.You will be requested to do prepaid full payment or deposit before we go into production.After we get the deposit, we start to process the order.We usually need 7-15 days if we don't have the items in stock.Before production has been finished,we will contact you for shipment details, and the balance payment.After payment has been settled, we start to prepare the shipment for you.
More details please ask us online or send inquiry to us,we will answer first time.
