China 5.0 ton front site dumper For Coal Mine /Road Construction Machine

Click here to contact
Product details
Port:Qingdao;Keywords:site dumper;
Applicable Industries:Hotels,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ,Energy & Mining;UNIQUE SELLING POINT:Fully hydraulic system;
Warranty:1.5 years;Product name:China 5.0 ton front site dumper;
Condition:New;Supply Ability:200 Unit/Units per Month;
Packaging Detail:nude packed ,will fixed in container;Usage:Asphalt Equipment Bitumen Tank;
Application:Concrete Surface;Place of Origin:Shandong China;
color:red,yellow,etc;Payment Terms:L/C,T/T;

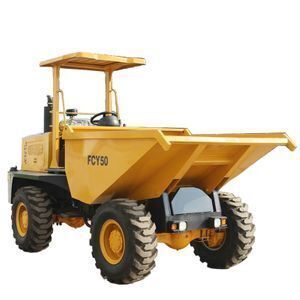

     FCY50 5ton New Design Dumper



Product Description

Product Description

This product is made in china ,widely used in construction work and bulk materials transport.

1.Medium-sized engineering dumper 5 ton,4*4drive, Full Hydraolic steering,can unload materials smoothly by strong hydraolic pressure unloading syatem. The product is stable performance, simple opreation,low fuel consumption,widely usea in constrction engineeringmmunicipal engineering,urban and rural landscape,road traffic ,the station terminals,irrigation and water conservancy and various types of coal mines,battlefields,cement plant,condtaction sites,etc.especially suitable for narrow site loading and short distance running sand,gravel,coal,slag,loam.garbage and etc.

2.Easy opreation,small turning radius can be used in a narrow environment.With full seal cabin optional

3.With self loading bucket can realize the mutilfunction tools.

4.DEUTZ engine as optional engine which makes he performance more reliable.

5.Off road wider types as option ,can work in muddy and bumpy roads.

MAIN TECHNICAL SPECIFICATIONS
MODELFCY50
BUCKET CAPCITY2.0M3
RATED LOAD5000KG
OPREATING WEIGHT2850KG
MAX TRACTION45KN
GRADBILITY30°
MINI TURNING RADICUS4000MM
GROUND CLEARANCE248MM
NOISE LEVEL≤102db(A)
LOADING DISCHARGE ANGLE48.40°
TIME OF DISCHARGE8S
TREAD1580MM
WHEEL BASE2000MM
OVERALL DIMENSIONL4250*W1950*H2300
ENGINE
MODELWEICHAI HUAFENG4102
TYPEUP-RIGHT,WATERCOOLED,4 STOKES,4CYLINDERIN-LINE,DIRECT FUEL INJECTION
FUEL CONSUMPTION248g.kw/h
SPEED2400R/MIN
BORE*STROKE PISTON100*102
WEIGHT350KG
RATED POWER47KW
MAX TORQUE270N.M
DRIVE SYSTEM
GeraBOXGEAR TRANSMISSION BOX
CLUTCHDRY FRICTION CLUTCH,SINGLE DISC,
DRIVE SHAFTTUBULAR-TYPE,OPEN-TYPE,RIGIDLE-BEARING UNIVERSAL JIONT
NOS OF SHIFTSFOUR FRONT/BACKWARD SPEEDS
MAX SPEED25KM/H
REAR AND FRONT ALEXFOUR-WHEEL DRIVE,Front axle fixed,Rear axle moved(+/-11°)
STEERING TYPEFULL-HYDRUALIC STEERING SYSTEM,CONTROL BY WHEEL,TWO CYLINDERS DOUBLE ACTING
STEERING ANGLES 35°
HYDRAULIC SYSTEM
WORKING PRESS160(kgf/c m2),16MPA
HYDRAULIC PUMPGEAR PUMP
DISTANCE AFTER BRAKE≤2.5M with load and speed 10km/h
OPREATING BRAKEHydraulic shoe system,four wheel mounted
Handbrake mechanically-pirated central sport-type disc
BRAKE TYPEOIL BREAKE
TYRE SIZE20.5/70-16
FRAMEChannel steel welding type,two-section articulated connection
wheel rim9.75H
FUEL TANK50L
HYDRAULIC TANK30L
BATTERY24V   lead storage battery

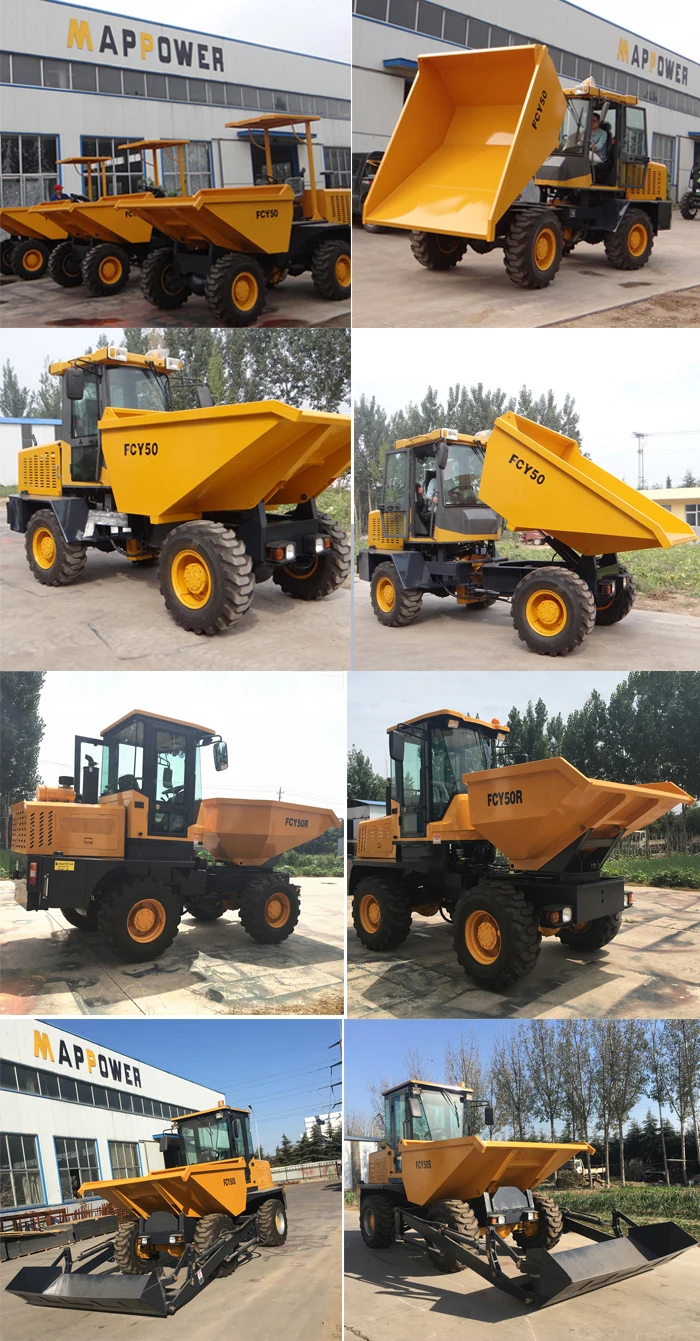

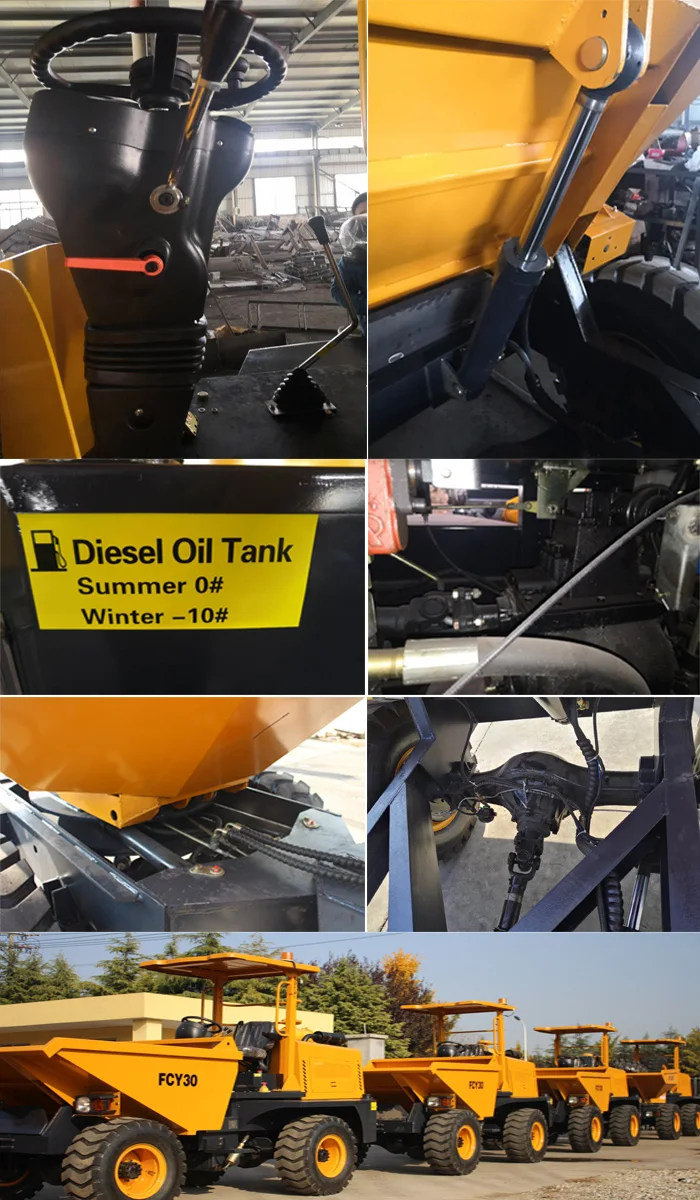

Details Pictures

Details Pictures

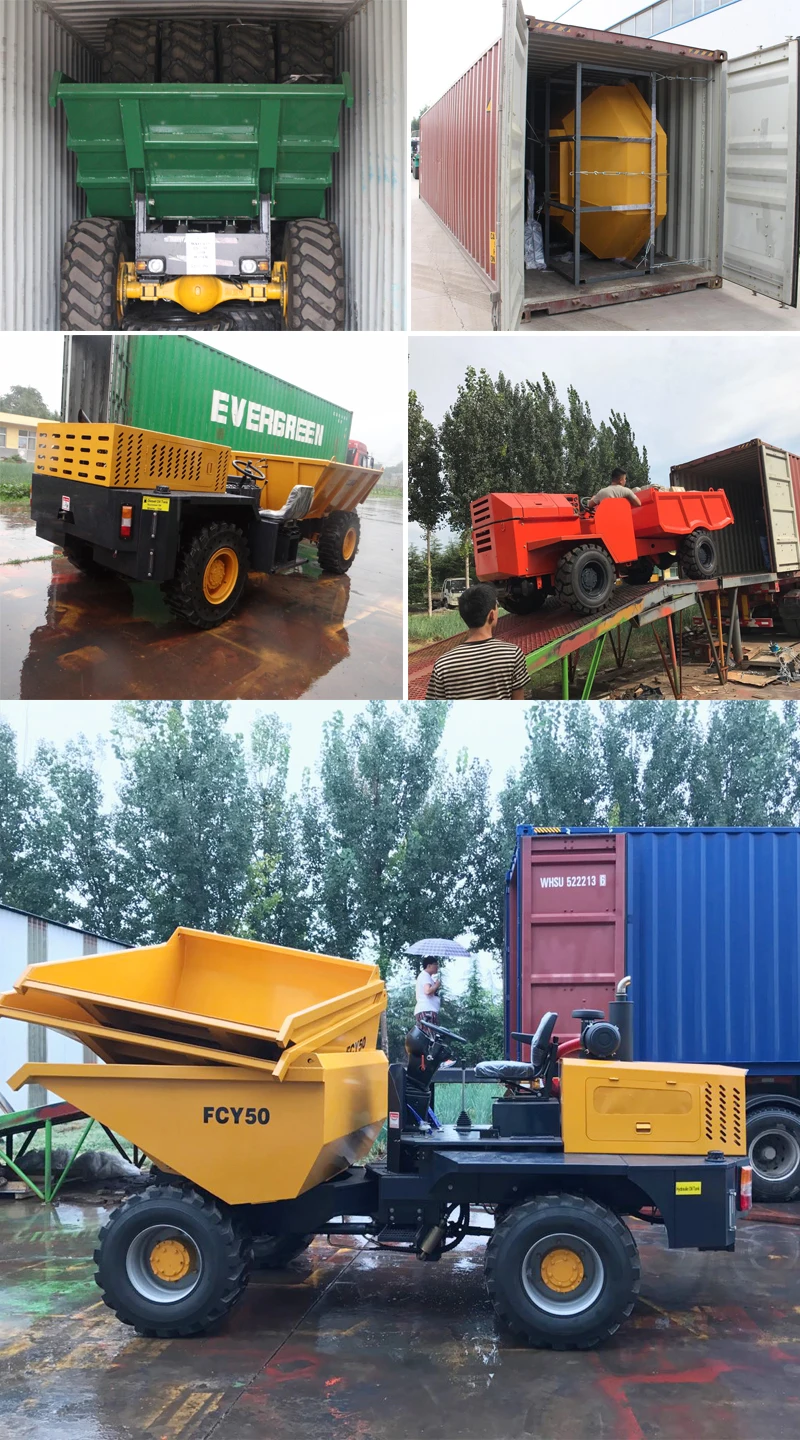

Packaging & Shipping

 Packaging & Shipping



Related Products

Related Products

3 Ton Mini Dumper                         5 Ton 180° Dumper                         10Ton Heavy Duty Dumper





0.8 Ton Mini Wheel Loader             1.6 Ton Wheel Loader                   2.0 Ton Wheel Loader





50HP tractor with front loader    70HP Tractor With Backhoe           90HP Tractor With disc mover
