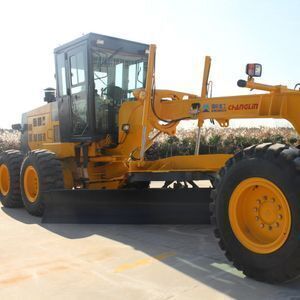

190HP Cheap Changlin 719H Hydraulic Road Grader for sale

Supplier: WEIFANG MAP IMPORT AND EXPORT CO., LTD.
Region: Shandong, China
Contact: Ms Cindy Xin
Price: $59000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Certification:	CE;	Local Service Location:	None;
Payment Terms:	L/C,T/T,Western Union;	Place of Origin:	Shandong China;
Applicable Industries:	Machinery Repair Shops,Farms;	Engine Brand:	CHANGCHAI;
UNIQUE SELLING POINT:	Fully hydraulic system;	Wheelbase:	2780mm;
Showroom Location:	None;	Hydraulic Pump Brand:	Huade;
Supply Ability:	200 Unit/Units per Month;	Warranty:	2 years;
Reverse Speed(km/h):	30;	Engine power:	143KW;
Hydraulic Cylinder Brand:	Liyuan;	Hydraulic system pressure:	16Mpa;
Best price:	High quality;	Condition:	New;
After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Free spare parts;	Port:	Qingdao;
Forward Speed(km/h):	42;	Hydraulic Valve Brand:	Huade;
Packaging Detail:	Standard packing;	Usage:	construction;
Dimension(LWH):	801523803050;	Brand Name:	Map;
Engine model:	CUMMINS;	Turning radius:	6600mm;
After Warranty Service:	Online support,Spare parts,Field maintenance and repair service;	Certification:	CE;

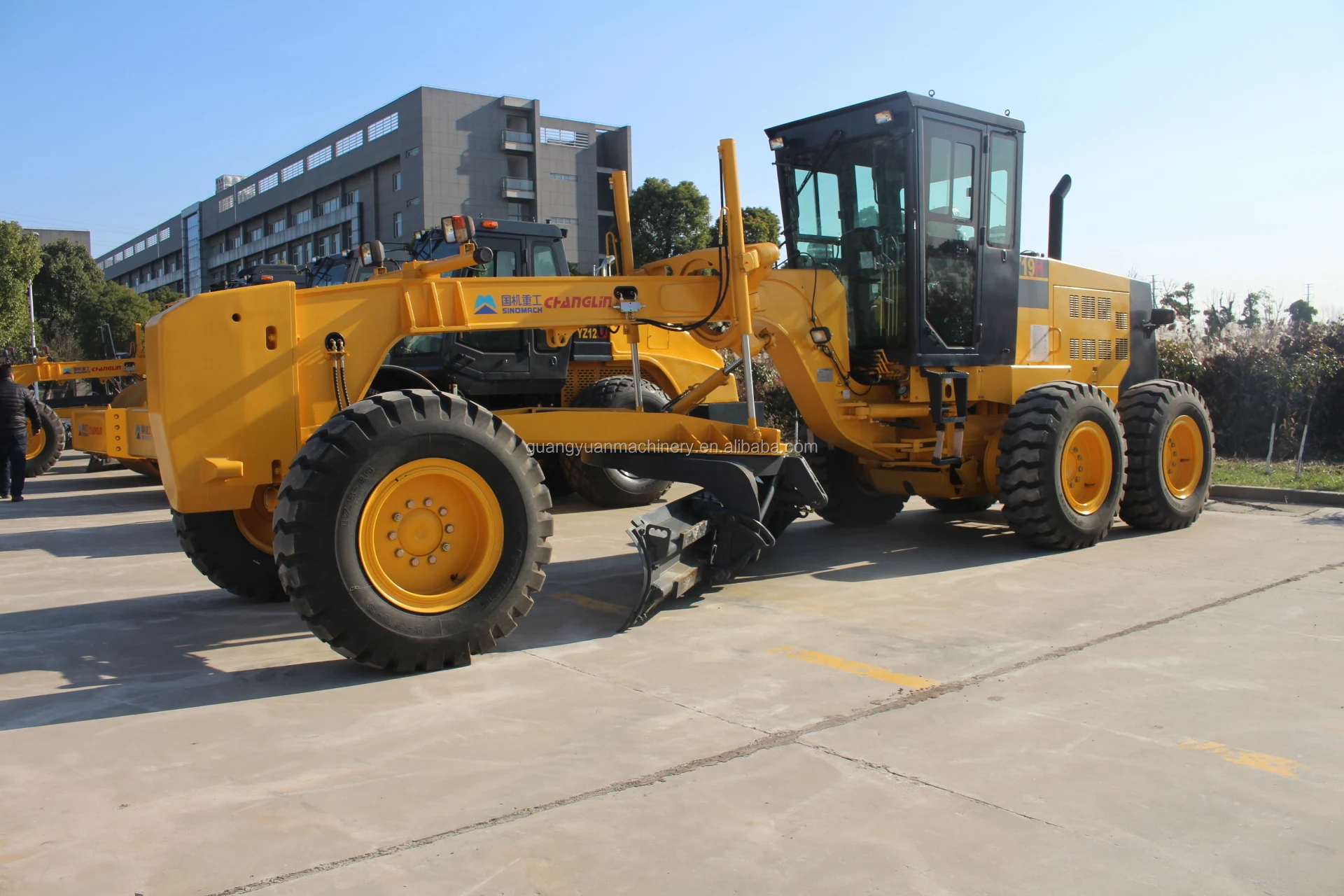

Self-propelled Articulated 190HP Cheap Changlin 719H Hydraulic Motor Grader for sale

719h MOTOR GRADER

Product Overviews

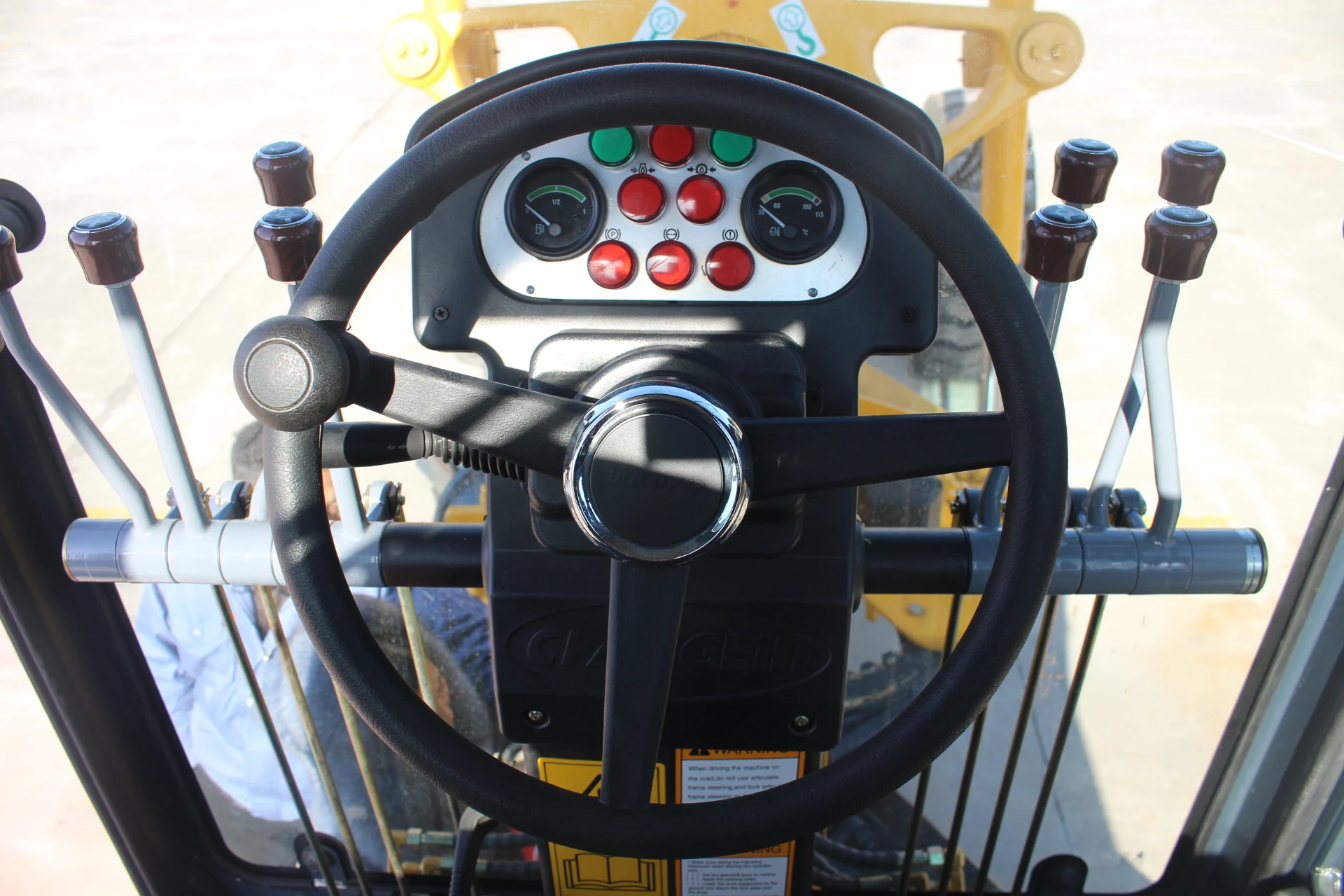

719H motor grader adopts power shift transmission featuring sing-handle manipulation and electro-hydraulic control. With 6 forward and 3 reverse gears shifting, the vehicle is easy and convenient to operate. It also utilizes a highly efficient hydraulic system with hydraulic lock, enabling normal operation of every unit. Moreover, the fully hydraulic brake system provides high working
safety and reliability for the equipment.
Specifications for Your Reference

Overall Dimension
1 LengthWidthHeight(To the top of the cab)	938526003370mm
4 Wheel base	6150mm
5 Tread	2120(mm)
Main Technical Specification
1 Operating weight	15800kg

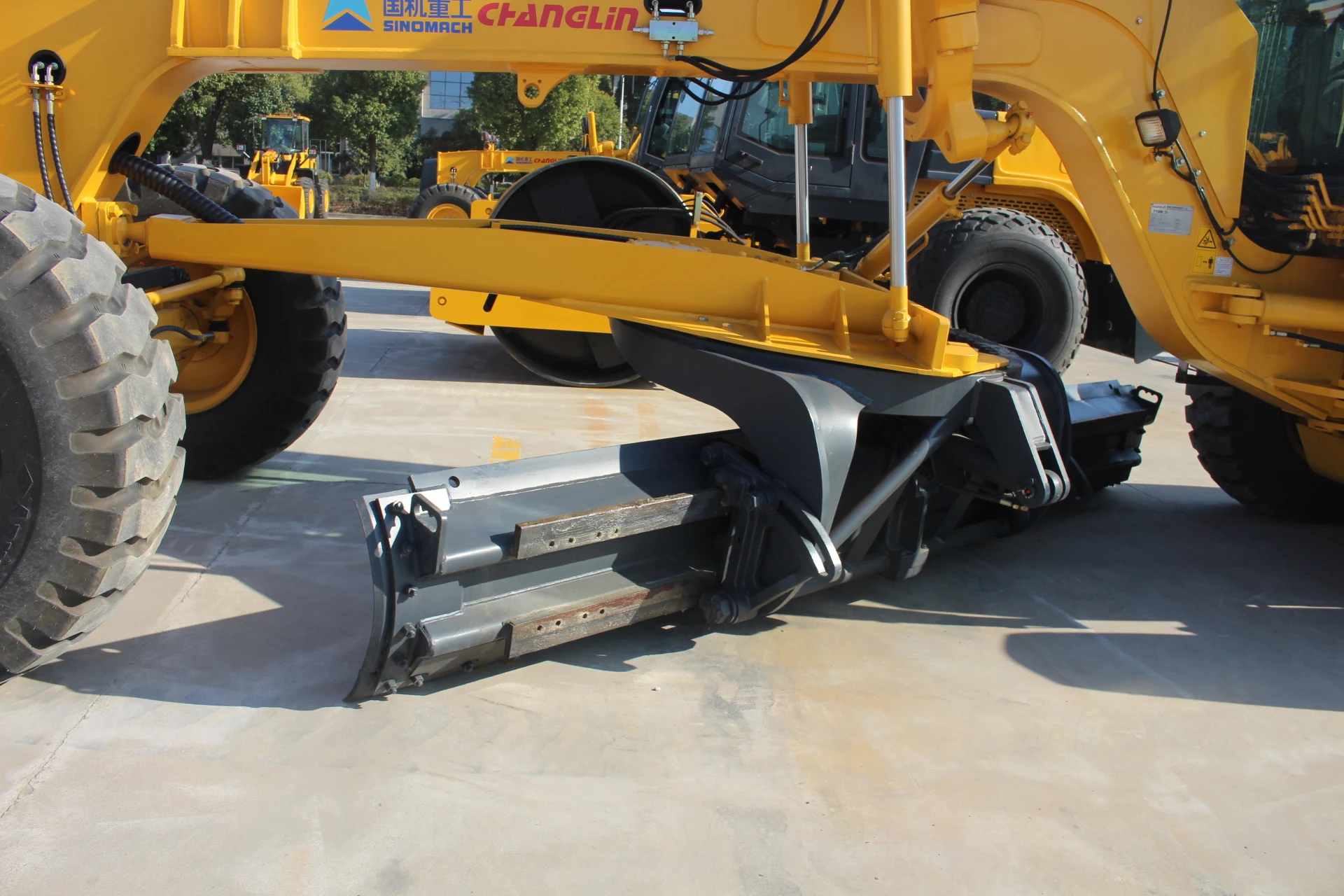

2 Blade length	4268mm
3 Blade height	550mm
4 Blade width	16mm
5 Max lifting height	450mm
6 Max grading depth	535mm
7 Min. turning radius	7400mm
8 Pivot angle frame	±26°
9 Max turning angle(front wheel)	±49°
10 Oscillating angle of front axle	32°
11 Front axle center grond clearance	610mm
12 Traveling speed(Km/h)	6 forward and 3 reverse
Diesel engine
1 Model	USA engine 6CTAA8.3-C185 (TIER2)
2 Type	Direct injection. Turbocharged.
3 Rated output	138kW
4 Inter-bore of cylinder/Stroke	114/135 (mm)
5 Total exhaust of cylinder	8.3(L)
6 Power of start motor	7.5 (kW)
7 Voltage of starting motor	24(V)
8 Rated speed	2200(r/min)
9 Max. Torque	902(N.m) /(1400r/min)
10 Starting type	Electric
11 Min. specific fuel consumption	211(g/Kw.h)
12 Net weight	617(kg)
Transmission System
1 Model	WG180 technology
2 Type	3-elements.single stage
3 Torque ratio	2.35
4 Cooling type	Pressure oil circulating
3.Axle and Tire
1 Type of main reducer	spiral bevel gear, single stage
2 Gear ratio of main reducer	3.583
3 Type of final reducer	Single stage chain-drive
4 Gear of ratio of final reducer	3.75
5 Gear ratio	13.436
6 Tandem drive	Double row roller-chains
7 Size of tire	17.5-25-12PR(standard)
