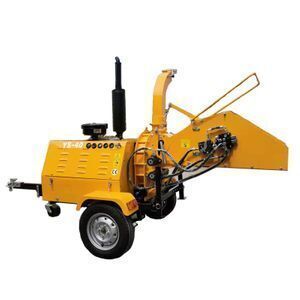

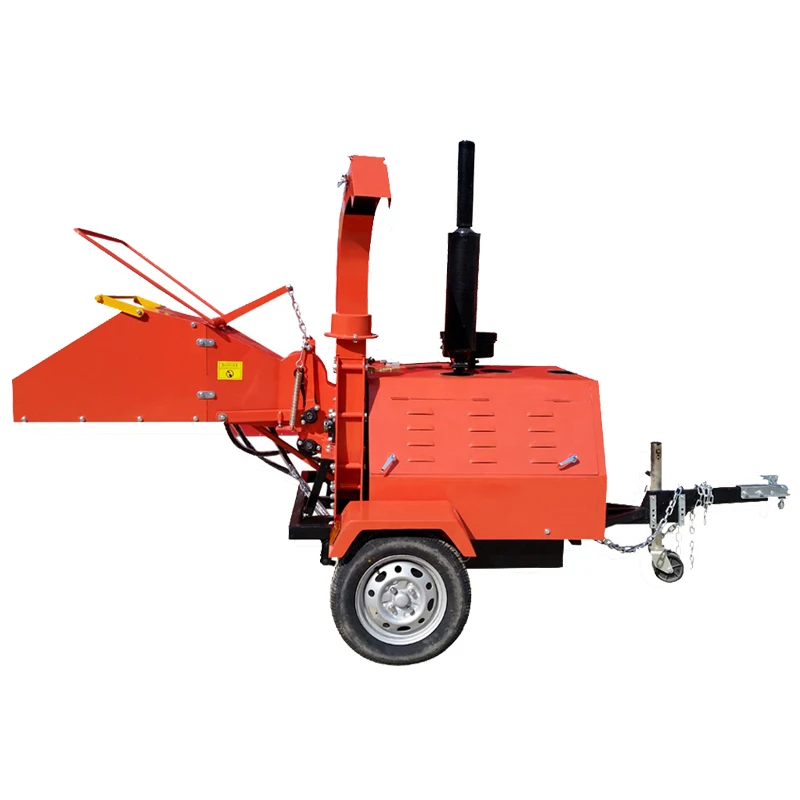

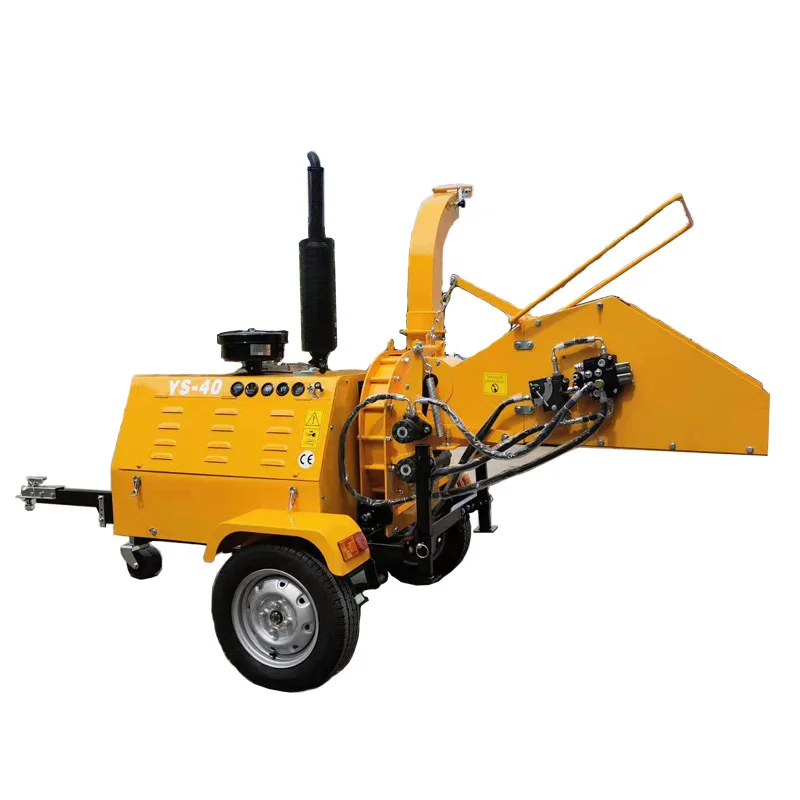

40HP Heavy Duty Diesel Engine Hydraulic Mobile Wood Chipper With CE

Click here to contact

Product details

Use:	chipping wood;	Local Service Location:	None;
Brand Name:	MAP;	Keywords:	wood chipper;
Starting type:	electric start;	Packaging Detail:	Iron crate, 10units by disassembly in 20' GP container;
Feed hopper inner opening:	200*220 mm;	Supply Ability:	500 Unit/Units per Month;
Applicable Industries:	Machinery Repair Shops,Farms,Home Use,Retail,Energy & Mining,compost;	Color:	Customer Requirements;
Knives number:	1 stationary knife; 2 rotor knives;	Dimension(LWH):	1200x1400x1100mm;
Engine:	Changchai 490;	Port:	Qingdao;
Power Type:	Diesel;	Key Selling Points:	8 inch;
Rotor plate size:	60cm;	Name:	40HP Heavy Duty Diesel Engine Hydraulic Mobile Wood Chipper With CE;
Weight:	780kg;	Working efficiency:	8-9 m3/h;
Type:	Wood Chipper;	Condition:	New;
Place of Origin:	Shandong China;	Certification:	CE;
Condition:	New;	Feeding system:	full hydraulic (forward, stop and reverse adjustable);
Payment Terms:	L/C,T/T,Western Union,Online;	Showroom Location:	None;

40HP Diesel Wood Chipper

Product Description

40HP Main Specifications
40HP Main Specifications
Engine	Changchai 490
Type	vertical,water cooled,4-stroke,direct injection
No.of cylinders	4
Bore*Stroke	80*90 mm
Rated power/rev.	29/3000 kw/r/min
Min.fuel consumption	Max.247 g/kw.h
Total displacement	1.809 L
Starting type	electric start
Chipper capacity (diameter)	8 inch
Feeding system	full hydraulic (forward, stop and reverse adjustable)
Rotor plate size	60 cm
Rotor plate weight	85kg
Knives number	1 stationary knife; 2 rotor knives
Dimensions (to hopper discharge)	170015501400MM
Feed hopper inner opening	200*220 mm
Discharge hood height	200 cm
Rated rotary speed	1200 rpm
Total Weight	700 KG
Working efficiency	8-9 m3/h
Features

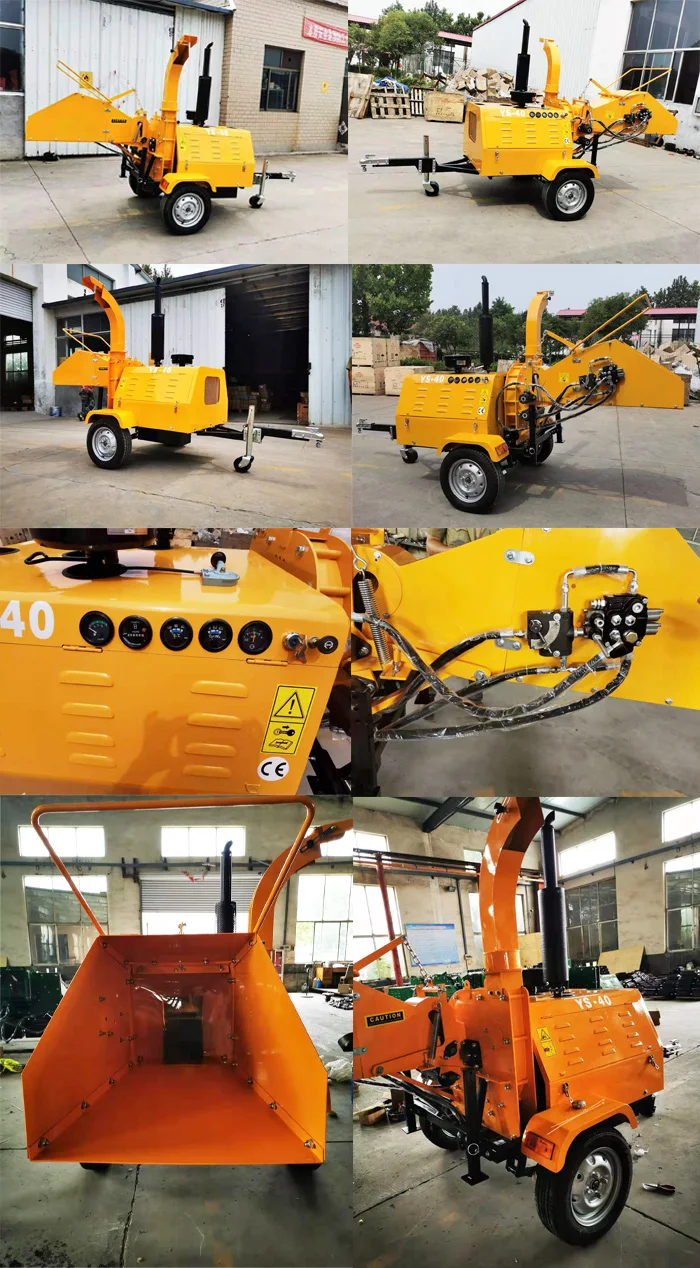

Trailer Mounted Wood chipper, complete automatic hydraulic feeding roller, 3 Bladed, 8" Diameter Capacity, Powered by 40 hp 4 cylinders Electric start diesel engine, Equipped with turning lights, easy discharge hood, 2" Ball Hitch & Safety Chains and leaf spring on the axle. Round flywheel house and square flywheel house,easy to Change knifes. 8 inch wood diameter.
