Portable Mobile Horizontal Sawmill Timber Sawmill

Supplier: Yantai Rima Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr Andy Gao
Price: $1800.00 / 1 - 19 pieces
$1450.00 / >=20 pieces
Min. Order: 1 piece

Click here to contact

Product details

Core component warranty:	1 year	Cutting capacity:	559 x 165 x 2794 mm (22"6.5"110")
Mechanical test report:	not available	Origin:	Shandong China
Core components:	motor, engine	Applicable industries:	Farm, Home, Woodworking Machinery
use:	carpentry	Video shipment inspection:	not available
Blade size:	3670 x 32x 1.2 mm (144"1.25"0.043")	Power (watts):	5500/7500
Power type:	electrical	Shift:	301cc
Main selling points:	easy to operate	strength:	9 hp gasoline engine
Package preview:		Marketing Type:	New Products 2020
port:	Qingdao	Tooth pitch:	22 mm (0.86")
brand:	Rima	Packaging Details:	The normal packing is wooden case (size: LWH). If exported to European countries, wooden boxes will be fumigated. If the container is too tight, we will use PE film for packing or pack according to customer's special requirements.
payment terms:	L/C, Western Union, T/T	track length:	4064mm (160")
Dimensions (LWH):	406417781800mm	weight:	344/380 kg
weight:	355 kg	Health status:	new, new
Showroom location:	Canada	Diameter of impeller:	475mm (18.7")
Warranty:	1 year	Blade speed:	17m/min

Product Description

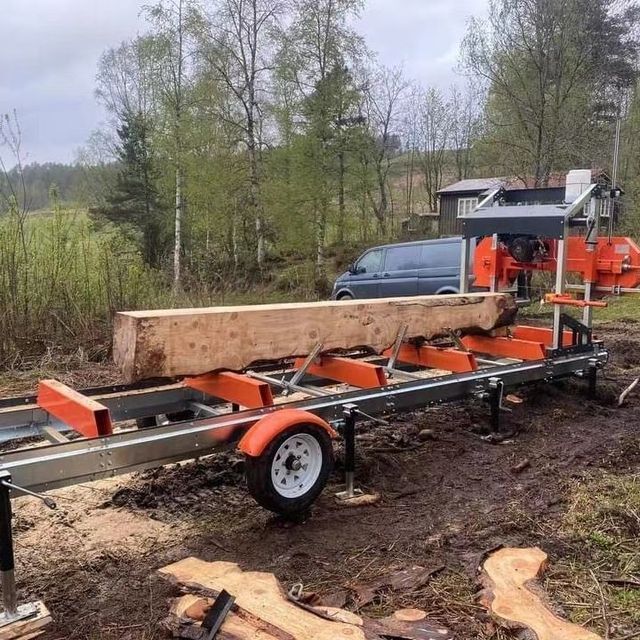

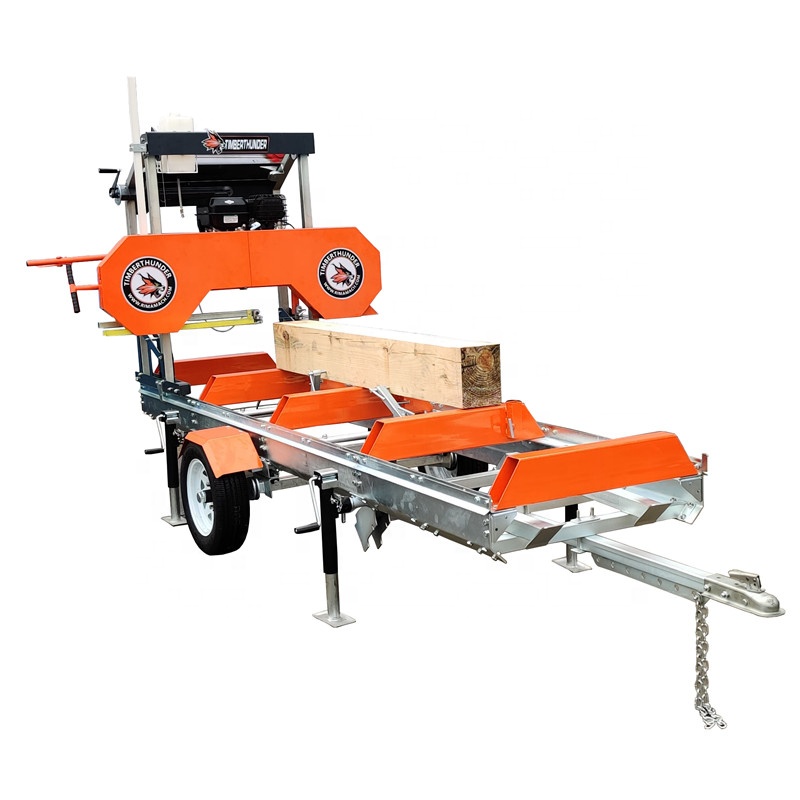

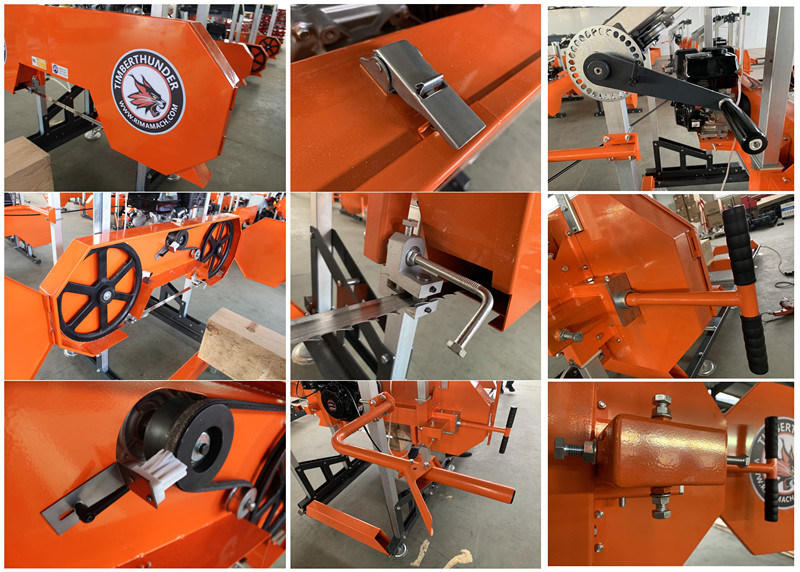

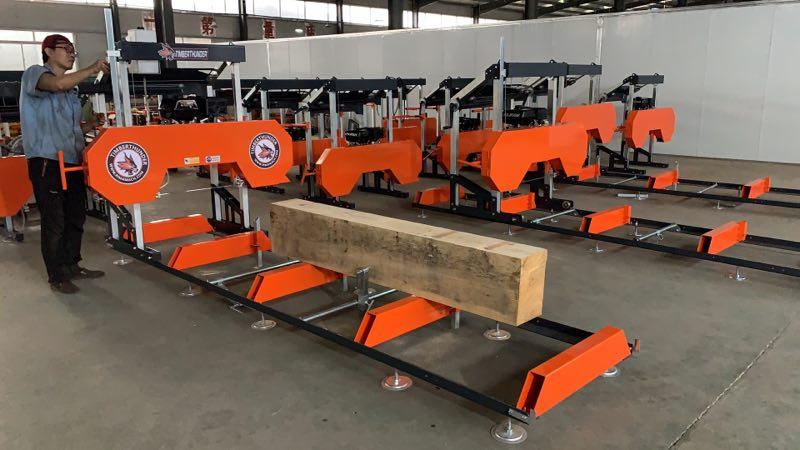

RIMA Portable Sawmills are designed for the budget-conscious customer who wants to start milling their own timber at a great price. Based on our very popular RS26 model, the RS31 offers the woodworking enthusiast an easy-to-use, well-designed sawmill capable of milling logs up to 31 inches in diameter and 110 inches (2.79 meters) in length. The RS26/31 also supports the ability to infinitely expand your track to handle milled logs of any length.

Model	RS26G	RS31G	RS26E	RS31E
strength	Gasoline 9HP (Lifan, manual start)	Gasoline 15HP (Lifan, manual start)	electric motor 5.5KW	electric motor 7.5KW
shift	301cc	420cc	400V 50HZ three phase
cutting capacity	6601782794mm (26”7”110”)	7901782794mm (31”7”110”)	6601782794mm (26”7”110”)	7901782794mm (31”7”110”)
frame	4				4	4	4
Blade size	3690340.9mm (145”1-1/4”0.035”)	3960340.9mm (156”1-1/4”0.035”)	3690340.9 mm (145”1.25”0.035”)	3960340.9mm (156”1-1/4”0.035”)
Standard track size	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)	4000x900mm (157”x35.4”)	4000x1030mm (157”x40.5”)
Package	2080x570x830mm	2150x570x830mm	2080x610x810mm	2150x610x810mm
safe cutting speed	13-15 sec/m			13-15 sec/m
blade speed	17m/min			17m/min
pitch	22 mm (0.86 in)			22 mm (0.86 in)
Diameter of impeller	480 mm (18.8 inches)			480 mm (18.8 inches)
aspect	406417781800mm (160”70”71”)			406417781800mm (160”70”71”)
weight	315/355 kg			352/380kg
40”HC	63			63

Model	RST4-26	RST6-26	RST4-31	RST6-31
trailer axle	50x50mm				50x50mm	50x50mm	50x50mm
Trailer Size (LWH)	3970(+1000mm pull rod)x900x700mm	6000(+1000mm pull rod)x900x700mm	3970(+1000mm pull rod)x1030x700mm	6000(+1000mm pull rod)x1030x700mm
tug with fenders	165/70R13				165/70R13	165/70R13	165/70R13
Trailer Loading Capacity	1500 kg				1500 kg	1500 kg	1500 kg

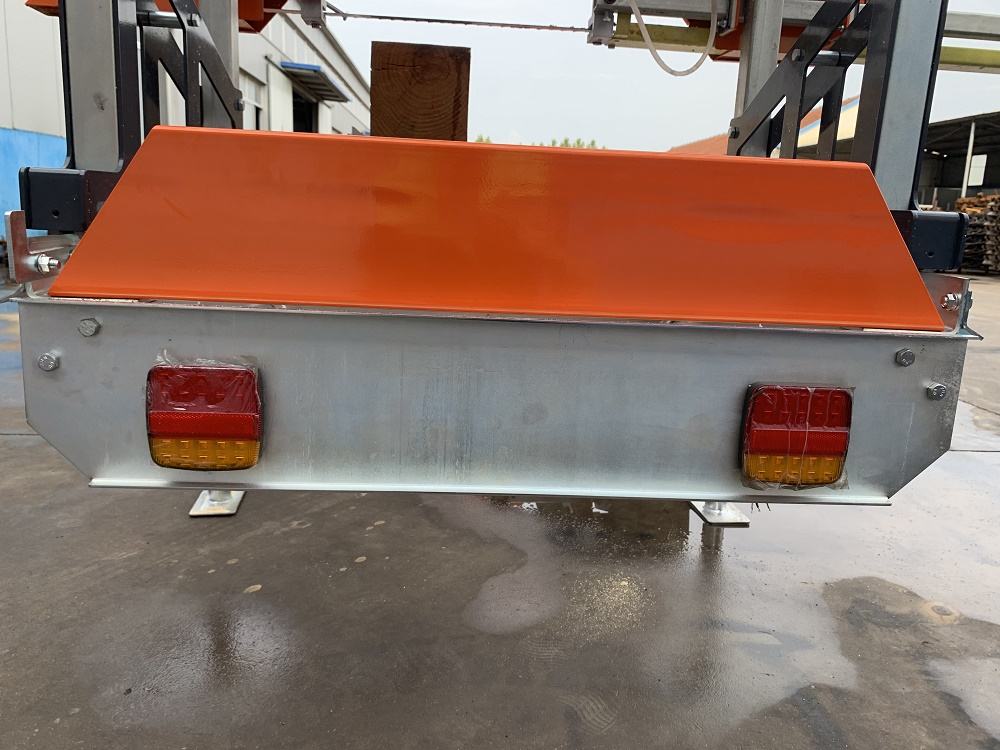

trailer lights	LED light kit				LED light kit	LED light kit	LED light kit

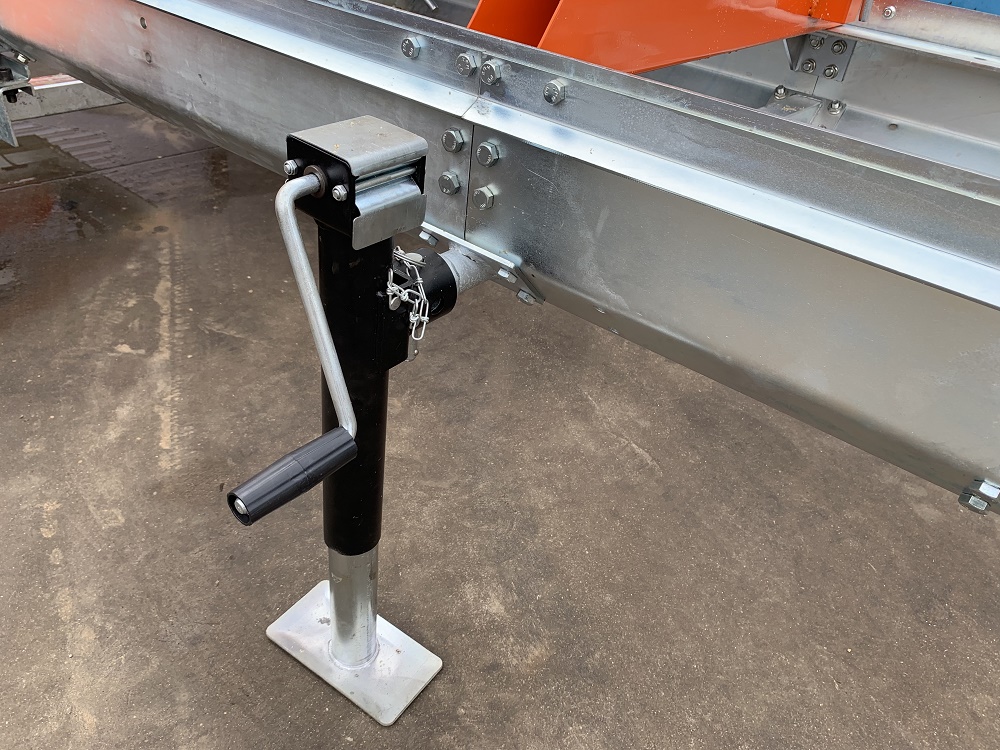

trailer leveling jack	6	8	6	8

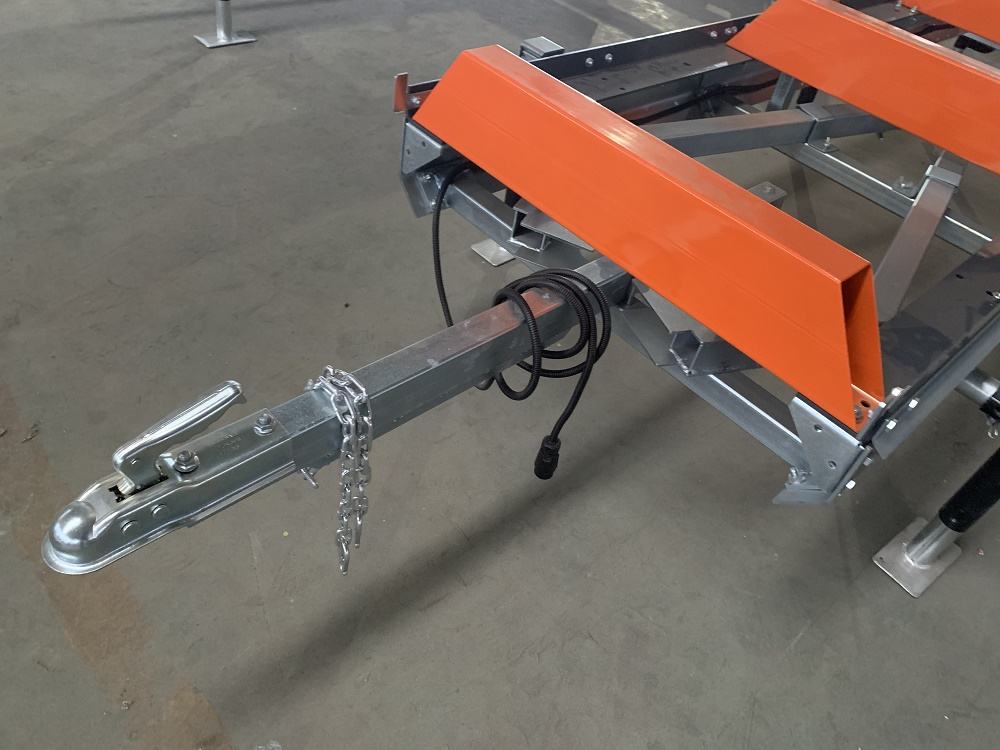

trailer ball hitch	2 inches (50mm)				2 inches (50mm)	2 inches (50mm)	2 inches (50mm)
Finish	galvanized				galvanized	galvanized	galvanized

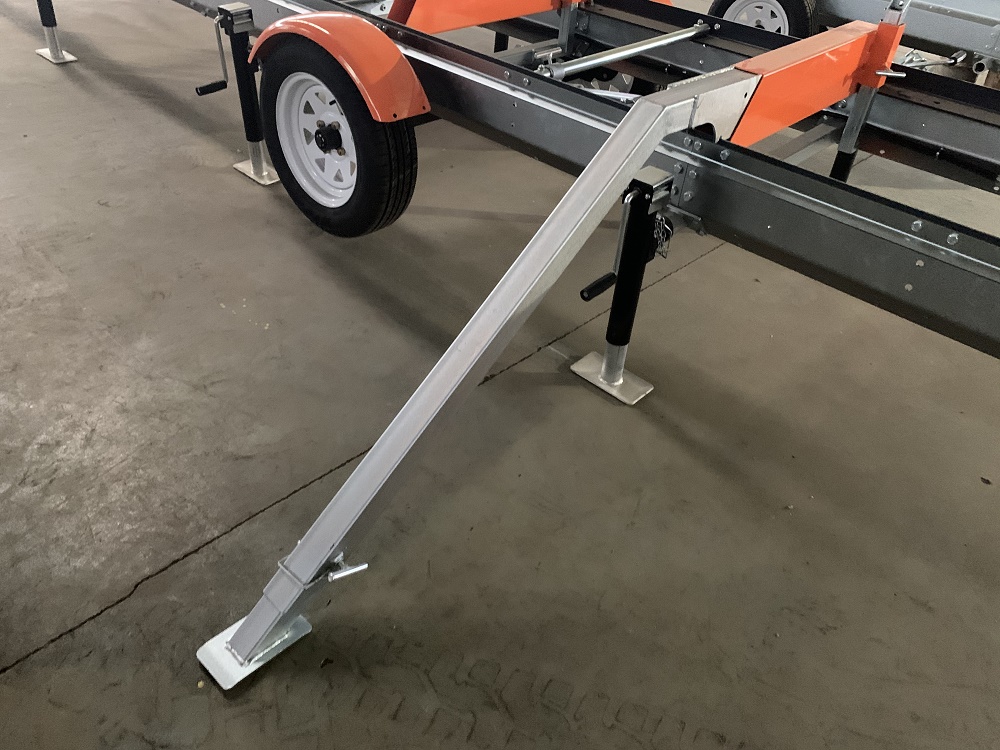

log loading ramp	maximum. 1350 kg				maximum. 1350 kg	maximum. 1350 kg	maximum. 1350 kg
log loading winches	1200 lbs				1200 lbs	1200 lbs	1200 lbs

Model	RS36G	RS36E
strength	Gasoline 27HP (LONCIN, Electric start)	Electric motor 11 kW
shift	764 cubic centimeters	400V 50HZ three phase
cutting capacity	910x380x4800mm (36”x15”x188”)	910x380x4794mm (36”x15”x188”)
frame	4	4
Blade size	4598x40x0.9mm (181”x1-1/2”x0.035”) Carbide 208 teeth	4598x40x0.9mm (181”x1-1/2”x0.035”) Carbide 208 teeth
Standard track size	6000x1010mm (236”x40”)	6000x1010mm (236”x40”)
safe cutting speed	20-30 sec/m	20-30 sec/m
pitch	22 mm (0.86 in)	22 mm (0.86 in)
Diameter of impeller	508 mm (20 inches)	508 mm (20 inches)
Blade automatic lubrication system	Yes	No

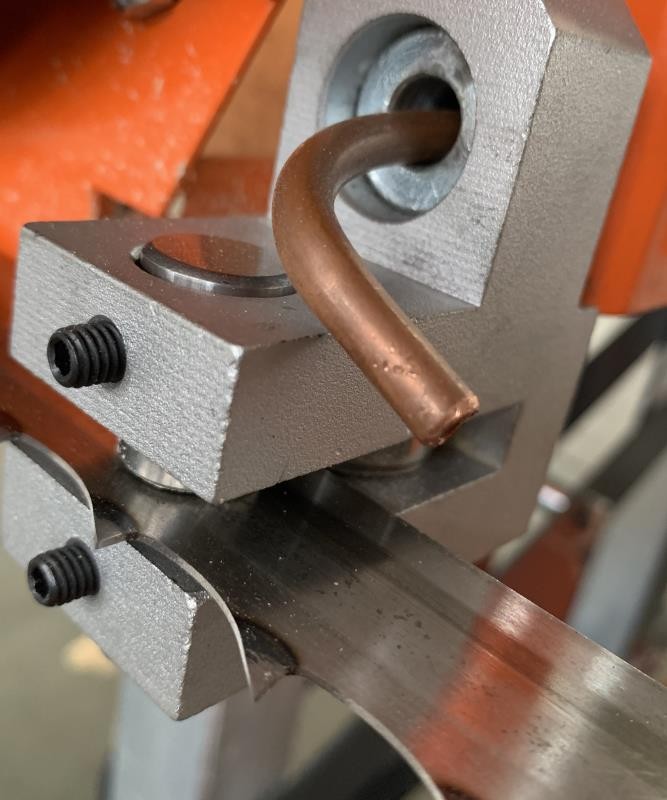

Adjustable Blade Guide	Yes	Yes
Quick Lock Log Clamp	Yes	Yes
Package	2080x750x1050mm	2080x750x950mm
weight	722/782 kg	761/821 kg
20”/40” container	16/34	16/34
