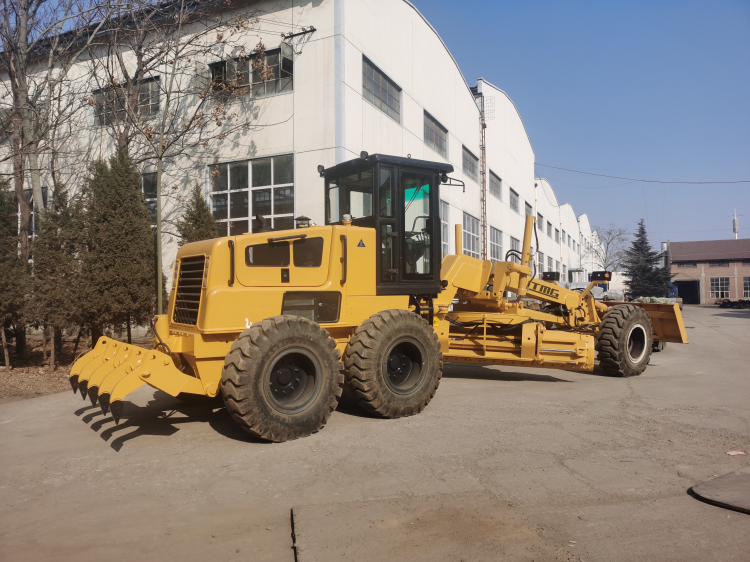

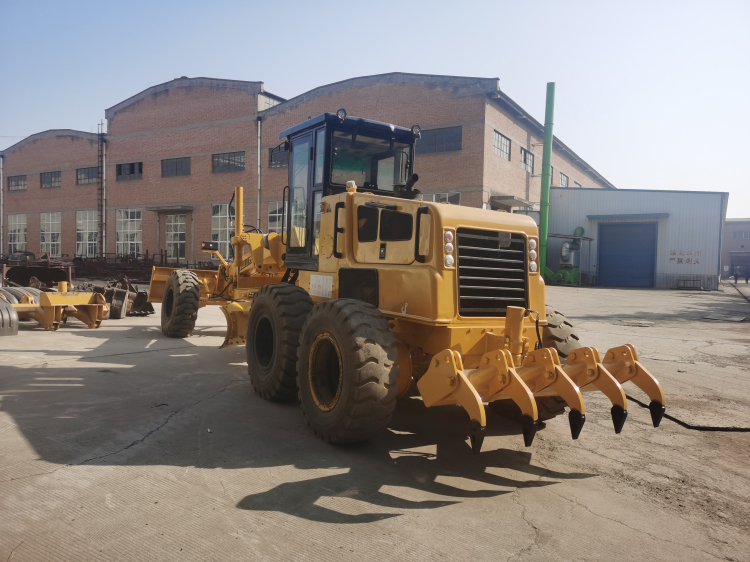

Road Machinery LTMG 14G 150K Articulated 140HP Power Hydraulic Stepper with Power Ripper And Blade

Supplier: Xiamen Ltmg Co., Ltd.
Region: Fujian, China
Contact: Ms Susan Li
Price: $38000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Mechanical test report:	if	Working weight:	18000 kg

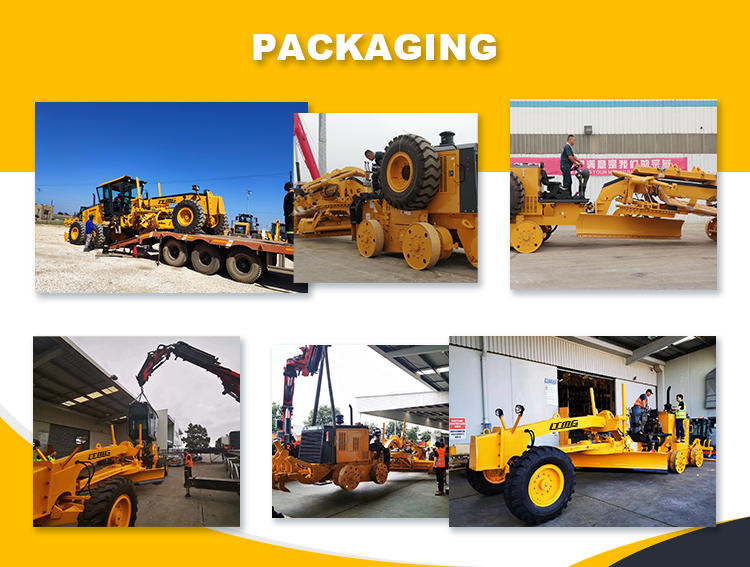

Packaging Details:	Bare packaging, fixed in a container	Working diameter:	610
Hydraulic pump brand:	Jinan	Packaging Preview:
place of origin; place of origin:	Fujian China	application:	compact surface
Warranty:	1 year	port:	Chinese port
weight:	3000 kg	Model:	LG165
Gross weight:	15000KG	Applicable industries:	Building materials store, mechanical repair shop, home use, construction works
rated power:	125kW	Supply capacity:	500 units per month
Dimensions (LWH):	299012802360MM	brand:	LTMG
Overall length:	8900mm	Engine Brand:	long hair/long chai
Showroom location:	Canada, France, Saudi Arabia, Indonesia, Kenya, Algeria, Sri Lanka, Bangladesh, Kyrgyzstan, Nigeria, Morocco, none	Video external inspection:	if
Type of engine:	diesel engine	Drive Type:	Hydraulic drive
Core Components Warranty:	1 year	Forward speed (km/h):	38
color:	client needs	Hydraulic valve brand:	Jinan
engine model:	6BTA5.9	Unique Selling Points:	Full hydraulic system
Marketing Type:	normal product	payment terms:	L/C,Western Union,T/T,MoneyGram
Health status:	new	Core components:	motor, engine
Reversing speed (km/h):	twenty three

product name	LG180	LG140	LG160
Performance parameters
Machine working weight (kg)	15900	11600	15100
Wheelbase(mm)	6260	5812	6260
Wheelbase(mm)	2155	2050	2155
Minimum ground clearance (mm)	430	430	430
Front wheel steering angle (°)	±45	±45	±45
Articulated steering angle (°)	±25	±25	±25
Maximum traction force (kN)	83.5 (f=0.75)	65 (f=0.75)	79.3 (f=0.75)
Turning radius(mm)	7,800 (outside of front wheel)	6600 (outside of front wheel)	7,800 (outside of front wheel)
Maximum gradeability (°)	20	20	20
Cutting edge width (mm)	3660/3965	3660	3660
Blade height (mm)	635	615	635
Blade rotation angle (º)	360	360	360
Blade cutting angle (°)	37-83	30-68	37-83
Maximum digging depth of the blade (mm)	500	500	500
Length (mm)	9015	8036	8726
Width (mm)	2600	2380	2600
Height (mm)	3400	3170	3400
engine
engine model	6BTAA5.9-C180	6BTAA5.9-C150	6BTAA5.9-C160
emission	China-II	China-II	China-II
type	Mechanical direct injection	Mechanical direct injection	Mechanical direct injection
Rated power/rated speed (kw/rpm)	132kW/2200rpm	112kW/2200	118kW/2200
Drive System
torque converter	Single stage single phase ternary	Single stage single phase ternary	Single stage single phase ternary
spread	Countershaft Power Shift	Countershaft Power Shift	Countershaft Power Shift
gear	Six positives and three negatives	Six positives and three negatives	Six positives and three negatives
Forward gear I speed (km/h)	5.4	5.4	5.4
Forward II Speed (km/h)	9.3	8.3	8.4
Forward Gear III Speed (km/h)	12.2	13.2	13.4
Forward IV speed (km/h)	20.7	20.6	20.3
Forward speed V (km/h)	25.6	29.6	29.8
Forward gear VI speed (km/h)	39.7	44	39.6
Reverse I speed (km/h)	5.4	5.4	5.4
Reverse II Speed (km/h)	12.2	13.2	13.4
Reverse III Speed (km/h)	25.6	29.6	29.8
Brake system
service brake type	hydraulic brake	hydraulic brake	hydraulic brake
Parking brake type	mechanical brake	mechanical brake	mechanical brake
Brake oil pressure (MPa)	10	10	10
Hydraulic system
working pump	Constant displacement gear pump, flow 28ml/r	Constant displacement gear pump, flow rate 28ml/r	Constant displacement gear pump, flow 28ml/r
operating valve	Integrated multi-way valve	Integrated multi-way valve	Integrated multi-way valve
Safety valve pressure setting (MPa)	16	16	16
Safety valve pressure setting (MPa)	12.5	12.5	12.5
Filling of fuel/oil/liquid
Fuel tank (L)	340	220	340
Working hydraulic oil tank (L)	110	85	110
Transmission (L)	28	28	28
Drive axle (L)	25	28	25
Balance box (L)	2X38	2X23	2X38
